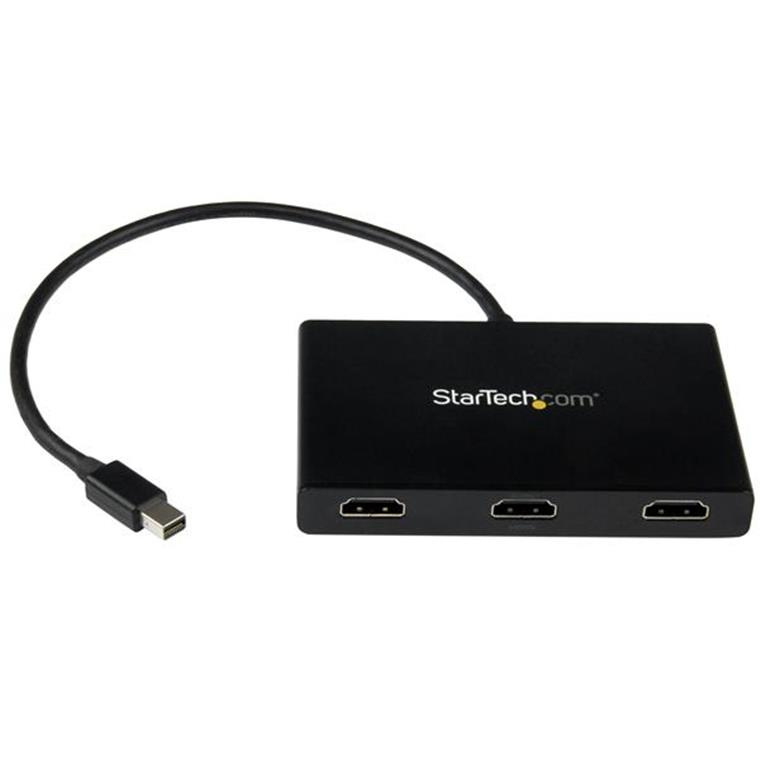

StarTech.com MSTMDP123HD 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p or Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI

PB Tech price
PB Tech price
$ 135 .65
 +GST
$ 156 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

StarTech.com MSTMDP123HD 3-Port Multi Monitor Adapter - Mini DisplayPort to HDMI MST Hub - Triple 1080p or Dual 4K 30Hz - Video Splitter for Extended Desktop Mode on Windows Only - mDP 1.2 to 3x HDMI

  • Brand: StarTech.com
  • MPN: MSTMDP123HD
  • Part #: KVMSTT690125
  • UPC: 065030861519
PB Tech price
$ 135 .65 $ 156 .00
 +GST  inc GST

No store stock available.

Click & Collect: Click & Collect unavailable
  • Brand: StarTech.com
  • MPN: MSTMDP123HD
  • Part #: KVMSTT690125
  • UPC: 065030861519

Maximum Supported Resolution

3840x2160

Features

This MST hub lets you connect three HDMI monitors to your Mini DisplayPort computer. MST works on any Windows® device that supports DisplayPort 1.2, such as models of the Lenovo Think Pad and Microsoft Surface. When connected to earlier revisions of DisplayPort, such as DP 1.1 the MST hub acts as a video splitter.



Increase your productivity with multiple monitors

The newest generations of laptops are more portable than ever, unfortunately this means you're left with fewer video outputs and a small integrated screen. The MST hub solves these problems by letting you connect three independent displays to a single mDP port on your computer, which makes multitasking much easier. Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display, which makes it easier to multitask and increase your productivity - perfect for creating an easy-to-dock hot desk solution with a wireless keyboard and mouse peripheral set. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

https://www.pbtech.co.nz/fileslib/_20170119175440_StarTech_MST_HUB_Descr_001.jpg



Astonishing picture quality that won't drain your system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. 4K is supported by the latest A/V devices and delivers four times the resolution of 1080p. Plus, because the MST hub can output high-definition 1080p, the MST hub is perfect for all high-resolution applications such as graphic design and medical imaging.

Extend Your Performance

Specifications

Audio

Yes

Output Signal

HDMI

Ports

3

Maximum Digital Resolutions

3840 x 2160 @30hz

Supported Resolutions

1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840 x 2160 (Ultra HD 4K) @30hz

Wide Screen Supported

Yes

Connector A

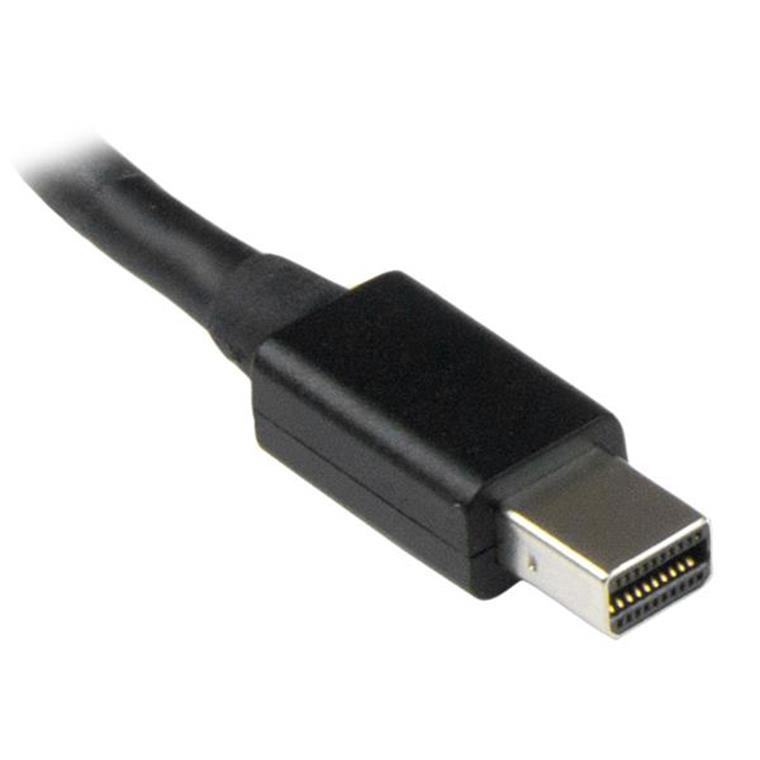

1 - Mini-DisplayPort (20 pin) Male Output

Connector B

3 - HDMI (19 pin) Female Output

OS Compatibility

Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)

Center Tip Polarity

Positive

Input Current

0.5 A

Input Voltage

110V-240V AC

Output Current

3A

Output Voltage

5 DC

Plug Type

N

Power Consumption (In Watts)

15

Power Source

AC Adapter Included

Humidity

50-90%

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 70°C (-4°F to 158°F)

Colour

Black

Enclosure Type

Plastic

Height

0.6 in (14 mm)

Length

4.5 in (114 mm)

Width

2.6 in (66 mm)

Manufacturer Part No:
MSTMDP123HD
Brand:
Product Type:
-
UPC
065030861519
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
KVMSTT690125
Product Model:
MSTMDP123HD
Warranty: 24 months *
