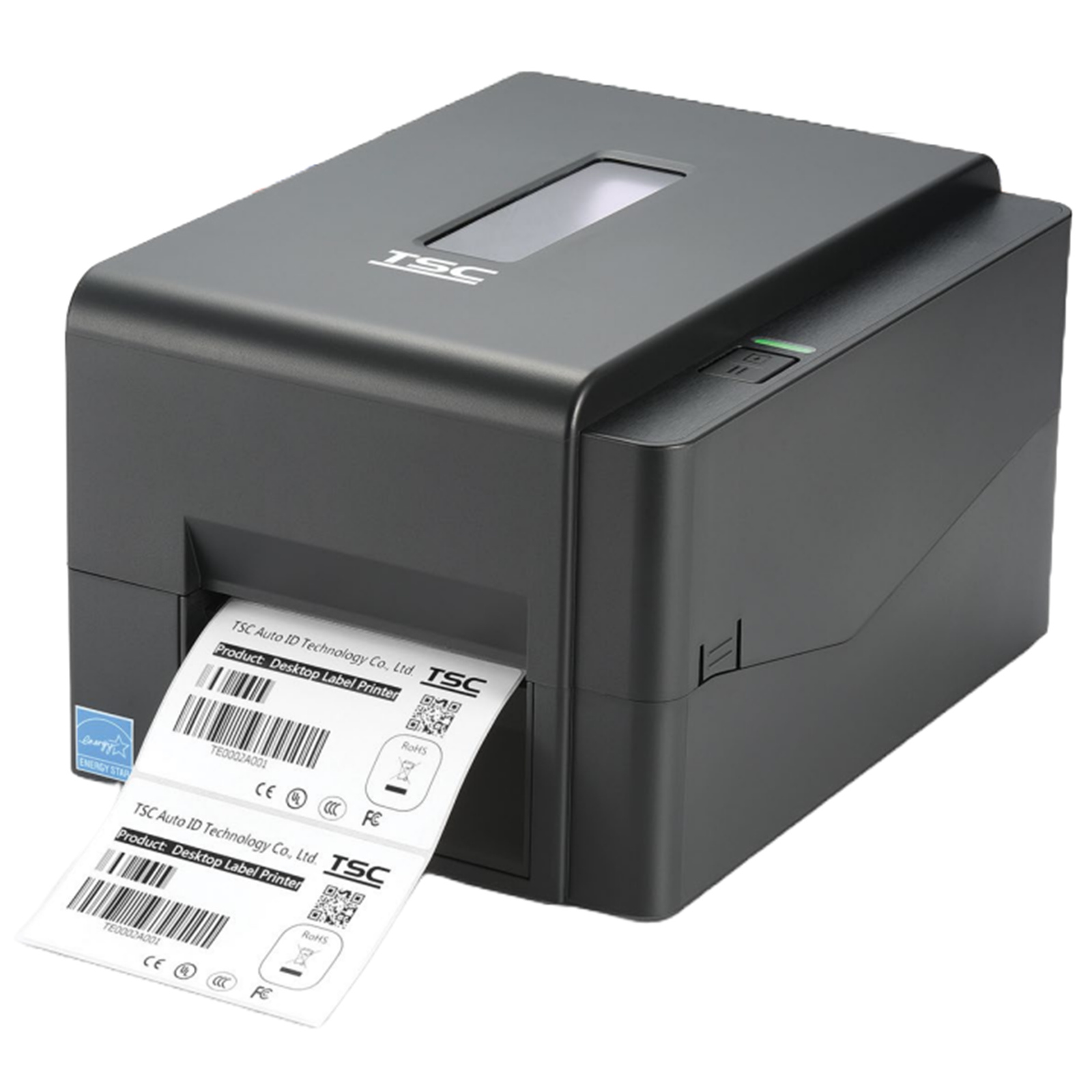

TSC TSCTE300 Thermal Transfer Printer 4 (Desk Top) 300 dpi
TSC TSCTE300 Thermal Transfer Printer 4 (Desk Top) 300 dpi
- Brand: TSC
- MPN: TSCTE300
- Part #: LABTSC1054
- UPC:
- Brand: TSC
- MPN: TSCTE300
- Part #: LABTSC1054
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Label Printers
Brother P-touch PTH110W Label Maker - White Durable
Brother QL700 Label Printer
Brother QL820NWB Direct Thermal Printer Monochrome - Label Print ...
Brother QL-1100 Direct Thermal Monochrome Label Printer Desktop -...
Brother QL1110NWB Label Printers, Wireless
TSC TSCTE300 Thermal Transfer Printer 4 (Desk Top) 300 dpi
- Brand: TSC
- MPN: TSCTE300
- Part #: LABTSC1054
Product URL: https://www.pbtech.co.nz/product/LABTSC1054/TSC-TSCTE300-Thermal-Transfer-Printer-4-Desk-Top-3
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Superior, Fast, Affordable Performance, Featuring Legendary TSC Durability
The introduction of the new TE300 expands TSC Auto ID's growing line of affordable, high-performance desktop-class label printers. The TE300 provides customers throughout the world with a competitive, durable, entry-level desktop printer that is both versatile and easy-to-use.
The TE300 offers 12 dots per mm (300 dpi) TE300 for use with printing small fonts, barcodes, or graphics. Fast 400 Mhz processor, 16 MB of DRAM and 8 MB of Flash storage memory, so you never have to wait for your labels to start printing.
Innovation and Value

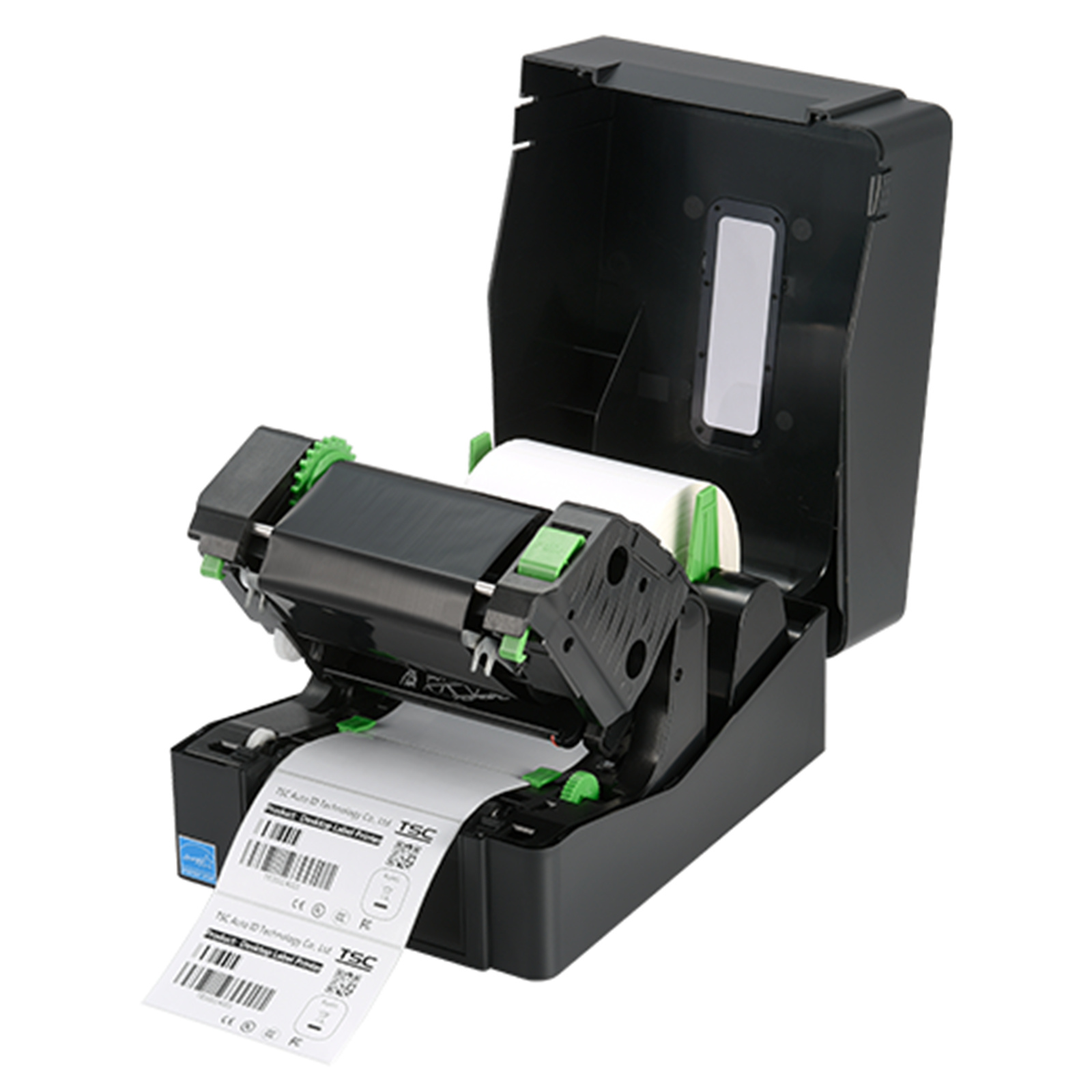

The TE300's modular thermal transfer print mechanism is protected by an outer ABS shell and is designed to withstand tough environments. These affordable, hardworking printers will print high quality labels all day long, producing thousands of clear, crisp barcode and identification labels per day.
Innovations include energy saving Energy Star 2.0 rating matched with an easy to load print mechanism. The printer will take both 1/2" core 72 meter to 110 meter, or 1" core 300-meter thermal transfer ribbons allowing customer to use whichever supply of ribbons they have available. Multiple printer language emulations right out of the box, and a powerful scalable font engine which makes it easy to replace nearly any existing label printers.
Both the printhead and platen roller can be easily changed without using any tools. The printer features both Gap and Black Mark sensing to accurate label registration. And the media cabinet can handle industry standard 5 inch OD labels on 1" or 1.5" cores. The powerful hybrid electric motor is strong enough to handle larger 8"OD label rolls on its optional external label unwinder.
The print mechanism which normally resides within the printer may be purchased separately for those looking to integrate custom label printing capability into their own manufactured designs. Applications for this unique print mechanism can include use with kiosk applications, small label applicators, two color on-demand printing, and two-sided printing.
The TE300 can print a wide variety of labels ranging from shipping labels to compliance and general purpose product identification labels and tags. Other applications include automobile service shops, walk-in shipping and mail centers, and inventory control for stock rooms.
- 300 dpi
- 5" per second print speed
- 300 meter (984") ribbon supply on a 25.4 mm (1") core (coated outside)
- 72 to 110 meter (361") ribbon supply on a 12.7 mm (0.5") core (coated outside)
- 127 mm (5") OD internal media supply, optional external media holder supports 214 mm (8.4") OD label rolls on 76.2 mm (3") core
- 400 MHz 32-bit RISC processor with 16 MB SDRAM, 8 MB Flash memory
- Internally scale-able true type fonts
- TSPL-EZ™ firmware emulates TPLE and TPLZ languages out of the box
- Free Windows® drivers and label design software (available via download)
- ENERGY STAR® qualified
Loading the Ribbon
Loading the Media
Note on Toner Yields:
Toner cartridge yields are provided as approximate values based on ISO/IEC standard testing methods.
Actual yield may vary depending on usage, print content, and other environmental factors.
In-box toner is typically a starter cartridge and may yield fewer pages than replacement cartridges.
Specifications
Model
TE300
Resolution
12 dots/mm(300dpi)
Printing Method
Direct Thermal and Thermal Transfer
Max. print speed
127mm(5")/second
Max. print width
105.7mm(4.16")
Max. print length
1,016mm(40")
Enclosure
ABS plastic
Physical dimension
204 mm(W) x 164 mm(H) x 280 mm(D)
8.03 inches(W) x 6.46 inches(H) x 11.02 inches(D)
Hardwire Connectivity
USB
Wireless Connectivity
Bluetooth
Weight
2.4 kg (5.29 lbs)
Label roll capacity
127mm(5")OD
Ribbon
- 300 m long, max. OD 67 mm, 1" core (ink coated outside)
- 110 m long, max. OD 40 mm, 0.5" core (ink coated outside)
Ribbon width
40 mm 110 mm (1.6" ~ 4.3")
Processor
32-bit RISC CPU
Memory
- 8 MB Flash memory
- 16 MB SDRAM
Power
External universal switching power supply
- Input: AC 100-240V, 2.5A, 50-60Hz
- Output: DC 24V, 2.5A, 60W
Operation switch, button LED
1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)
Real Time Clock
N/A
Buzzer
N/A
Internal fonts
- 8 alpha-numeric bitmap fonts
- Monotype ImageR true type font engine with one CG Triumvirate Bold Condensed scalable font
Media type
Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width
20-112 mm (0.8" ~ 4.4")
Media thickness
0.06-0.19 mm (2.36 ~ 7.48 mil)
Media core diameter
25.4-38 mm (1" ~ 1.5")
Label length
5~1,016mm (0.2" ~ 40")
Environment condition
Operation: 5-40°C, 25-85% non-condensing
Storage: -40-60°C, 10~90% non-condensing
