Features

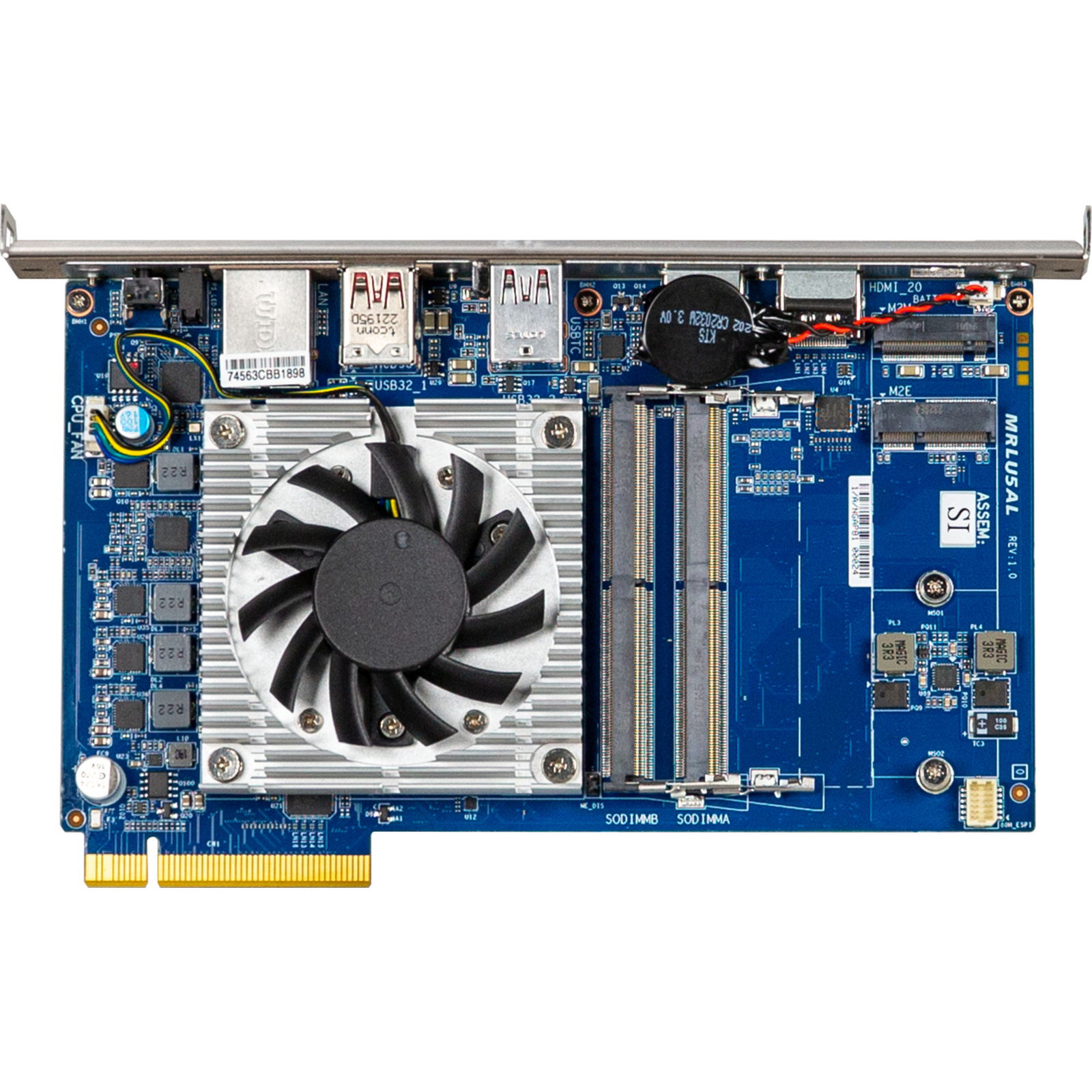

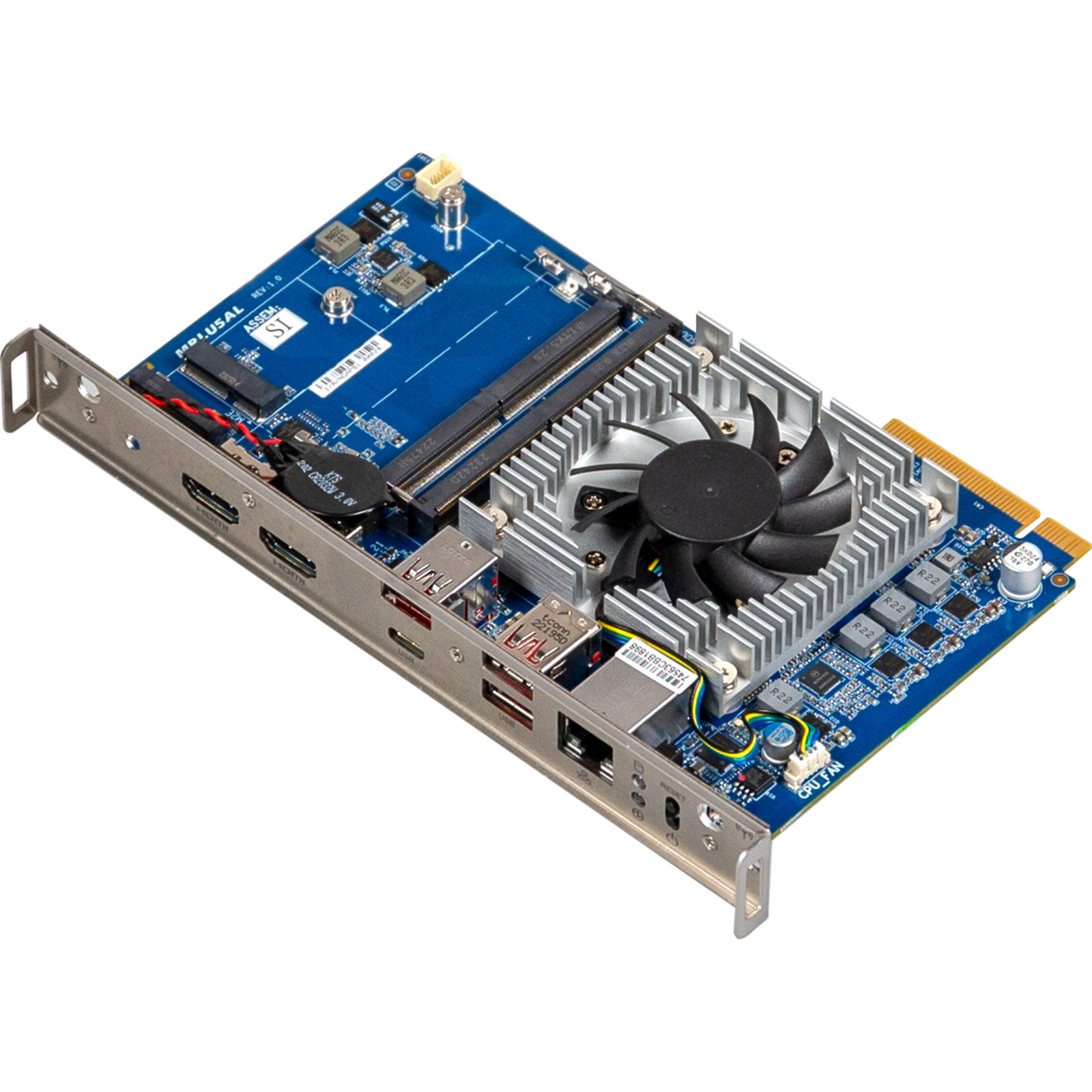

GigaIPC Intel® Smart Display Module with Intel® 13th Generation Core™ i5-1335U Processor
- 8K Smart Display Module (SDM)
- Intel® Core™ i5-1335U Processor
- Dual Channel DDR5, 2 x SO-DIMMs
- 1 x 2.5GbE LAN Port
- 3 x USB 3.2 Type A Gen 2x1
- 1 x USB 3.2 Type C Gen 2x1 (with DP output)
- Environment : Operation 0°C to 55°C
Advanced Display Technology
The GigaIPC Intel® Smart Display Module (SDM) introduces next-generation display technology tailored for demanding signage and commercial display applications. Featuring an impressive 8K display capability, this SDM supports ultra-high-definition visuals, making it ideal for applications that require exceptional image clarity and detail. The standardized SDM form factor ensures effortless integration into compatible monitors and digital signage systems, streamlining deployment and maintenance.
Cutting-Edge Processing Power
At the heart of this module lies the Intel® 13th Generation Core™ i5-1335U Processor, providing robust performance for multitasking, media playback, and advanced analytical tasks. This processor utilizes the latest Intel architecture, delivering energy efficiency and rapid response times, perfectly suited for interactive and intelligent display systems.
High-Performance Memory Support
The module is equipped with dual-channel DDR5 memory support, featuring two SO-DIMM slots. This configuration not only ensures high data transfer rates but also improves multitasking capabilities and overall system responsiveness. DDR5 technology provides a significant leap over previous generations in terms of speed and energy efficiency.
Comprehensive Connectivity
To cater to varied connectivity needs, the SDM includes one 2.5GbE LAN port for fast and reliable network access, addressing bandwidth-intensive applications with ease. Additionally, users benefit from three USB 3.2 Type A Gen 2x1 ports for fast device connection and data transfers, alongside a versatile USB 3.2 Type C Gen 2x1 port, which also supports DP output for expanded display options.
Rugged and Flexible Operations
Designed for stability and resilience, the Smart Display Module operates reliably within a temperature range of 0°C to 55°C. This broad operational envelope ensures continuous functionality across diverse environments-from indoor commercial venues to industrial settings-making it suitable for a wide spectrum of deployment scenarios.
Specifications
Form Factor
SDM-Large
175W x 100D(mm)
CPU
Intel® Core™ i5-1335U Processor
Intel® 7, 10 cores, 2P+8E, 12 threads, up to 4.6 GHz
TDP 15W
12 MB Smart Cache
Socket
1 x FCBGA1744
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules
Ethernet
1 x 2.5GbE LAN Port (Intel® I225LM)
Video
Integrated Graphics Processor - Intel® Iris Xe Graphics:
1 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz
1 x Display Port 1.4a (SDM), supporting a maximum resolution of 7680x4320 @60Hz
1 x HDMI 2.1 (Rear), supporting a maximum resolution of 7680x4320 @60Hz
1 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz
(4 independent display outputs)
Audio
Intel® Integrated Audio
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4)
1 x 2230 M.2 E-Key

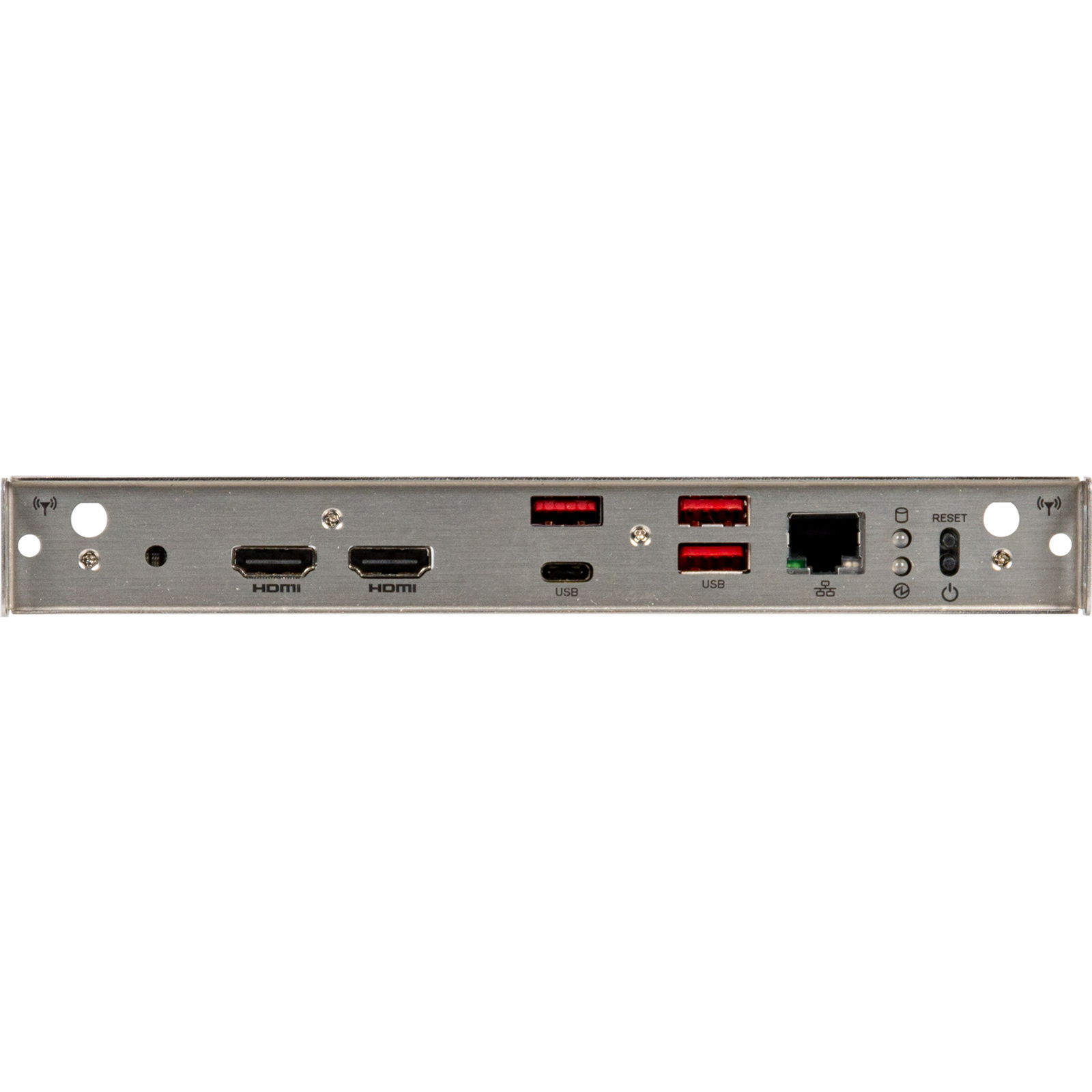

Rear l/O
2 x HDMI
1 x RJ45 LAN Port
3 x USB 3.2 Type A Gen 2x1
1 x USB 3.2 Type C Gen 2x1 (with DP output)
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to +55°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.46kg
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination:
DIMM2 PAD P/N: 25ST3-200086-T5R*1
M.2 Standoff P/N: 12KSF-F10303-20R*1
M.2 Screw P/N: 25KSG-130048-S0R*1
M.2 Bracket P/N: 25ST1-1231Z0-S7R*1
Order Information
9MRLU5ALMR-SI (Box packing)
Optional Kit
Internal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1
External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2
External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2
