Features

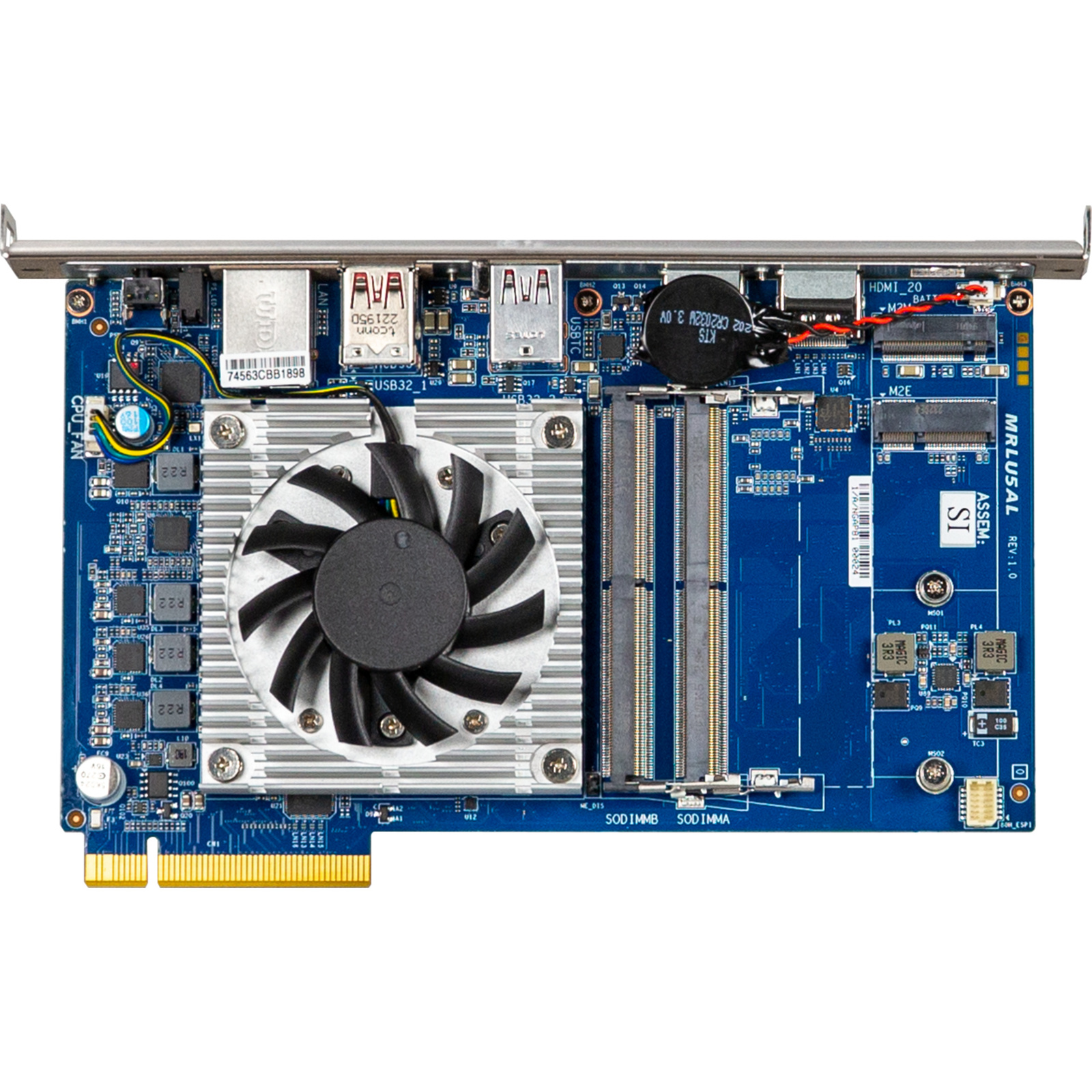

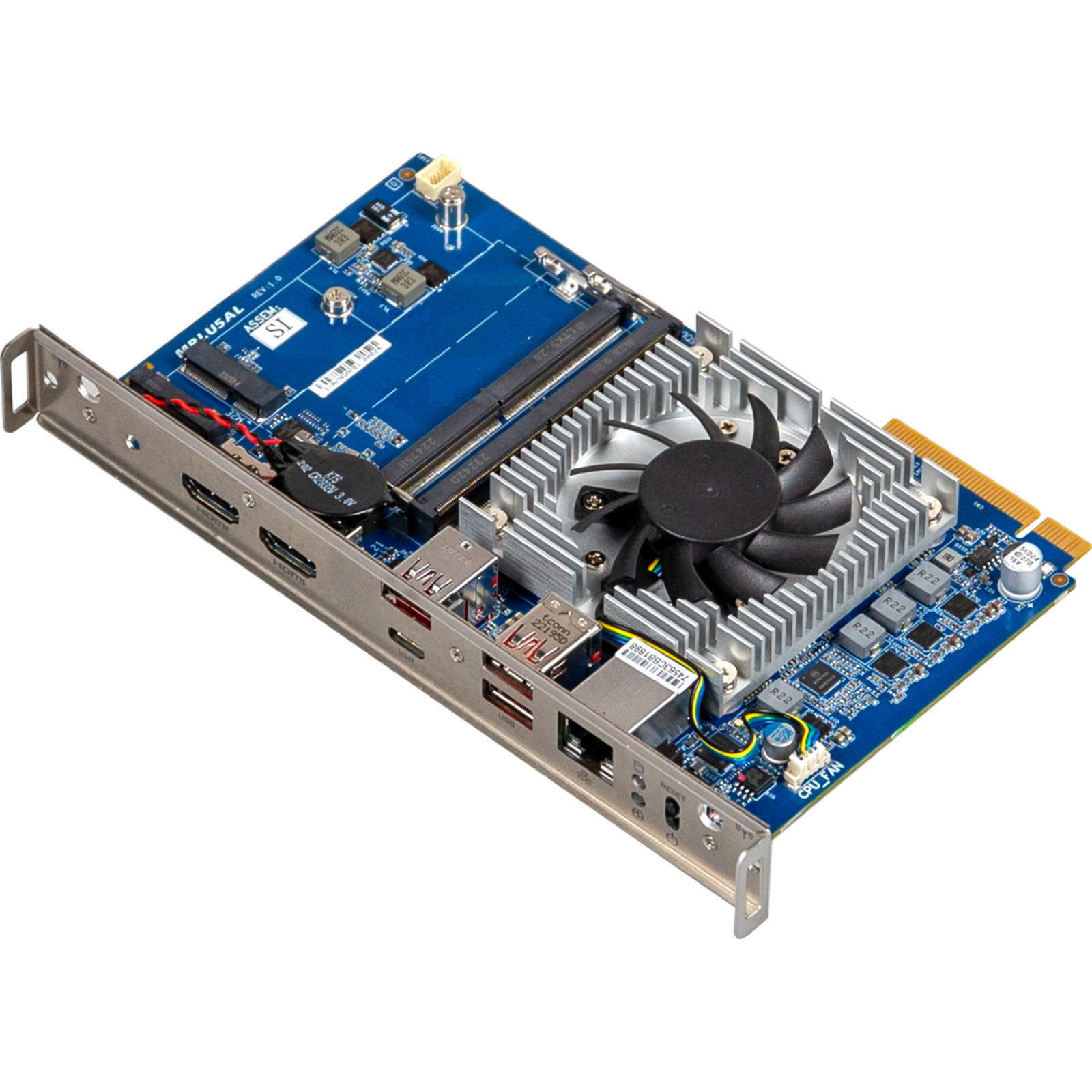

GigaIPC Intel® Smart Display Module with Intel® 13th Generation Core™ i3-1315U Processor
- 8K Smart Display Module (SDM)
- Intel® Core™ i3-1315U Processor
- Dual Channel DDR5, 2 x SO-DIMMs
- 1 x 2.5GbE LAN Port
- 3 x USB 3.2 Type A Gen 2x1
- 1 x USB 3.2 Type C Gen 2x1 (with DP output)
- Environment : Operation 0°C to 55°C
Processing Power and Performance
At the heart of the SDM-1315AL lies the Intel® Core™ i3-1315U processor. This 13th Generation CPU offers a remarkable balance between performance and power consumption. The dual-channel DDR5 memory support, with two SO-DIMM slots, enables fast and efficient data handling, reducing bottlenecks, and accelerating multitasking capabilities, which is essential for modern digital signage environments.
Connectivity and Expansion
This module offers extensive connectivity to support a range of peripherals and networking options. Equipped with a 2.5GbE LAN port, the SDM-1315AL provides robust and high-speed wired networking capabilities. For peripheral connections, it includes three USB 3.2 Type A Gen 2x1 ports and one USB 3.2 Type C Gen 2x1 port (with DP output), ensuring compatibility with a wide array of USB devices and supporting high-speed data transfer.
Display Quality and Support
A core feature of the SDM-1315AL is its support for up to 8K resolution. This makes it ideal for applications requiring exceptionally crisp and detailed visuals, such as public information displays, interactive kiosks, and high-end digital signage. Its display output options are designed for flexibility and compatibility with modern display panels, ensuring a premium viewing experience.
Operating Environment and Reliability
Designed for reliable operation in various settings, the SDM-1315AL can function in temperatures ranging from 0°C to 55°C. This wide operational temperature range ensures consistent performance whether deployed in indoor commercial venues or semi-controlled outdoor environments, making it a robust solution for a multitude of digital signage scenarios.
Specifications
Form Factor
SDM-Large
175W x 100D(mm)
CPU
Intel® Core™ i3-1315U Processor
Intel® 7, 6 cores, 2P+4E, 8 threads, up to 4.5 GHz
TDP 15W
10 MB Smart Cache
Socket
1 x FCBGA1744
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules
Ethernet
1 x 2.5GbE LAN Port (Intel® I225LM)
Video
Integrated Graphics Processor - Intel® UHD Graphics for 13th Gen Intel® Processors:
1 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz
1 x Display Port 1.4a (SDM), supporting a maximum resolution of 7680x4320 @60Hz
1 x HDMI 2.1 (Rear), supporting a maximum resolution of 7680x4320 @60Hz
1 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz
(4 independent display outputs)
Audio
Intel® Integrated Audio
Expansion Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4)
1 x 2230 M.2 E-Key

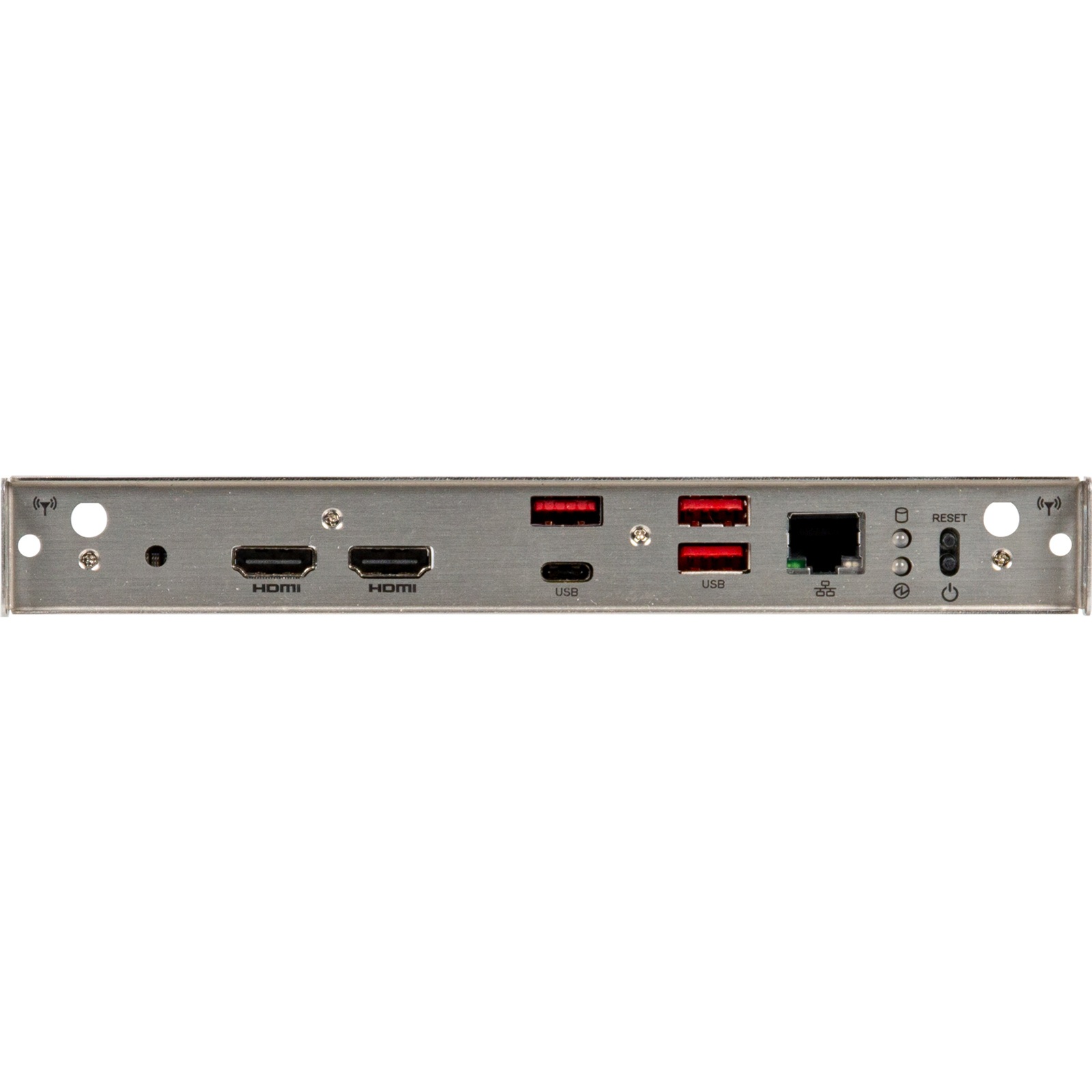

Rear l/O
2 x HDMI
1 x RJ45 LAN Port
3 x USB 3.2 Type A Gen 2x1
1 x USB 3.2 Type C Gen 2x1 (with DP output)
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
OS Compatibility
Windows 10/11 (x64)
Operating Properties
Operating temperature: 0°C to +55°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.46kg
Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Followings are the optional components to be purchased only when choosing M.2 NVMe SSD for SKU combination:
DIMM2 PAD P/N: 25ST3-200086-T5R*1
M.2 Standoff P/N: 12KSF-F10303-20R*1
M.2 Screw P/N: 25KSG-130048-S0R*1
M.2 Bracket P/N: 25ST1-1231Z0-S7R*1
Order Information
9MRLU3ALMR-SI (Box packing)
Optional Kit
Internal Wi-Fi Cable P/N: 25CA0-090004-A5S (90mm) *1 + 25CA0-280003-A5S (280mm) *1
External Wi-Fi 5 Antenna P/N: 25CA0-112001-A5S *2
External Wi-Fi 6/6E Antenna P/N: 25CA0-163002-A5S *2
