Features
GigaIPC Intel® Smart Display Module with Intel® 11th Generation Core™ i7-1185G7E Processor
- 8K Smart Display Module (SDM)
- Intel® Core™ i7-1185G7E Processor
- 16GB LPDDR4x-4267 MT/s (Soldered)
- 1 x 2.5GbE LAN Port
- 2 x USB 3.2 Type A Gen 2x1
- 1 x USB 3.2 Type C Gen 2x1 (with DP output)
- 2 x HDMI 2.0
- Environment : Operation 0°C to 55°C
Powerful Display Module for Advanced Applications
The GigaIPC SDM-1185G7EL is a high-performance smart display module designed to support cutting-edge visual experiences. Built on the Intel® Smart Display Module (SDM) standard, this device is optimized for integration into a variety of large-format displays and digital signage solutions that require exceptional processing power and graphics capabilities. By leveraging 8K display support, it enables vivid and crisp image quality suited for demanding environments such as interactive kiosks, professional displays, and public information boards.
Advanced Processing Power
At its core, the module features the Intel® 11th Generation Core™ i7-1185G7E processor, a chip known for its impressive multi-core performance and integrated Iris Xe graphics. This ensures smooth operation of complex visual processing tasks and supports applications such as AI-driven analytics, edge computing, and content-rich interactive experiences. The increased processing efficiency and graphics horsepower make it an appealing choice for both commercial and industrial digital display markets.
High-Speed Memory and Storage Support
The SDM-1185G7EL comes equipped with 16GB of high-speed LPDDR4x memory, soldered directly onto the board to ensure stability and reliable performance under continuous operation. Operating at 4267 MT/s, this configuration facilitates fast data processing and multitasking, which is vital for real-time display adjustments and complex application management. The soldered design also contributes to a compact and robust hardware profile, suitable for embedded applications.
Comprehensive Connectivity Options
This module offers a well-rounded selection of connectivity ports to accommodate diverse deployment scenarios. It includes a 2.5GbE LAN port for ultra-fast, stable network connections, essential for remote device management and streaming high-resolution content. There are two USB 3.2 Type A Gen 2x1 ports for fast data transfer and peripheral support, along with a USB 3.2 Type C Gen 2x1 port that features DisplayPort (DP) output, broadening its compatibility with a range of external devices. Two HDMI 2.0 ports further enhance its flexibility for multi-display setups.
Specifications
Form Factor
SDM-Large
175W x 100D(mm)
CPU
Intel® Core™ i7-1185G7E Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.40 GHz
TDP 28W
Socket
1 x FCBGA1449
Memory
16GB LPDDR4x-4267 MT/s (Soldered)
Ethernet
1 x 2.5GbE LAN Port (Intel® I225LM)
Video
Integrated Graphics Processor - Intel® Iris X? Graphics:
2 x HDMI 2.1 (SDM), supporting a maximum resolution of 7680x4320 @60Hz
2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz
(4 independent display outputs)
Audio
Intel® Integrated Audio
Storage
1 x 2280 M.2 M-Key (Support NVME only)
Default SSD supplied with 128GB and heatsink
Expansion Slots
1 x 2230 M.2 E-Key (with Intel® AX210 Wi-Fi Card)
1 x 3052 M.2 B-Key (Support 5G)

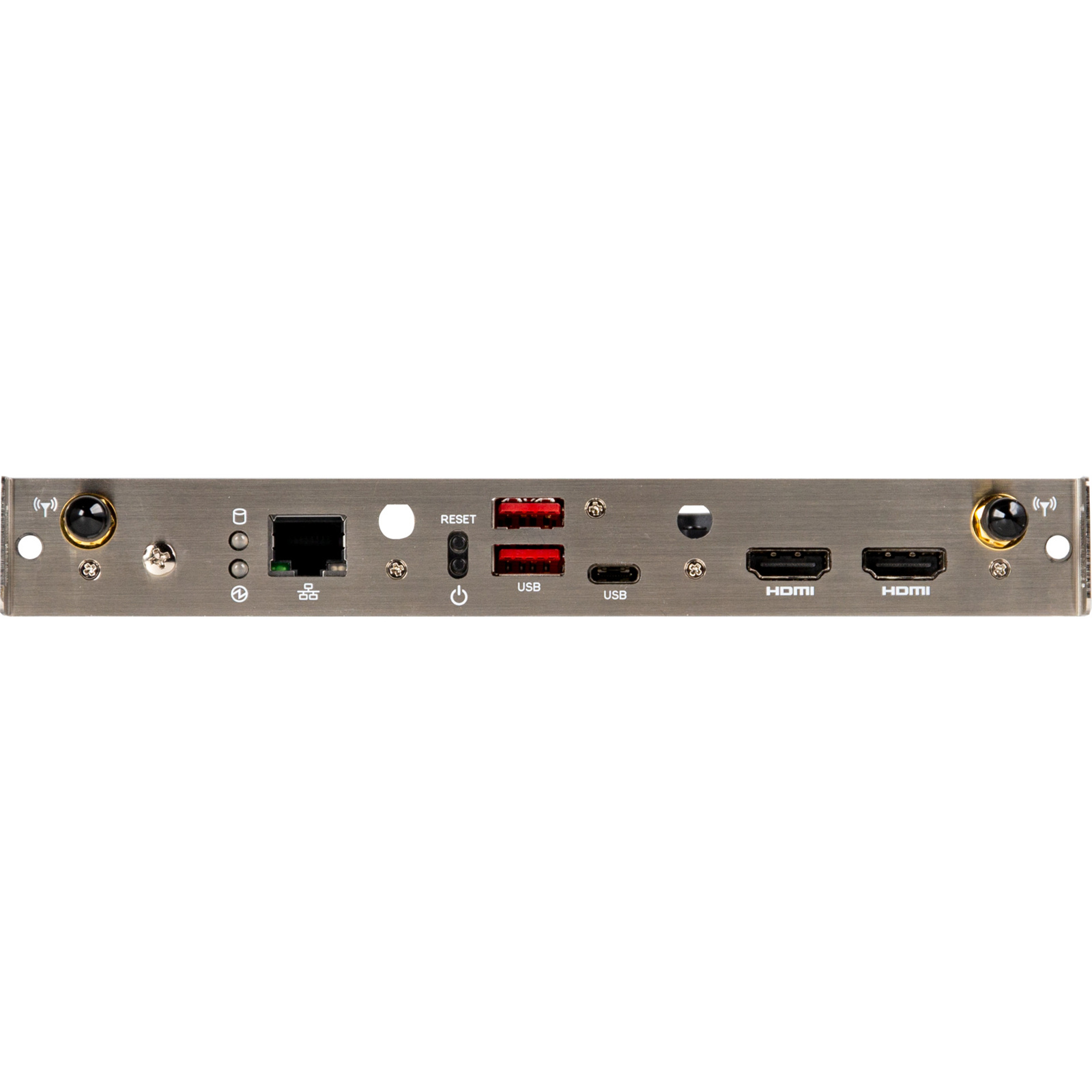

Rear l/O
2 x HDMI
1 x RJ45 LAN Port
2 x USB 3.2 Type A Gen 2x1
1 x USB 3.2 Type C Gen 2x1 (with DP output)
1 x PWR LED
1 x HDD LED
4 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button
TPM
1 x TPM header (SPI interface)
OS Compatibility
Windows® 10/11 (x64)
Operating Properties
Operating temperature: 0°C to 55°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 469 x 382 x 381 (mm)
Packing Capacity: 10pcs
Single Box size: 345 x 221 x 70 (mm)
Single Box weight : Approx. 1.5kg
Including :
US power cord x 1 (P/N: 25CP0-007001-Q0R)
PSU ADP 12V 120W 100-240VAC x 1 (P/N: 25EP4-201202-F3S)
External Antenna for WiFi module x 2 (P/N: 25CA0-163002-A5S)
Order Information
9MTGU7BLMR-IA (Box packing)
Optional Kit
TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
