Features

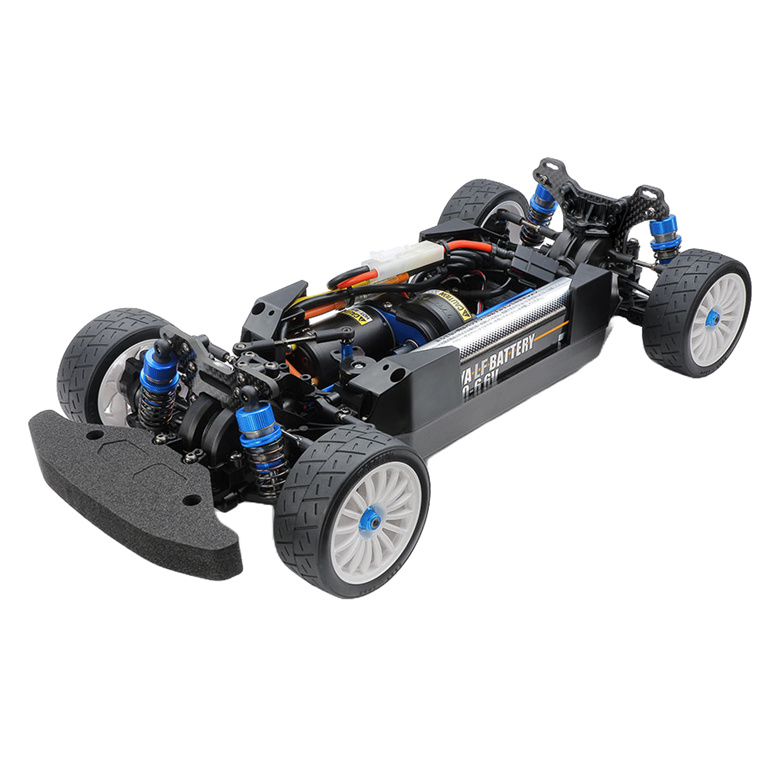

On-Road Oriented Rally Chassis!
This 4WD touring chassis assembly kit features a front midship motor and transmits power from the spur gear in the center via identical length front and rear propeller shafts, and is ideally setup for on-road running. 39T differential gears front and rear, and one setup option 40T differential gear are included, facilitating changes to drive balance. It features optimum balance and a slim chassis with carbon fiber-reinforced rigid lower deck. The 4-wheel independent double wishbone suspension has dedicated aluminum-cylinder oil dampers.
Drivetrain: Full ball bearings, front and rear aluminum propeller shafts, front and rear oil-filled gear differentials (2x 39T and 1x 40T gears included), front and rear universal drive shafts.
Suspension: Front and rear aluminum oil dampers (blue caps, touring car size), 6-degree caster blocks, turnbuckle upper arms, 3.5mm thickness carbon damper stays.
Chassis: Carbon fiber-reinforced lower deck, aluminum servo mount, angled front bumper, hi-torque servo saver.
- Carbon fiber-reinforced plastic bathtub frame
- Front midship motor, shaft-driven 4WD
- Front & rear oil-filled gear differentials
- 3-piece steering tie-rod
- 4-wheel double wishbone suspension
- Aluminum cylinder oil dampers (blue caps, touring car size)
- Gear ratio = 7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions) Electronic speed controller (ESC) is sold separately

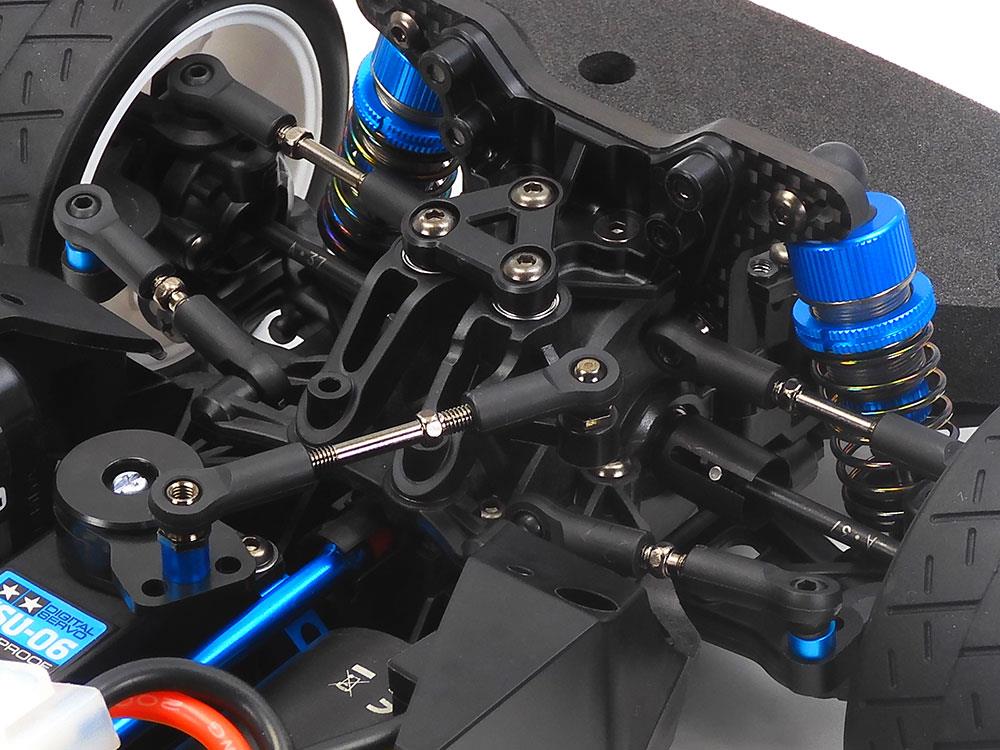

The chassis employs an aluminum servo mount and hi-torque servo saver. Turnbuckle rods allow swift steering adjustment.
The double wishbone front suspension features 6-degree caster blocks.

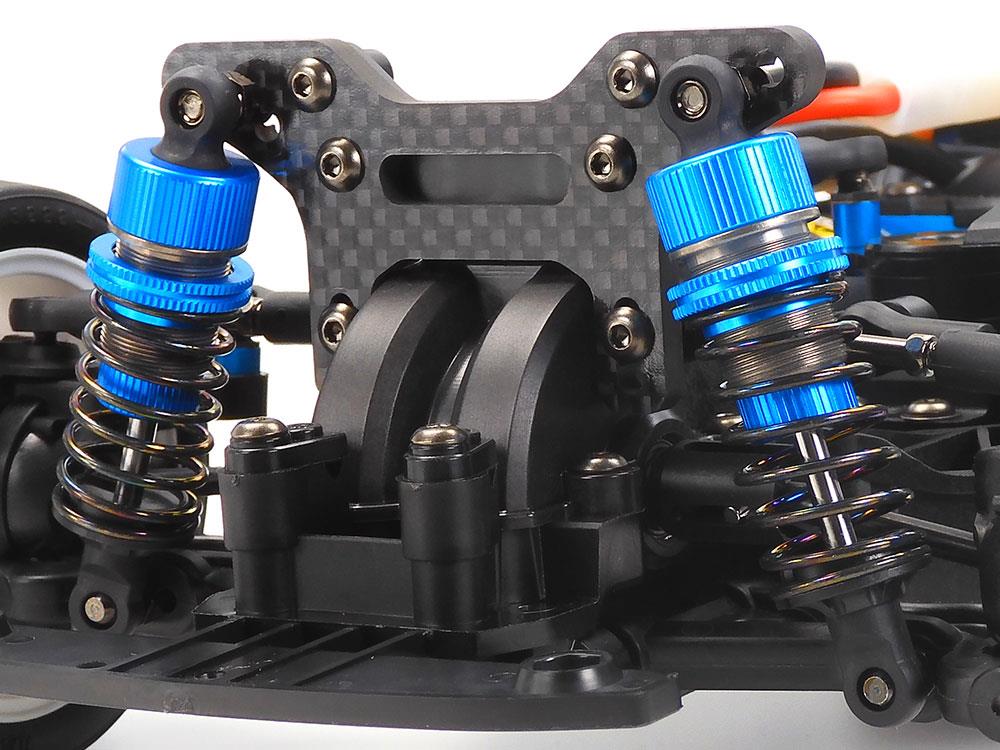

High performance aluminum cylinder dampers are touring car size, with 30.5mm piston rods. The damper stay is 3.5mm thickness carbon fiber.
Identical length propeller shafts transmit power from the central spur gear to the front and rear.

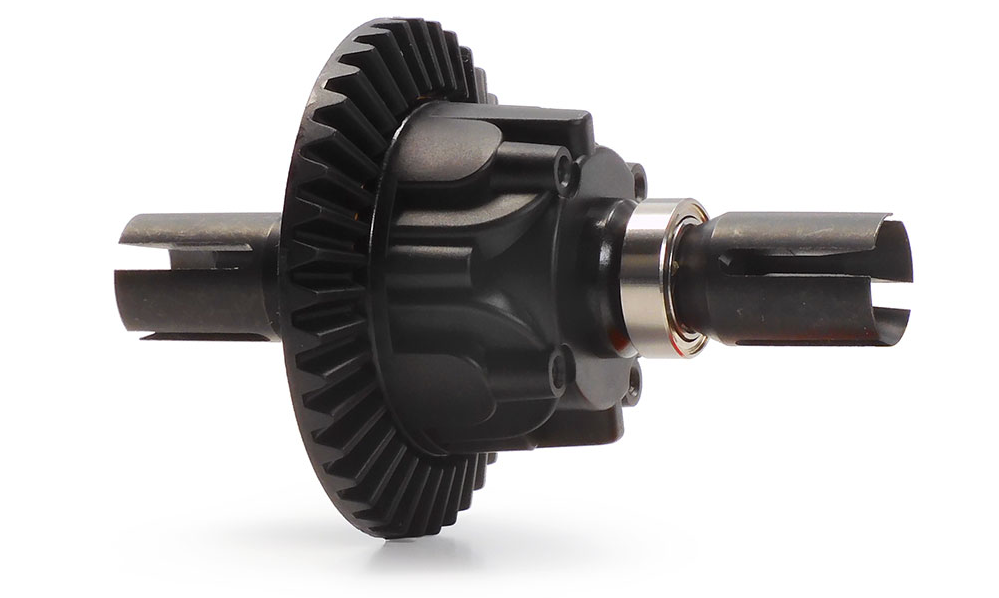

Sealed front and rear gearboxes house oil filled gear differentials.

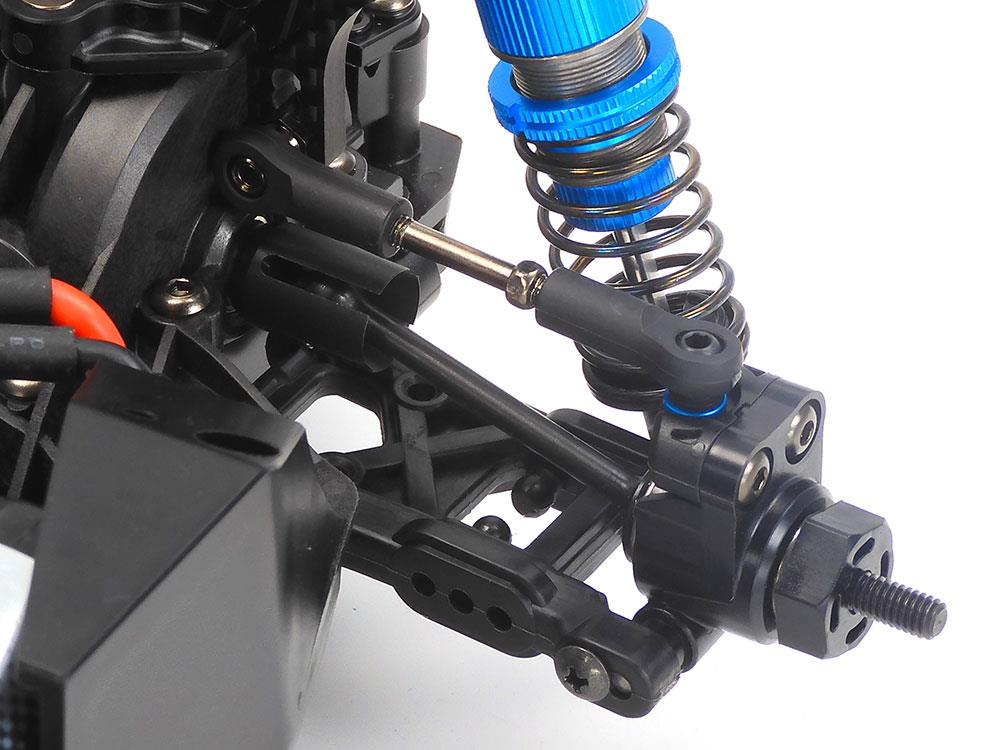

Upper arm attachment in the double wishbone rear suspension can be altered by the use of spacers from separately sold Item 53539.
Rear aluminum cylinder oil dampers are also touring car size.

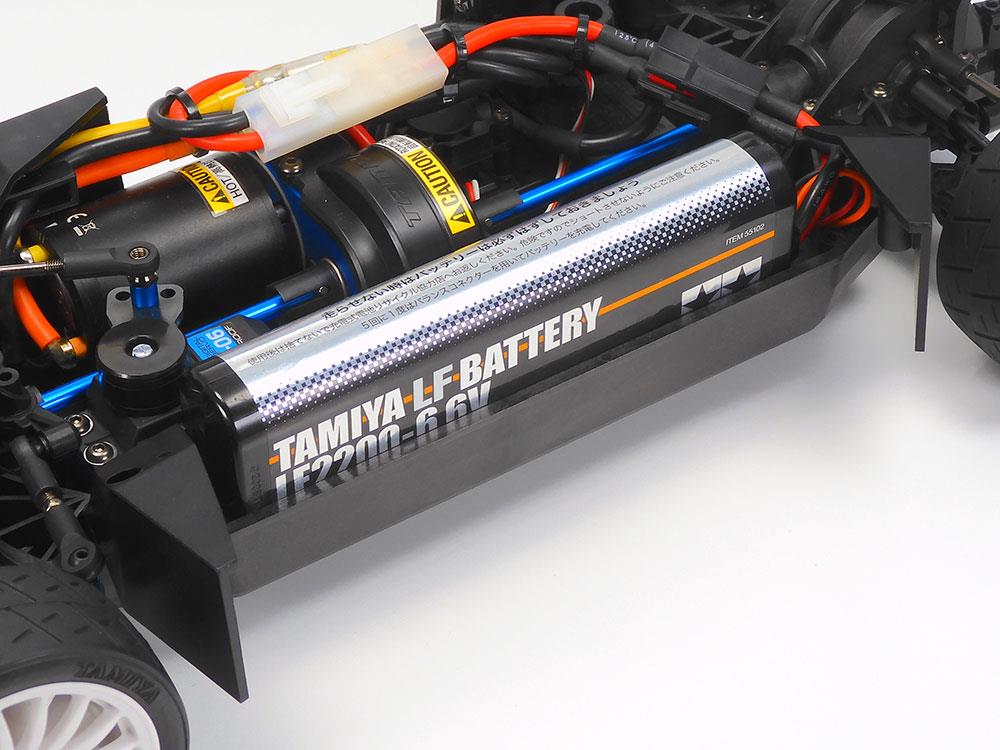

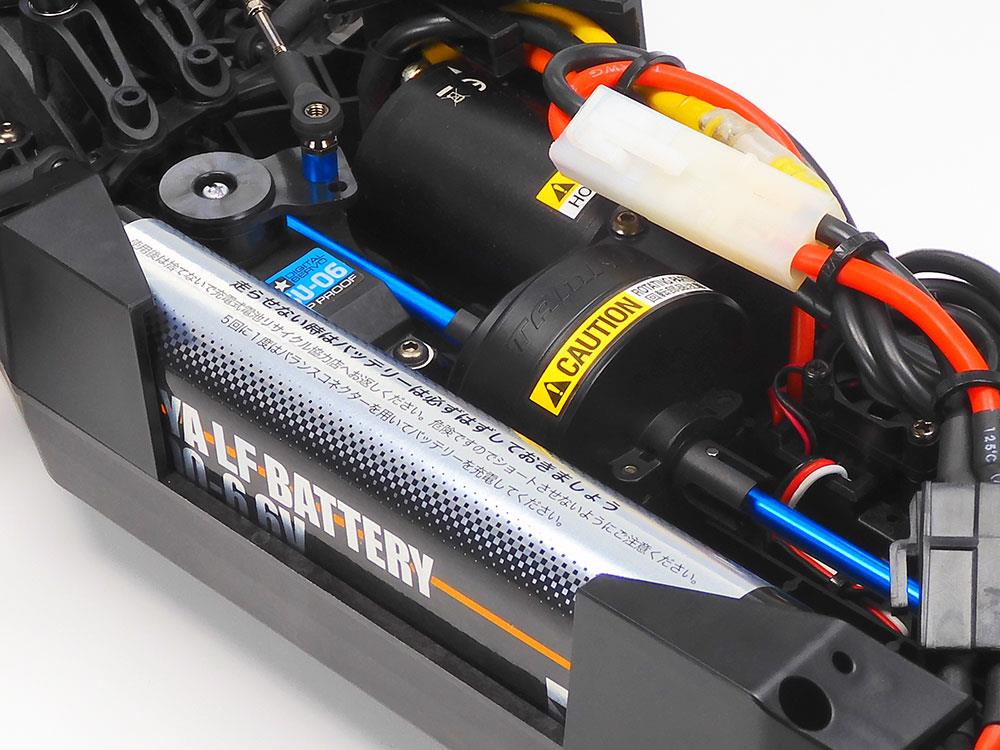

The battery pack sits on its side, allowing a narrower chassis. Access it by opening the levers front and rear, as shown here.

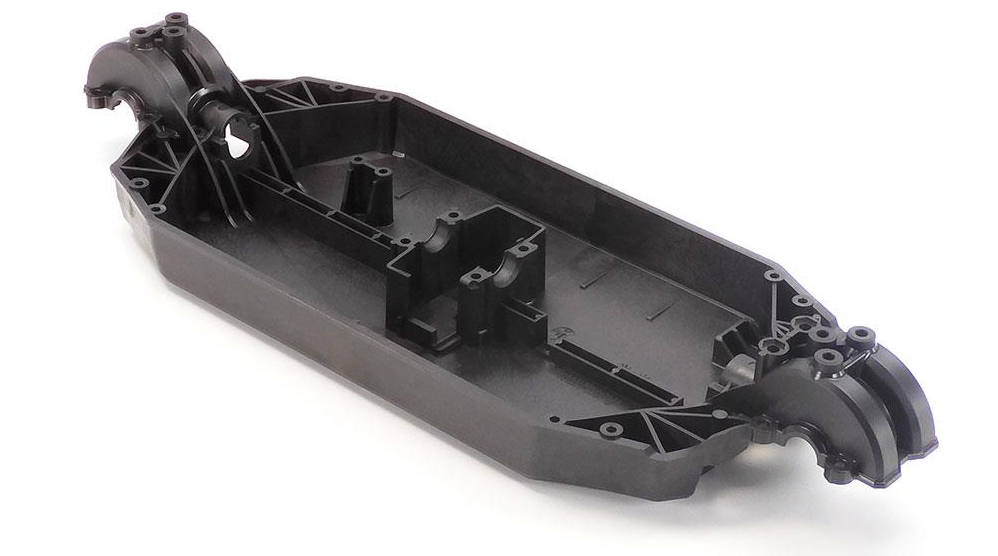

Take a closer look at the carbon fiber-reinforced plastic lower deck.

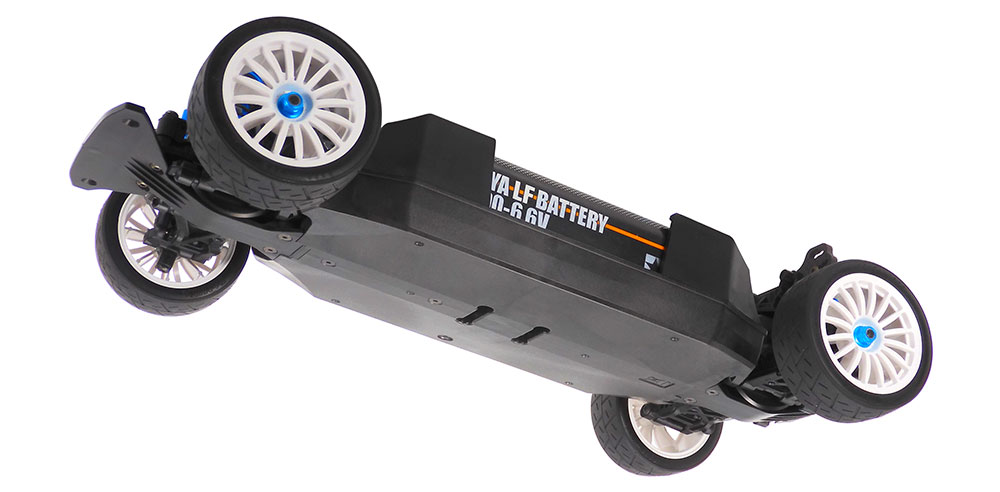

The chassis' flat underside and angled bumper help it negotiate bumpy surfaces.

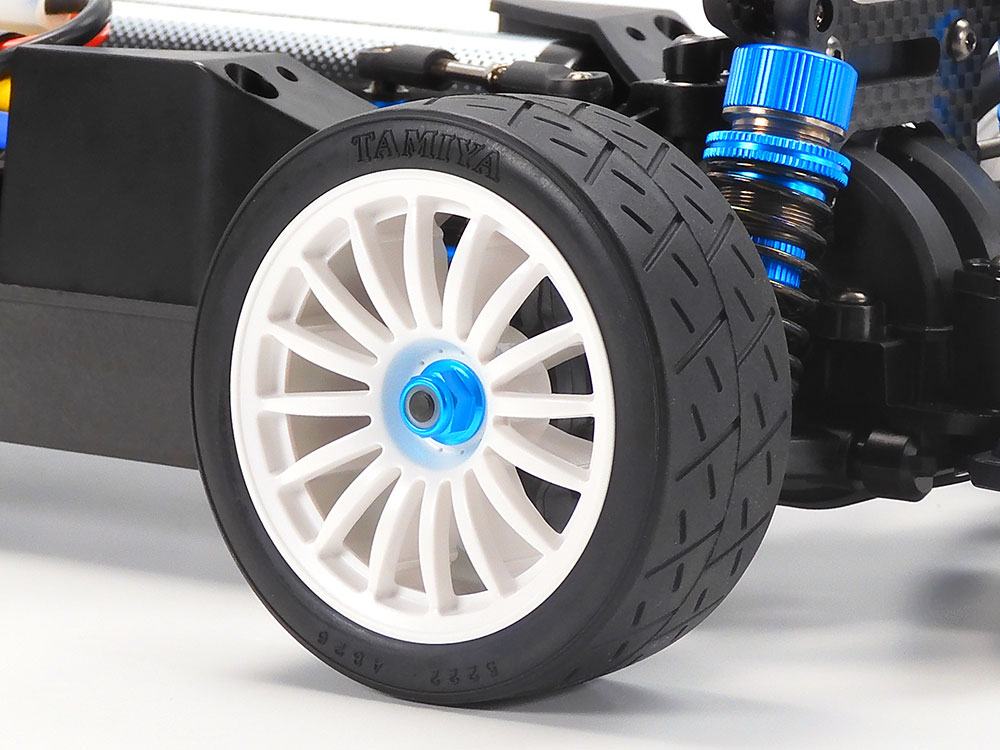

White fin spoke wheels are paired with racing semi-slick tires.

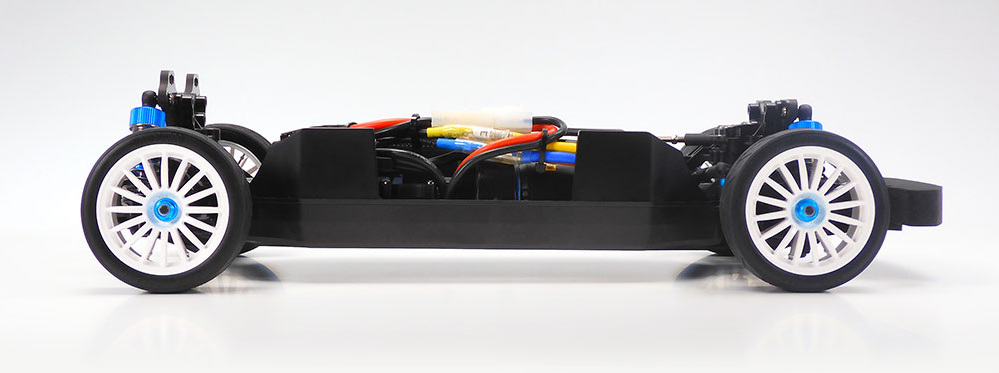

This chassis has a seriously low center of gravity!
Specifications
Brand
Tamiya
Scale
1/10
Length
368mm
Width
180mm
Wheelbase
257mm
Gear Ratio
7.00:1 using kit 26T pinion (14 ratios between 10.71:1 and 6.28:1 are possible with separately sold pinions)
Separately Required Items (Not Included)
Body
Type 540 motor
2-channel R/C system w/ESC & low-profile servo
R6/AA/UM3 batteries for transmitter
Battery pack & charger
