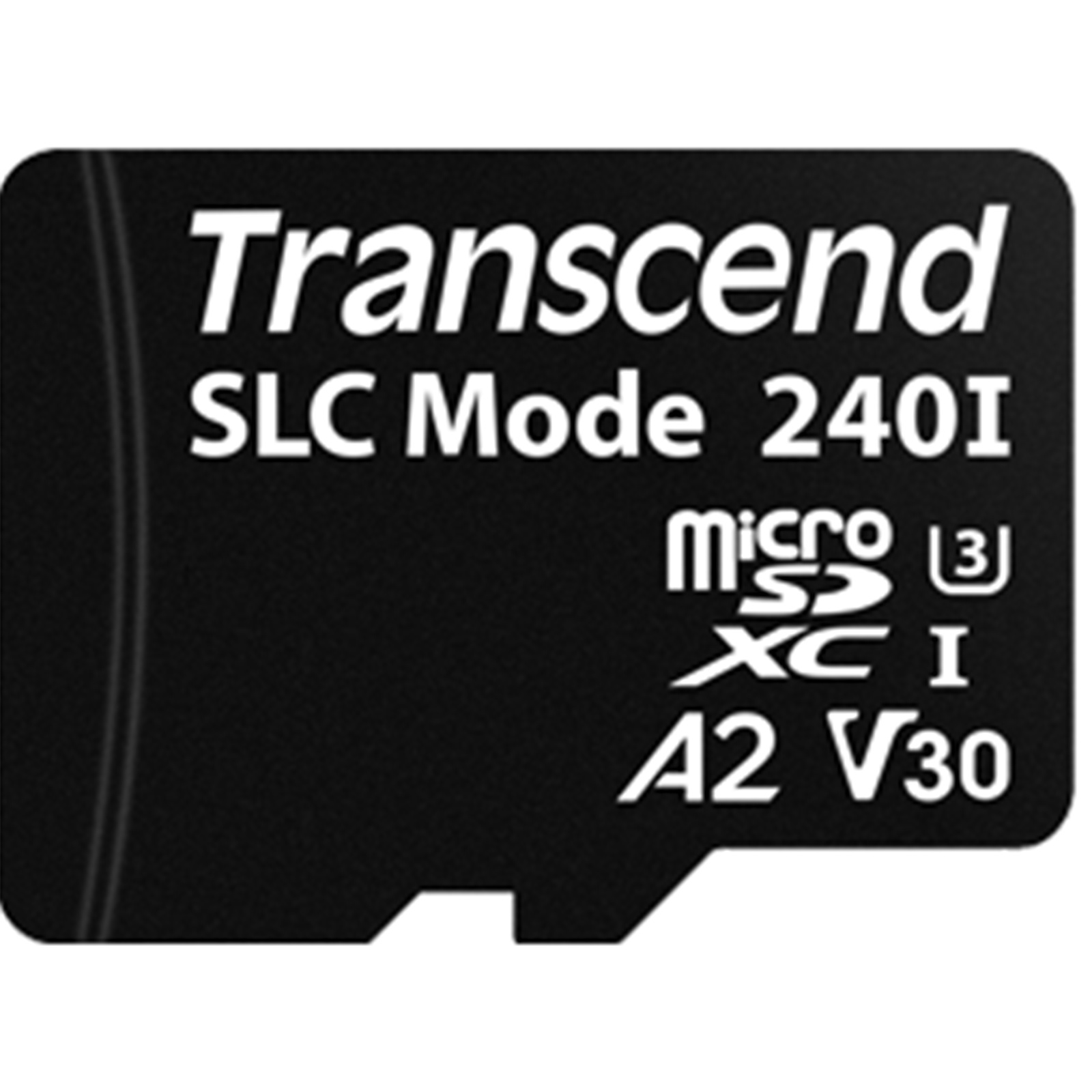

Transcend Embedded 20GB microSD,SLC Mode,Wide-Temp. , UHS-I,V30, A2,TLC
Transcend Embedded 20GB microSD,SLC Mode,Wide-Temp. , UHS-I,V30, A2,TLC
- Brand: Transcend Embedded
- MPN: TS20GUSD240I
- Part #: MEMTRSI31101
- UPC:
- Brand: Transcend Embedded
- MPN: TS20GUSD240I
- Part #: MEMTRSI31101
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Storage / Memory
Transcend Embedded 20GB microSD,SLC Mode,Wide-Temp. , UHS-I,V30, A2,TLC
- Brand: Transcend Embedded
- MPN: TS20GUSD240I
- Part #: MEMTRSI31101
Product URL: https://www.pbtech.co.nz/product/MEMTRSI31101/Transcend-Embedded-20GB-microSDSLC-ModeWide-Temp
Branch | New Stock | On Display |
---|---|---|
Albany | - | |
Glenfield | - | |
Queen Street | - | |
Auckland Uni | - | |
Newmarket | - | |
Westgate | - | |
Penrose | - | |
Henderson (Express) | - | |
St Lukes | - | |
Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Head Office | - | |
Hornby | - | |
Christchurch Central | - |
Features
Utilizing top-quality 112-layer 3D NAND flash with SLC Mode technology, and rated to endure 100K P/E cycles, Transcend's USD240I microSDXC memory card combines the advantages of high performance and exceptional endurance at an affordable price. Transcend's microSDXC USD240I is able to operate in wide operating temperatures of -40?~85?, ideal for write-intensive applications such as outdoor transportation, surveillance systems, digital signage, and POS terminals.
Firmware Features
- Built-in LDPC ECC (Error Correction Code) functionality
- Early Move
- Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
- Wear-Leveling
Hardware Features
- Compliant with RoHS 2.0 standards
- Electrostatic protection (ESD IEC 61000-4-2)
- Compliant with SD specification 6.1
- Compliant with UHS-I
- Compliant with Video Speed Class 30 (V30)
- Compliant with Application Performance Class 2 (A2)
- Endurance: 100K P/E cycles (Program/Erase cycles) guaranteed
- Promised operational reliability in a wide temperature range (from -40°C to 85°C)
Specifications
Appearance
Dimensions
11 mm x 15 mm x 1 mm (0.43" x 0.59" x 0.04")
Form Factor
microSD flash card
Storage
Flash Type
112-layer 3D NAND flash (SLC mode)
Capacity
20 GB
Operating Environment
Operating Voltage
2.7V ~ 3.6V
Drop Test
1.5m free fall
Operating Temperature
Wide Temp.
-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature
-40°C (-40°F) ~ 85°C (185°F)
Humidity
0% ~ 95%
Shock
Acceleration: 490 m/s² (standard holding time: 11 ms, semi-sine wave, velocity change: 3.44 m/s)
Vibration (Operating)
20 G (peak-to-peak), 10 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.)
2.88 watt(s)
Performance
Read Speed (Max.)
up to 100 MB/s
Write Speed (Max.)
up to 80 MB/s
Terabytes Written (TBW)
up to 6,763 TBW
