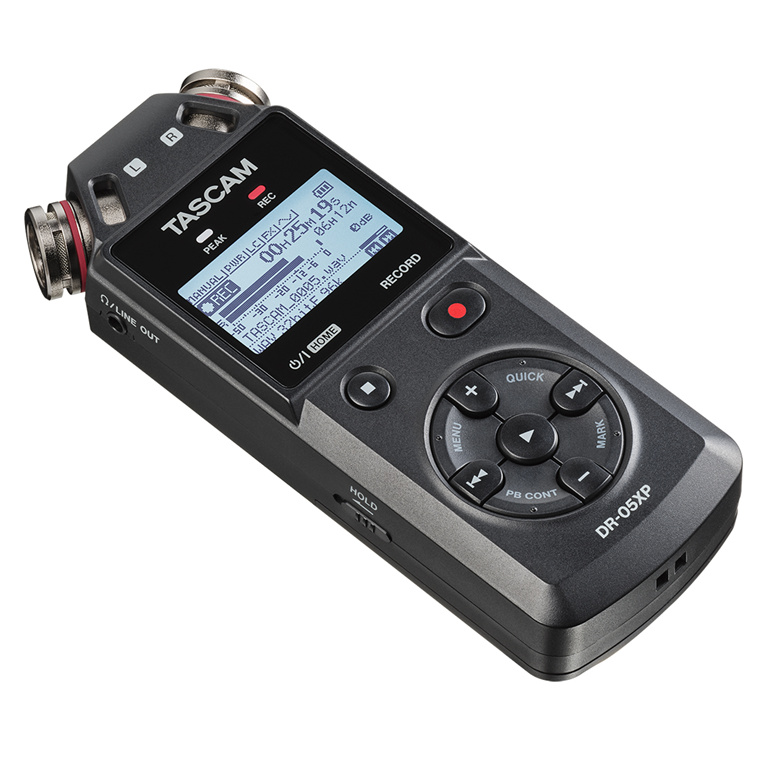

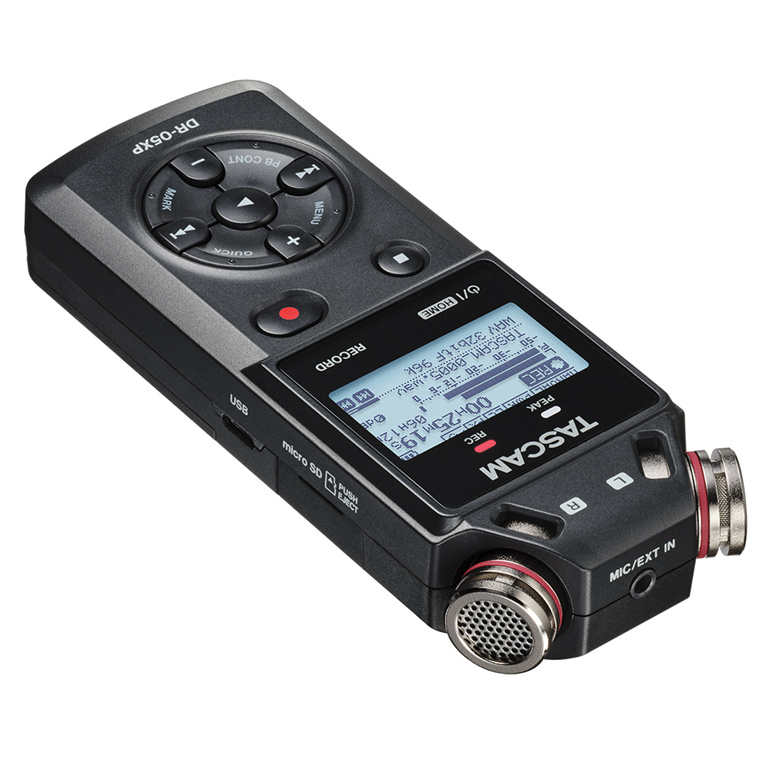

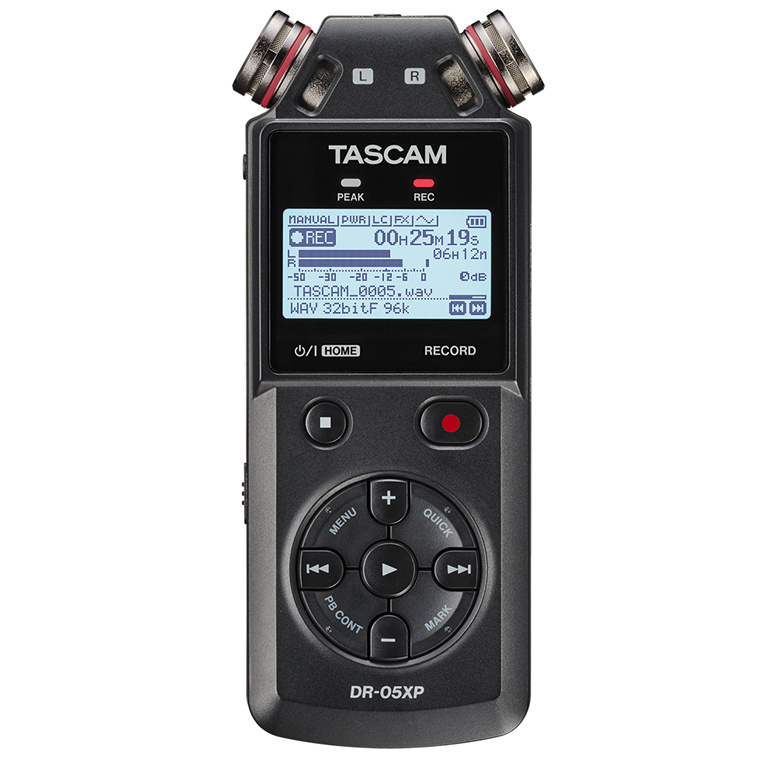

TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder
TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder
- Brand: TASCAM
- MPN: TASCAMDR05XP
- Part #: MICTSC1026
- UPC:
- Brand: TASCAM
- MPN: TASCAMDR05XP
- Part #: MICTSC1026
- UPC:
Features
TASCAM DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface
The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.
- 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
- Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
- Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours of operation with 2 x AA alkaline batteries

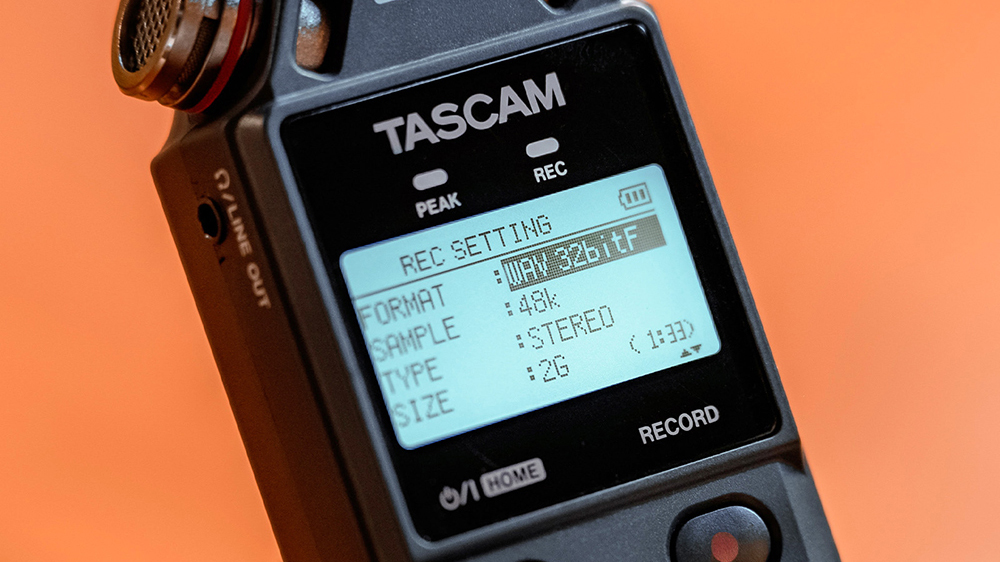

Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.
Recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3.

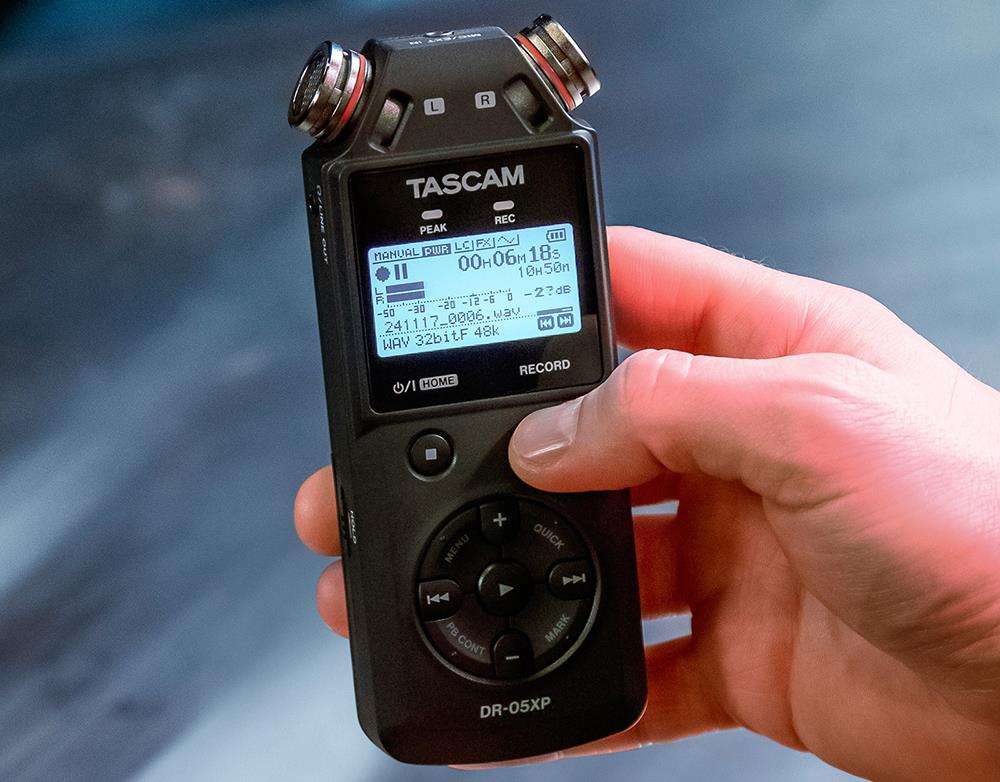

Built-in Condenser Microphones
The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.

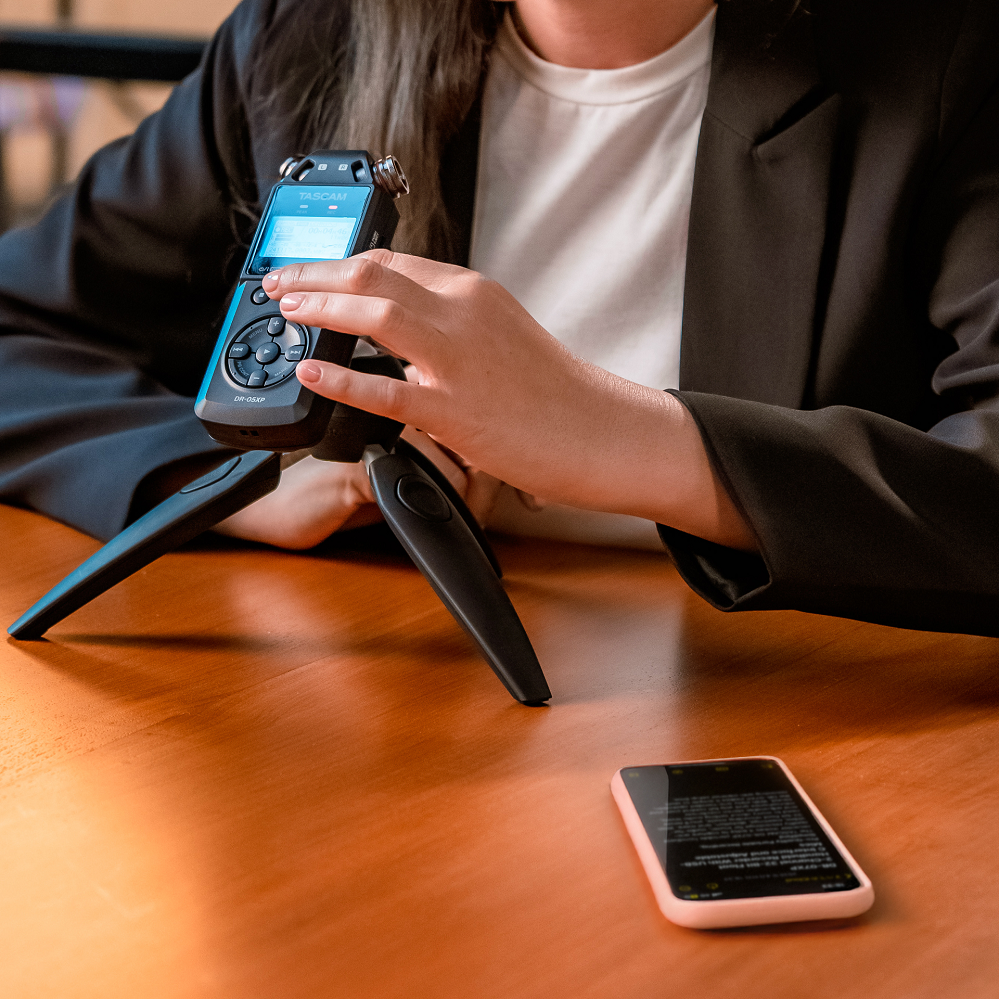

Simplicity in Your Palm
With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

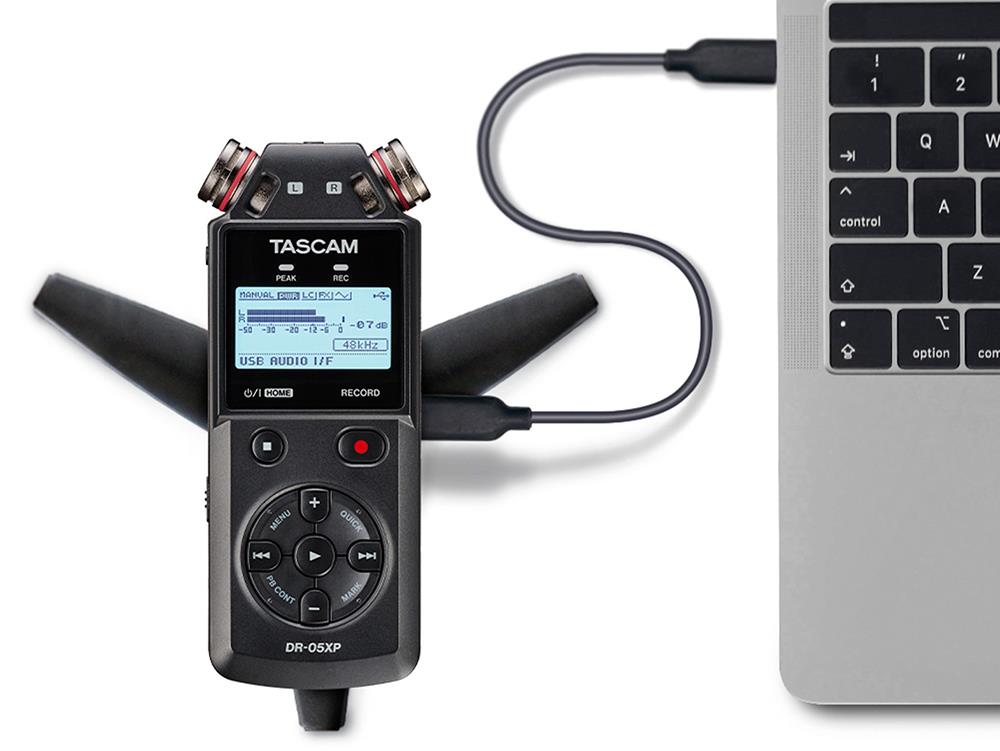

Your Portable Recording Studio
The DR-05XP isn't only a powerful portable recorder - it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.
Ideal for Musicians
The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.
On Location
With its compact size, the DR-05XP can travel anywhere for exceptional field recording. Choose from four different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
Record Anything, Anywhere
From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-05XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

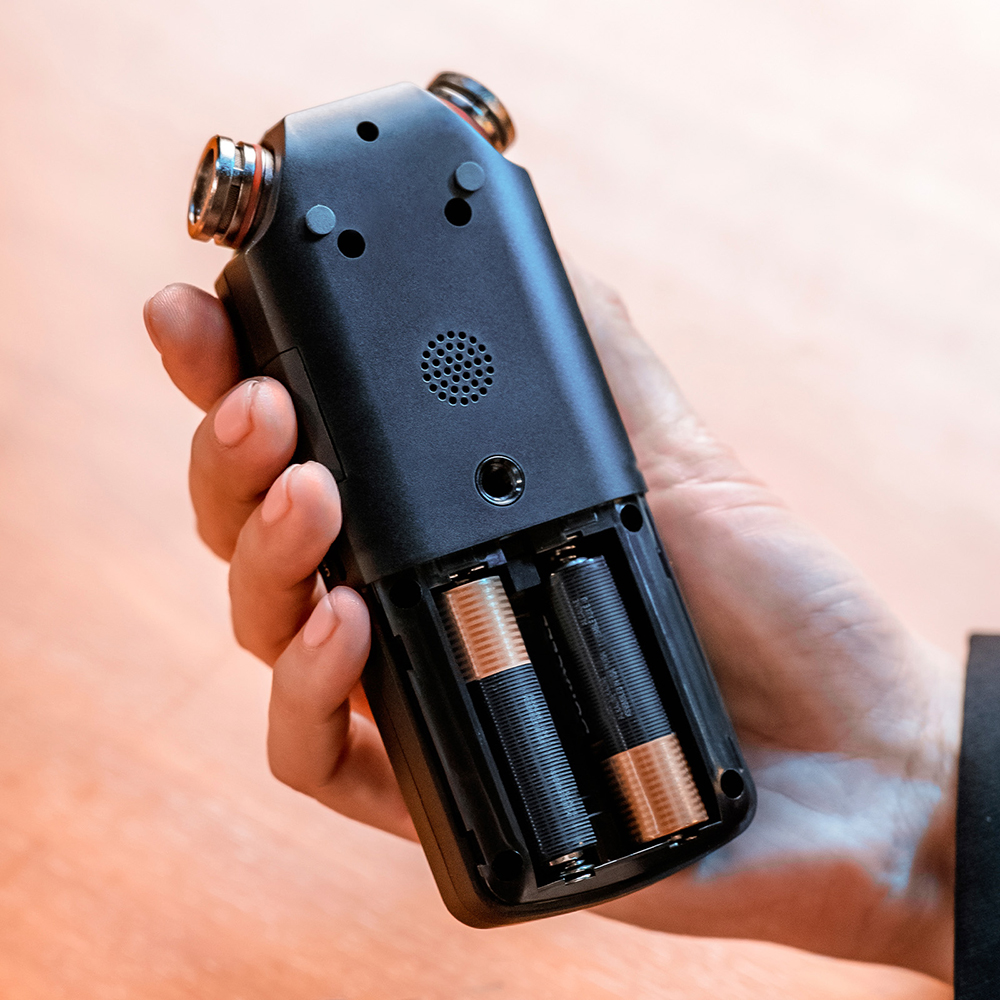

Long Battery Life
With up to 17.5 hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.

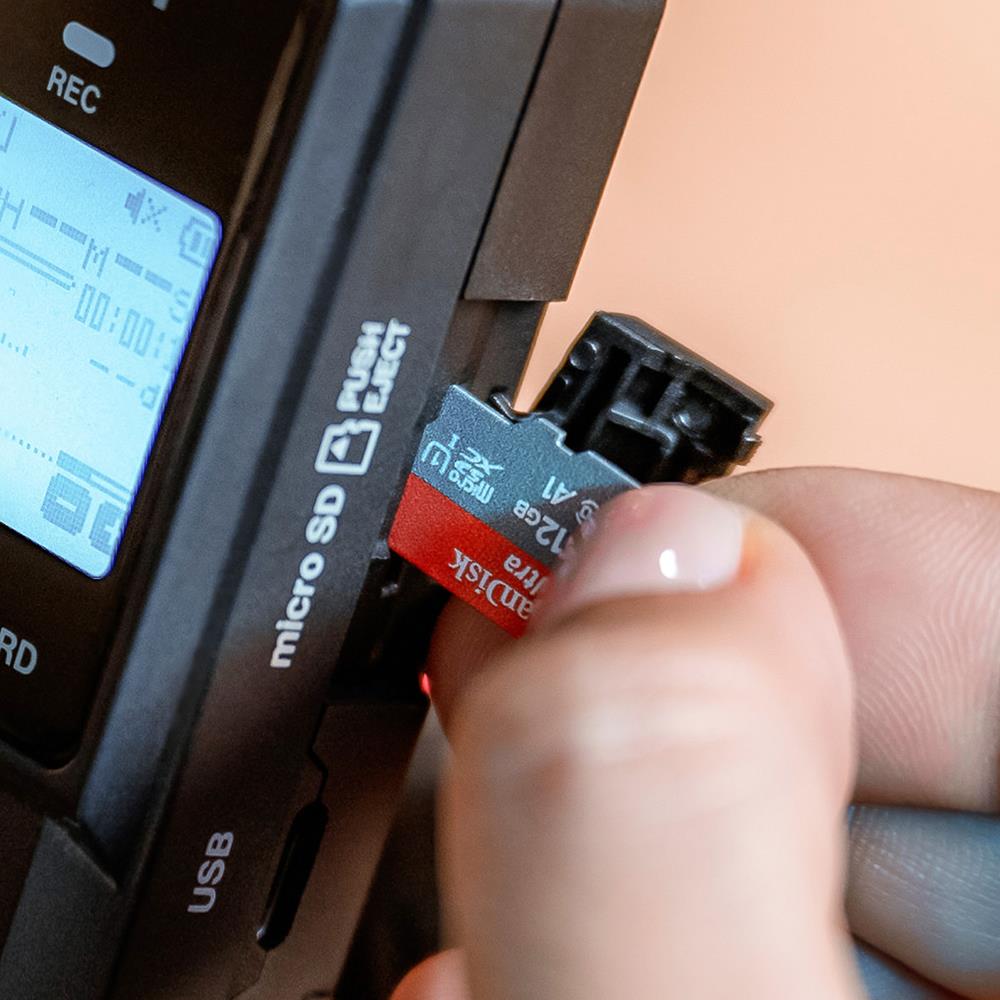

Large Recording Capacity
Supports up to 512GB microSDXC cards gives you ample recording capacity for on-the-go use.

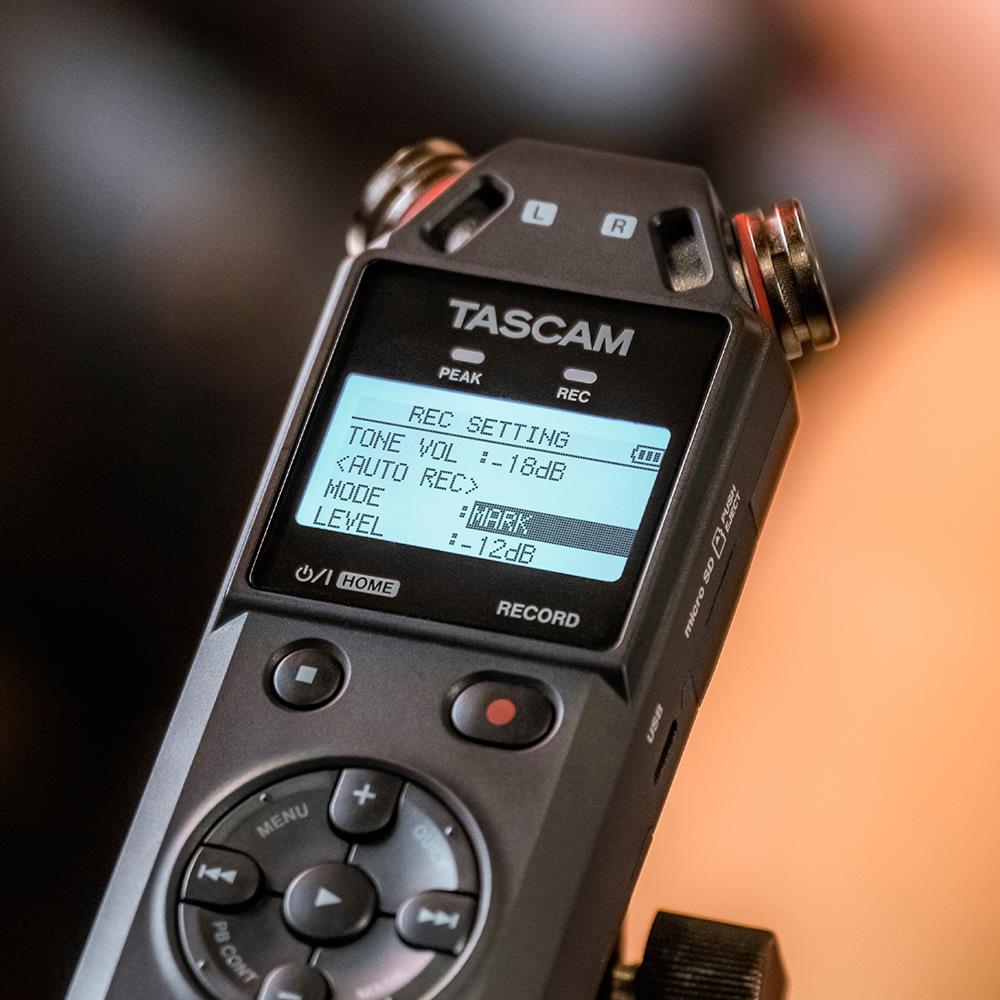

Sound-Sensitive Auto Recording
Automatically start recording when sound is detected with Auto Recording mode.

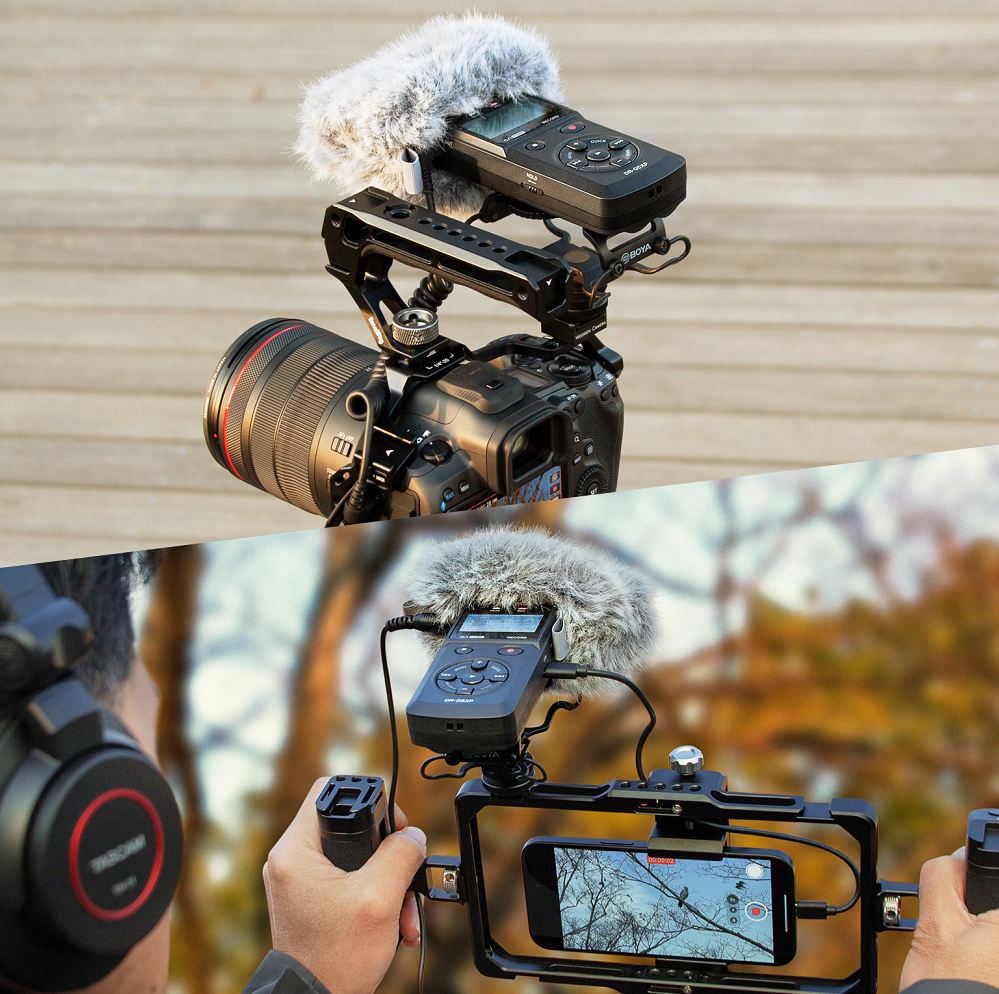

Ready for DSLR and iPhone
Whether you're always on-the-go or find yourself creating impromptu content, the DR-05XP can easily fit into your iPhone video rig or your DSLR camera rig. Auto Tone output for DSLR optimizes DR-05XP for use in videography and content creation.
RF Noise Shielding
With superior shielding of sensitive components, DR-05XP is able to effectively cut interference from Radio Frequency (RF), Wi-Fi, and other digital signals - ensuring a clean, noise-free signal.

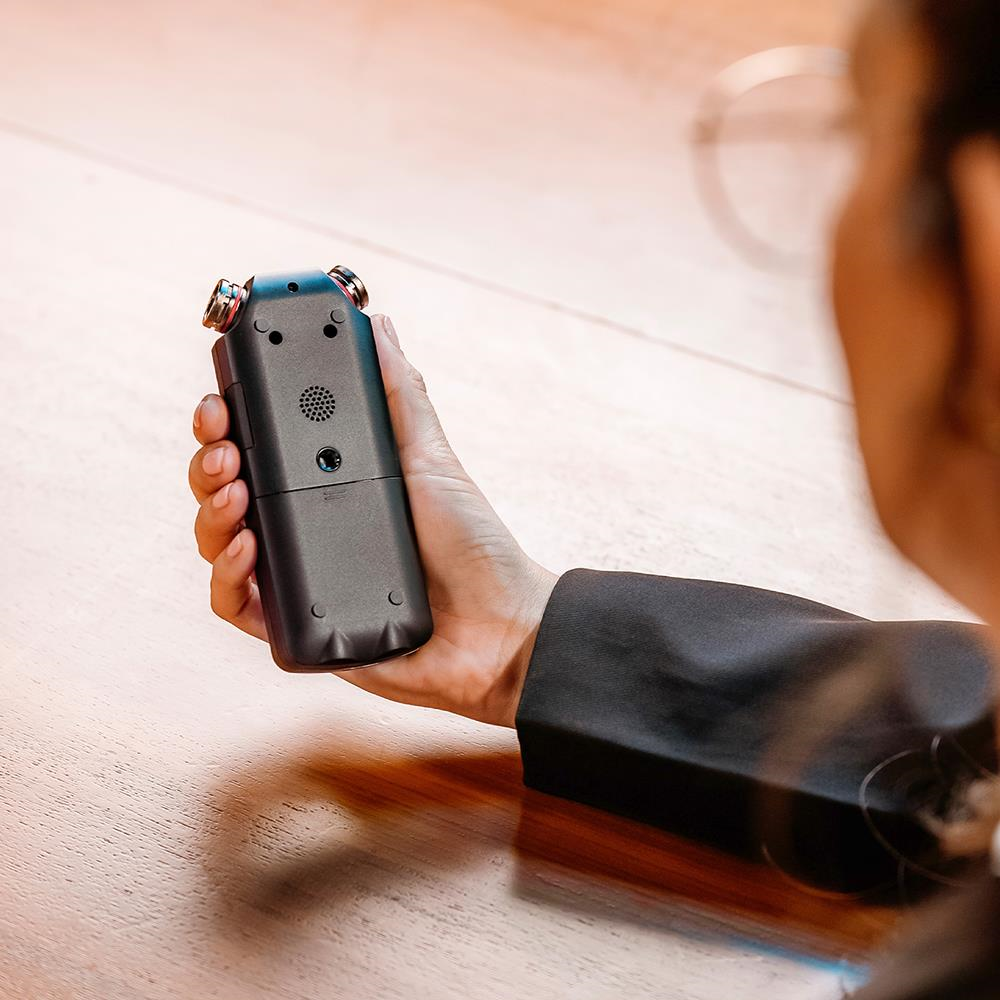

Built-in Reference Speaker
A built-in monaural speaker allows you to check your recordings without putting on headphones.

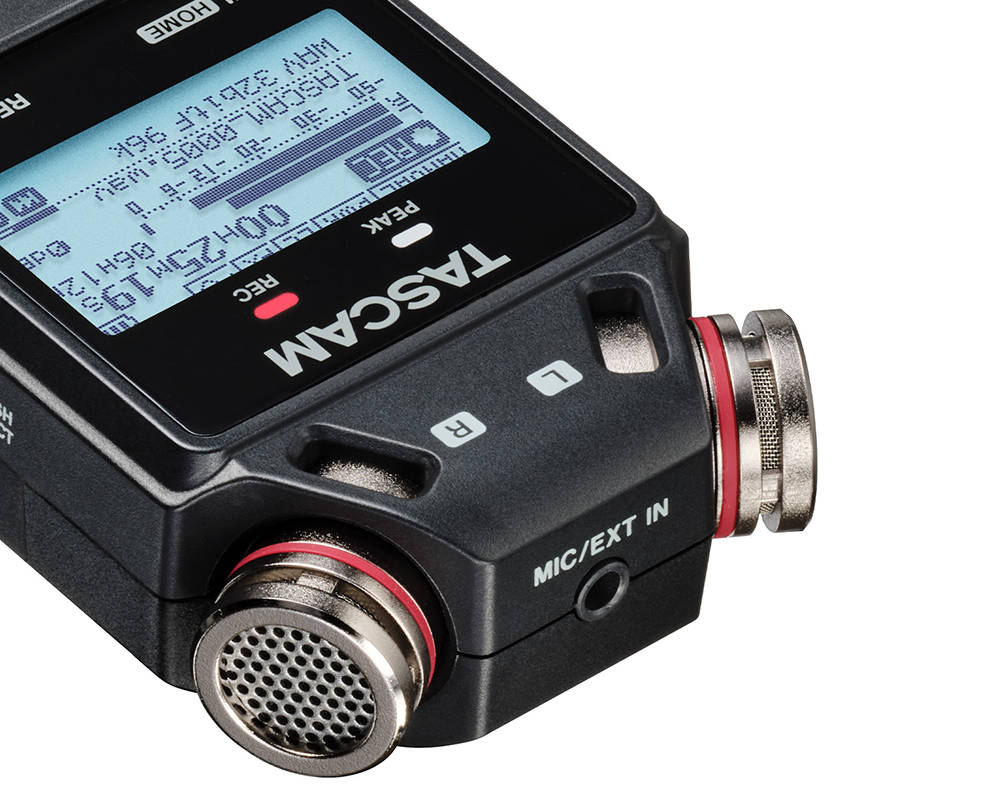

External Inputs
Equipped with a stereo mini jack for external stereo microphones, as well as stereo line-level input.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Recording Devices
DJI Mic 2 2-Person Compact Digital Wireless Microphone System -...
Sony ICD-PX470 4GB Digital Voice Recorder with Built-in USB...
RODE WIME Wireless Micro USB-C Ultra-compact Wireless Microphone ...
RODE WIME Wireless ME Microphone System - Single Channel, Compact...
OM-SYSTEM V420040BE000 VN-541PC Digital Voice Recorder by Olympus
TASCAM DR-05XP 2-Channel 32-Bit Float Portable Audio Recorder
- Brand: TASCAM
- MPN: TASCAMDR05XP
- Part #: MICTSC1026
Product URL: https://www.pbtech.co.nz/product/MICTSC1026/TASCAM-DR-05XP-2-Channel-32-Bit-Float-Portable-Aud
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 10 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
TASCAM DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface
The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.
- 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
- Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
- Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours of operation with 2 x AA alkaline batteries
Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.
Recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3.
Built-in Condenser Microphones
The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.
Simplicity in Your Palm
With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.
Your Portable Recording Studio
The DR-05XP isn't only a powerful portable recorder - it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.
Ideal for Musicians
The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.
On Location
With its compact size, the DR-05XP can travel anywhere for exceptional field recording. Choose from four different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
Record Anything, Anywhere
From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-05XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.
Long Battery Life
With up to 17.5 hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.
Large Recording Capacity
Supports up to 512GB microSDXC cards gives you ample recording capacity for on-the-go use.
Sound-Sensitive Auto Recording
Automatically start recording when sound is detected with Auto Recording mode.
Ready for DSLR and iPhone
Whether you're always on-the-go or find yourself creating impromptu content, the DR-05XP can easily fit into your iPhone video rig or your DSLR camera rig. Auto Tone output for DSLR optimizes DR-05XP for use in videography and content creation.
RF Noise Shielding
With superior shielding of sensitive components, DR-05XP is able to effectively cut interference from Radio Frequency (RF), Wi-Fi, and other digital signals - ensuring a clean, noise-free signal.
Built-in Reference Speaker
A built-in monaural speaker allows you to check your recordings without putting on headphones.
External Inputs
Equipped with a stereo mini jack for external stereo microphones, as well as stereo line-level input.
Specifications
Recorder specifications
Recording media/file systems
microSD cards / microSDHC cards / microSDXC cards (up to 512 GB)
Sampling frequency
44.1 kHz / 48 kHz / 96 kHz
Quantization bit depth
16-bit / 24-bit / 32-bit float
Sampling frequency
44.1 / 48 kHz
Quantization bit depth
32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Maximum number of input channels
2
Maximum number of recordable tracks
2
MIC/EXT IN jack (can provide plug-in power)
Connector
3.5mm (1/8") stereo mini jack
Input Impedance
18 kohm or more (when plug-in power is turned off)
2 kohm or more (when plug-in power is turned on)
Nominal input level
- 20 dBV
Maximum input level
-4 dBV
PHONES/LINE OUT jack
Connector
3.5mm (1/8") stereo mini jack
Output impedance
12 ohm
Nominal output level
- 14 dBV (10kohm loaded)
Maximum output level
+2 dBV (10kohm loaded)
Maximum output
20 mW + 20 mW (32 ohm load)
Working impedance
16 - 250ohm
Built-in Speaker
Output
0.3W (monaural)
USB
Connector
USB Type-C
Format
USB 2.0 High Speed Mass Storage Class
USB 1.1 Full Speed Audio Class
USB Audio
Sampling rate
44.1 / 48 kHz
Quantization bit depth
24-bit
Number of inputs
2 channels (output from this unit)
Number of outputs
2 channels (input to this unit)
General
Power
2AA batteries (alkaline or NiMH)
USB bus power (5V/0.5A) from a computer, etc.
TASCAM PS-P520U AC adapter (sold separately)
Power consumption
1.7 W (maximum)
Weight
174 g / 0.384 lb (including batteries)
126 g / 0.278 lb (not including batteries)
Operating temperature range
0 - 40 °C / 32 - 104 °F
Dimensions
60.5 x 142.3 x 27 mm
2.39 x 5.61 x1.07 inch
(W x H x D, including protrusions)
Included items
DR-05XP x1
Safety guide (including warranty) x1
TASCAM ID registration guide x1
Note
Note
0 dBV=1 Vrms, 0 dBu=0.775 Vrms
