Features

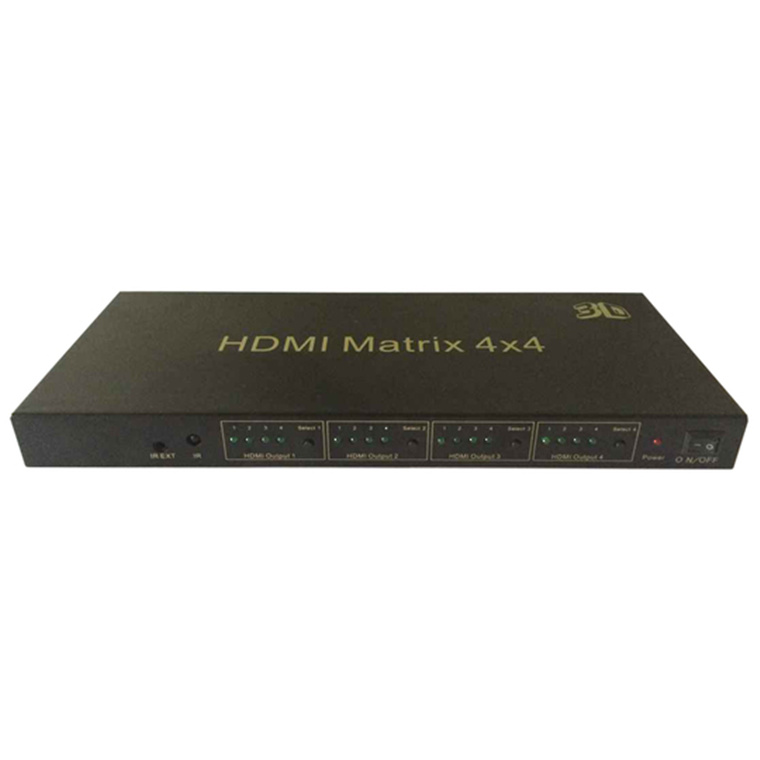

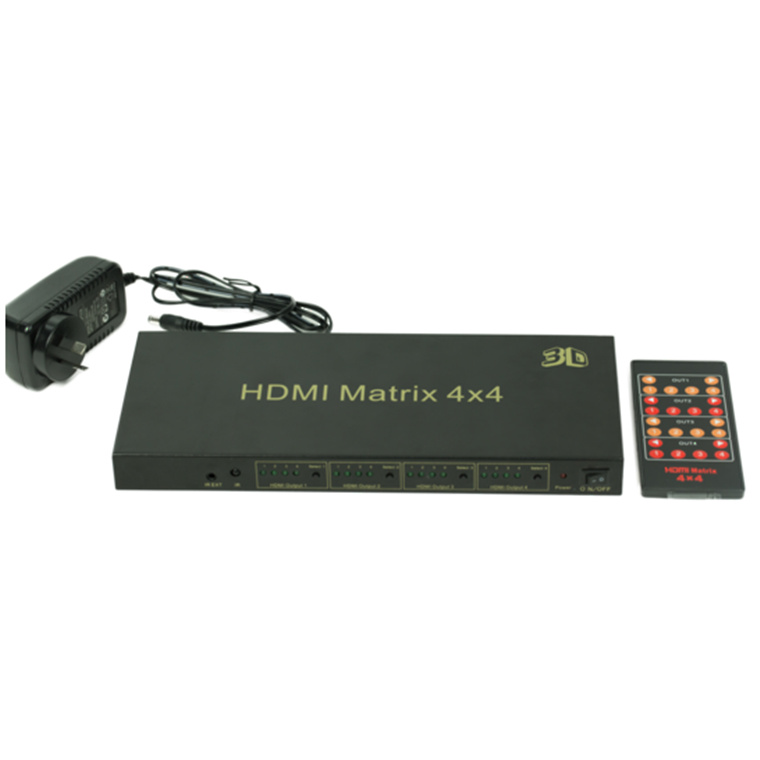

AVS AHDMX44
HDMI 4x4 Matrix with IR Control
A HDMI matrix switcher is a convenient way to route high definition video and audio from any of the four sources to any of the four displays.
- HDMI, HDCP 1.2 and DVI compliant
- Support full 3D pass-through
- Support high resolution up to 1080P
- Super IR control system, IR transport channel can be forward or backward per your installation
- Support CEC bypass
- External and internal EDID settings
Specifications
Input Port

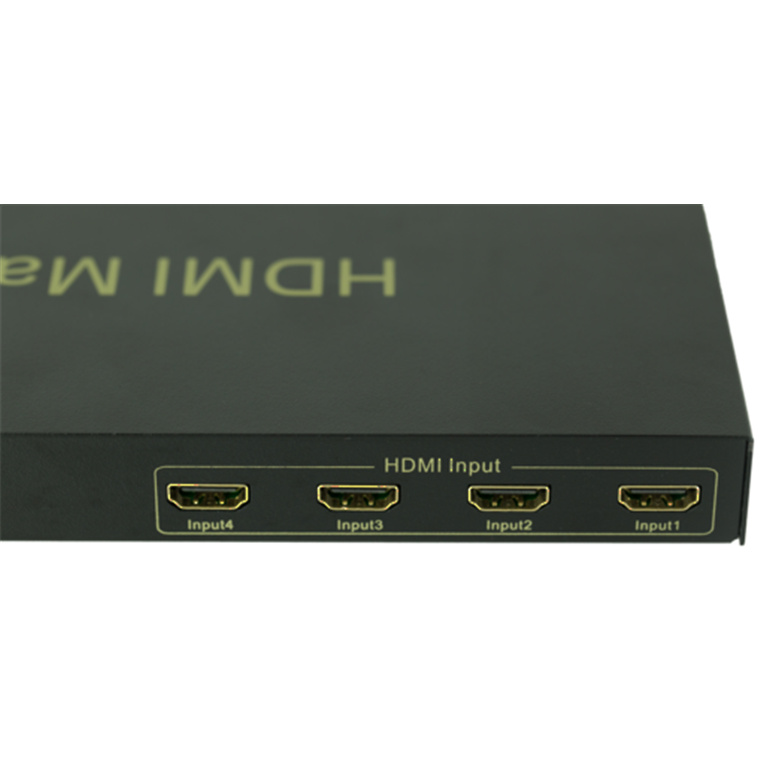

4xHDMI(Female connector), 1xIR Channel
Output Port

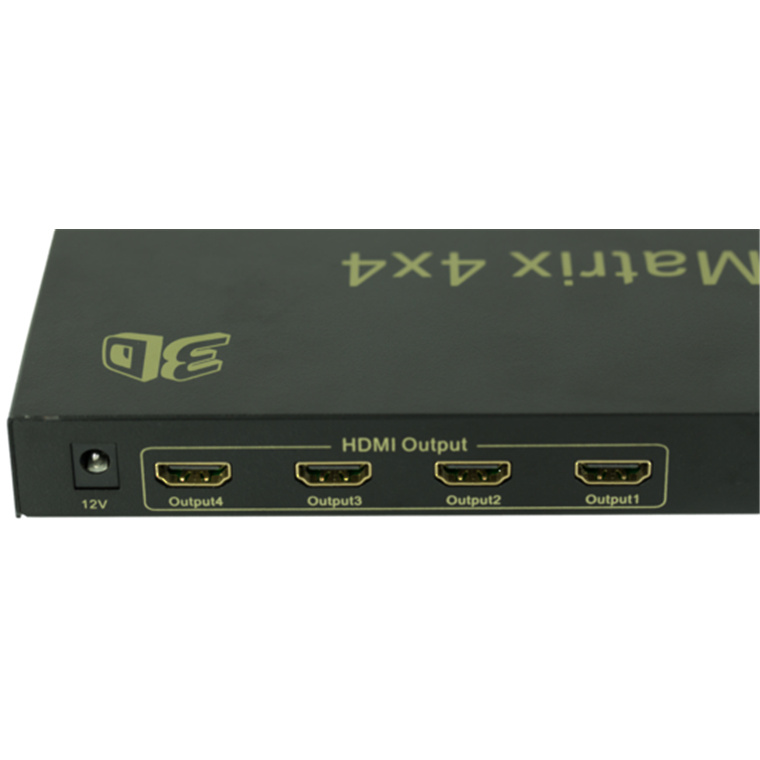

4xHDMI(Female connector)
Bandwidth
6.75Gbps
Output resolution
480i~1080P @ 50/60,1080P @ 24/50/60, VGA~UXGA
Operating Temperature
-15C~55C/5°F~131°F
Deep Colour
36bit
Chassis
Metal
Dimensions
275mm(L)x150mm(W)x30mm(H)
Weight
1089g
Power Supply
DC 5V
