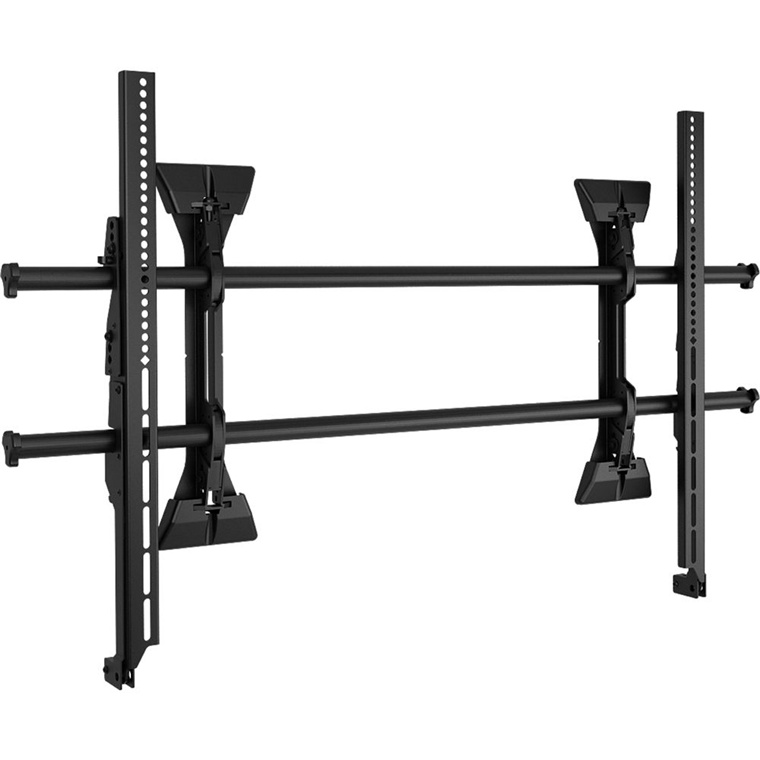

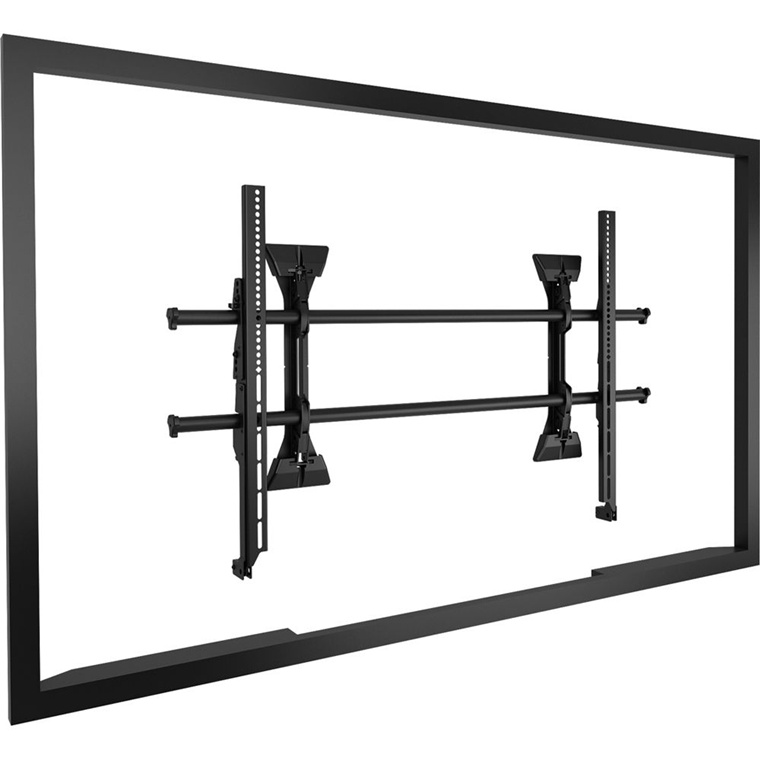

Chief XSM1U X-Large Fusion Micro-Adjustable Fixed Wall Display Mount

Chief XSM1U X-Large Fusion Micro-Adjustable Fixed Wall Display Mount
PB Tech price: PB Tech price:
$501 74  +GST $577 00  inc GST
$501.74  +GST
$577.00  inc GST

or six weekly payments of $99.05 with Laybuy

Chief XSM1U X-Large Fusion Micro-Adjustable Fixed Wall Display Mount

Part #: MOACHI1003
PB Tech price: PB Tech price:
$501 74 $577 00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 09/02/2022 When will I receive it?
$501.74  +GST
$577.00  inc GST

or six weekly payments of $99.05 with Laybuy

Six easy payments of $99.05 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $118.86 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $5.65 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*An Establishment fee of $55 applies to your first LTF transaction, a $35 Advance Fee applies to all subsequent LTF transactions. Standard Interest Rate, currently 25.99% p.a. applies to any outstanding balance at end of the interest free period. Lending criteria, $50 annual account fee, fees, terms and conditions apply.
Learn more about Q Card

  • Brand: Chief
  • MPN: XSM1U
  • Part #: MOACHI1003
  • UPC: 841872163871
  • Max Screen Size Supported: 82 inches
  • Max Weight Supported: 113kg
  • Min Screen Size Supported: 55 inches
  • View more
Ready for collection on 15/02/2022
Urgent Delivery - Unavailable
Evening Delivery - Unavailable
Next Business Day Delivery - Unavailable
Standard Delivery - Estimated arrival 11th February

Features

Chief XSM1U X-Large Fusion Micro-Adjustable Fixed Wall Display Mount

Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favourites like Centreless shift, Control Zone levelling adjustment and Click Connect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security. Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution


Key Features

- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- ControlZone Leveling for post-installation fine tuning of height and leveling
- Centerless Shift provides up to 21.4" (543 mm) of post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away

Specifications

Certifications

UL Listed, OSHPD
Approved, TÜV Certified

Color

Black

Lateral Shift

21.4" (543 mm)

Manual Height Adjustment

1" (25 mm)

Minimum Depth

2.25" (57 mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100 mm - 1070 x 600 mm

Orientation

Landscape

Overall Dimensions (H x W x D)

26.25 x 42.75 x 2.25" (667 x 1086 x 57 mm)

Shipping Weight

11 kg

Solution Type

Universal

Typical Screen Sizes

55 - 82"

Wall Stud Compatibility In

24" - 42" (610 mm - 1067 mm)

Weight Capacity

250 lbs (113.4 kg)

Manufacturer Part No:
XSM1U
Brand:
Product Type:
-
UPC
841872163871
Product Family:
-
Shipping Weight:
113 kg
PB Part No:
MOACHI1003
Product Model:
XSM1U
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
