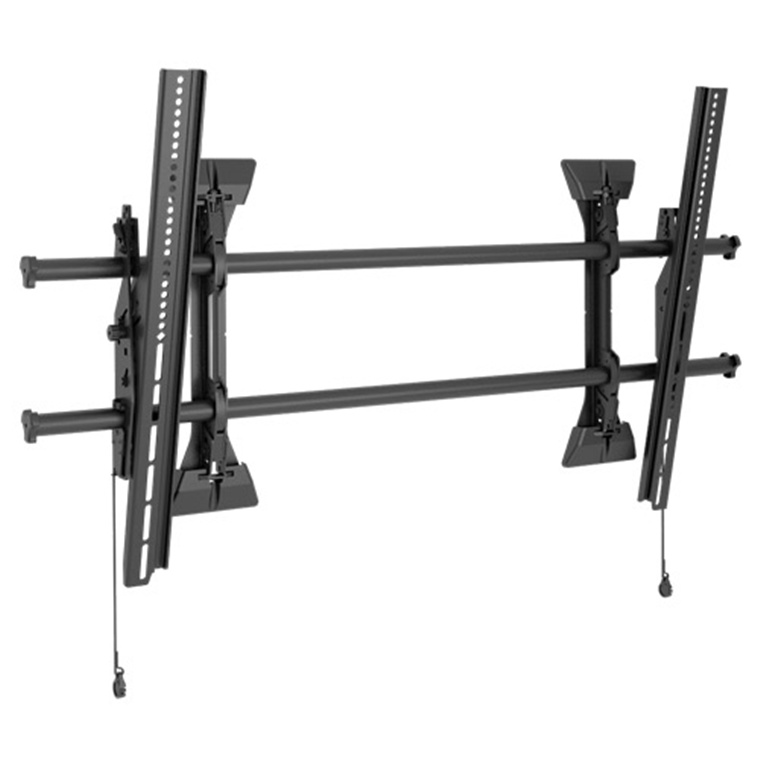

Chief XTM1U X-Large Tilt Mount TV Mounts

Chief XTM1U X-Large Tilt Mount TV Mounts

  • Brand: Chief
  • MPN: XTM1U
  • Part #: MOACHI1234
  • UPC:841872163888
  • Max Screen Size Supported:100 inches
  • Min Screen Size Supported:55 inches
  • Max Weight Supported:113kg
PB Tech price:PB Tech price:
$53200$61180
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships today
When will I receive it?

Finance from $5.94 per week*

No payments or interest for 12 months available

Features

-Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall

-Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering

-Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile

-Set screws keep the mount rigid, stable and secure throughout the life of the installation

-ClickConnect offers an audible click when the screen safely engages with the mount

-Built-in cable stand provides easy access under the screen

-A full line of accessories can be installed with the mount and the entire unit can be adjusted together

-Multiple installation options for various stud distances

-Exclusive nesting spacers can be stacked to achieve any depth

-Quick-Store Cords use magnets to easily store and access pull cords

-Improved cable management with new end caps

-Integrated Security

-Ships with a custom hardware kit that can be hung from mount rails if installing in stages

-Easy Open box with less waste to throw away

Specifications

Certifications

UL Listed, OSHPD Approved, TÜV Certified

Color

Black

Lateral Shift

21.4" (542 mm)

Manual Height Adjustment

1" (25 mm)

Maximum Screen Thickness

6"

Minimum Depth

2.5" (64 mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100 mm - 1070 x 600 mm

Number Of Monitors

1

Overall Dimensions (H x W x D)

24.5 x 42.75 x 2.5" (622 x 1086 x 64 mm)

Shipping Weight

27.24 lbs (12.36 kg)

Solution Type

Universal

Tilt

+5°, -12°

Typical Screen Sizes

55 - 100"

Wall Stud Compatibility In

24" - 42" (610 mm - 1067 mm)

Weight Capacity

250 lbs (113.4 kg)

Orientation

Landscape

Manufacturer Part No: XTM1U Brand: Chief Product Type: -
UPC 841872163888 Product Family: - Shipping Weight: 12.4 kg
PB Part No: MOACHI1234 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
