ASUS AAS01R ROG Ergo Monitor Arm -- Mechanical Spring Monitor Mount , Holds Up to 49-inch* within 13.5kg, Pivot/Swivel/Tilt/Rotation/Height Adjustable, Double-sided Cable Management, VESA 100X100mm

  • Brand: ASUS
  • MPN: AAS01R
  • Part #: MONASU70201
  • UPC:
NEW ARRIVAL
PB Tech price
$ 299 .00 $ 343 .85
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 13 Apr When will I receive it?
$299.00  +GST
$343.85

Four payments of $86.82 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $4.04 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: ASUS
  • MPN: AAS01R
  • Part #: MONASU70201
  • UPC:

Mounts Supported

1

Min Screen Size Supported

N/A

Max Screen Size Supported

49 inches

Max Weight Supported

13kg

Max Rotation

360 Degrees

VESA Compatible

100 x 100

Colour

Black

Similar in-stock products available at PB Tech right now

Features

PRECISION AND COMFORT FOR YOUR BATTLESTATION

Level up your gaming experience with the ROG Ergo Monitor Arm. Its compact bracket design maximizes desk space and provides perfect viewing angles with extensive height, tilt, and swivel adjustments for ultimate ergonomic comfort.

WILL IT FIT YOUR MONITOR?

Designed for versatility, the ROG Ergo Monitor Arm supports most monitors up to 49 inches*. It handles flat screens up to 29.76 lbs (13.5 kg) and curved screens up to 23.15 lbs (10.5 kg). Compatible with standard VESA 100x100mm mounts.

*Screen size based on internal testing of ROG monitors.

- 49-inch Max
- Flat monitor: 3-13.5kg
- Curved monitor: 3-10.5kg
- 100x100 VESA

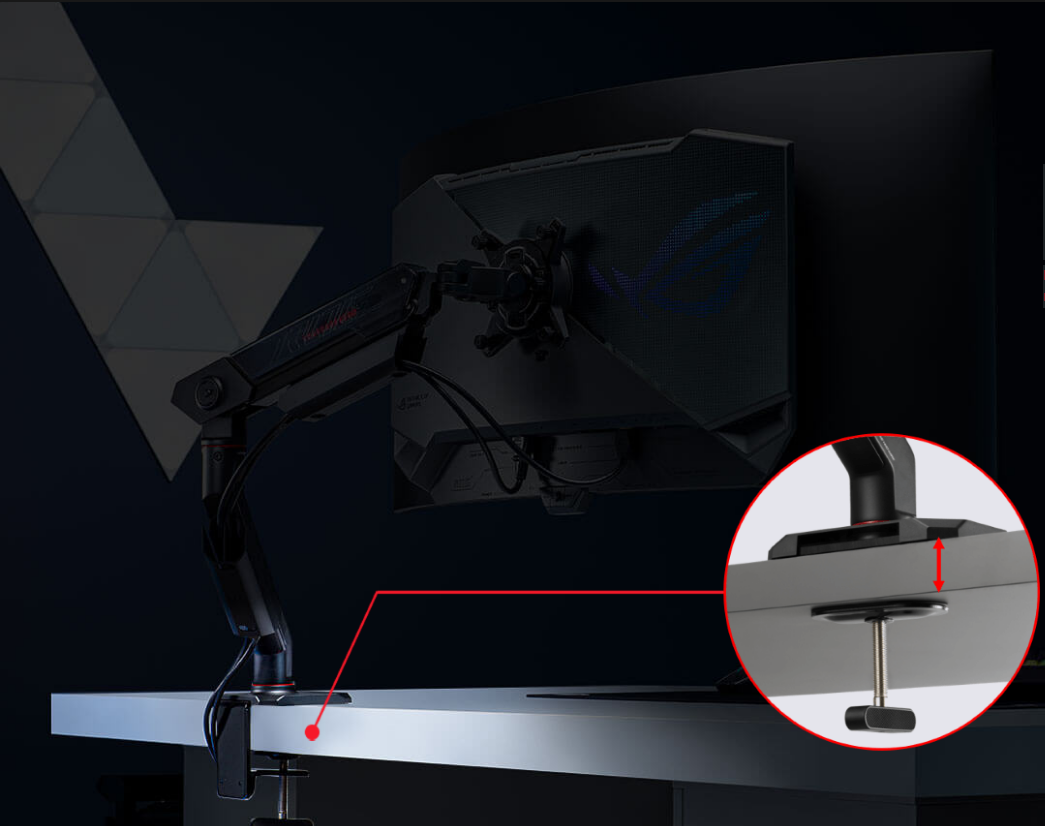

EASY AND VERSATILE INSTALLATION

Enjoy seamless installation options with both desk clamp and grommet mount, perfectly designed to fit your setup needs.

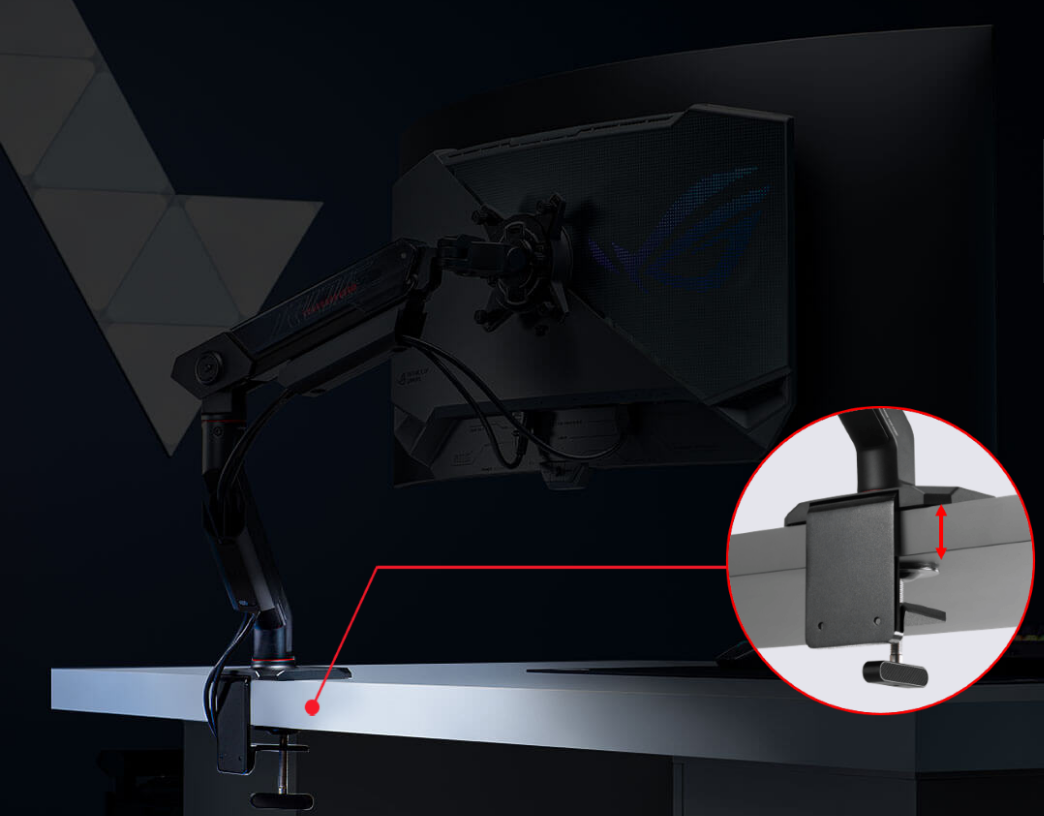

Desk clamp

0.39'' -3.15''/ 10 mm-80 mm desk thickness.

Grommet mount

0'' - 1.77''/ 0 mm-45 mm desk thickness

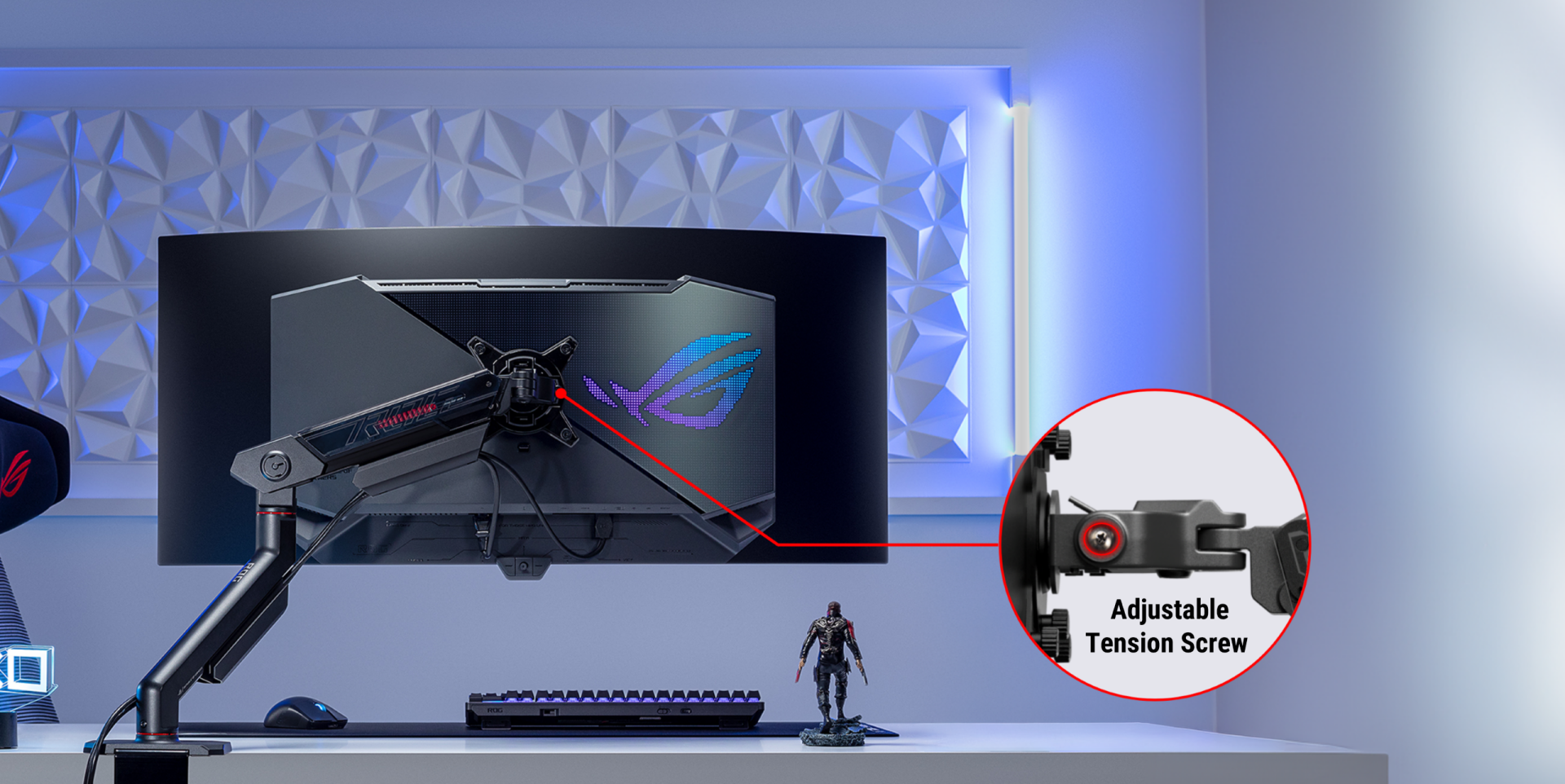

ULTRA SUPPORT FOR ULTRA-WIDE SCREENS

The upgraded tilt head with adjustable tension screw ensures your ultra-wide display stays perfectly positioned, eliminating sag and wobble.

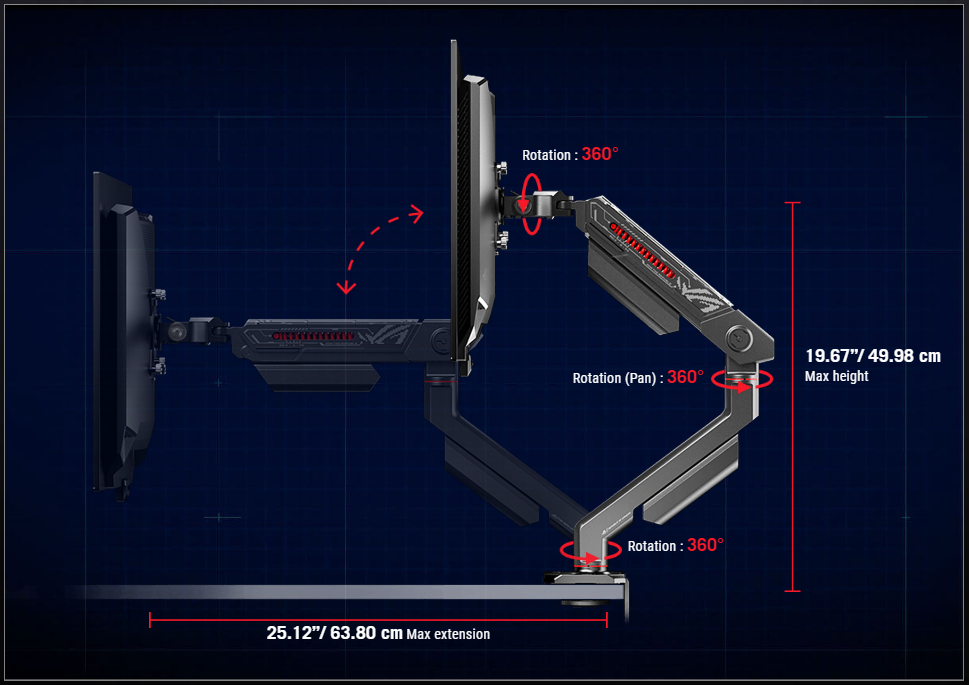

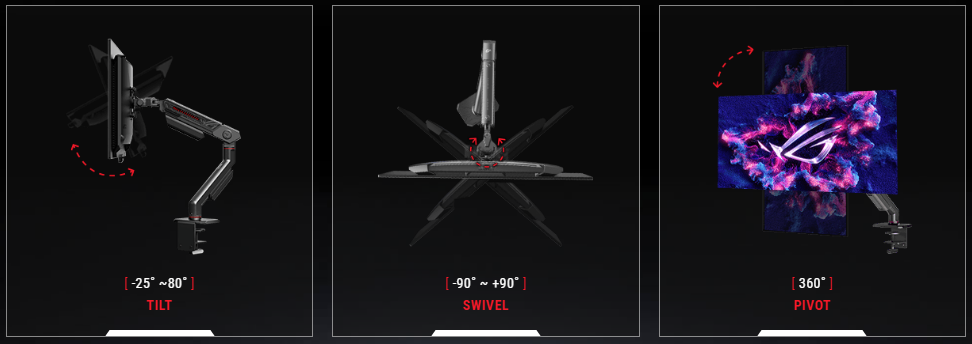

FULL RANGE OF MOVEMENT

The mechanical spring system of the ROG Ergo Monitor Arm allows for smooth, effortless adjustments through a wide range of movements. Tilt, swivel, or pivot the monitor to the desired position.

STURDY AND DURABLE

The Ergo Monitor Arm has been subjected to stringent durability checks, including a 10,000-cycle range-of-motion test. 10,000 times cycle tested.

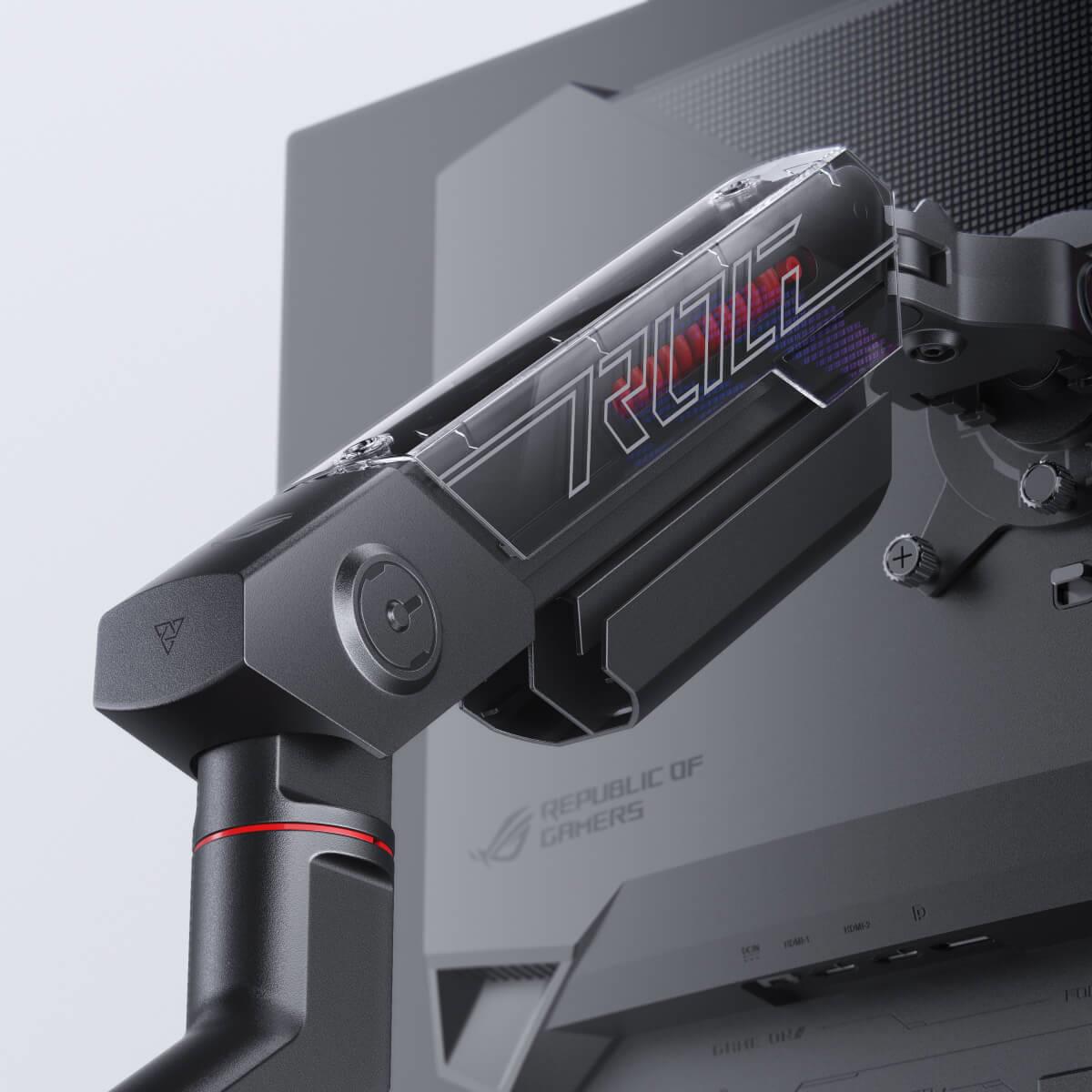

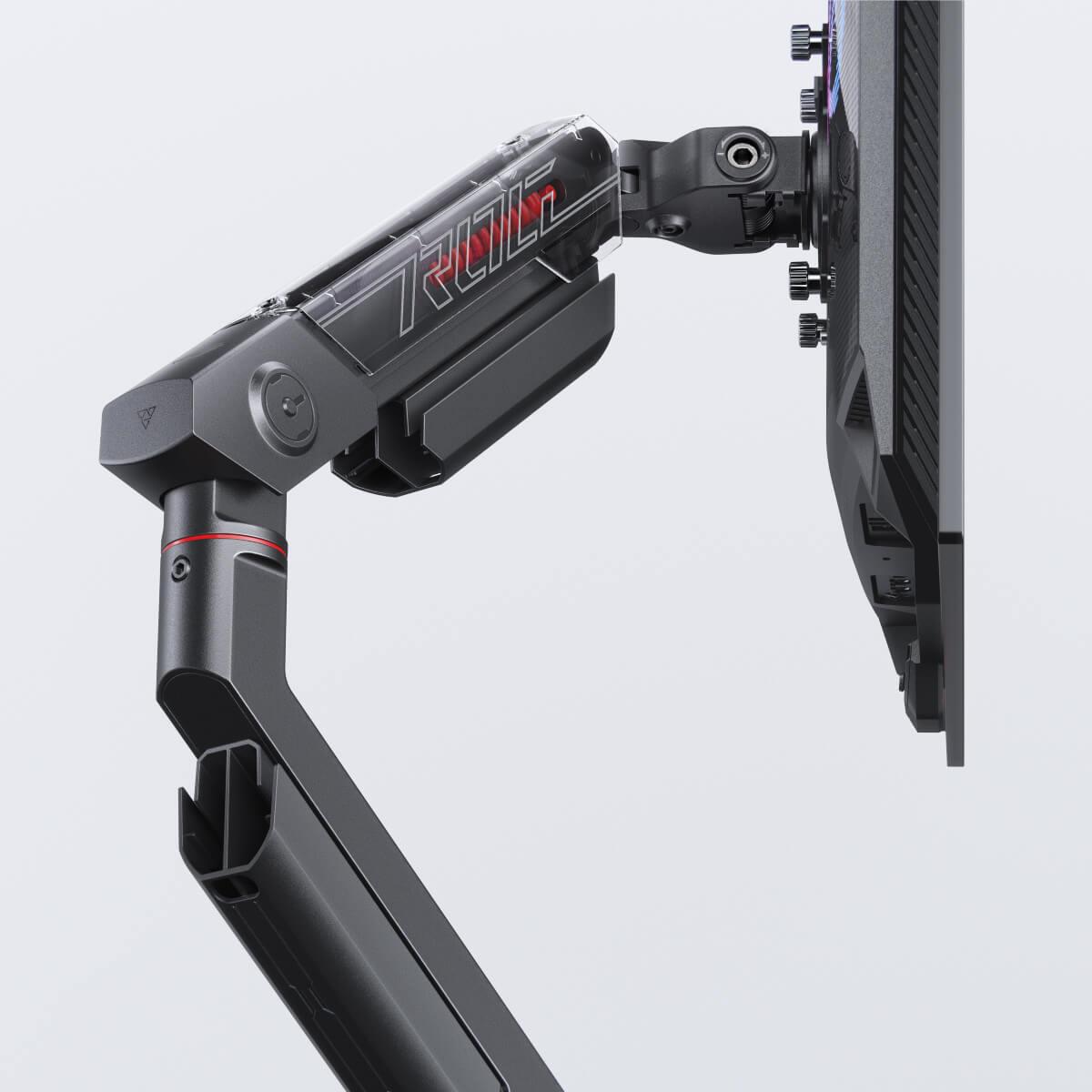

PRODUCT DESIGN

Double-sided cable management provides organization for wires on both sides, ensuring easy access and full range of motion for your equipment.

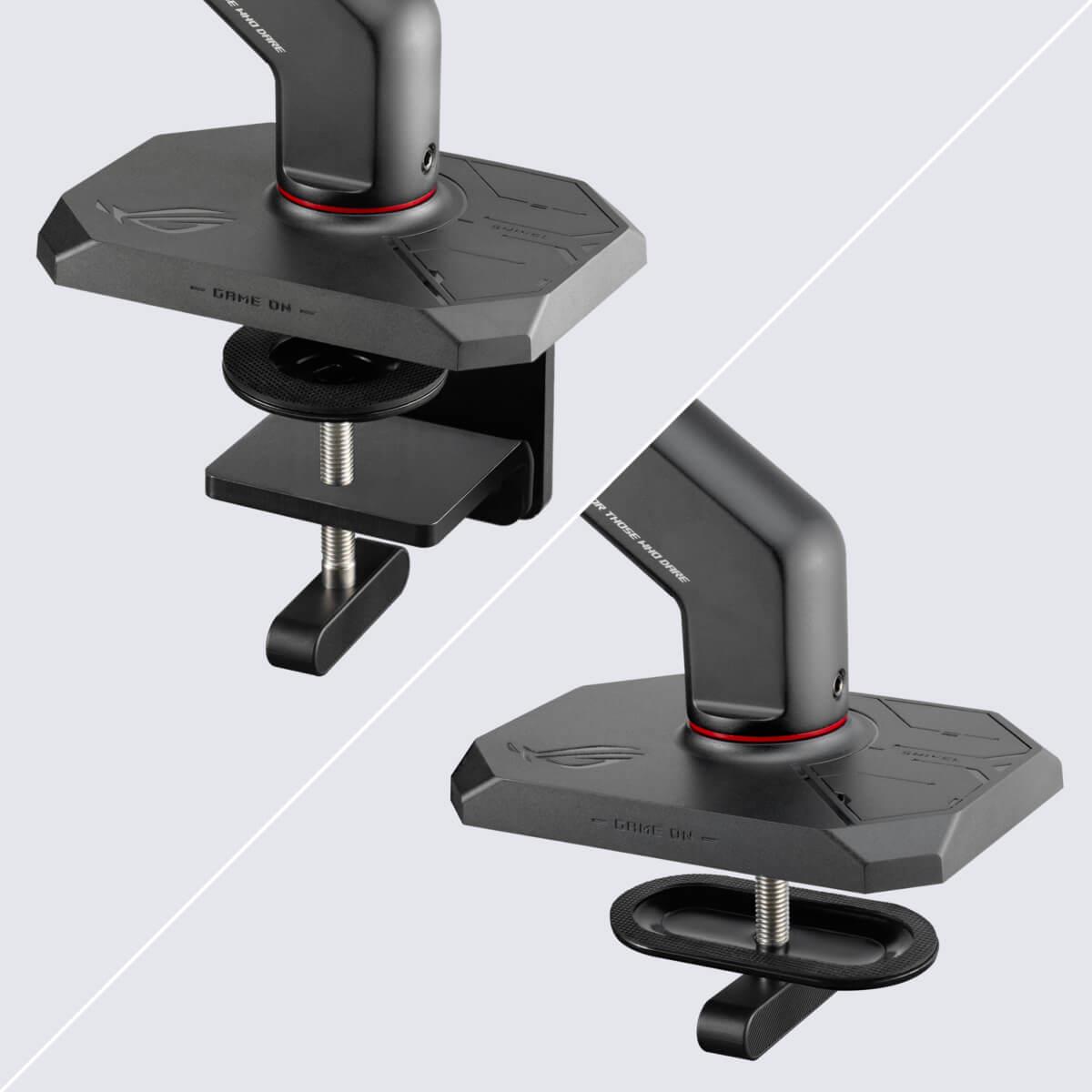

Quick-Swap Mounting

The detachable plate design allows you to easily switch between desk clamp and grommet mounting, adapting to your evolving needs.

The ROG Ergo Monitor Arm boasts a premium and cyberpunk-inspired design.

Specifications

Mechanical Design

Recommended Display Size

≤39"*

Swivel

+90°~-90°

Pivot

360°

Lift

32 cm

Pan

360°

Tilt

+80°~-25°

Rotation

360°

Maximum Extension

63.80cm

Maximum Height

49.98cm

VESA Mounting

100x100mm

Cable Management

Integrated

Desk Clamp Range

10~80mm

Grommet Hole Range

10~45mm

Chassis Color

Black

Dimensions

Phys. Dimension

57.8 x 65.6 x 15.4 cm (22.76" x 25.83" x 6.06")

Box Dimension

77.5 x 13.5 x 23.2 cm (30.51" x 5.31" x 9.13")

Weight

Weight Capacity

3~13.5 Kg(Flat display)
3~10.5 Kg(Curve display)

Net Weight

5.1 kg (11.24 lbs)

Gross Weight

6.6 kg (14.55 lbs)

Note

Note

* 1. Display size is an approximation.
2. Dimension is the diagonal measurement of the display.
3. The display size may be exceeded as long as the weight of the display does not exceed the maximum weight capacity of the mount.

Manufacturer Part No:
AAS01R
Brand:
Product Type:
ROG Ergo Monitor Arm
UPC
-
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
MONASU70201
Product Model:
AAS01R
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
