Features

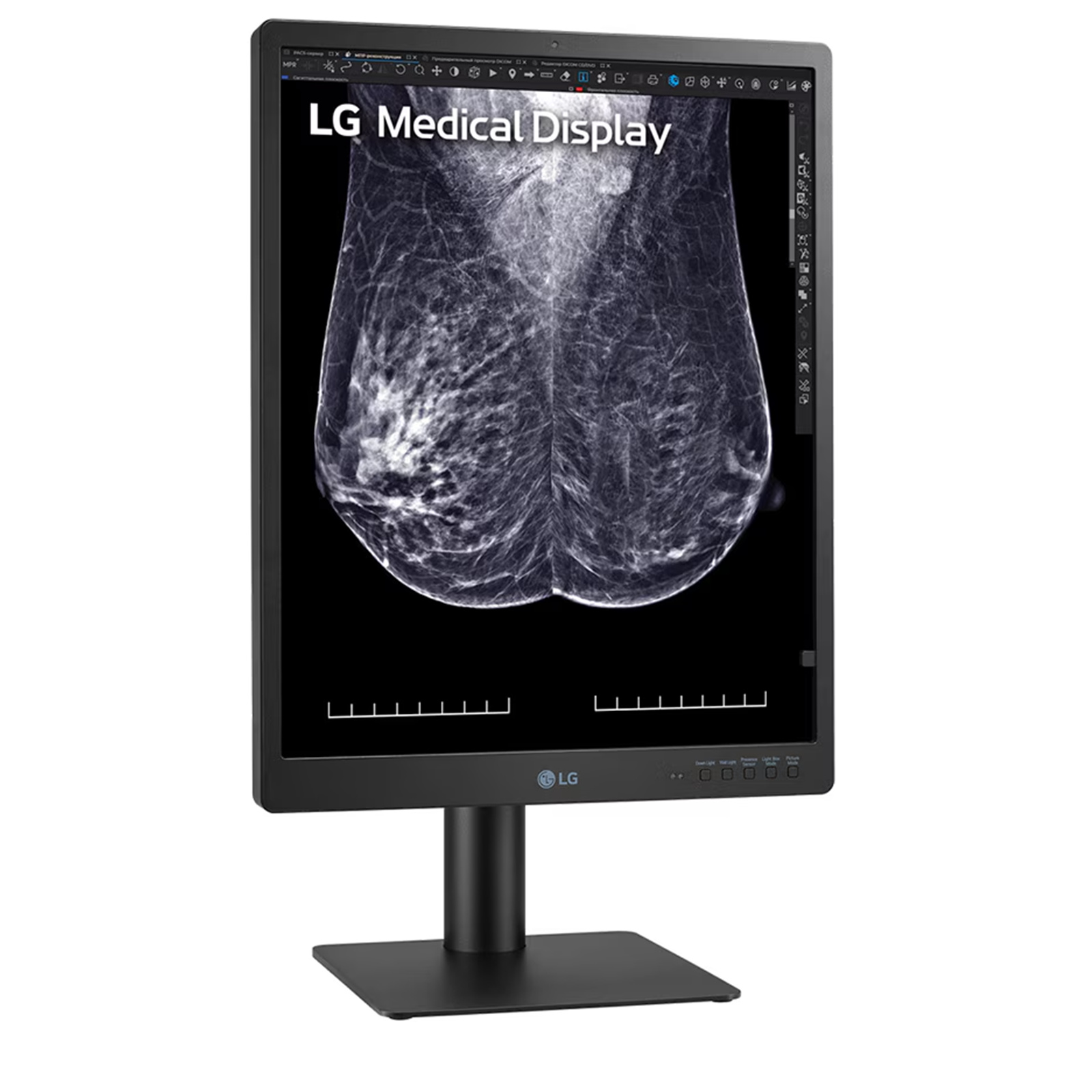

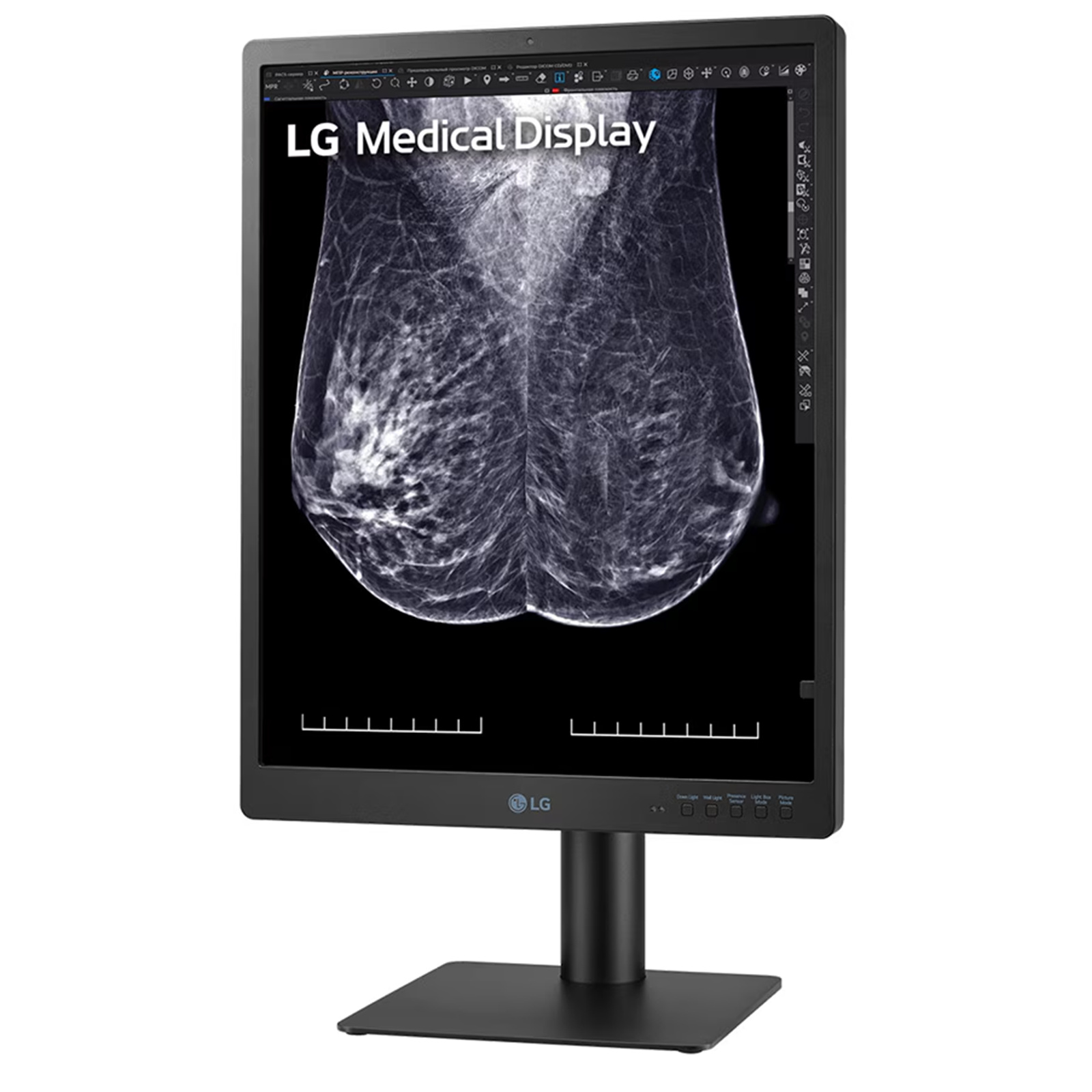

21.3" 5MP IPS Diagnostic Monitor Designed for breast imaging
- Display for breast imaging: 21.3-inch 5MP (2048x2560) IPS Display Calibration with Front Sensor
- Efficiency: 5 Hot Keys & Daisy Chain
- Convenience: User-friendly Monitor Stand Down light & Wall light
High resolution display for breast imaging
High Definition Imaging
Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid color, high definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Multi-resolution mode
Set the resolution mode to fit your needs
The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Internal front calibration sensor
Consistency in medical images
The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Focus view mode
Focus on the region of interest
Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Pathology mode
As if you were looking into a microscope
With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Streamlined and efficient workflow
5 Hot Keys Intuitive Control
The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. They provide fast and easy way to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Presence sensor
Convenient power management
The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Daisy chain
Simple connection for a clutter-free workspace
Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

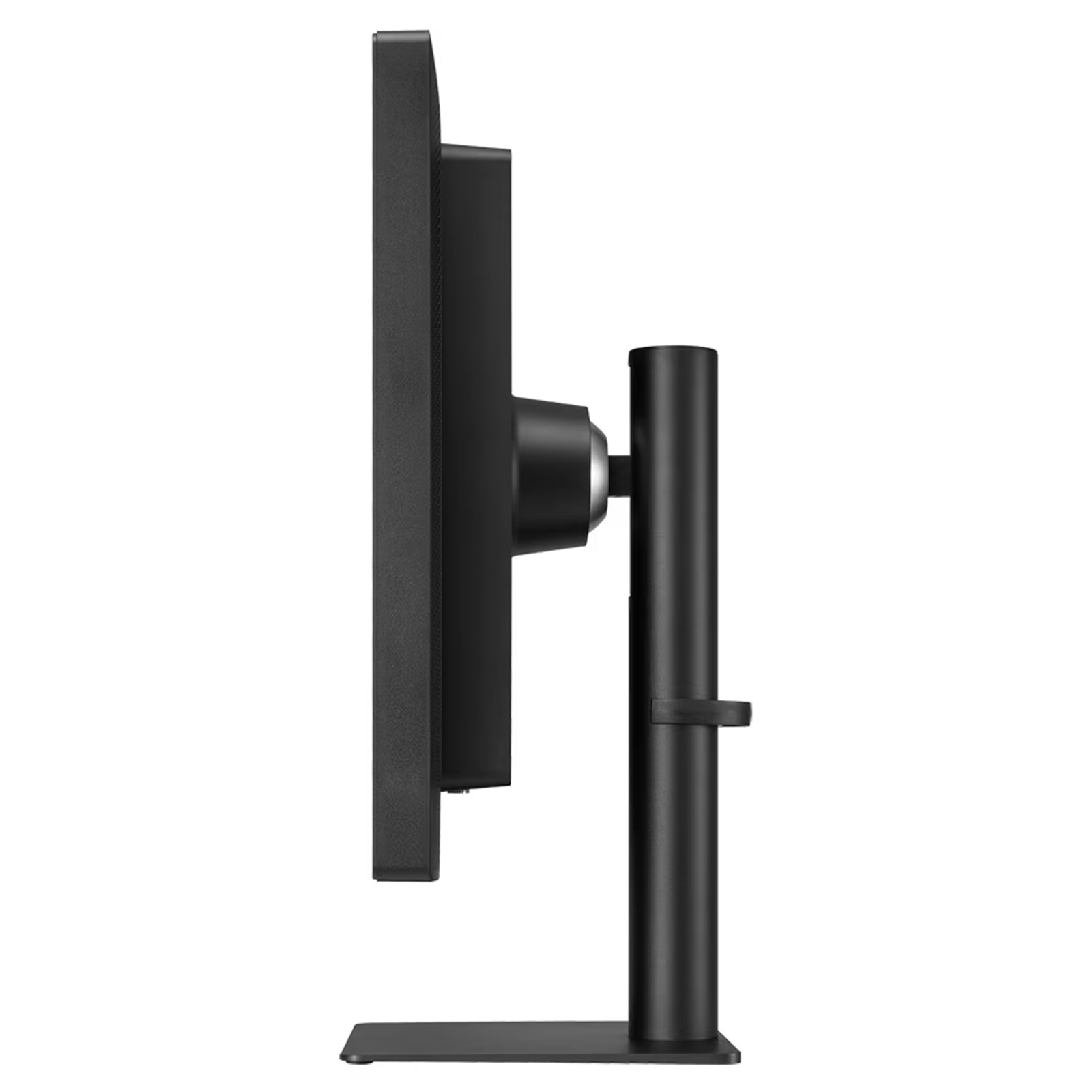

User convenience
User-friendly monitor stand
21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

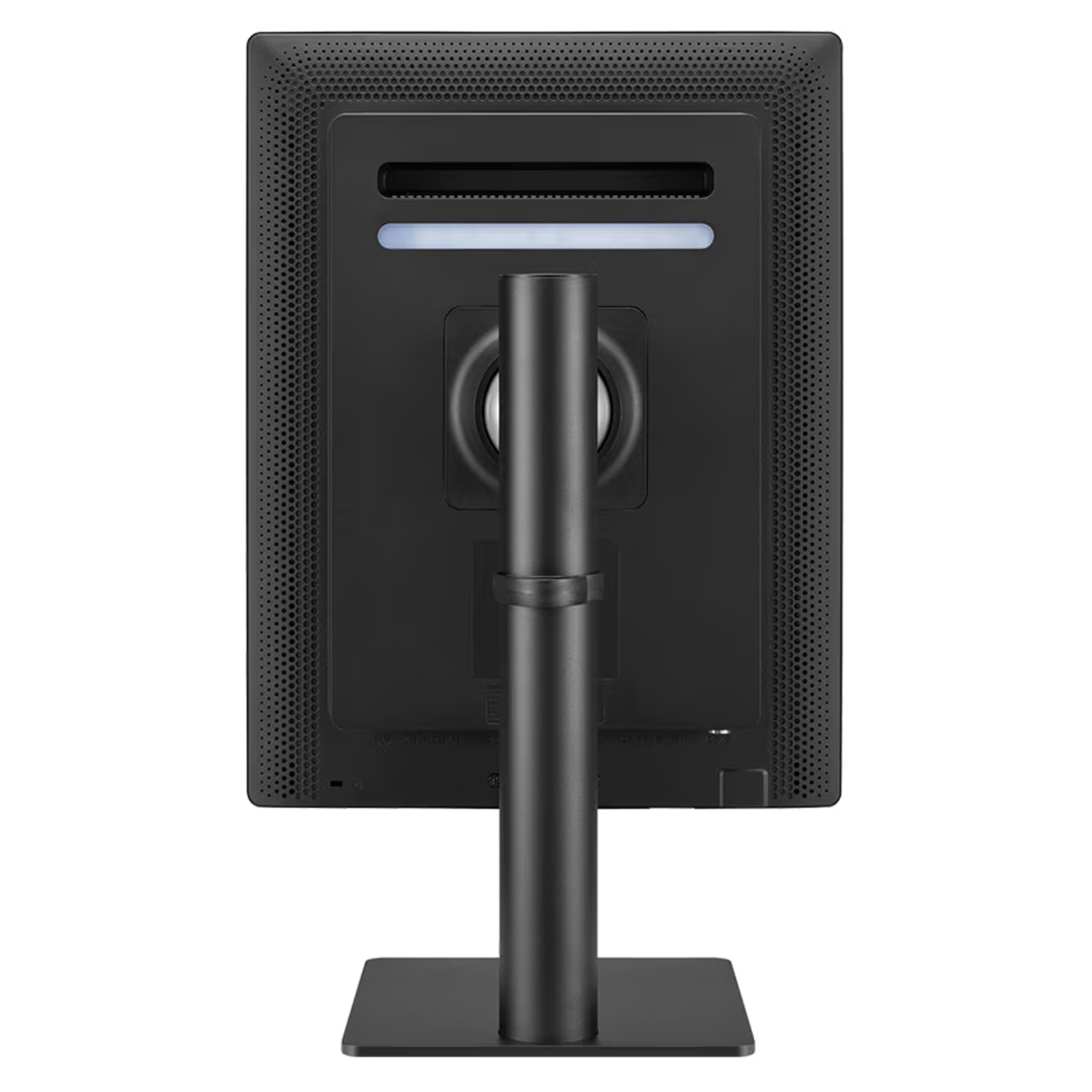

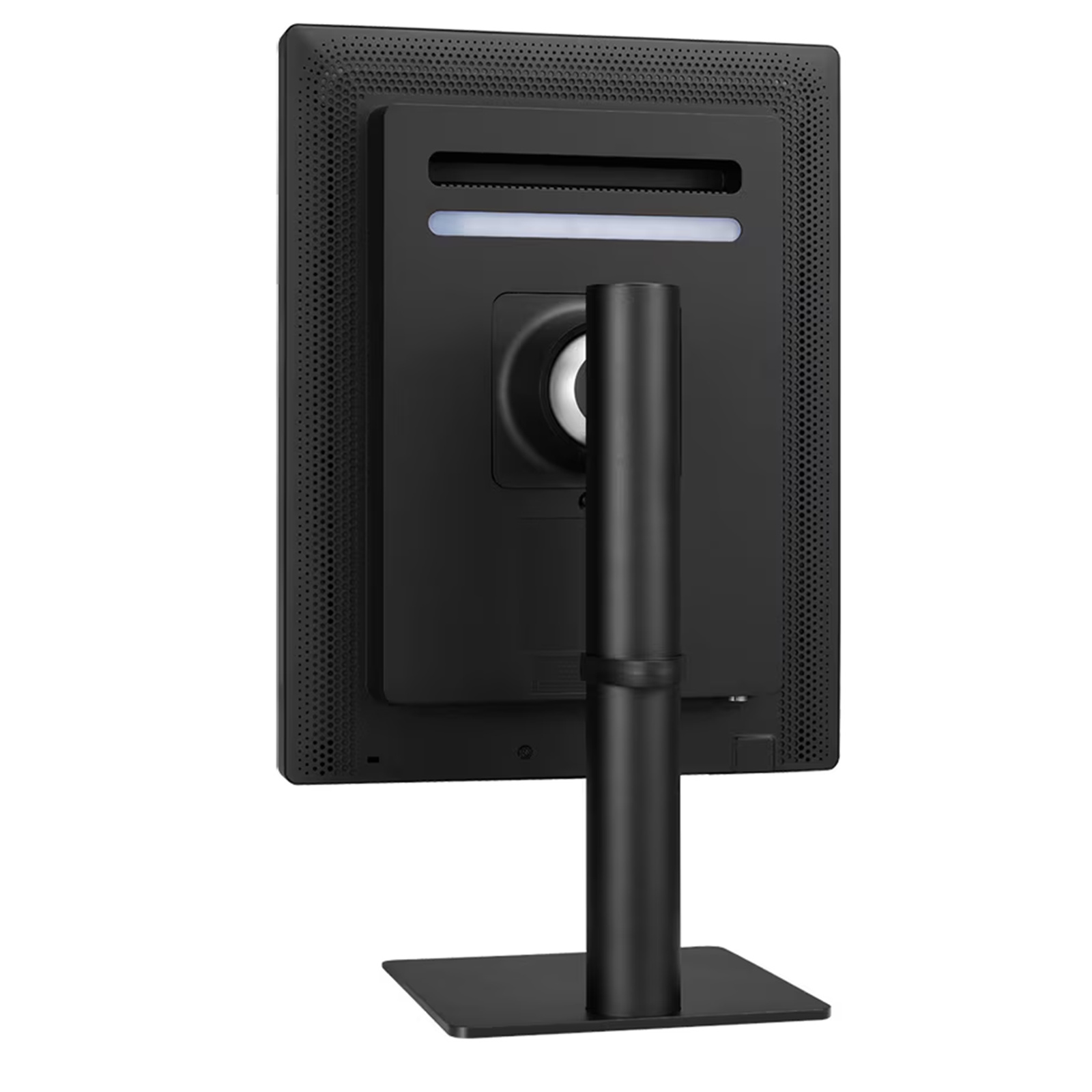

Down light & Wall light
Ideal diagnostic workspace
Down /Wall light mode enhances readability of documents below monitor even in low-light environments.
Wall light
Down light
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Auto luminance sensor
Automatically adjusts screen brightness
21HQ613D features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
PB Tech is an Authorised LG Service Centre
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Monitors
MSI Pro MP2412 24" FHD 100hz Business Monitor 1920x1080 - HDMI -...
LG 34WR50QK 34" WQHD Curved Ultrawide Monitor 3440x1440 -...
Samsung Odyssey G5 27" QHD 165Hz Curved Gaming Monitor 2560x1440 ...
Samsung LS24D300G 24" FHD 100Hz IPS Monitor 1920x1080 - HDMI -...
LG UltraGear 24GS50F-B 24" FHD 180Hz Gaming Monitor 1920x1080 -...
LG 21HQ613D 21.3-inch 5MP 1100nit IPS Diagnostic Monitor for Mammography
- Brand: LG
- MPN: 21HQ613D
- Part #: MONLGL932613
Product URL: https://www.pbtech.co.nz/product/MONLGL932613/LG-21HQ613D-213-inch-5MP-1100nit-IPS-Diagnostic-Mo
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
21.3" 5MP IPS Diagnostic Monitor Designed for breast imaging
- Display for breast imaging: 21.3-inch 5MP (2048x2560) IPS Display Calibration with Front Sensor
- Efficiency: 5 Hot Keys & Daisy Chain
- Convenience: User-friendly Monitor Stand Down light & Wall light
High resolution display for breast imaging
High Definition Imaging
Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid color, high definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Multi-resolution mode
Set the resolution mode to fit your needs
The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Internal front calibration sensor
Consistency in medical images
The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Focus view mode
Focus on the region of interest
Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Pathology mode
As if you were looking into a microscope
With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Streamlined and efficient workflow
5 Hot Keys Intuitive Control
The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. They provide fast and easy way to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Presence sensor
Convenient power management
The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Daisy chain
Simple connection for a clutter-free workspace
Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
User convenience
User-friendly monitor stand
21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Down light & Wall light
Ideal diagnostic workspace
Down /Wall light mode enhances readability of documents below monitor even in low-light environments.
Wall light
Down light
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Auto luminance sensor
Automatically adjusts screen brightness
21HQ613D features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
PB Tech is an Authorised LG Service Centre
Specifications
Display
Aspect Ratio
4:5
Brightness (Typ.) [cd/m²]
1100cd/m²
Color Bit
10bit
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Contrast Ratio (Typ.)
1800:1
Brightness (Stabilization) [cd/m²]
600 cd/m²
Pixel Pitch [mm]
0.165 X 0.165 mm
Resolution
2048 x 2560
Response Time
5ms (GtG at Faster)
Size [Inch]
21.3
Surface Treatment
AG
Viewing Angle (CR=10)
178°(R/L), 178°(U/D)
Features
Hot Key
Yes (5 keys)
Brightness Stabilization
Yes
Auto Brightness
Yes
Presence Sensor
Yes
Front Sensor
Yes
Black Stabilizer
Yes
HW Calibration
Yes
DICOM Compliant
Yes
Color Temperature
6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
Flicker safe
Yes
Multi-resolution Mode
Yes (5MP /3MP /2MP)
Pathology Mode
Yes
Reader Mode
Yes (Text Mode)
Focus View
Yes
Light Box Mode
Yes
Smart Energy Saving
Yes
Lighting
Yes (Down/ Wall)
Super Resolution+
Yes
SW Application
Dual Controller
Yes
LG Calibration Studio Medical
Yes

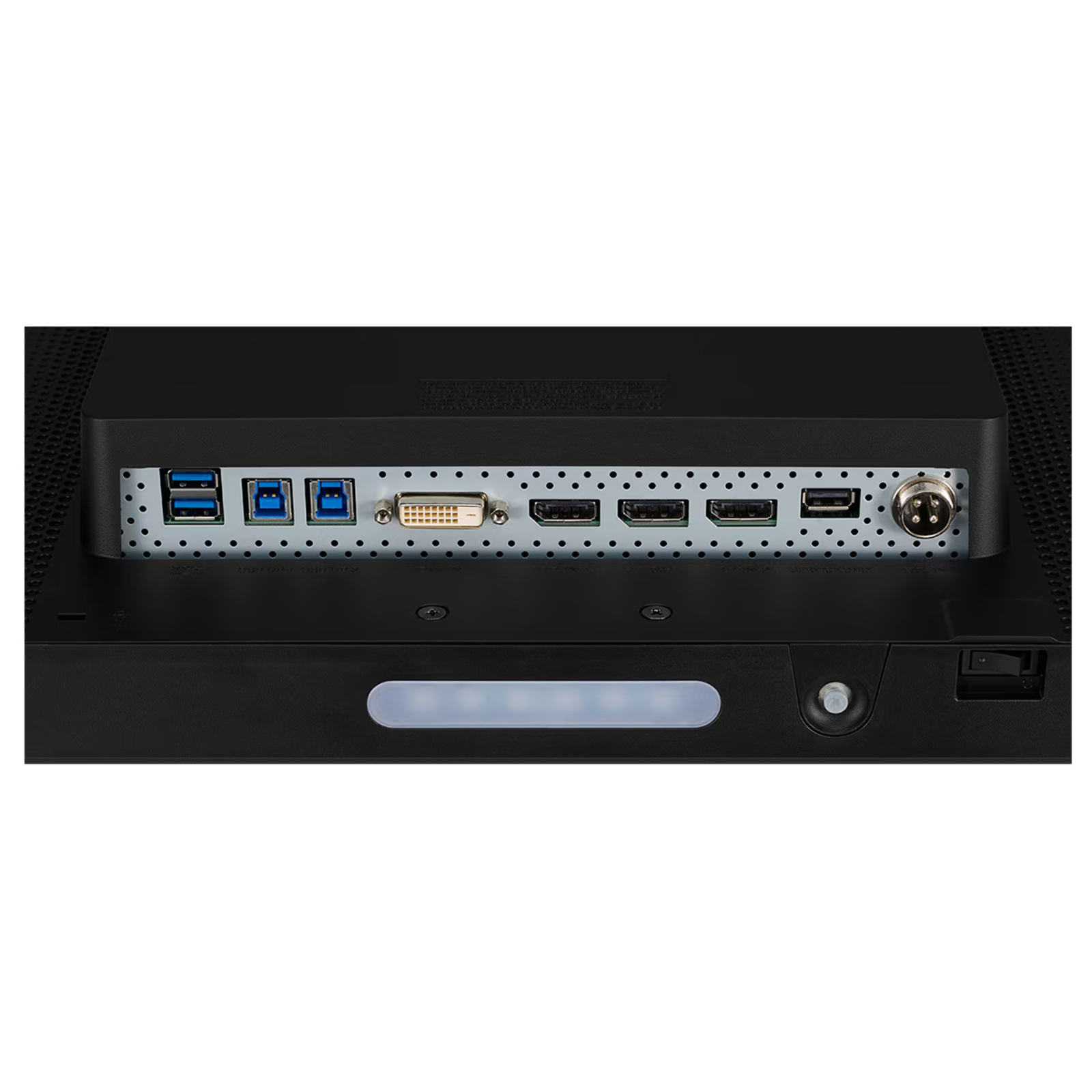

Connectivity
DisplayPort
Yes (In 2ea / Out 1ea)
DVI
Yes (In 1ea Dual link)
Daisy Chain
Yes (5MP/48Hz)
USB Downstream Port
YES(2ea/ver3.0)
USB Upstream Port
YES(2ea/ver3.0)
Power
AC Input
100-240Vac, 50-60Hz
DC Output
19V @6.32A
Power Consumption (DC Off)
Less than 0.3W
Type
External Power(Adapter)
Mechanical
Borderless Design
Normal

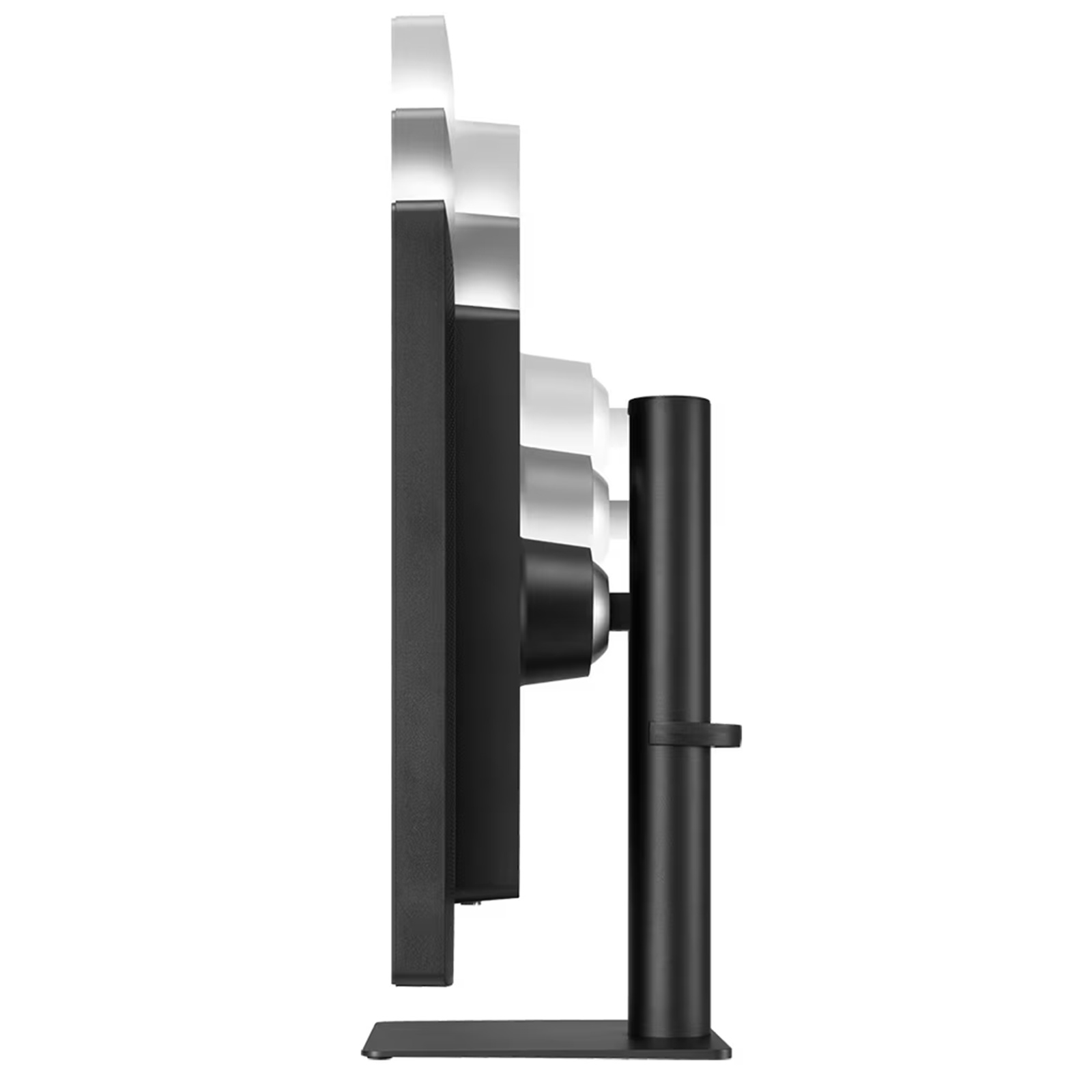

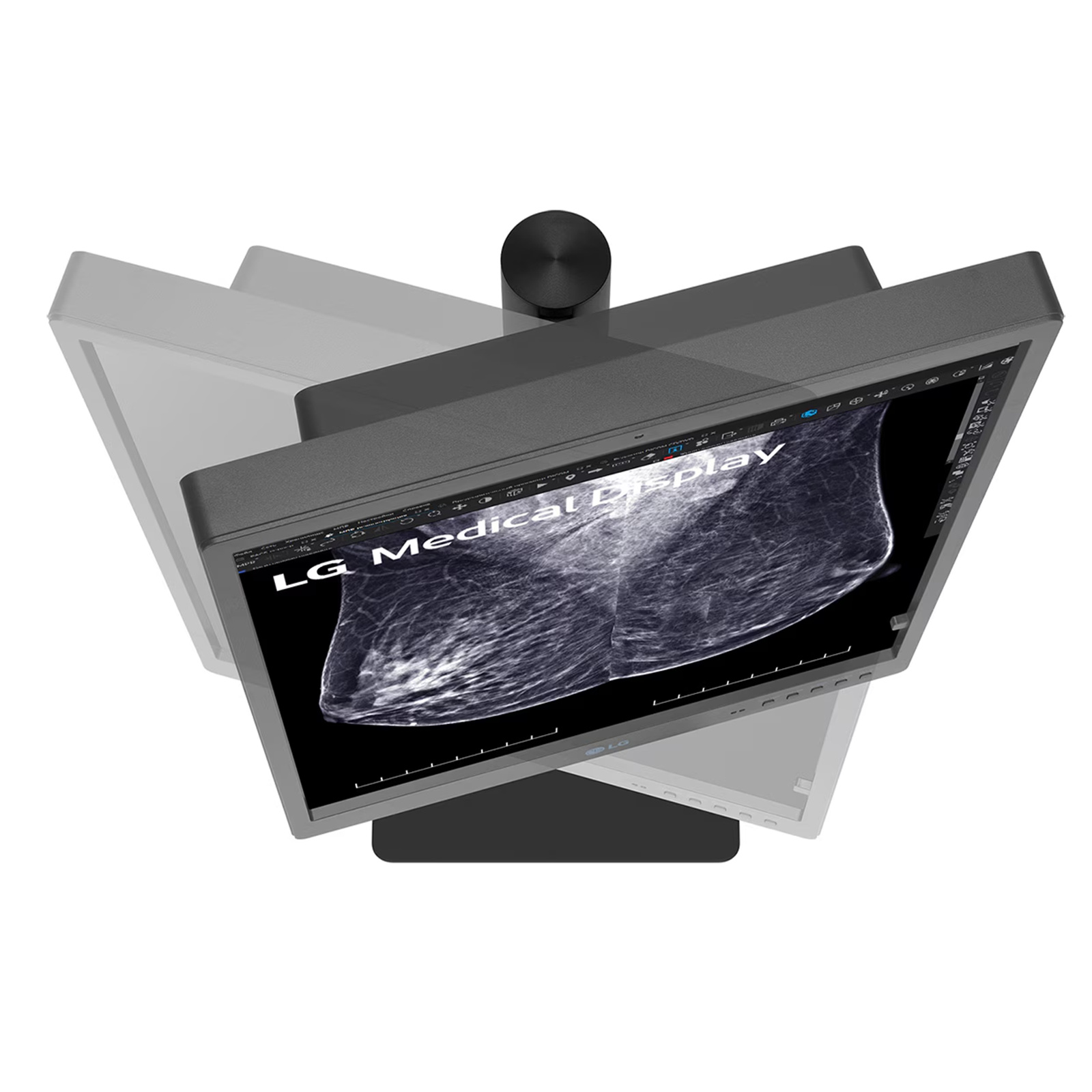

Display Position Adjustments
Tilt / Height / Swivel / Pivot
Height Range [mm]
110 mm
Mechanical Power Switch
Yes
One Click Stand YesPivot
Yes(±90°)

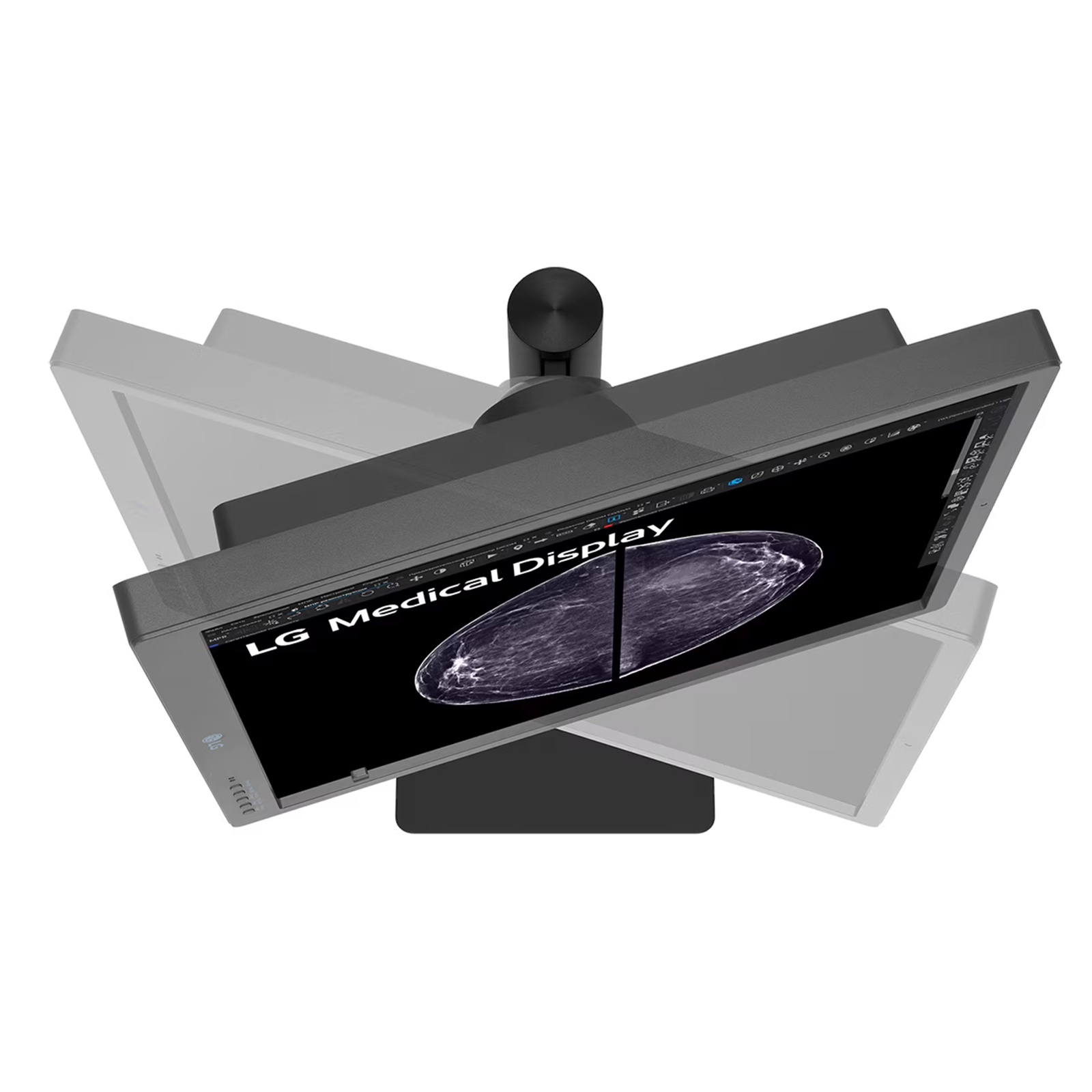

Swivel
Yes(±15°)

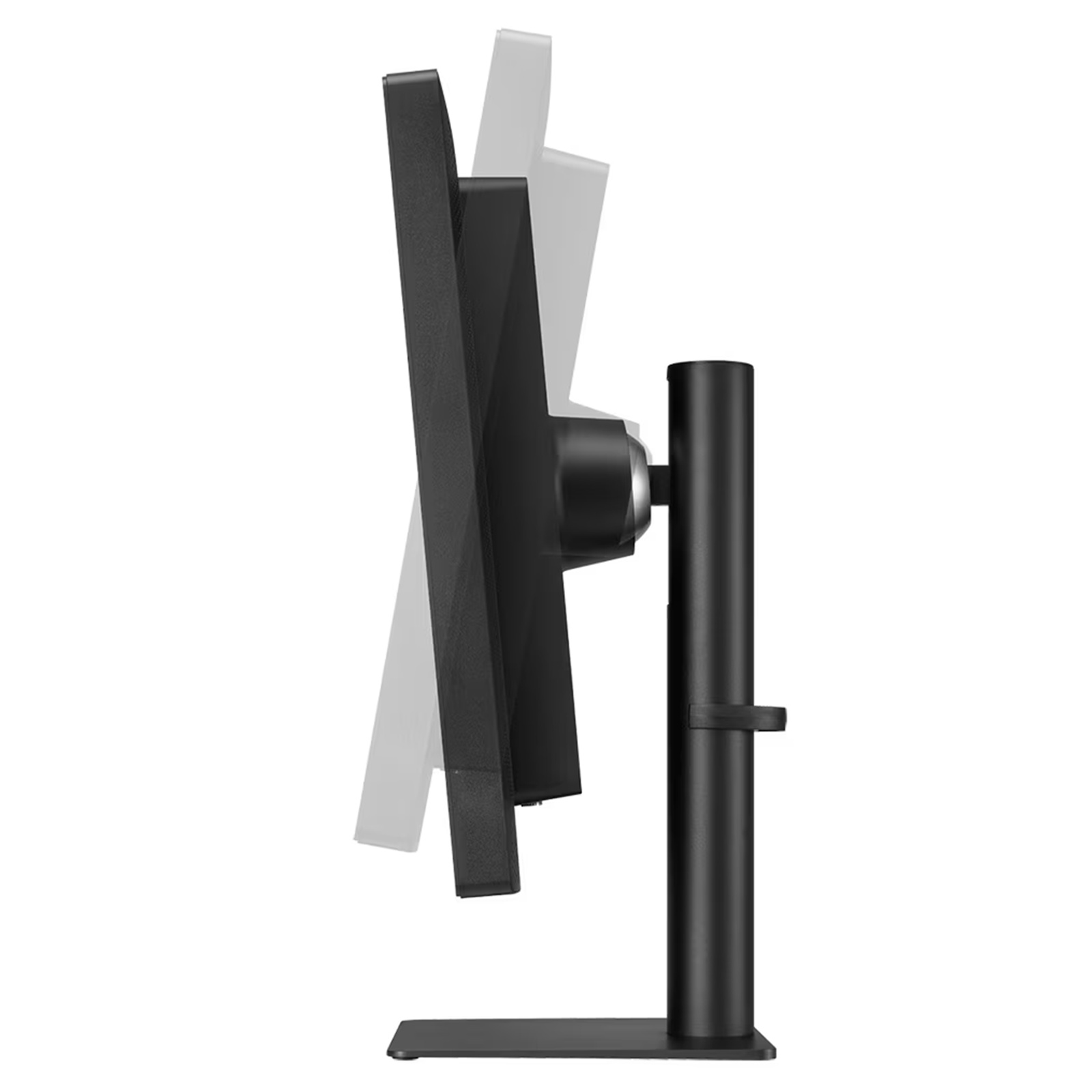

Tilt
Yes(-5°~20°)
Wall Mountable [mm]
100 x 100 mm
Dimensions/Weight
Dimension in Shipping (WxHxD) [mm]
524 x 577 x 296
Dimension with Stand (WxHxD) [mm]
364.5 x 634.4 x 233.6
Dimension without Stand (WxHxD) [mm]
364.5 x 473.4 x 78
Weight with Stand [kg]
7.85
Weight without Stand [kg]
5.45
Standard
IEC (IEC 60601-1/IEC 60601-1-2)
Yes
EN (EN 60601-1/EN 60601-1-2)
Yes
IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
Yes
EN (EN 62368-1 / EN 55032, 55035)
Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
Yes
CE
MDR
FDA
510(K)(Class II)
ISO13485
Yes
RoHS
Yes
REACH
Yes
WEEE
Yes
MFDS
Yes
