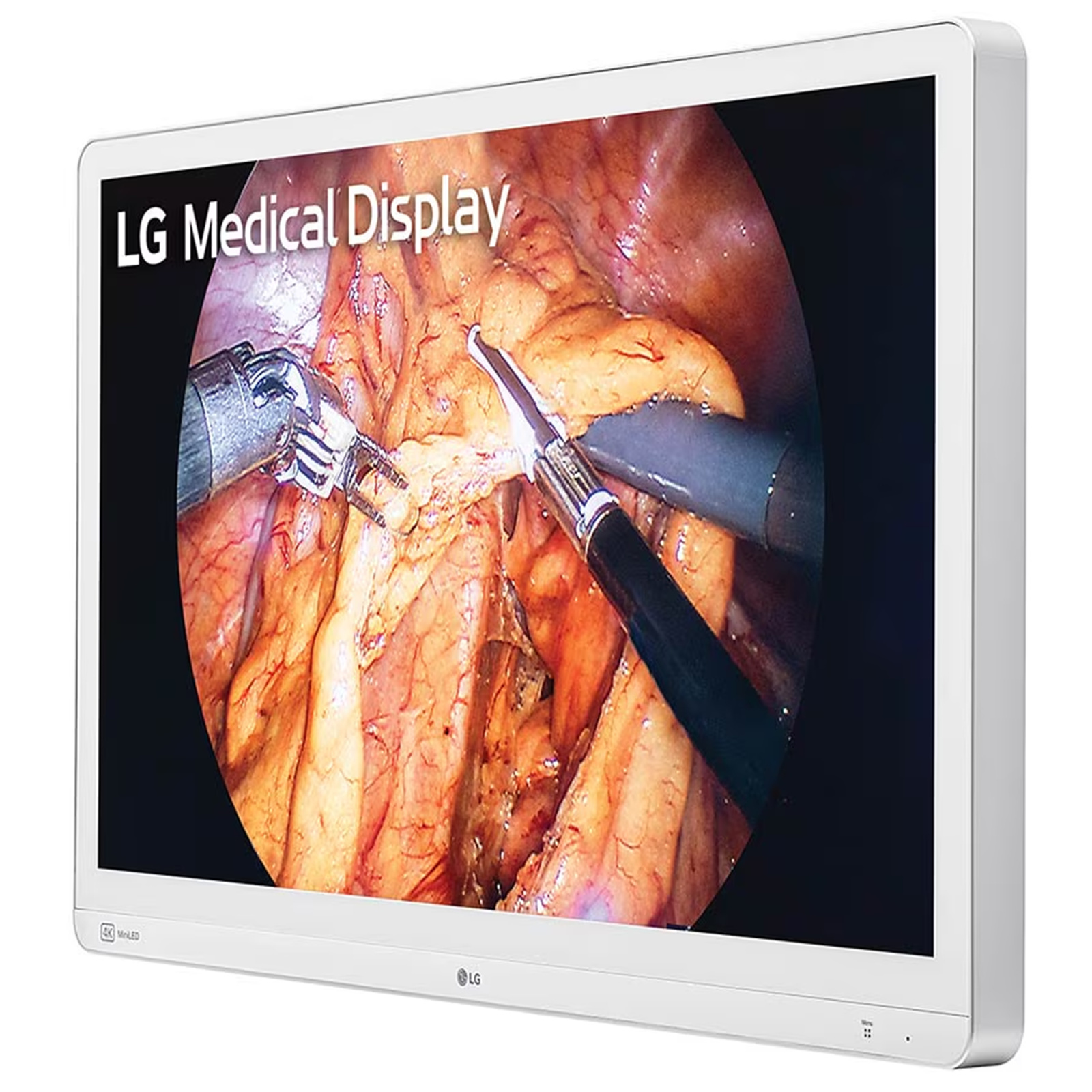

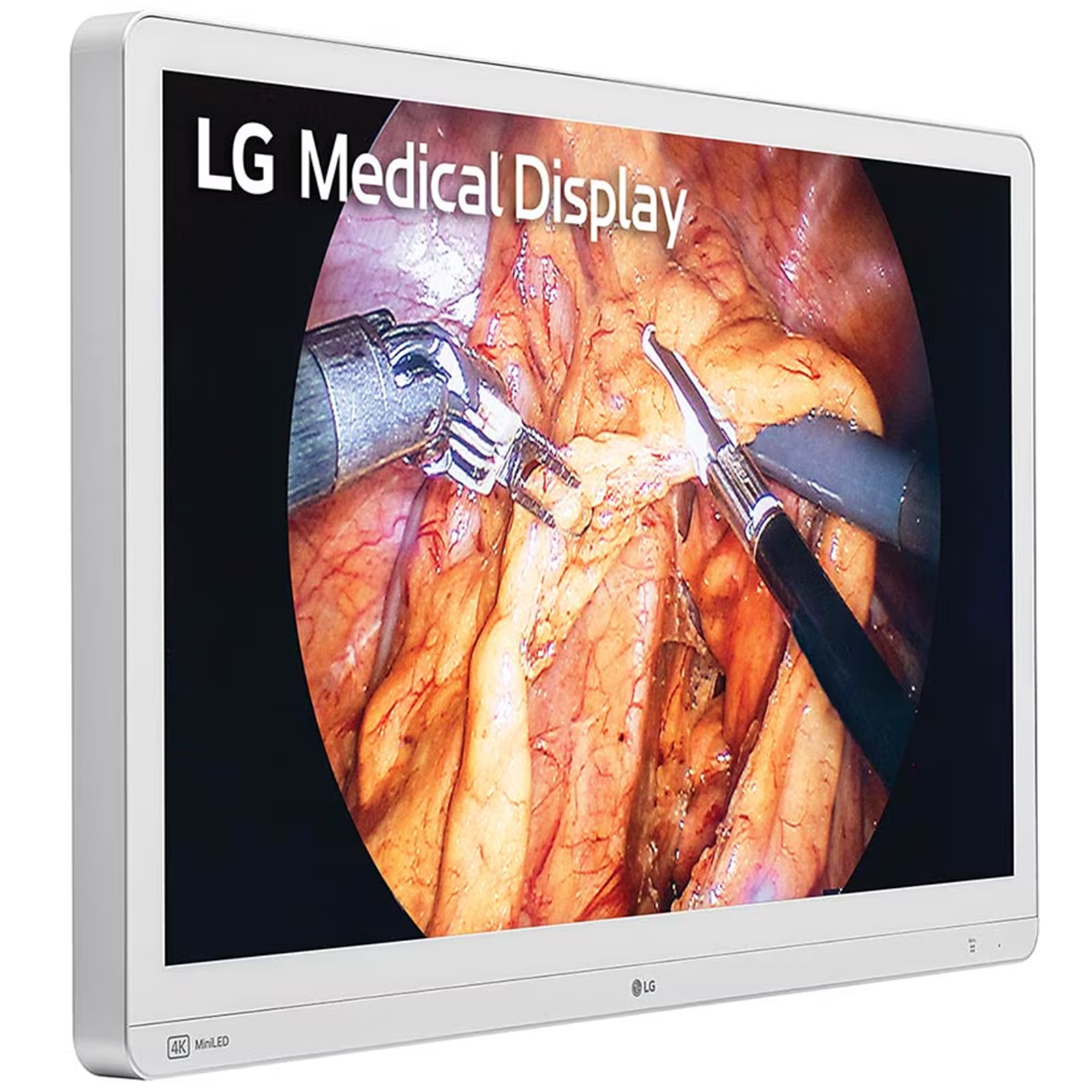

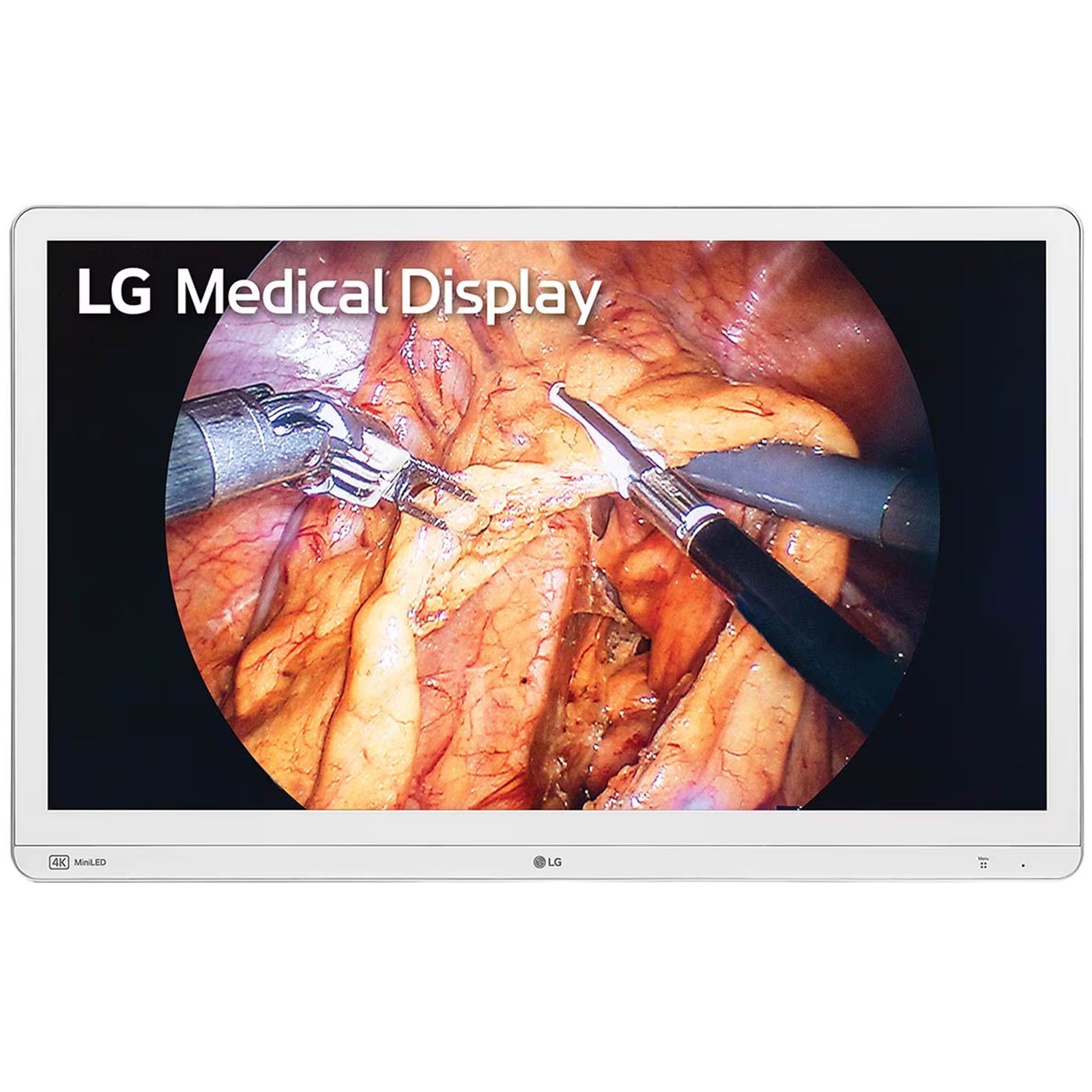

LG 32HR734S 31.5" 4K Mini LED Surgical Monitor
- Brand: LG
- MPN: 32HR734S
- Part #: MONLGL933734
- UPC:
COMBO DEALS: Buy Together and SAVE!
Brateck CK-SC1 Ammonia Free Screen LCD Cleaning Kit - Includes 60ml non-drip cleaning liquid,...
$10.33 +GST
$11.88
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$68.69 +GST
$78.99
Belkin 6 Outlet Surge Protection Strip with 2x USB-A 2.4A Charging Ports
$42.91 +GST
$49.35
Features
Immersive environment to focus on the surgical procedure
Local dimming, inherent to Mini-LED technology, enables precise brightness control across specific sections of the LED backlight, enhancing visual contrast by darkening the dark areas and brightening the light areas. This monitor, equipped with 1.5K local dimming zones, significantly enhances the dynamic contrast ratio to up to 1,000,000:1 and reaches a peak brightness of 2,000 cd/m².
DCI-P3 98% (CIE1976)
With a wide color range of DCI-P3 98% (CIE1976), the 32HR734S provides a great level of detail with optimized image clarity and color accuracy.
Sharp and vibrant images
The 32HR734S is engineered with optical bonding technology, seamlessly integrating the backlight, module, and glass without any air gaps, and further enhanced with Anti-glare, Anti-reflection, and Anti-fingerprint coatings on the front glass. This combination significantly improves display readability by minimizing reflections and glare, ensuring that image clarity and color accuracy are optimized even in brightly lit environments. The elimination of air gaps reduces light dispersion and loss, resulting in sharper and more vibrant images.
Anti-glare coating
The anti-glare coating of optically bonded glass reduces screen glare and reflection, providing a clear display even in brightly lit operating rooms.
Anti-reflection coating
The anti-reflection coating of optically bonded glass minimizes the reflectance of visible light wavelengths, providing clear images.
Anti-fingerprint coating
The anti-fingerprint coating of optically bonded glass reduces contamination from fingerprints and smudges, contributing to a clear display of the surgical area.
IP45 (Front) & IP32 (Except for front) & IK06
With IP45 (Front) and IP32 (Except for front) ratings, the 32HR734S is suitable for surgical environments where blood and other bodily fluids are likely to splash. Additionally, this monitor offers high resistance to physical impact, as denoted by its IK06 rating.
12G-SDI support
The 32HR734S supports 12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable.
9.7kg lightweight
With a lightweight design of 9.7kg, this surgical monitor is suited for mounting on surgical arms and pendants.
Monitor various information on a single screen
As the 32HR734S supports up to 4 PBP & PIP, medical professionals can monitor various critical information streams concurrently on a single screen, enhancing operational efficiency and decision-making. For example, medical staff can view a combination of laparoscopic and fluoroscopic images while monitoring vital signs.
Clone screen
Using a Clone screen feature that replicates the entire display content onto a secondary monitor through HDMI output, members of the surgical team can visually monitor the progress of surgery which can help facilitate efficient collaboration and communication.
Mirror mode & Rotation mode
Mirror mode and Rotation mode allow users to adjust the display for optimal viewing, whether flipping the image horizontally or rotating it 180 degrees to match the orientation of the surgical camera.
Failover input switch
This feature provides an uninterrupted display by automatically switching to an alternative video source if the primary input fails, while compatible across various interfaces including HDMI, SDI, DVI, and DP. Particularly for 12G-SDI, the system can automatically switch from the primary input to the next available one if a signal loss is detected.
PB Tech is an Authorised LG Service Centre
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Monitors
MSI Pro MP2412 24" FHD 100hz Business Monitor 1920x1080 - HDMI -...
LG 34WR50QK 34" WQHD Curved Ultrawide Monitor 3440x1440 -...
Samsung Odyssey G5 27" QHD 165Hz Curved Gaming Monitor 2560x1440 ...
LG UltraGear 24GS50F-B 24" FHD 180Hz Gaming Monitor 1920x1080 -...
Samsung Odyssey G5 34" Ultrawide QHD 165Hz Curved Gaming Monitor...
LG 32HR734S 31.5" 4K Mini LED Surgical Monitor
- Brand: LG
- MPN: 32HR734S
- Part #: MONLGL933734
Product URL: https://www.pbtech.co.nz/product/MONLGL933734/LG-32HR734S-315-4K-Mini-LED-Surgical-Monitor
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Newmarket | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
Immersive environment to focus on the surgical procedure
Local dimming, inherent to Mini-LED technology, enables precise brightness control across specific sections of the LED backlight, enhancing visual contrast by darkening the dark areas and brightening the light areas. This monitor, equipped with 1.5K local dimming zones, significantly enhances the dynamic contrast ratio to up to 1,000,000:1 and reaches a peak brightness of 2,000 cd/m².
DCI-P3 98% (CIE1976)
With a wide color range of DCI-P3 98% (CIE1976), the 32HR734S provides a great level of detail with optimized image clarity and color accuracy.
Sharp and vibrant images
The 32HR734S is engineered with optical bonding technology, seamlessly integrating the backlight, module, and glass without any air gaps, and further enhanced with Anti-glare, Anti-reflection, and Anti-fingerprint coatings on the front glass. This combination significantly improves display readability by minimizing reflections and glare, ensuring that image clarity and color accuracy are optimized even in brightly lit environments. The elimination of air gaps reduces light dispersion and loss, resulting in sharper and more vibrant images.
Anti-glare coating
The anti-glare coating of optically bonded glass reduces screen glare and reflection, providing a clear display even in brightly lit operating rooms.
Anti-reflection coating
The anti-reflection coating of optically bonded glass minimizes the reflectance of visible light wavelengths, providing clear images.
Anti-fingerprint coating
The anti-fingerprint coating of optically bonded glass reduces contamination from fingerprints and smudges, contributing to a clear display of the surgical area.
IP45 (Front) & IP32 (Except for front) & IK06
With IP45 (Front) and IP32 (Except for front) ratings, the 32HR734S is suitable for surgical environments where blood and other bodily fluids are likely to splash. Additionally, this monitor offers high resistance to physical impact, as denoted by its IK06 rating.
12G-SDI support
The 32HR734S supports 12G-SDI, which enables long-distance transmission of 4K signals over a single coaxial cable.
9.7kg lightweight
With a lightweight design of 9.7kg, this surgical monitor is suited for mounting on surgical arms and pendants.
Monitor various information on a single screen
As the 32HR734S supports up to 4 PBP & PIP, medical professionals can monitor various critical information streams concurrently on a single screen, enhancing operational efficiency and decision-making. For example, medical staff can view a combination of laparoscopic and fluoroscopic images while monitoring vital signs.
Clone screen
Using a Clone screen feature that replicates the entire display content onto a secondary monitor through HDMI output, members of the surgical team can visually monitor the progress of surgery which can help facilitate efficient collaboration and communication.
Mirror mode & Rotation mode
Mirror mode and Rotation mode allow users to adjust the display for optimal viewing, whether flipping the image horizontally or rotating it 180 degrees to match the orientation of the surgical camera.
Failover input switch
This feature provides an uninterrupted display by automatically switching to an alternative video source if the primary input fails, while compatible across various interfaces including HDMI, SDI, DVI, and DP. Particularly for 12G-SDI, the system can automatically switch from the primary input to the next available one if a signal loss is detected.
PB Tech is an Authorised LG Service Centre
Specifications
Display
Panel Type
IPS
Size (Aspect Ratio)
31.5-inch(16 : 9)
Resolution
4K (3,840x2,160)
Backlight Technology
Mini-LED
Color Gamut (Typ.)
DCI-P3 98% (CIE1976)
Color Bit
10 bit
Viewing Angle (CR>10)
178° (Right / Left), 178* (Up/ Down)
Brightness (Typ.)
800 cd/m2
Brightness (Stabilization)
500 cd/m²
Peak Brightness (Typ.)
2,000 cd/m2
Surface Treatment
Protection Glass (Optical Bonding, Anti-Reflection, Anti-Fingerprint, Anti-Glare)
Contrast Ratio (Typ.)
1,000:1
Response Time (GTG)
5 ms (GtG at faster)
Feature
DICOM Compliant YesHW Calibration
Yes (LG Calibration Studio)
HDR
HDR 10, HDR Effect
Video Signals

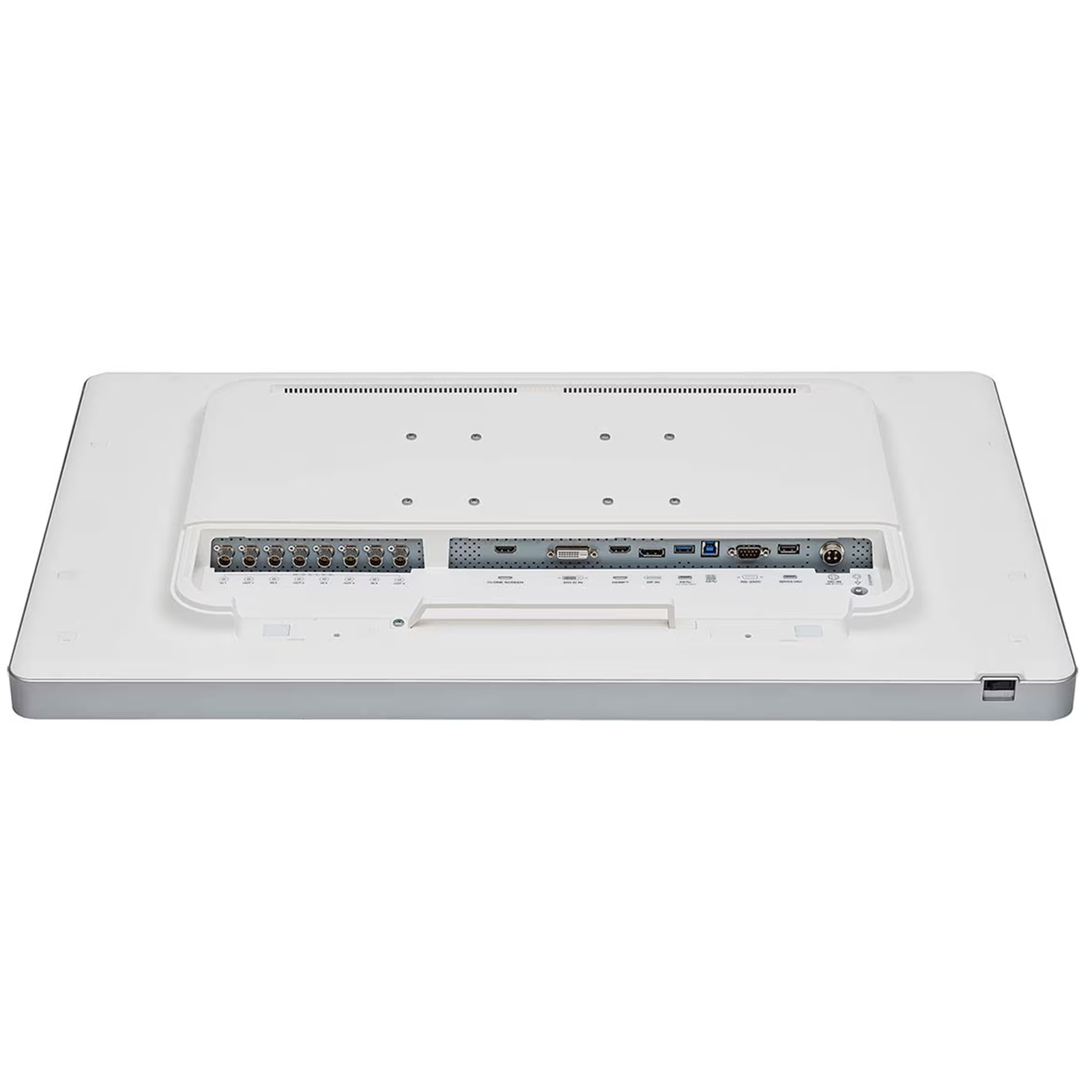

Input Terminals
HDMI x 1, DisplayPort x1,SDI(12G / 3G) x 4, DVI-D x 1Output Terminals HDMI (Clone Screen) x 1, SDI(12G /3G)x4
Connectivity
USB
USB 3.01 Upstream, 1 Downstream
Power
AC Input
100-240 Vac, 50/60 Hz
Power Consumption (Max.)
130W
Power Consumption (DC Off)
Less than 0.3W
Physical Specifications
Weight
9.7 kg

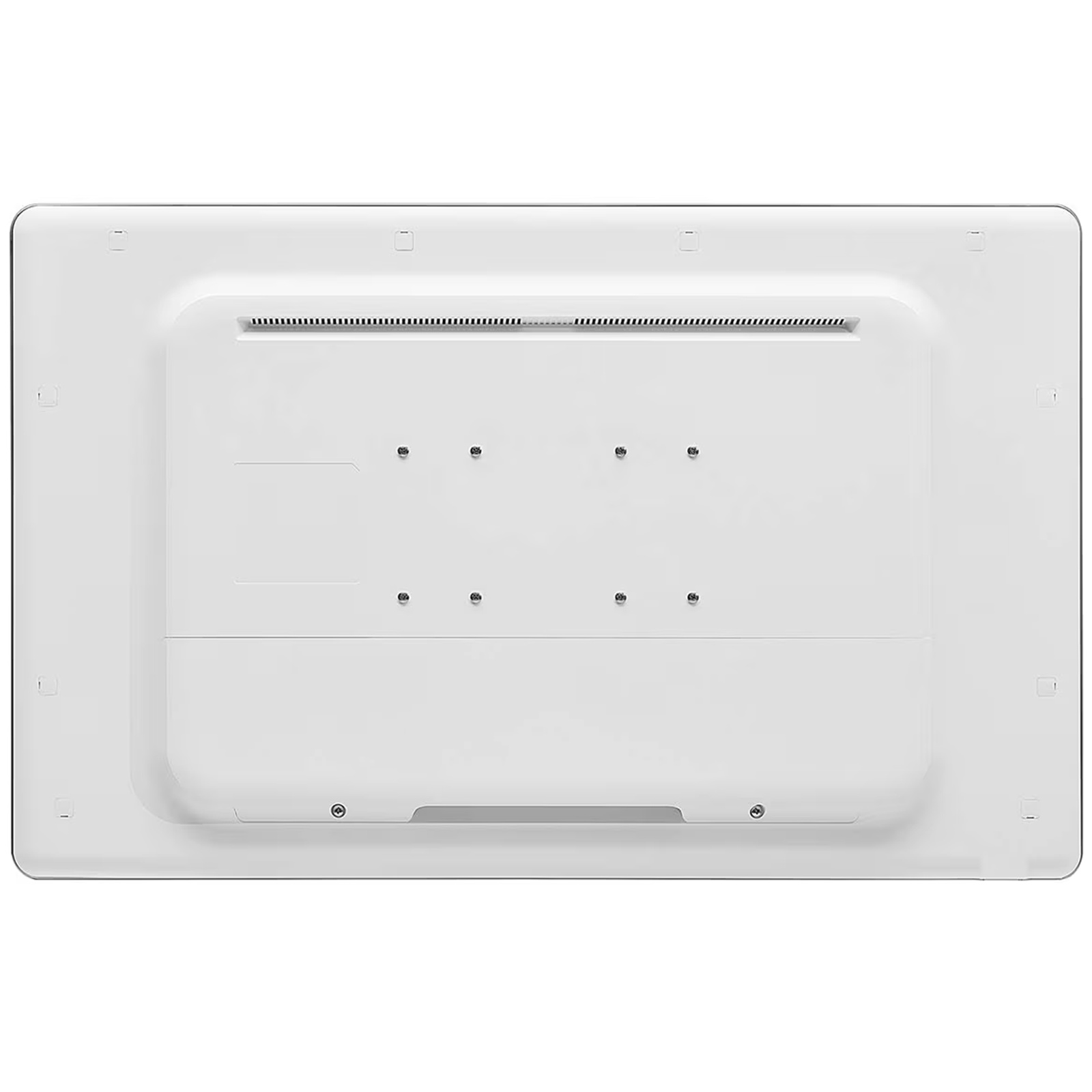

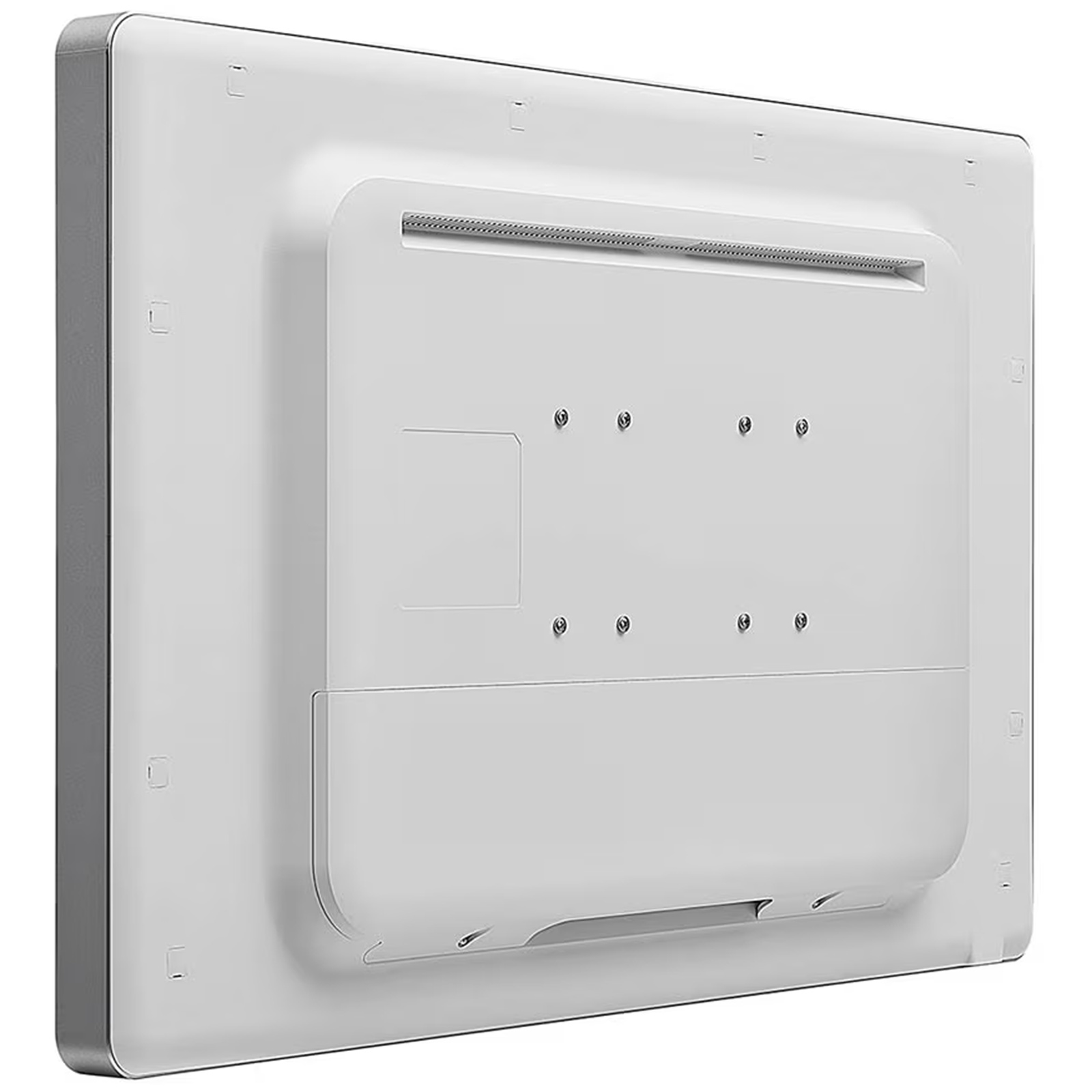

Wall Mount Size
200 x100mm /100x 100 mm
