Philips 40B1U5601H 40" Ultrawide Business Monitor with Built-in Webcam

3440x1440 - IPS Panel - DisplayPort - HDMI - USB-C 100W- RJ45 - Speaker - USB Hub - Webcam - Height / Swivel / Tilt Adjustable - 100x100 VESA

PB Tech price
PB Tech price
$ 849 .00
 +GST
$ 976 .35
 inc GST
$849.00  +GST
$976.35

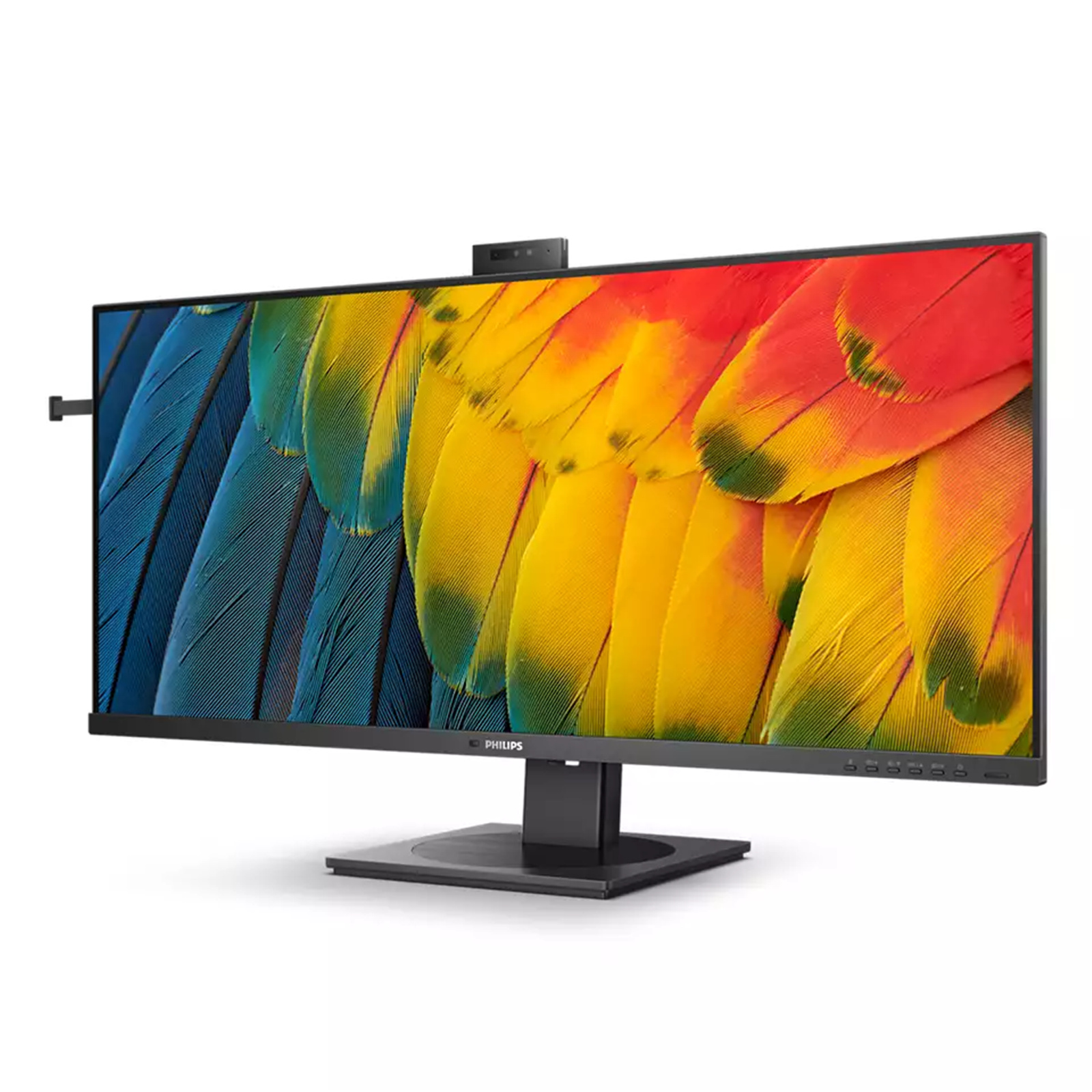

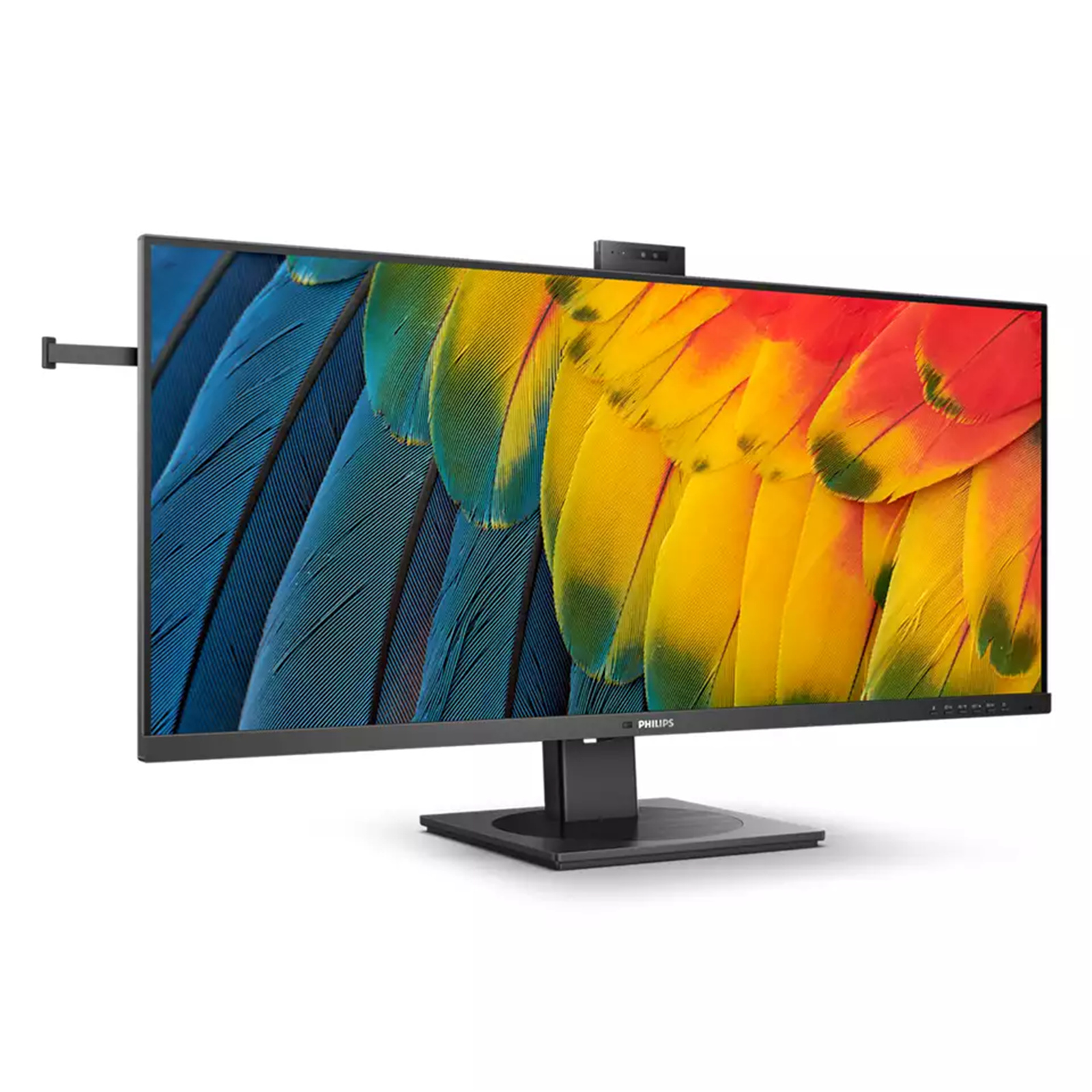

Philips 40B1U5601H 40" Ultrawide Business Monitor with Built-in Webcam

3440x1440 - IPS Panel - DisplayPort - HDMI - USB-C 100W- RJ45 - Speaker - USB Hub - Webcam - Height / Swivel / Tilt Adjustable - 100x100 VESA

4 Years Replacement Warranty
  • Brand: Philips
  • MPN: 40B1U5601H/75
  • Part #: MONPHS323405
  • UPC:
1
PB Tech price
$ 849 .00 $ 976 .35
 +GST  inc GST


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships tomorrow When will I receive it?
$849.00  +GST
$976.35

Four payments of $246.53 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $9.36 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: Philips
  • MPN: 40B1U5601H/75
  • Part #: MONPHS323405
  • UPC:

Screen Size

40 inches

Screen Resolution

3440x1440

Refresh Rate

120hz

Response Time

4 ms

Sync Type

N/A

Panel Type

IPS

VESA Size

100 x 100

Curved

No

What PB Tech customers are saying about this product...

See More Reviews

"I bought this to allow multi-monitor equivalent remote deskt ...view more"

AS
By: AllisterS97 21/10/24
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Philips 40B1U5601H 40" Ultrawide Business Monitor with Built-in Webcam...
Philips 40B1U5601H 40" Ultrawide Business Monitor with Built-in Webcam 3440x1440 - IPS Panel - DisplayPort - HDMI - USB-C 100W- RJ45 - Speaker - USB Hub - Webcam - Height / Swivel / Tilt Adjustable - 100x100 VESA
Total:
$ 969 .41
 +GST
$ 1,114 .82
Buy together and save $19.97 $22.97
Belkin 6-outlet Surge Protection Strip with Two USB-A 2.4Amp Charging Ports
Belkin 6-outlet Surge Protection Strip with Two USB-A 2.4Amp Charging Ports
$56.52 $65.00

$42.91  +GST

$49.35

You save 24% You save 24%
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - 5 Years Warranty
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - 5 Years Warranty
$73.91 $85.00

$68.69  +GST

$78.99

You save 7% You save 7%
Brateck Lumi CK-SC1 Ammonia Free Screen LCD Cleaning Kit - Includes 60ml non-drip cleaning liquid, antistatic brush and 20x20cm microfibre cloth
Brateck Lumi CK-SC1 Ammonia Free Screen LCD Cleaning Kit - Includes 60ml non-drip cleaning liquid, antistatic brush and 20x20cm microfibre cloth
$9.95 $11.44

$8.81  +GST

$10.13

You save 11% You save 11%

Features

RJ-45 to USB-C gives easy network connection with security

Simplify all peripherals from monitor to PC using one-cable docking USB Type-C connector, including networking, high-resolution video output from PC to monitor, and surfing on the Internet without an additional network cable, even without a LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting the fastest data speeds allows you to transfer data from a HDD to your PC faster than ever. Additionally, USB-C with power delivery can even enable you to power and charge your notebook from the monitor, eliminating the need for extra power cables.



CrystalClear images with UltraWide QHD 3440 x 1440 pixels

These Philips screens deliver Crystal Clear, UltraWide Quad HD 3440 x 1440 pixel images. Utilising high-performance panels with high-density pixel count and 178/178 wide viewing angles, these new displays will make your images and graphics come alive. The UltraWide 21:9 format enables more productivity with more room for side-by-side comparisons and more viewable spreadsheet columns. Whether you are a demanding professional requiring extremely detailed information for CAD-CAM solutions or a financial wizard working on huge spreadsheets, Philips displays deliver Crystal Clear images.



High Dynamic Range (HDR) for more lifelike colourful visuals

High Dynamic Range delivers a dramatically different visual experience. With astonishing brightness, incomparable contrast and captivating colour, images come to life with much greater brightness while also featuring much deeper, more nuanced darks. It renders a fuller palette of rich new colours never before seen on a display, giving you a visual experience that engages your senses and inspires emotions.



DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high-resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to maintain a clean desktop without the hassle of too many wires.



Built-in KVM switch to easily switch between sources

With the MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse setup. A convenient button allows you to quickly switch between sources. Handy with setups that require dual PC computing power or sharing one large monitor to show two different PCs.



Webcam with noise-cancelling microphone for collaboration

This Philips monitor comes with a built-in 5 MP webcam, a noise-cancelling microphone, and speakers, making it perfect for working from home and collaborating remotely. The webcam is certified for Windows Hello and is equipped with advanced sensors for Windows Hello™ facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds. The physical camera switch offers extra privacy when not in use. The noise-cancelling microphone and dual 5 watt integrated speakers deliver clear communications.



Accessory within reach

The unique design of the headphone hook on the side of the Philips monitor brings the tidiness and cable management of your working station to the next level. Its easy access lets you put aside your headphones easily, making sure that all of the accessories you need are within reach.



PowerSensor saves up to 80% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life



MultiView enables simultaneous dual connection and view

With the ultra-high resolution Philips MultiView display, you can now experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multitasking.

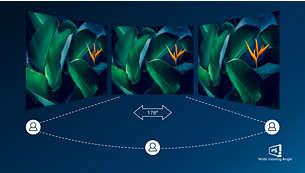

IPS LED wide view technology for image and colour accuracy

IPS displays use an advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle. Unlike standard TN panels, IPS displays give you remarkably crisp images with vivid colours, making them ideal not only for Photos, movies and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

Specifications

Picture/Display

LCD panel type

IPS technology

Backlight type

W-LED system

Panel Size

40 inch

Viewable Size

39.53 inch/100.4 cm

Display Screen Coating

Anti-Glare, 3H, Haze 25%

Effective viewing area

926.22 (H) x 387.72 (V)

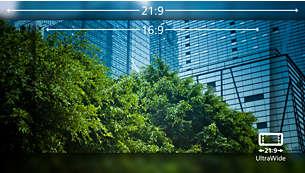

Aspect ratio

21:9

Maximum resolution

HDMI: 3440 x 1440 @ 100 Hz, DP/USB-C: 3440 x 1440 @ 120 Hz

Pixel Density

94 PPI

Response time (typical)

4 ms (Grey to Grey)*

Brightness

300  cd/m²

Contrast ratio (typical)

1200:1

SmartContrast

50,000,000:1

Pixel pitch

0.26925 x 0.26925 mm

Viewing angle

178º (H) / 178º (V)
@ C/R > 10

Flicker-free

Yes

Picture enhancement

SmartImage

Display colours

16.7 M (8 bit)

Colour gamut (typical)

NTSC 102%*, sRGB 121%*

HDR

HDR 10 supported

Scanning Frequency

HDMI: 30 - 160 kHz (H) / 48 - 100 Hz (V); DP/USB-C: 30 - 190 kHz (H) / 48 - 120 Hz (V)

SmartUniformity

93 ~ 105%

Delta E

< 2

sRGB

Yes

LowBlue Mode

Yes

EasyRead

Yes

Connectivity

Signal Input

HDMI 2.0 x 1, DisplayPort 1.4 x 1, USB-C x 2 (upstream, DP Alt mode, Data, PD up to 100 W)

HDCP

HDCP 1.4 (HDMI/DisplayPort/USB-C), HDCP 2.2 (HDMI/DisplayPort/USB-C)

HBR3

HBR3 (USB-C/DisplayPort)

Signal Output

DisplayPort out x 1

USB Hub

USB 3.2 Gen 2 / 10 Gbps, USB-A downstream x 4 (with 1 for fast charge B.C 1.2), USB-C downstream x 1 (Data, PD 15 W)

Audio (In/Out)

Audio out/Microphone in combo jack

RJ45

Ethernet LAN up to 1 G*, Wake on LAN

Sync Input

Separate Sync

Power Delivery

Version

USB PD version 3.0

Max power delivery

Up to 100 W* (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/4.8 A)

Convenience

Built-in Speakers

5 W x 2

Built-in webcam

5.0 megapixel camera with microphone and LED indicator (for Windows Hello)

Noise cancellation

Yes

MultiView

PIP/PBP mode
2 x devices

KVM

Yes (USB-C/USB-C)

User convenience

Mic
SmartImage
Input
User
Menu
Power On/Off

Control software

SmartControl

OSD Languages

Brazil Portuguese
Czech
Dutch
English
French
Finnish
German
Greek
Hungarian
Italian
Japanese
Korean
Portuguese
Polish
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Ukrainian

Other convenience

Kensington lock
Earphone hook
VESA mount (100 x 100 mm)

Plug and Play Compatibility

DDC/CI
Mac OS X
Windows 11 / 10 / 8.1 / 8 / 7
sRGB

Stand

Height adjustment

150  mm

Swivel

-/+ 180  degree

Tilt

-5/30  degree

Slant adjust

-/+ 2 degrees

Power

ECO mode

31.4 W (typ.)

On mode

40.2 W (typ.) (EnergyStar test method)

Standby mode

0.4 W (typ.)

Off mode

Zero watts with AC switch

Energy Label Class

G

Power LED indicator

Operation - White
Standby mode - White (flashing)

Power supply

Built-in
100-240 VAC, 50-60 Hz

Dimensions

Product with stand (max height)

944 x 628 x 280  mm

Product without stand (mm)

944 x 419 x 54  mm

Packaging in mm (W x H x D)

1070 x 507 x 226  mm

Weight

Product with stand (kg)

14.12  kg

Product without stand (kg)

9.90  kg

Product with packaging (kg)

17.83  kg

Operating conditions

Temperature range (operation)

0°C to 40  °C

Temperature range (storage)

-20°C to 60  °C

Relative humidity

20%-80  %

Altitude

Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)

MTBF (demonstrated)

70,000 hrs (excluded backlight)

Sustainability

Environmental and energy

EnergyStar 8.0
PowerSensor
LightSensor
EPEAT*
RoHS

Recyclable packaging material

100  %

Post-consumer recycled plastic

85%

Specific Substances

Mercury free
PVC/BFR free housing

Compliance and standards

Regulatory Approvals

CB
CE Mark
FCC Class B
ICES-003
CU-EAC
EAEU RoHS
SEMKO
TUV Ergo
TUV/GS
cETLus

Cabinet

Front bezel

Black

Rear cover

Black

Foot

Black

Finish

Texture

Manufacturer Part No:
40B1U5601H/75
Brand:
Product Type:
Ultrawide Business Monitor
UPC
-
Product Family:
-
Shipping Weight:
17.83 kg
PB Part No:
MONPHS323405
Product Model:
40B1U5601H
Warranty: 48 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4 out of 5 Stars Based on 1 review
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Very big, does what it says

I bought this to allow multi-monitor equivalent remote desktop access to my work machine from home, using the Microsoft Remote Desktop software (much worse than the old RDP client application by the way), and it does that well.
The KVM functionality only works if one of your two computers supports video over USBC, which I wasn't aware of.
Its much heavier than I expected, but that's my fault for not paying attention. My triple monitor stand (from here, part number MOALCK0045) can't handle the weight on the center arm. Its rated at 9kg vs the 9.9kg of this monitor.
The Windows Hello camera is very good quality. The always on USBC PD chargin...view more

AS
By: AllisterS97 21/10/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Philips 40B1U5601H 40" Ultrawide Business Monitor with Built-in Webcam 3440x1440 - IPS Panel - DisplayPort - HDMI - USB-C 100W- RJ45 - Speaker - USB Hub - Webcam - Height / Swivel / Tilt Adjustable - 100x100 VESA

4 Years Replacement Warranty
  • Brand: Philips
  • MPN: 40B1U5601H/75
  • Part #: MONPHS323405
PB Tech price $849.00 Excluding GST PB Tech price $976.35 Including GST

Date Created: 06:46, 08-12-2024
Product URL: https://www.pbtech.co.nz/product/MONPHS323405/Philips-40B1U5601H-40-Ultrawide-Business-Monitor-w
Branch New Stock On Display
Albany 0
Glenfield 0
Queen Street 0
Auckland Uni 0
Newmarket 0
Westgate 0
Penrose 0
Henderson (Express) 0
St Lukes 0
Manukau 0
Hamilton 0
Tauranga 0
New Plymouth 0
Palmerston North 0
Petone 0
Wellington 0
Head Office 16
Hornby 0
Christchurch Central 0

Features

RJ-45 to USB-C gives easy network connection with security

Simplify all peripherals from monitor to PC using one-cable docking USB Type-C connector, including networking, high-resolution video output from PC to monitor, and surfing on the Internet without an additional network cable, even without a LAN port on your notebook. RJ45 connection through USB-C offers a fast and secure connection when needed. Getting the fastest data speeds allows you to transfer data from a HDD to your PC faster than ever. Additionally, USB-C with power delivery can even enable you to power and charge your notebook from the monitor, eliminating the need for extra power cables.



CrystalClear images with UltraWide QHD 3440 x 1440 pixels

These Philips screens deliver Crystal Clear, UltraWide Quad HD 3440 x 1440 pixel images. Utilising high-performance panels with high-density pixel count and 178/178 wide viewing angles, these new displays will make your images and graphics come alive. The UltraWide 21:9 format enables more productivity with more room for side-by-side comparisons and more viewable spreadsheet columns. Whether you are a demanding professional requiring extremely detailed information for CAD-CAM solutions or a financial wizard working on huge spreadsheets, Philips displays deliver Crystal Clear images.



High Dynamic Range (HDR) for more lifelike colourful visuals

High Dynamic Range delivers a dramatically different visual experience. With astonishing brightness, incomparable contrast and captivating colour, images come to life with much greater brightness while also featuring much deeper, more nuanced darks. It renders a fuller palette of rich new colours never before seen on a display, giving you a visual experience that engages your senses and inspires emotions.



DisplayPort-out for connecting additional displays

With DisplayPort-out you can connect multiple high-resolution displays with just one cable from your first display to the PC. The ability to daisy chain multiple displays enables you to maintain a clean desktop without the hassle of too many wires.



Built-in KVM switch to easily switch between sources

With the MultiClient Integrated KVM switch, you can control two separate PCs with one monitor-keyboard-mouse setup. A convenient button allows you to quickly switch between sources. Handy with setups that require dual PC computing power or sharing one large monitor to show two different PCs.



Webcam with noise-cancelling microphone for collaboration

This Philips monitor comes with a built-in 5 MP webcam, a noise-cancelling microphone, and speakers, making it perfect for working from home and collaborating remotely. The webcam is certified for Windows Hello and is equipped with advanced sensors for Windows Hello™ facial recognition, which conveniently logs you into your Windows devices in less than 2 seconds. The physical camera switch offers extra privacy when not in use. The noise-cancelling microphone and dual 5 watt integrated speakers deliver clear communications.



Accessory within reach

The unique design of the headphone hook on the side of the Philips monitor brings the tidiness and cable management of your working station to the next level. Its easy access lets you put aside your headphones easily, making sure that all of the accessories you need are within reach.



PowerSensor saves up to 80% energy costs

PowerSensor is a built-in 'people sensor' that transmits and receives harmless infrared signals to determine if the user is present and then automatically reduces monitor brightness when then user steps away from the desk, cutting energy costs by up to 80 percent and prolonging monitor life



MultiView enables simultaneous dual connection and view

With the ultra-high resolution Philips MultiView display, you can now experience a world of connectivity. MultiView enables active dual connect and view so that you can work with multiple devices like a PC and notebook simultaneously, for complex multitasking.



IPS LED wide view technology for image and colour accuracy

IPS displays use an advanced technology that gives you extra-wide viewing angles of 178/178 degrees, making it possible to view the display from almost any angle. Unlike standard TN panels, IPS displays give you remarkably crisp images with vivid colours, making them ideal not only for Photos, movies and web browsing, but also for professional applications that demand colour accuracy and consistent brightness at all times.

Specifications

Picture/Display

LCD panel type

IPS technology

Backlight type

W-LED system

Panel Size

40 inch

Viewable Size

39.53 inch/100.4 cm

Display Screen Coating

Anti-Glare, 3H, Haze 25%

Effective viewing area

926.22 (H) x 387.72 (V)

Aspect ratio

21:9

Maximum resolution

HDMI: 3440 x 1440 @ 100 Hz, DP/USB-C: 3440 x 1440 @ 120 Hz

Pixel Density

94 PPI

Response time (typical)

4 ms (Grey to Grey)*

Brightness

300  cd/m²

Contrast ratio (typical)

1200:1

SmartContrast

50,000,000:1

Pixel pitch

0.26925 x 0.26925 mm

Viewing angle

178º (H) / 178º (V)
@ C/R > 10

Flicker-free

Yes

Picture enhancement

SmartImage

Display colours

16.7 M (8 bit)

Colour gamut (typical)

NTSC 102%*, sRGB 121%*

HDR

HDR 10 supported

Scanning Frequency

HDMI: 30 - 160 kHz (H) / 48 - 100 Hz (V); DP/USB-C: 30 - 190 kHz (H) / 48 - 120 Hz (V)

SmartUniformity

93 ~ 105%

Delta E

< 2

sRGB

Yes

LowBlue Mode

Yes

EasyRead

Yes

Connectivity

Signal Input

HDMI 2.0 x 1, DisplayPort 1.4 x 1, USB-C x 2 (upstream, DP Alt mode, Data, PD up to 100 W)

HDCP

HDCP 1.4 (HDMI/DisplayPort/USB-C), HDCP 2.2 (HDMI/DisplayPort/USB-C)

HBR3

HBR3 (USB-C/DisplayPort)

Signal Output

DisplayPort out x 1

USB Hub

USB 3.2 Gen 2 / 10 Gbps, USB-A downstream x 4 (with 1 for fast charge B.C 1.2), USB-C downstream x 1 (Data, PD 15 W)

Audio (In/Out)

Audio out/Microphone in combo jack

RJ45

Ethernet LAN up to 1 G*, Wake on LAN

Sync Input

Separate Sync

Power Delivery

Version

USB PD version 3.0

Max power delivery

Up to 100 W* (5 V/3 A, 7 V/3 A, 9 V/3 A, 10 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/4.8 A)

Convenience

Built-in Speakers

5 W x 2

Built-in webcam

5.0 megapixel camera with microphone and LED indicator (for Windows Hello)

Noise cancellation

Yes

MultiView

PIP/PBP mode
2 x devices

KVM

Yes (USB-C/USB-C)

User convenience

Mic
SmartImage
Input
User
Menu
Power On/Off

Control software

SmartControl

OSD Languages

Brazil Portuguese
Czech
Dutch
English
French
Finnish
German
Greek
Hungarian
Italian
Japanese
Korean
Portuguese
Polish
Russian
Simplified Chinese
Spanish
Swedish
Traditional Chinese
Turkish
Ukrainian

Other convenience

Kensington lock
Earphone hook
VESA mount (100 x 100 mm)

Plug and Play Compatibility

DDC/CI
Mac OS X
Windows 11 / 10 / 8.1 / 8 / 7
sRGB

Stand

Height adjustment

150  mm

Swivel

-/+ 180  degree

Tilt

-5/30  degree

Slant adjust

-/+ 2 degrees

Power

ECO mode

31.4 W (typ.)

On mode

40.2 W (typ.) (EnergyStar test method)

Standby mode

0.4 W (typ.)

Off mode

Zero watts with AC switch

Energy Label Class

G

Power LED indicator

Operation - White
Standby mode - White (flashing)

Power supply

Built-in
100-240 VAC, 50-60 Hz

Dimensions

Product with stand (max height)

944 x 628 x 280  mm

Product without stand (mm)

944 x 419 x 54  mm

Packaging in mm (W x H x D)

1070 x 507 x 226  mm

Weight

Product with stand (kg)

14.12  kg

Product without stand (kg)

9.90  kg

Product with packaging (kg)

17.83  kg

Operating conditions

Temperature range (operation)

0°C to 40  °C

Temperature range (storage)

-20°C to 60  °C

Relative humidity

20%-80  %

Altitude

Operation: +12,000 ft (3658 m), Non-operation: +40,000 ft (12,192 m)

MTBF (demonstrated)

70,000 hrs (excluded backlight)

Sustainability

Environmental and energy

EnergyStar 8.0
PowerSensor
LightSensor
EPEAT*
RoHS

Recyclable packaging material

100  %

Post-consumer recycled plastic

85%

Specific Substances

Mercury free
PVC/BFR free housing

Compliance and standards

Regulatory Approvals

CB
CE Mark
FCC Class B
ICES-003
CU-EAC
EAEU RoHS
SEMKO
TUV Ergo
TUV/GS
cETLus

Cabinet

Front bezel

Black

Rear cover

Black

Foot

Black

Finish

Texture

Date Created: 06:46, 08-12-2024
Product URL: https://www.pbtech.co.nz/product/MONPHS323405/Philips-40B1U5601H-40-Ultrawide-Business-Monitor-w
