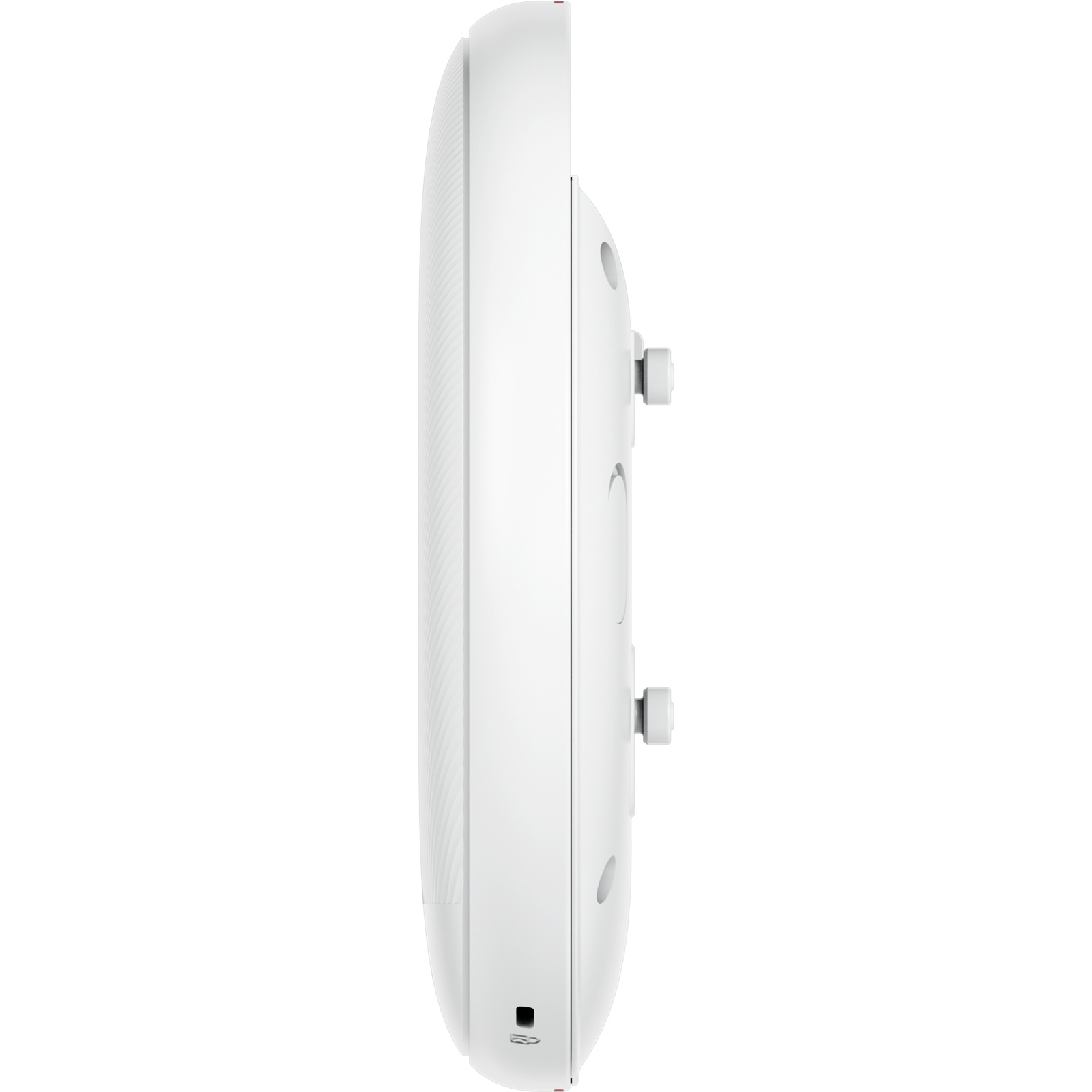

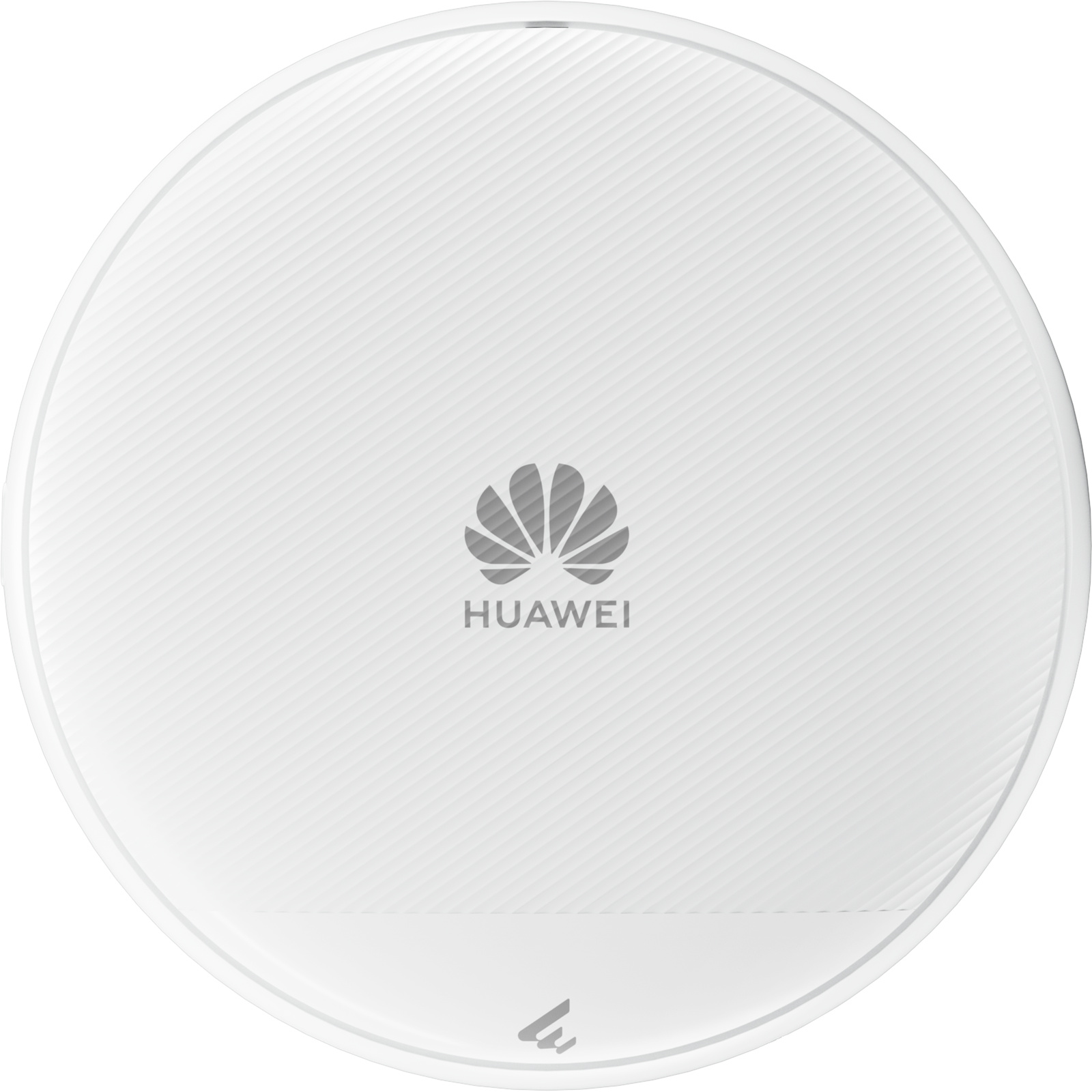

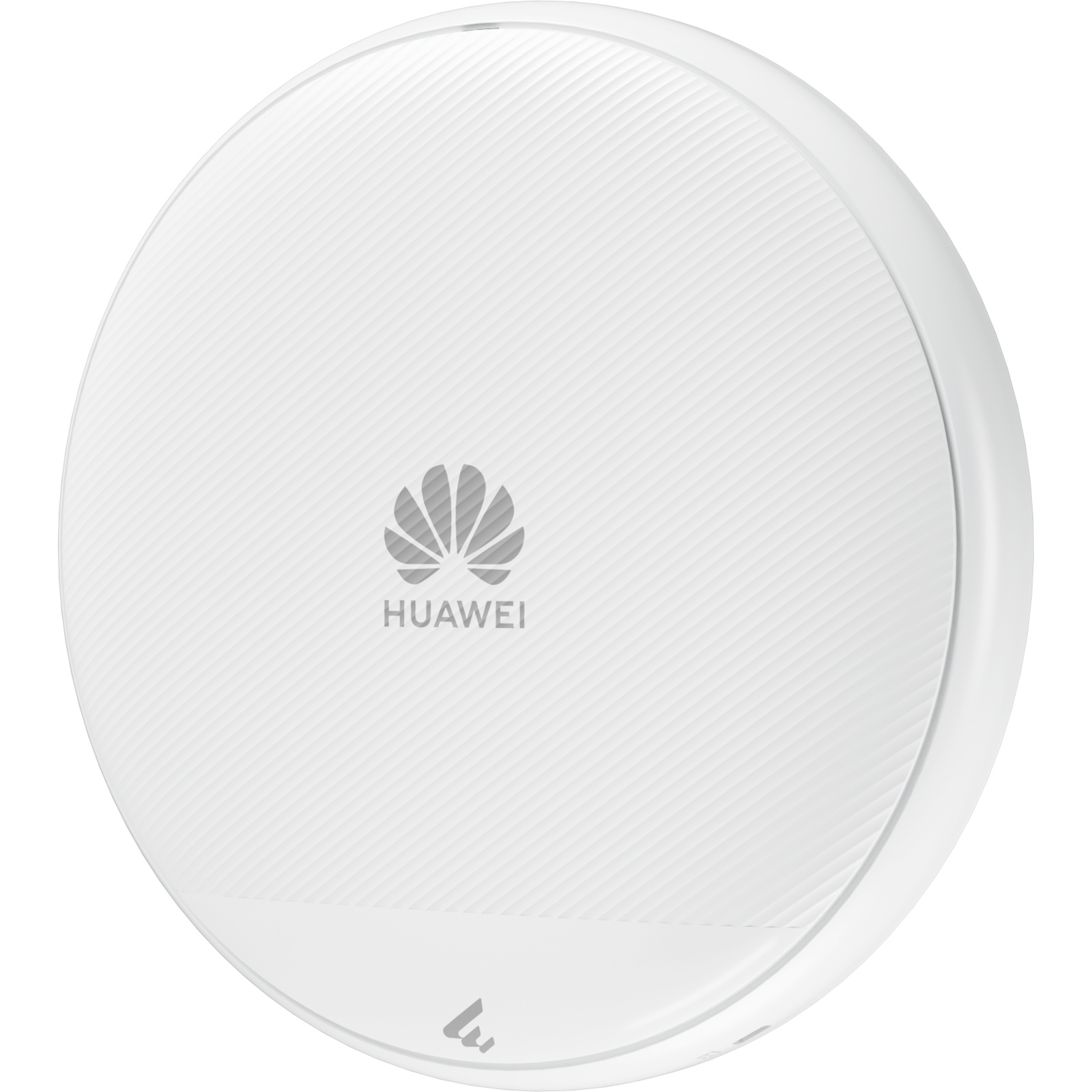

Huawei eKitEngine AP371 (BE3600) Dual-Band 4-Stream WiFi 7 Access Point with 2.5GbE x1 (PoE 14W)
Huawei eKitEngine AP371 (BE3600) Dual-Band 4-Stream WiFi 7 Access Point with 2.5GbE x1 (PoE 14W)
- Brand: Huawei
- MPN: 50087399-001
- Part #: NAPHUA50087399
- UPC: 886598343848
- Brand: Huawei
- MPN: 50087399-001
- Part #: NAPHUA50087399
- UPC: 886598343848
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling Mounted Access Points





Huawei eKitEngine AP371 (BE3600) Dual-Band 4-Stream WiFi 7 Access Point with 2.5GbE x1 (PoE 14W)
- Brand: Huawei
- MPN: 50087399-001
- Part #: NAPHUA50087399
- UPC:886598343848

Product URL: https://www.pbtech.co.nz/product/NAPHUA50087399/Huawei-eKitEngine-AP371-BE3600-Dual-Band-4-Stream
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Settled AP | Wi-Fi 7 | 3.57 Gbps device rate | Dual-radio | 150 access users recommended | Max. 256 access users | 23 dBm transmit power | Smart antenna | 18 m optimal coverage range
To Enjoy the Latest Wi-Fi 7 Technology

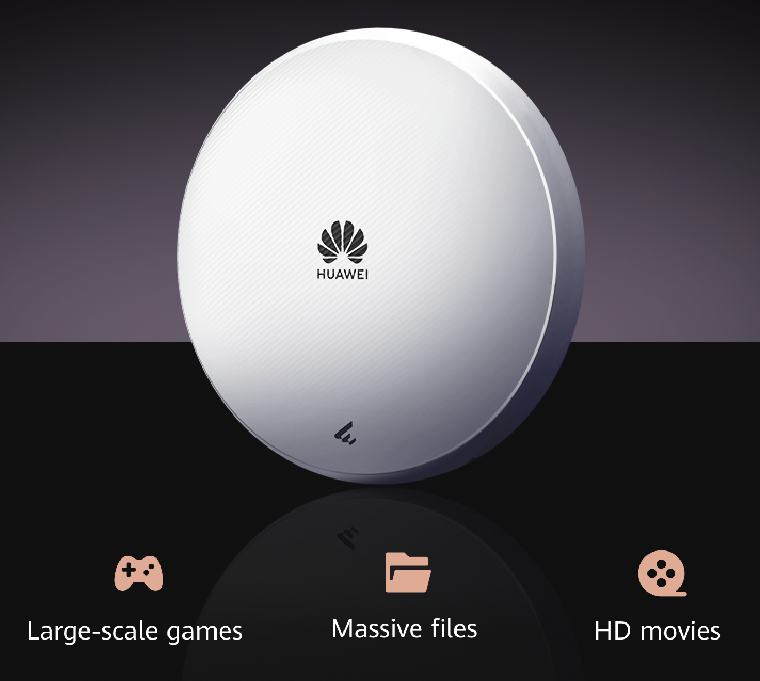

Up to 3600Mbps speeds Easy to download massive files, play large-scale games watch HD movies
1.2-Fold higher Data Rate

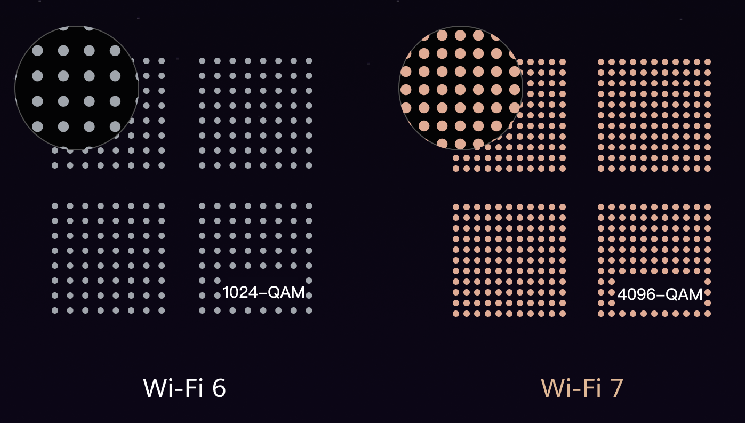

4096-QAM much more data is transmitted within the same period of time, improving the transmission rate 20%
Dual Radio Operation 2x Higher Reliability
Wi-Fi 7 capable terminals can connect to both 2.4 GHz and 5GHz bands, greatly increasing the network reliability while reducing the latency.
Multi-RU Feature Millisecond-Level Latency

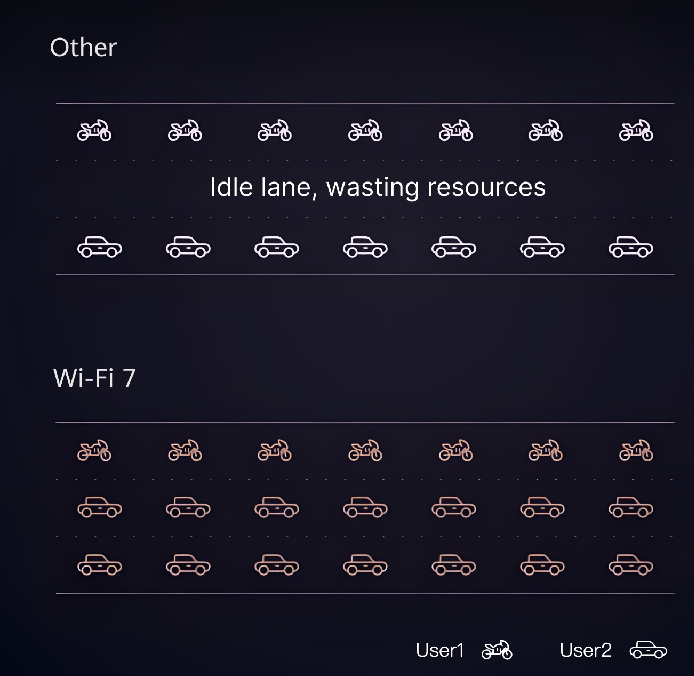

Multi-RU achieves better spectrum utilization higher multi-user transmission efficiency, lower latency.
4 Channel Signal Amplification Easy Wall Penetration
Four high performance signal amplifiers improve the signal strength and sensitivity, enabling easier wall penetration and wider coverage.
Strong Encryption Levels Robust Security
Support WPA3 the highes level of ecryption, anti-brute force cracking - effectively prevent network attacks or hijacking, safeguarding network security.
Specifications
Wi-Fi standard
2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be
Installation Type
Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Optimal Signal Distance (m)
18
Max Number of Access Users
256
Recommended Number of Access Users
150
Device Rate
3.57 Gbps
Maximum number of physical ports on the entire device
2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing
Radio number
2
Maximum channel bandwidth [MHz]
Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz
Maximum transmit power
2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power)
MIMO spatial streams
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Maximum power consumption [W]
13.3 (excluding USB)
Input voltage range [V]
DC: 12 V ± 10% PoE: 802.3at/af
Dimensions without packaging (H x W x D) [mm(in.)]
Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.)
Weight without packaging [kg(lb)]
0.47 kg (1.04 lb)
Weight with packaging [kg(lb)]
0.69 kg (1.52 lb)
Long-term operating temperature [°C(°F)]
-10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)
Radio interface
Built-in smart antennas
Antenna gain
2.4 GHz: 4 dBi/chain (peak gain) 1 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain)
Operating frequency band
2.4GHz,5GHz
