TP-Link Omada EAP623-Outdoor HD (AX1800) Dual-Band 4-Stream High-Density IP67 Outdoor Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 13W)
TP-Link Omada EAP623-Outdoor HD (AX1800) Dual-Band 4-Stream High-Density IP67 Outdoor Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 13W)
- Brand: TP-Link
- MPN: EAP623-Outdoor HD
- Part #: NAPTPL0623
- UPC:
- Brand: TP-Link
- MPN: EAP623-Outdoor HD
- Part #: NAPTPL0623
- UPC:
Similar in-stock products available at PB Tech right now
Features
EAP623-Outdoor HD
AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.[1]
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.[2]
- High-density connectivity up to 1,000+ clients.[3]
- Long-range coverage with the high-power amplifier and smart antennas.
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming.[4]
- PoE+ Powered: Supports both 802.3at PoE (adapter not included).
Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.[1]
Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD's intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.[2]
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
- IP67 Weatherproof Enclosure
- 6KV Lightning Protection
Flexible Deployment with Omada Mesh and PoE Support
Seamless Integration into Omada SDN
[1]Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
[2]Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
[3]The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
[4]Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides for Omada SDN Controllers for configuration methods.
[5]Based on field tests. The number listed here is the maximum distance of one EAP623-Outdoor HD can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Outdoor Access Points
TP-Link Omada EAP225-Outdoor (AC1200) Dual-Band Wi-Fi 5 Access...
TP-Link Omada EAP215-Bridge KIT (AC867) 5GHz 2-Stream IP65...
Ubiquiti UniFi UAP-AC-M (AC1200) Dual-Band 4-Stream WiFi 5 Access...
TP-Link Omada EAP211-Bridge KIT (AC867) 5GHz 2-Stream IP65...
TP-Link Omada EAP110-Outdoor (N300) 2.4GHz 2-Stream IP65 Outdoor...
TP-Link Omada EAP623-Outdoor HD (AX1800) Dual-Band 4-Stream High-Density IP67 Outdoor Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 13W)
- Brand: TP-Link
- MPN: EAP623-Outdoor HD
- Part #: NAPTPL0623
Product URL: https://www.pbtech.co.nz/product/NAPTPL0623/TP-Link-Omada-EAP623-Outdoor-HD-AX1800-Dual-Band-4
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
EAP623-Outdoor HD
AX1800 Indoor/Outdoor Wi-Fi 6 Access Point
- Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.[1]
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.[2]
- High-density connectivity up to 1,000+ clients.[3]
- Long-range coverage with the high-power amplifier and smart antennas.
- Advanced Functions: Centralized management, Omada mesh, and seamless roaming.[4]
- PoE+ Powered: Supports both 802.3at PoE (adapter not included).
Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.[1]
Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD's intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.[2]
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
- IP67 Weatherproof Enclosure
- 6KV Lightning Protection
Flexible Deployment with Omada Mesh and PoE Support
Seamless Integration into Omada SDN
[1]Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.
[2]Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
[3]The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
[4]Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides for Omada SDN Controllers for configuration methods.
[5]Based on field tests. The number listed here is the maximum distance of one EAP623-Outdoor HD can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
Specifications
HARDWARE FEATURES

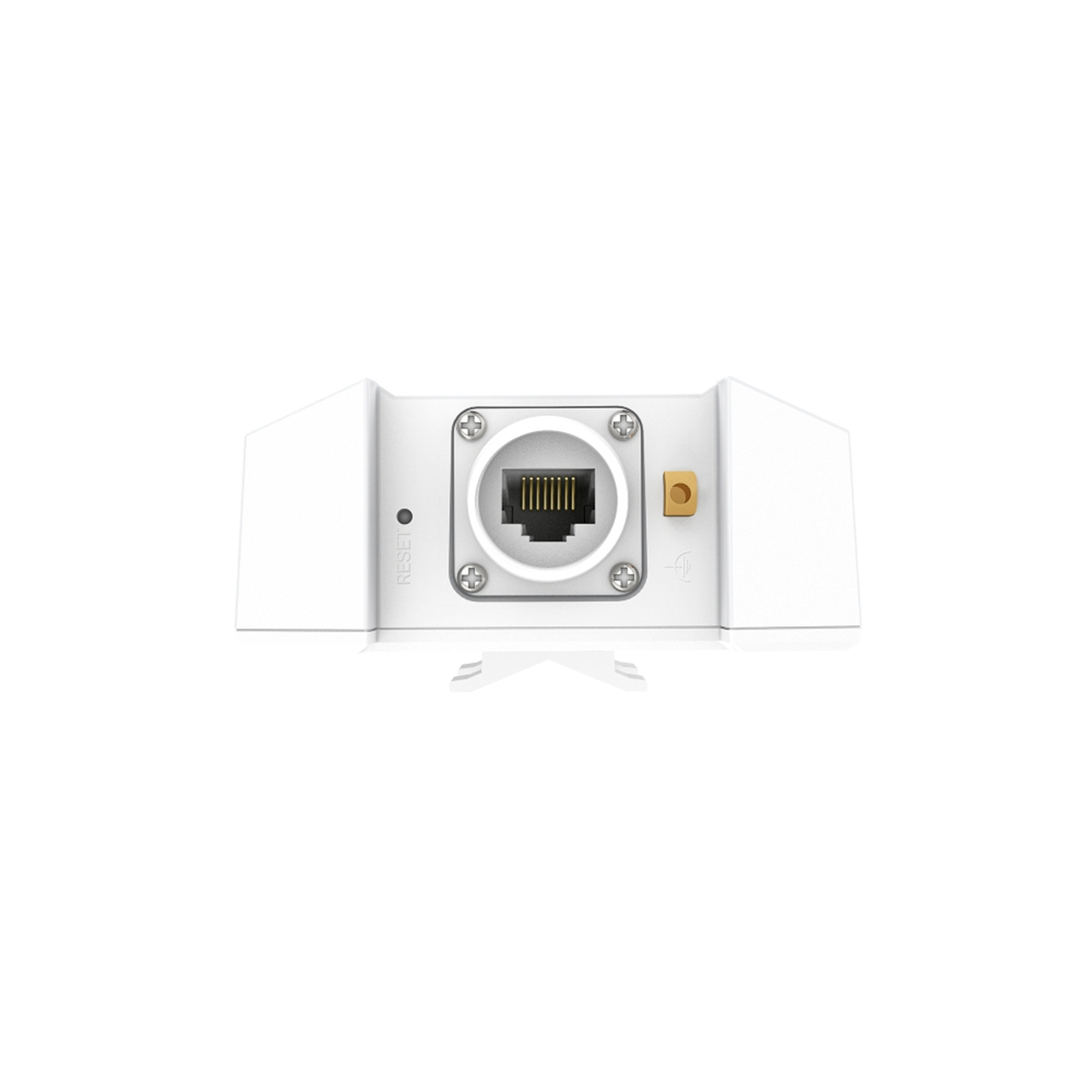

Interface
1x Gigabit Ethernet Port
Button
Reset
Power Supply
- 802.3at PoE
- 48V Passive PoE
Note: PoE adapter is not included.
Dimensions ( W x D x H )
11.0 x 4.2 x 2.2 in (280.4 × 106.5 × 56.8 mm)
Antenna Type
2× Internal Dual-Band Omni Antennas
- 2.4 GHz: 4.0 dBi;
- 5 GHz: 5.0 dBi
Weatherproof Enclosure
IP67
Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Concurrent Clients
1,000+[3]
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax
Frequency
5 GHz, and 2.4 GHz
Signal Rate
- 5 GHz: Up to 1201 Mbps
- 2.4 GHz: Up to 574 Mbps
Wireless Functions
- Mesh[4]
- Seamless Roaming[4]
- Automatic Channel Assignment
- Load Balance
- Band Steering
- Beamforming
- Airtime Fairness
- Multiple SSIDs:16 (8 for each band)
- Wireless Statistics
- Wireless Schedule
- Reboot Schedule
- RADIUS Accounting
- MAC Authentication
- Static IP/Dynamic IP
Wireless Security
- VLAN
- Access Control
- Rogue AP Detection
- Captive Portal Authentication[4]
- Maximum number of MAC Filter: 4,000
- Wireless Isolation between Clients
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- 802.1X Support
Transmission Power
- CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
- FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Restore & Backup
Yes
Firmware update via Web
Yes
NTP
Yes
Centralized Management
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
SSH
Yes
Web-based Management
Yes
OTHERS
Certification
CE, FCC, RoHS
Package Contents
- EAP623-Outdoor HD
- Installation Guide
- Mounting Kit
- Waterproof Kit
Environment
- Operating Temperature: -30 °C-70 °C (-22 °F-158 °F);
- Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
- Operating Humidity: 10%-90% non-condensing;
- Storage Humidity: 5%-90% non-condensing
