TP-Link Omada EAP725-Wall (BE3600) Dual-Band 4-Stream Wall-Plate Wi-Fi 7 Access Point with 2.5GbE x2, 1GbE x2 (PoE+ 17W)
TP-Link Omada EAP725-Wall (BE3600) Dual-Band 4-Stream Wall-Plate Wi-Fi 7 Access Point with 2.5GbE x2, 1GbE x2 (PoE+ 17W)
- Brand: TP-Link
- MPN: EAP725-Wall
- Part #: NAPTPL7251
- UPC:
- Brand: TP-Link
- MPN: EAP725-Wall
- Part #: NAPTPL7251
- UPC:
Similar in-stock products available at PB Tech right now
Features
BE3600 Wall Plate Wi-Fi 7 Access Point
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).*
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 160 MHz bandwidth enables many more simultaneous transmissions.**
- Multi-RUs ensure the high performance of your network.**
- Advanced Functions: Centralised management, Mesh, and Seamless Roaming.***
BE3600 Wi-Fi 7 Wall Plate Access Point for Ultra-Fast Connectivity
Wi-Fi 7: Swifter, Smoother, Stronger

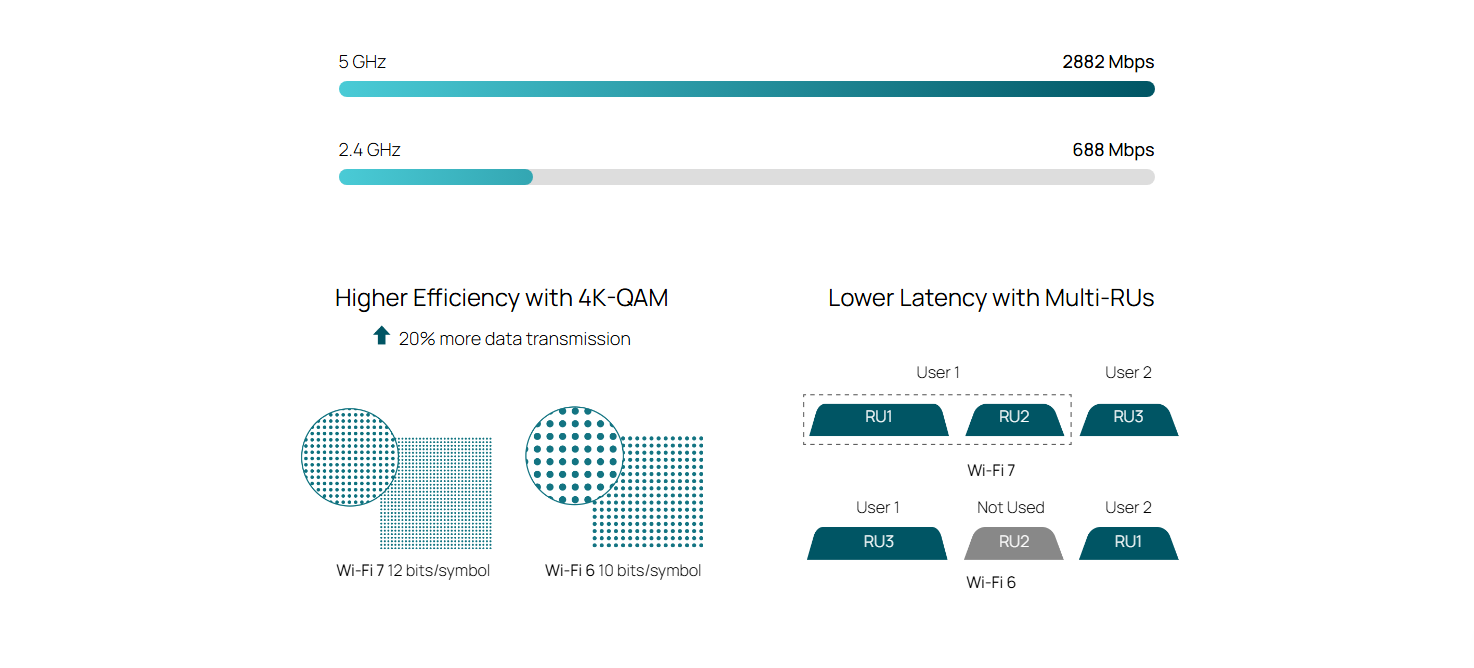

Dual-Band Wi-Fi 7 Throughput
Dedicated and Complete, Private Wi-Fi Networks for Every Room

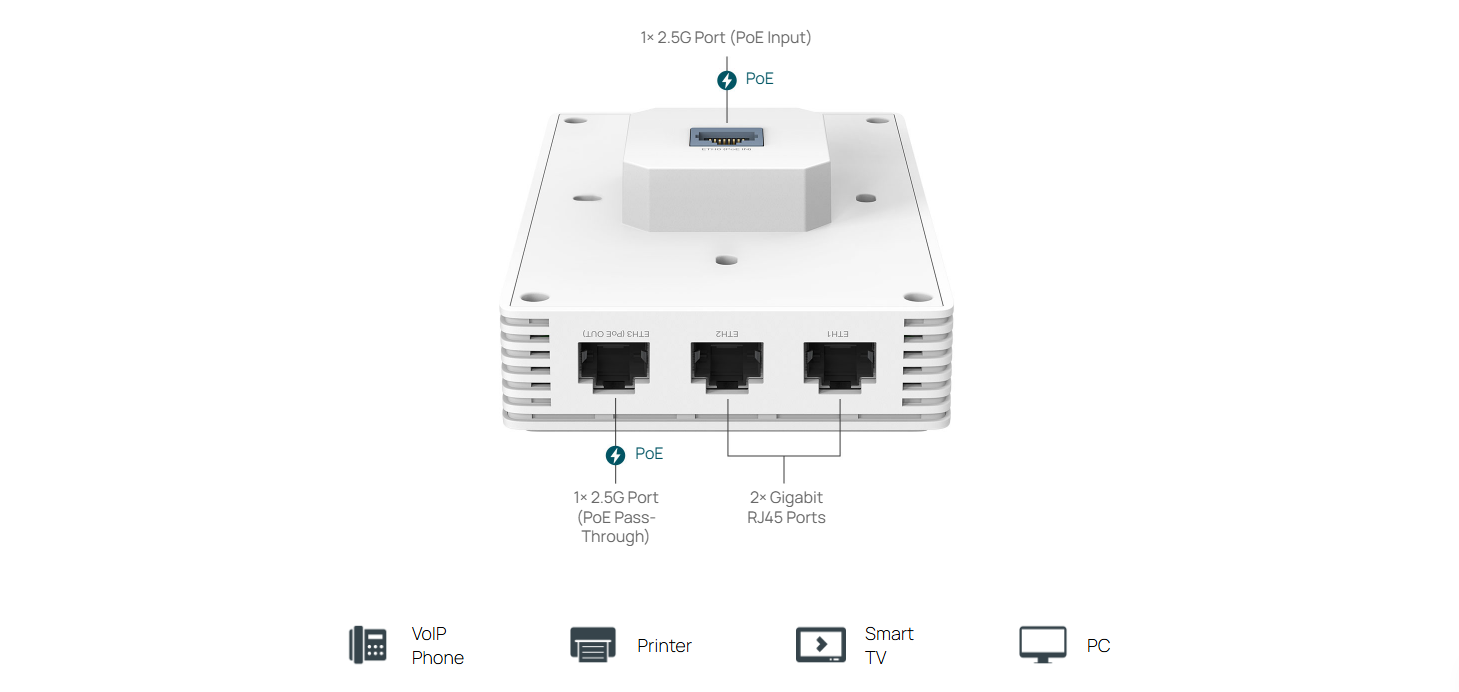

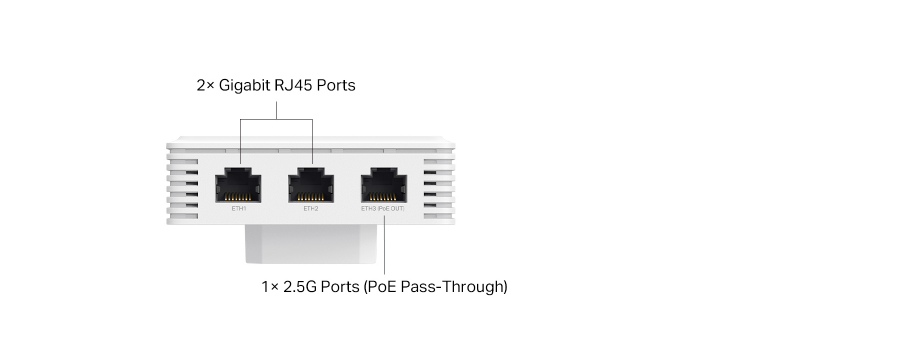

Optimised Wired Performance with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as VoIP phones, can be powered without the need for additional electrical cables.
*The PoE pass-through feature requires 802.3at/bt PoE input.
Boosted Network Security

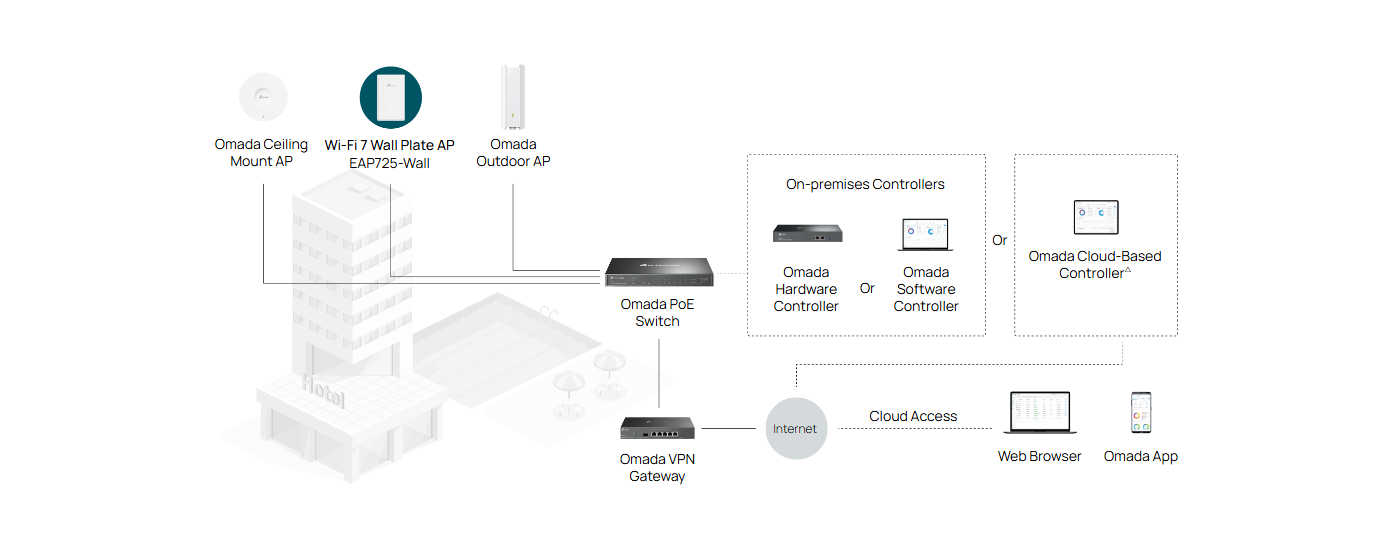

Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites - all from a single interface.
Build Features
Note
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
***Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Indoor Access Points
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-Mesh (AX5400) Dual-Band 6-Stream WiFi 6 Access...
TP-Link Omada EAP725-Wall (BE3600) Dual-Band 4-Stream Wall-Plate Wi-Fi 7 Access Point with 2.5GbE x2, 1GbE x2 (PoE+ 17W)
- Brand: TP-Link
- MPN: EAP725-Wall
- Part #: NAPTPL7251
Product URL: https://www.pbtech.co.nz/product/NAPTPL7251/TP-Link-Omada-EAP725-Wall-BE3600-Dual-Band-4-Strea
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
BE3600 Wall Plate Wi-Fi 7 Access Point
- BE3600 Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).*
- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 160 MHz bandwidth enables many more simultaneous transmissions.**
- Multi-RUs ensure the high performance of your network.**
- Advanced Functions: Centralised management, Mesh, and Seamless Roaming.***
BE3600 Wi-Fi 7 Wall Plate Access Point for Ultra-Fast Connectivity
Wi-Fi 7: Swifter, Smoother, Stronger
Dual-Band Wi-Fi 7 Throughput
Dedicated and Complete, Private Wi-Fi Networks for Every Room
Optimised Wired Performance with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as VoIP phones, can be powered without the need for additional electrical cables.
*The PoE pass-through feature requires 802.3at/bt PoE input.
Boosted Network Security
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites - all from a single interface.
Build Features
Note
*Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 160 MHz bandwidth is only available on the 5GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
**Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
***Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Specifications
Hardware
Interface
Uplink: 1× 2.5G Ethernet Port
Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input.)
Physical Security Lock
No
Button
Reset, LED
Power Supply
802.3at/bt PoE
Max. Power Consumption
802.3bt: 17W (PoE Out support 15.4W)
802.3at: 17W (PoEOut support 7W)

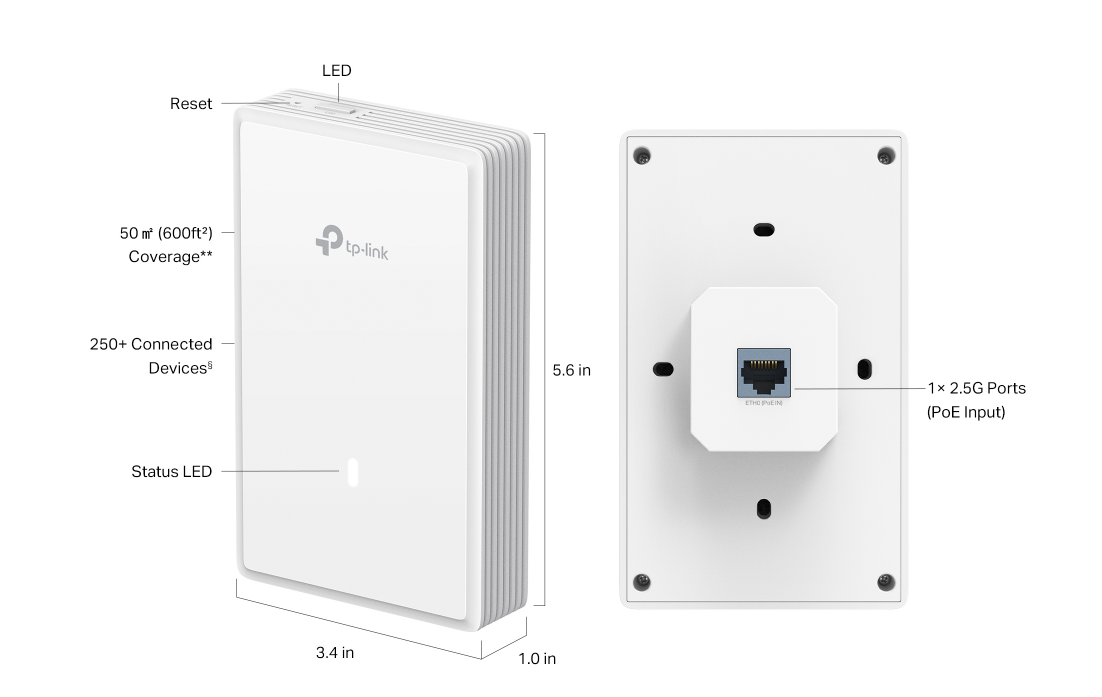

Dimensions ( W x D x H )
143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)
Antenna
4× Internal Antennas
2.4 GHz: 2× 4 dBi
5 GHz: 2× 5 dBi
Mounting
Wall Mounting (Kits included)
Wireless
Coverage
50 m²(600 ft²)
Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
Concurrent Clients
250+
The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2882 Mbps
2.4 GHz: Up to 688 Mbps
Wireless Functions
16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming
Beamforming
Rate Limit (Based on SSID/Client)
Load Balance
Airtime Fairness
Band Steering
Reboot Schedule
Wireless Schedule
RADIUS Accounting
MAC Authentication
Wireless Statistics
Static IP/Dynamic IP
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Management
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
System Log
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
Others
Certification
CE, RoHS
Package Content
BE3600 Wall Plate Wi-Fi 7 Access Point
Installation Guide
Mounting Kits
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
