TP-Link Omada EAP775-Wall (BE9300) Tri-Band 6-Stream Wall-Plate Wi-Fi 7 Access Point with 1GbE x3 / 2.5GbE x2 (PoE+ 44W)
TP-Link Omada EAP775-Wall (BE9300) Tri-Band 6-Stream Wall-Plate Wi-Fi 7 Access Point with 1GbE x3 / 2.5GbE x2 (PoE+ 44W)
- Brand: TP-Link
- MPN: EAP775-Wall
- Part #: NAPTPL7751
- UPC:
- Brand: TP-Link
- MPN: EAP775-Wall
- Part #: NAPTPL7751
- UPC:
Similar in-stock products available at PB Tech right now
Ubiquiti UniFi U7-PRO-XGS (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE++ 29W)
Ubiquiti UniFi U7-Pro-Max (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 25W)
Features
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration.§
- Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out)
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
- Advanced Features: Supports centralised cloud management, mesh, and seamless roaming.△
- Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.

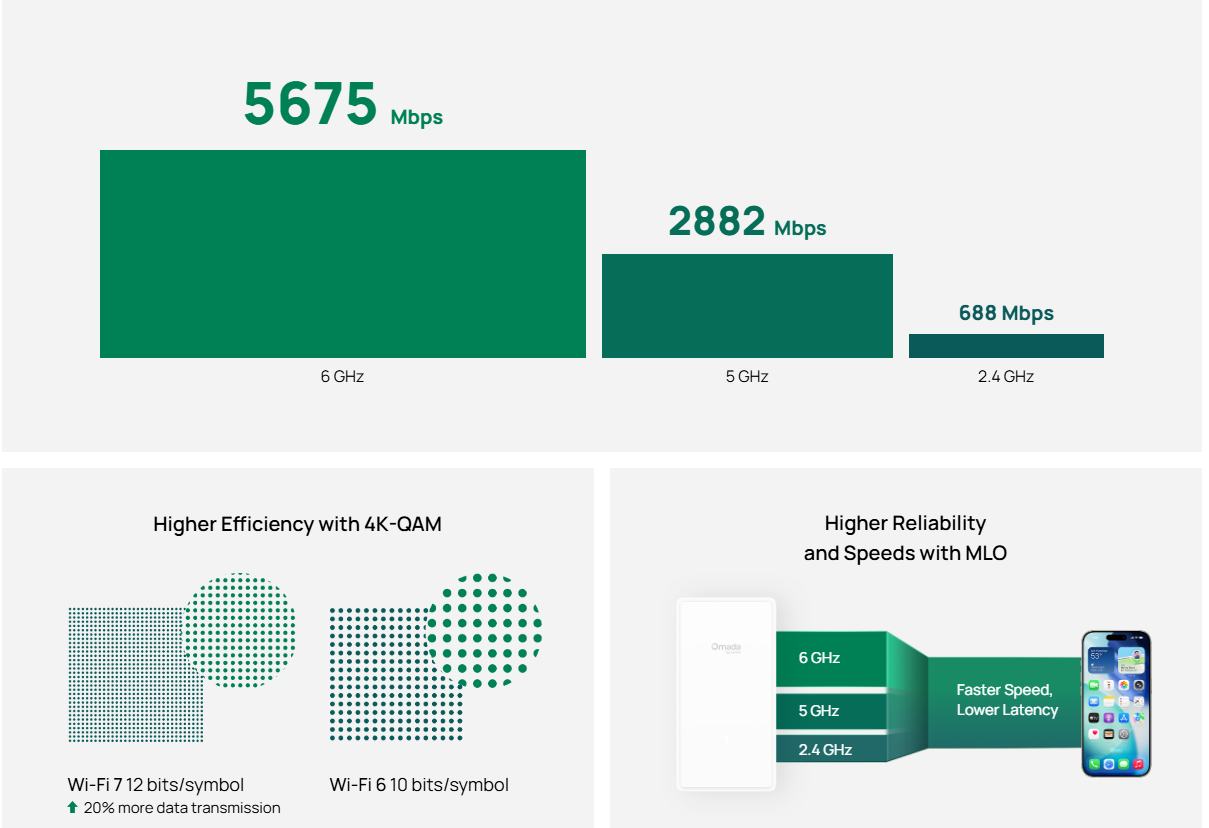

Wi-Fi 7: Swifter, Smoother, Stronger
Tri-Band Wi-Fi 7 Throughout
Versatile Mounting Design for Flexible Deployment

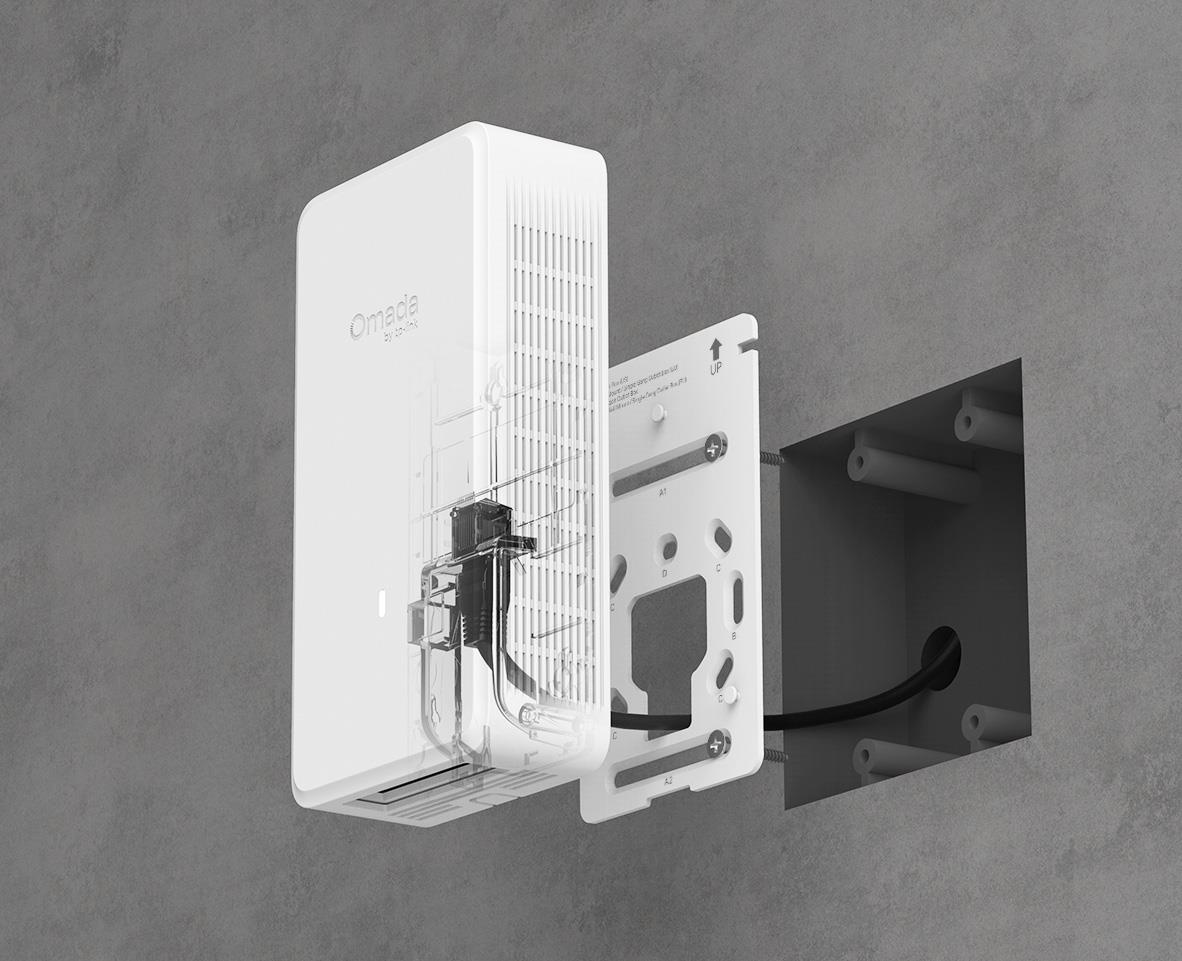

Sufrace Mounting (In-Wall Cabling)
Ease of installation and maintenance.

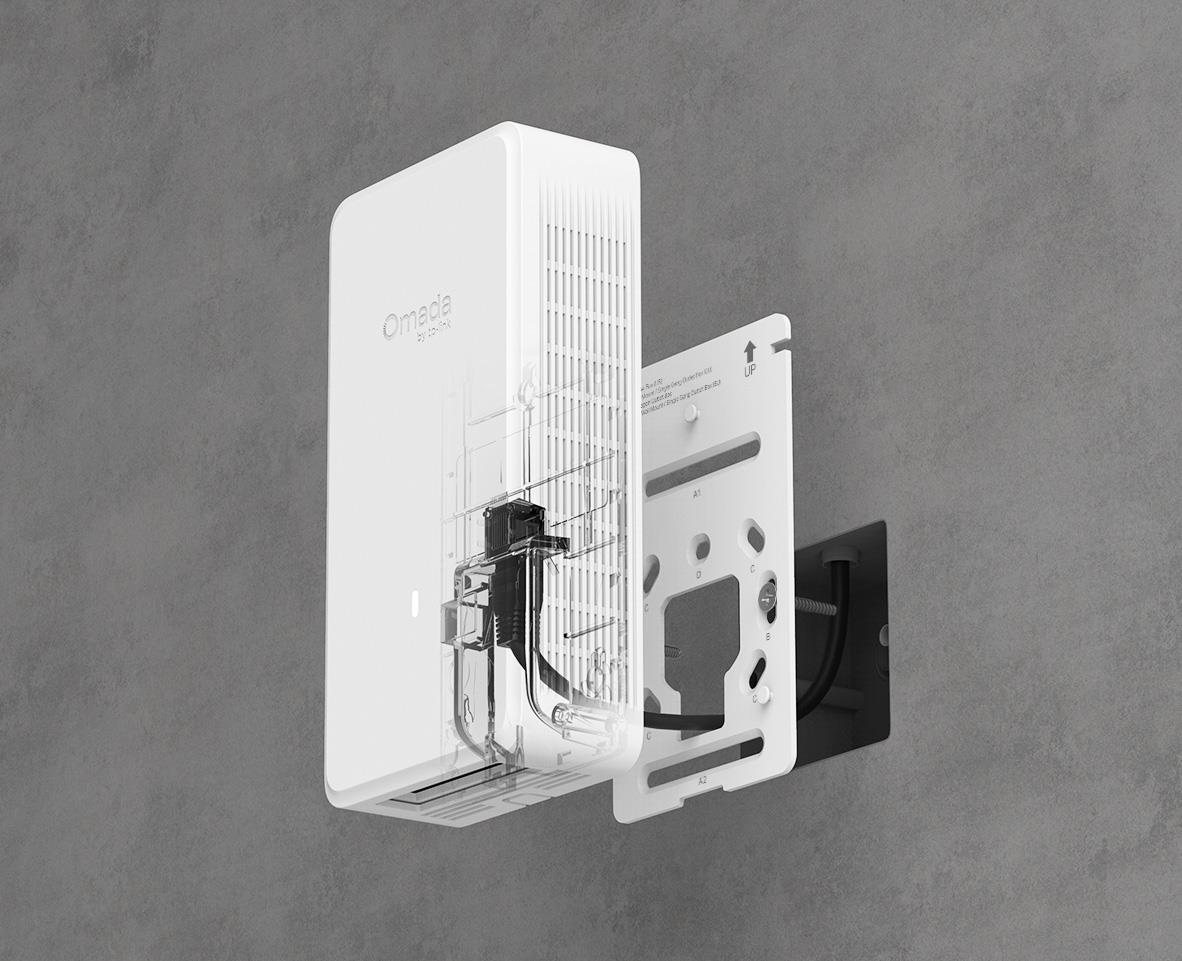

Surface Mounting (On-Wall Cabling)
Easy installation and maintenance.

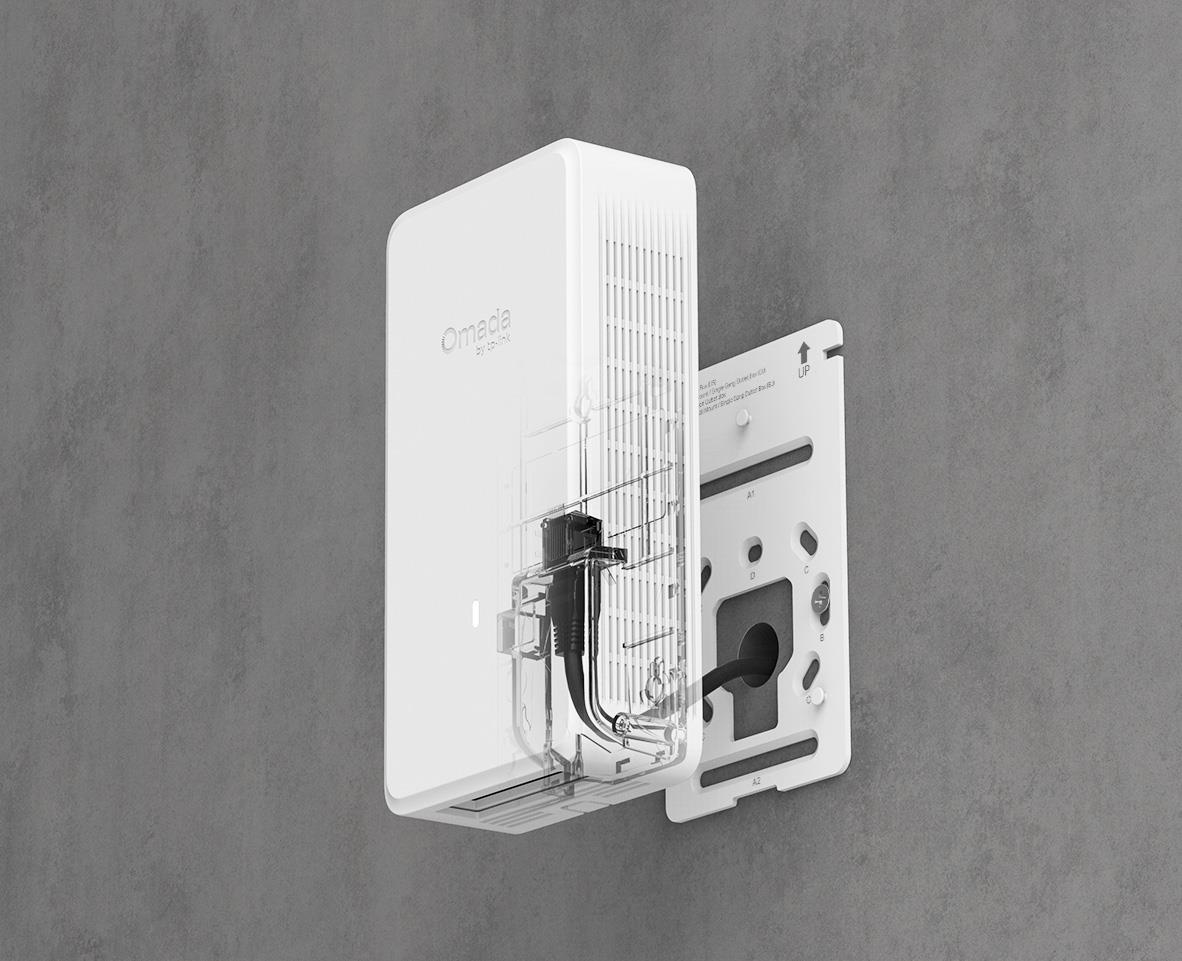

Single Gang Outlet Box
No additional wall digging or wiring required.
Dual Gang Outlet Box
No obstruction to the vacant postions of the adjacent outlet box.

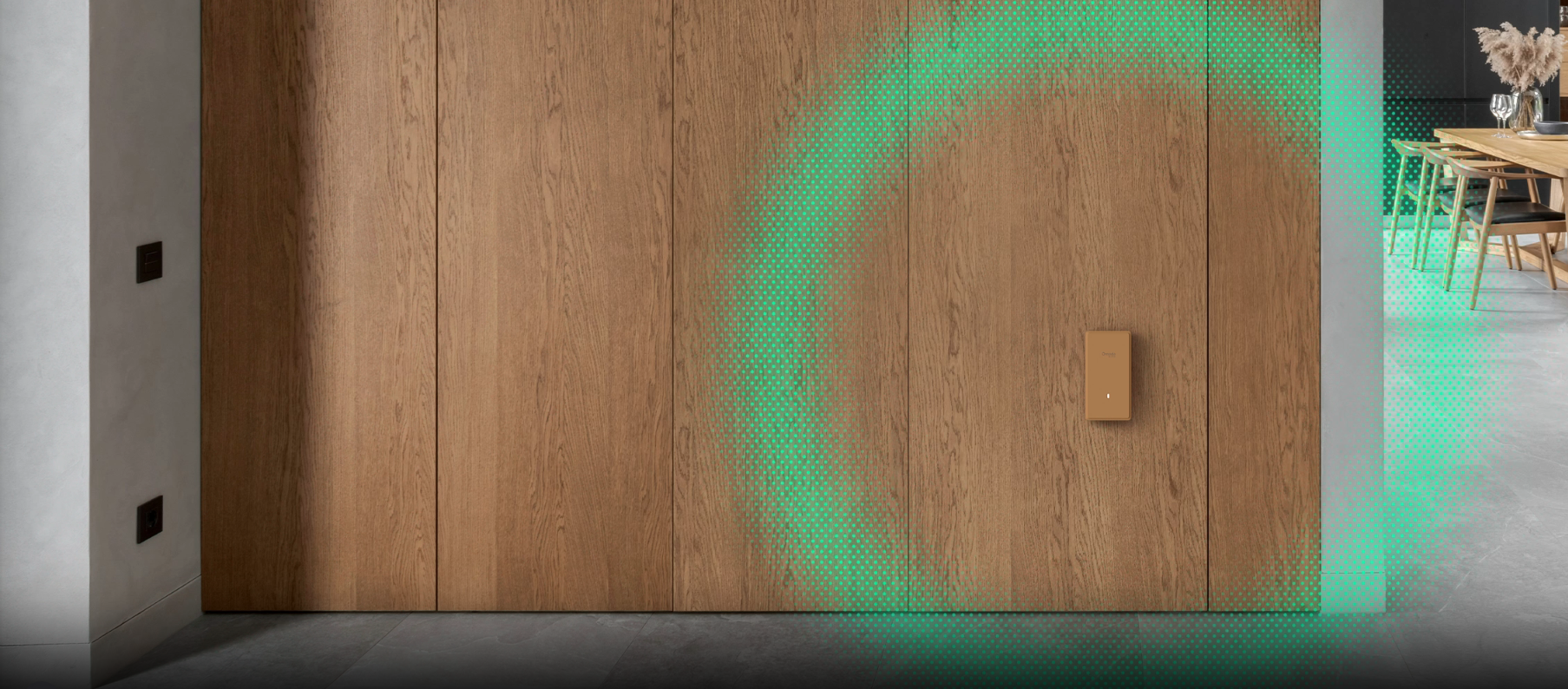

Additional Paintable Cover for Aesthetic Integration
Equipped with a paintable cover included at no extra cost, EAP775-Wall can be easily customised to match any backgrounds.
Robust Physical Security with Anti‑Theft Design
Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment and ensuring reliable, uninterrupted connectivity in public areas.
Dedicated Complete, Private Wi-Fi Network in Each Room

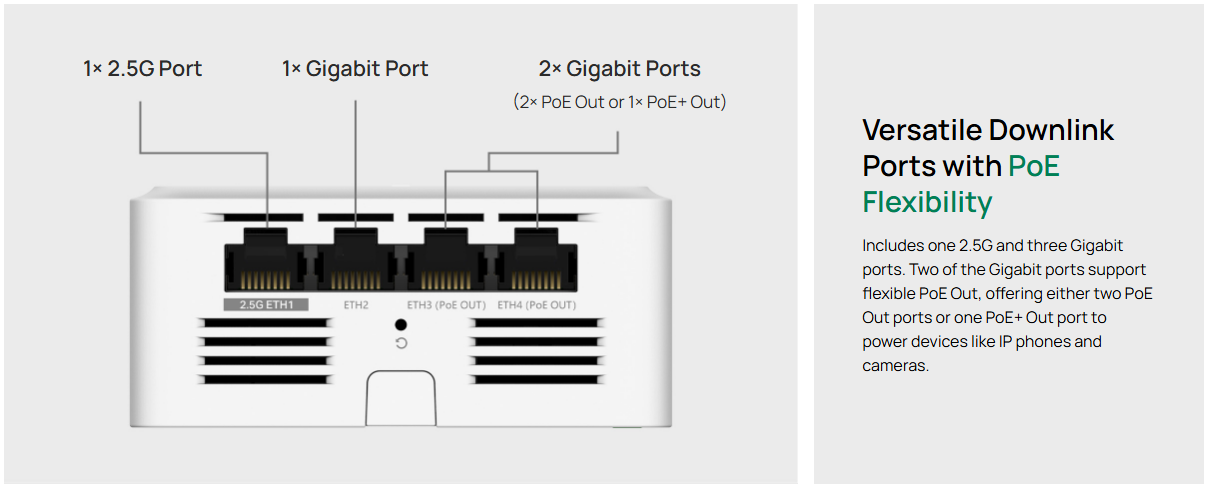

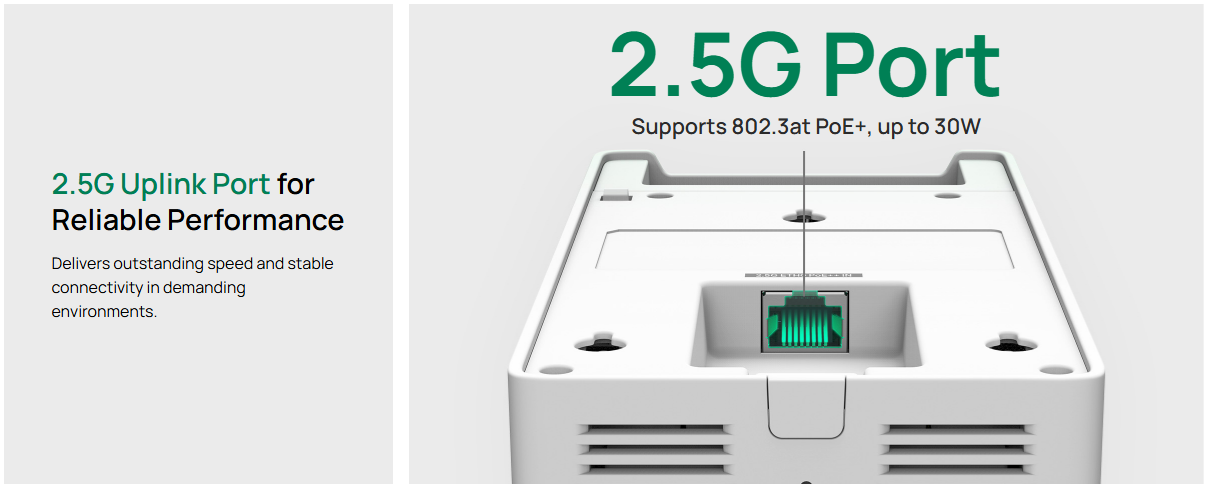

Optimised Wired Performance with 2.5G PoE Ports
Boosted Network Security

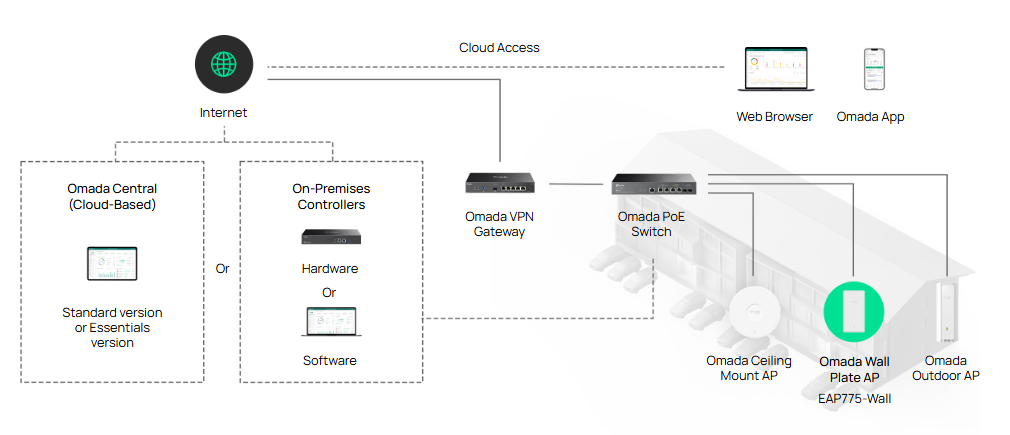

Seamless Integration into Omada SDN
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.
Build Features
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
§Painted covers cannot be returned or repaired.
‡Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days and tracking links for these deliveries can take a few days to generate.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Ceiling Mounted Access Points
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-Mesh (AX5400) Dual-Band 6-Stream WiFi 6 Access...
TP-Link Omada EAP775-Wall (BE9300) Tri-Band 6-Stream Wall-Plate Wi-Fi 7 Access Point with 1GbE x3 / 2.5GbE x2 (PoE+ 44W)
- Brand: TP-Link
- MPN: EAP775-Wall
- Part #: NAPTPL7751
Product URL: https://www.pbtech.co.nz/product/NAPTPL7751/TP-Link-Omada-EAP775-Wall-BE9300-Tri-Band-6-Stream
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
- 6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 2882 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.†
- Flexible and Aesthetic Integration: Versatile mounting design with a paintable cover included for flexible integration.§
- Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out)
- Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡
- Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
- Advanced Features: Supports centralised cloud management, mesh, and seamless roaming.△
- Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.
Wi-Fi 7: Swifter, Smoother, Stronger
Tri-Band Wi-Fi 7 Throughout
Versatile Mounting Design for Flexible Deployment
Sufrace Mounting (In-Wall Cabling)
Ease of installation and maintenance.
Surface Mounting (On-Wall Cabling)
Easy installation and maintenance.
Single Gang Outlet Box
No additional wall digging or wiring required.
Dual Gang Outlet Box
No obstruction to the vacant postions of the adjacent outlet box.
Additional Paintable Cover for Aesthetic Integration
Equipped with a paintable cover included at no extra cost, EAP775-Wall can be easily customised to match any backgrounds.
Robust Physical Security with Anti‑Theft Design
Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment and ensuring reliable, uninterrupted connectivity in public areas.
Dedicated Complete, Private Wi-Fi Network in Each Room
Optimised Wired Performance with 2.5G PoE Ports
Boosted Network Security
Seamless Integration into Omada SDN
Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralised cloud management for a highly scalable network.
Build Features
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
§Painted covers cannot be returned or repaired.
‡Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
Specifications
HARDWARE FEATURES
Interface
Uplink: 1x 2.5G Ethernet Port
Downlink: 1x 2.5G Ethernet Port + 3x Gigabit Ethernet Ports
(Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.)
Physical Security Lock
Yes
Button
Reset
Power Supply
802.3at/bt PoE
PoE Out
Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.
The PoE Out feature requires 802.3bt input.
Max. Power Consumption
43.35W（with 25W PoE Out)

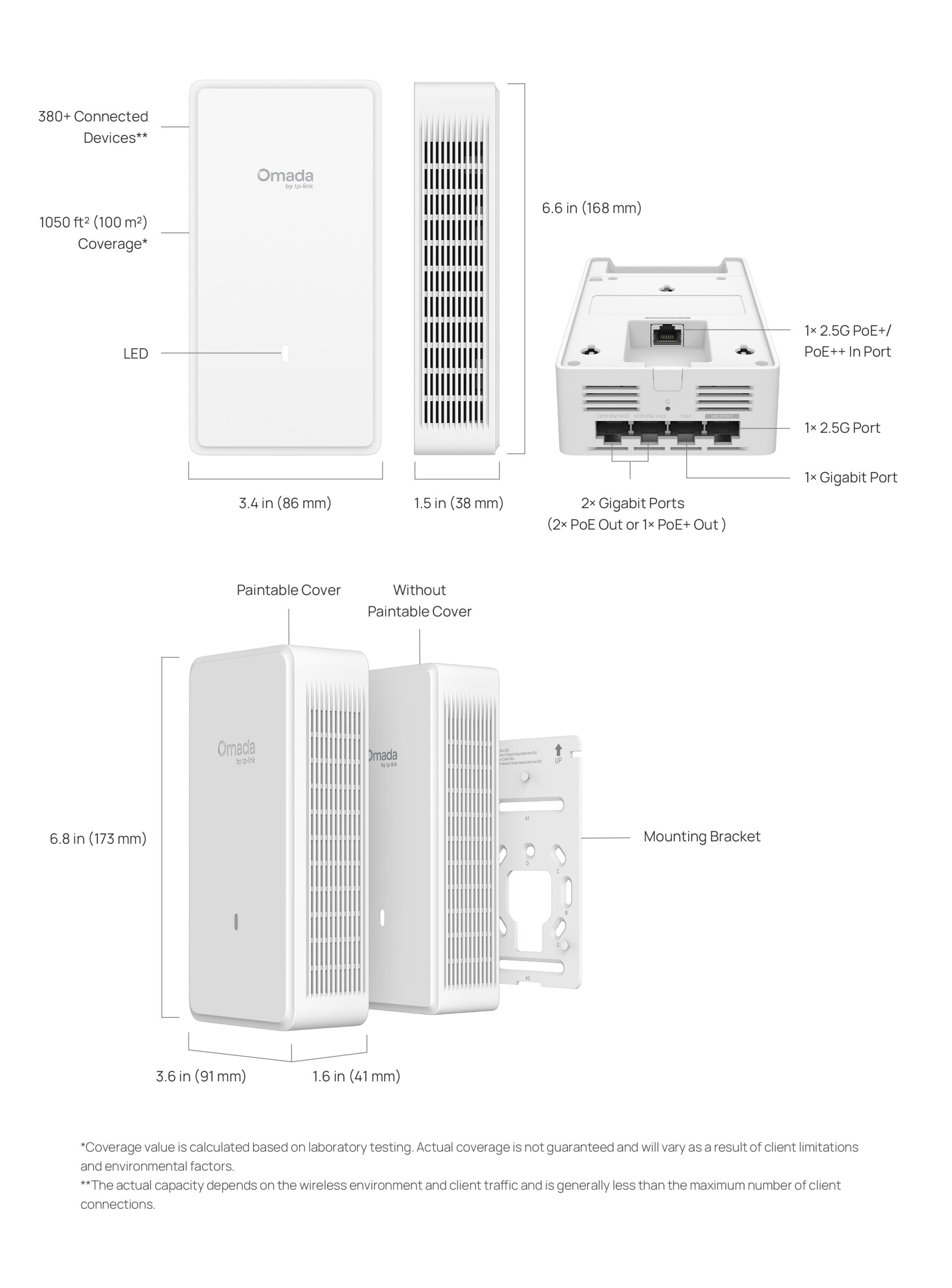

Dimensions ( W x D x H )
6.8 x 3.6 x 1.6 in (172.9 x 91.2 x 41.3 mm)
Antenna
6x Internal Antennas
- 2.4 GHz: 2x 5 dBi
- 5 GHz: 2x 5.5 dBi
- 6 GHz: 2x 5.5 dBi
Bluetooth
V5.2
Mounting
Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage
1050 ft² (100 m²)*
Concurrent Clients
380+**
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
2.4 GHz, 5 GHz, and 6 GHz
Signal Rate
- 6 GHz: Up to 5765 Mbps
- 5 GHz: Up to 2882 Mbps
- 2.4 GHz: Up to 688 Mbps
Wireless Functions
- MLO‡
- 4K-QAM‡
- Multi-RUs‡
- 320 MHz Bandwidth‡
- 24 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Seamless Roaming△
- Beamforming
- Rate Limit (Based on SSID/Client)
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
Wireless Security
- Captive Portal Authentication△
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
6-20 dBm (2.4 GHz, ERIP)
6-23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP)
6-27.5 dBm (5 GHz, U-NII-2C, ERIP)
6-23 dBm (6 GHz,ERIP)
Management Features
Omada App
Yes
Centralized Management
- Omada Hardware Controller
- Omada Software Controller
- Omada Cloud-Based Controller
Cloud Access
Yes. Requiring the use of an Omad Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
System Log
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE, RoHS
Package Content
- EAP775-Wall
- Paintable Cover
- Installation Guide
- Mounting Kits
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
- Operating Temperature: 0-40 ℃ (32-104 ℉)
- Storage Temperature: -40-70 ℃ (-40-158 ℉)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
Notes
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 320 MHz bandwidth on the 6 GHz band and 160 MHz bandwidth on the 5 GHz band may be unavailable in some regions/countries due to regulatory restrictions. Actual wireless data throughput and coverage are not guaranteed and will vary.
§Painted covers cannot be returned or repaired.
‡Use of Wi-Fi 7 (802.11be) and features including 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
*Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
△Omada mesh, seamless roaming, captive portal, and cloud access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
