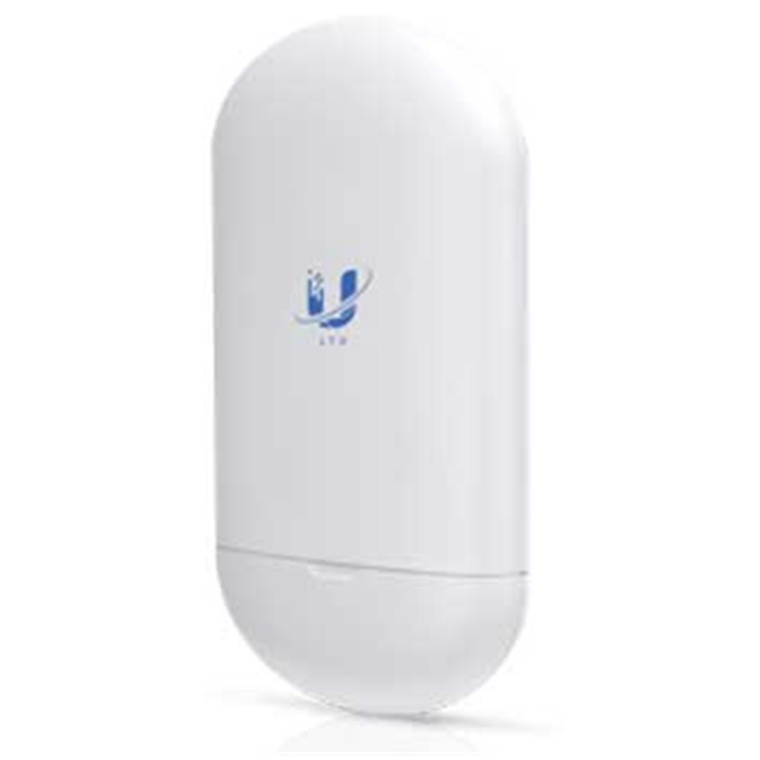

Ubiquiti LTU-Lite 5GHz PtMP LTU Client Radio, 600Mbps, 13 dBi Integrated Antenna (Required to work with LTU-Rocket for PTP/PTMP Bridge)
Ubiquiti LTU-Lite 5GHz PtMP LTU Client Radio, 600Mbps, 13 dBi Integrated Antenna (Required to work with LTU-Rocket for PTP/PTMP Bridge)
- Brand: Ubiquiti
- MPN: LTU-LITE
- Part #: NAPUBI0122
- UPC: 817882029933
- Brand: Ubiquiti
- MPN: LTU-LITE
- Part #: NAPUBI0122
- UPC: 817882029933
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular CPE
Ubiquiti LTU-Lite 5GHz PtMP LTU Client Radio, 600Mbps, 13 dBi Integrated Antenna (Required to work with LTU-Rocket for PTP/PTMP Bridge)
- Brand: Ubiquiti
- MPN: LTU-LITE
- Part #: NAPUBI0122
- UPC:817882029933
Product URL: https://www.pbtech.co.nz/product/NAPUBI0122/Ubiquiti-LTU-Lite-5GHz-PtMP-LTU-Client-Radio-600Mb
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
Ubiquiti LTU-Lite 5GHz LTU Client Radio. Incorporating Ubiquiti's proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Featuring an integrated antenna, the LTU Lite is a compact, cost-effective subscriber station utilizing the 5 GHz radio band. It functions as a CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU Rocket® as the basestation.
- PtMP CPE for LTU-Rocket
- 1024 QAM
- 10/20/30/40/50 MHz channel bandwidth
- Central configuration management from AP side
- Frequency split
- Auto power adjustments
- Router mode support
Specifications
Manufacturer's Code
LTU-Pro-AU
Dimensions
153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56")
Weight
250 g (8.82 oz)
Networking Interface
(1) 10/100/1000 Ethernet Port
Enclosure
Outdoor UV Stabilized Plastic
Max. Power Consumption
8.5W
Power Supply
24V, 0.5A Gigabit PoE Adapter (Included)
Power Method
24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range
22 - 26V
Max. Conducted TX Power
22 dBm per Chain
Gain
13 dBi
Cross-pol Isolation
20 dB Minimum
Max. VSWR
1.8:1
Beamwidth
45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization
Dual Linear
Mounting
Pole-Mount, Wall Mount (Kit Included)
Wind Loading
20 N @ 200 km/h (4.5 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
ESD/EMP Protection
± 24kV Contact/Air
Operating Temperature
-40 to 60° C (-40 to 140° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
