Ubiquiti IsoStation IS-5AC Shielded airMAX ac Radio with Isolation Antenna 5GHz,450+ Mbps, 1 x Gigabit Ethernet Ports, 45° Isolation Antenna,

PB Tech price
PB Tech price
$ 99 .13
 +GST
$ 114 .00
 inc GST
$99.13  +GST
$114.00

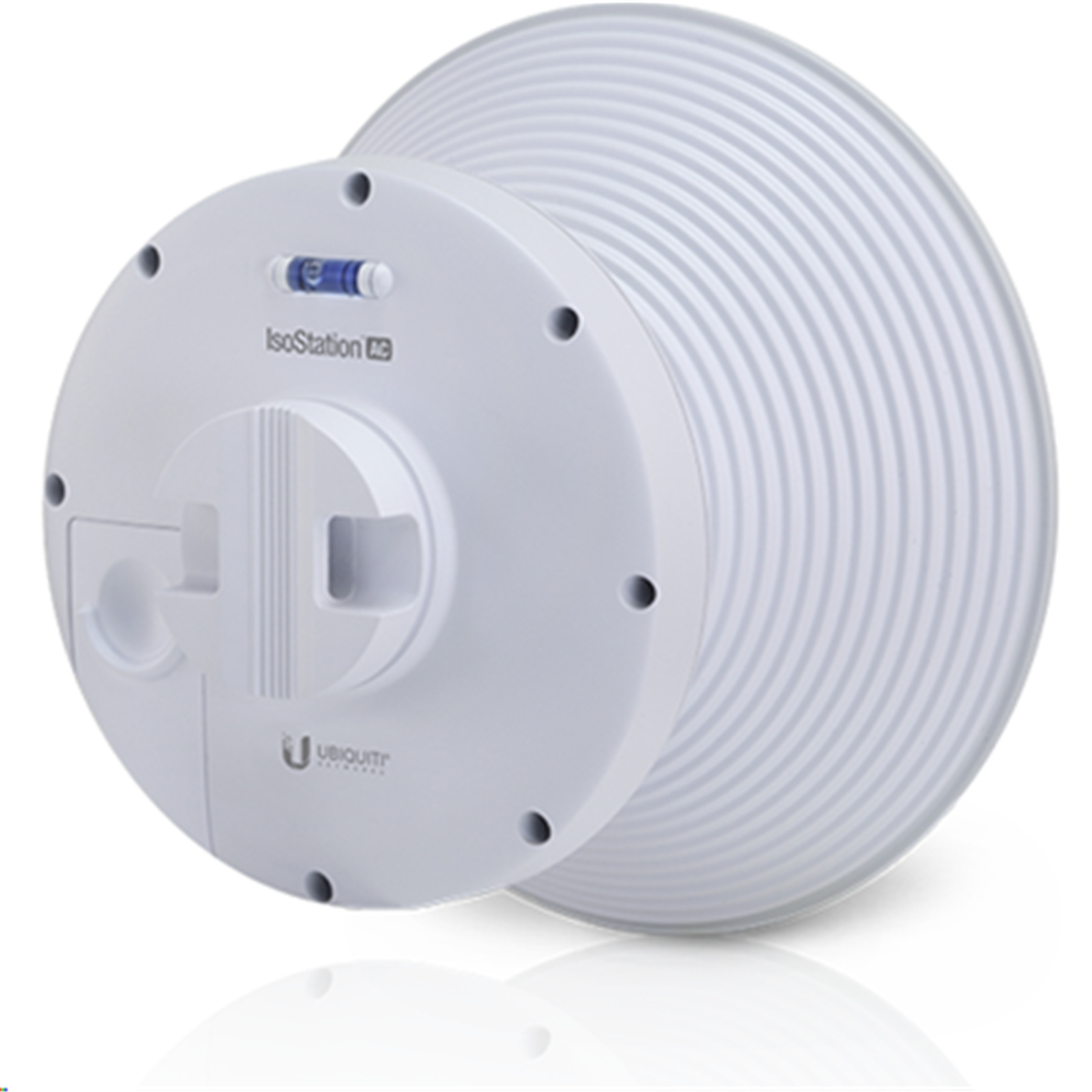

Ubiquiti IsoStation IS-5AC Shielded airMAX ac Radio with Isolation Antenna 5GHz,450+ Mbps, 1 x Gigabit Ethernet Ports, 45° Isolation Antenna,

Interchangeable Isolation Antenna Horn (30°, 60°, 90°)
  • Brand: Ubiquiti
  • MPN: IS-5AC
  • Part #: NAPUBI0406
  • UPC: 810354026683
PB Tech price
$ 99 .13 $ 114 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 06 Jan When will I receive it?
$99.13  +GST
$114.00

Four payments of $28.78 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Ubiquiti
  • MPN: IS-5AC
  • Part #: NAPUBI0406
  • UPC: 810354026683

Ethernet Ports

1

Power Option

PoE

USB Ports

None

WiFi Bands

N/A

Wireless Technology

WiFi 5 (802.11ac)

Wireless Transmission Speed

450Mbps

Pack Size

1-Pack

Similar in-stock products available at PB Tech right now

Features

Shielded airMAX® CPE

With a die-cast aluminum base and interchangeable antenna, the IsoStation™ is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation AC delivers throughput speeds of up to 450+ Mbps, and the IsoStation M5 delivers throughput speeds of up to 100+ Mbps.

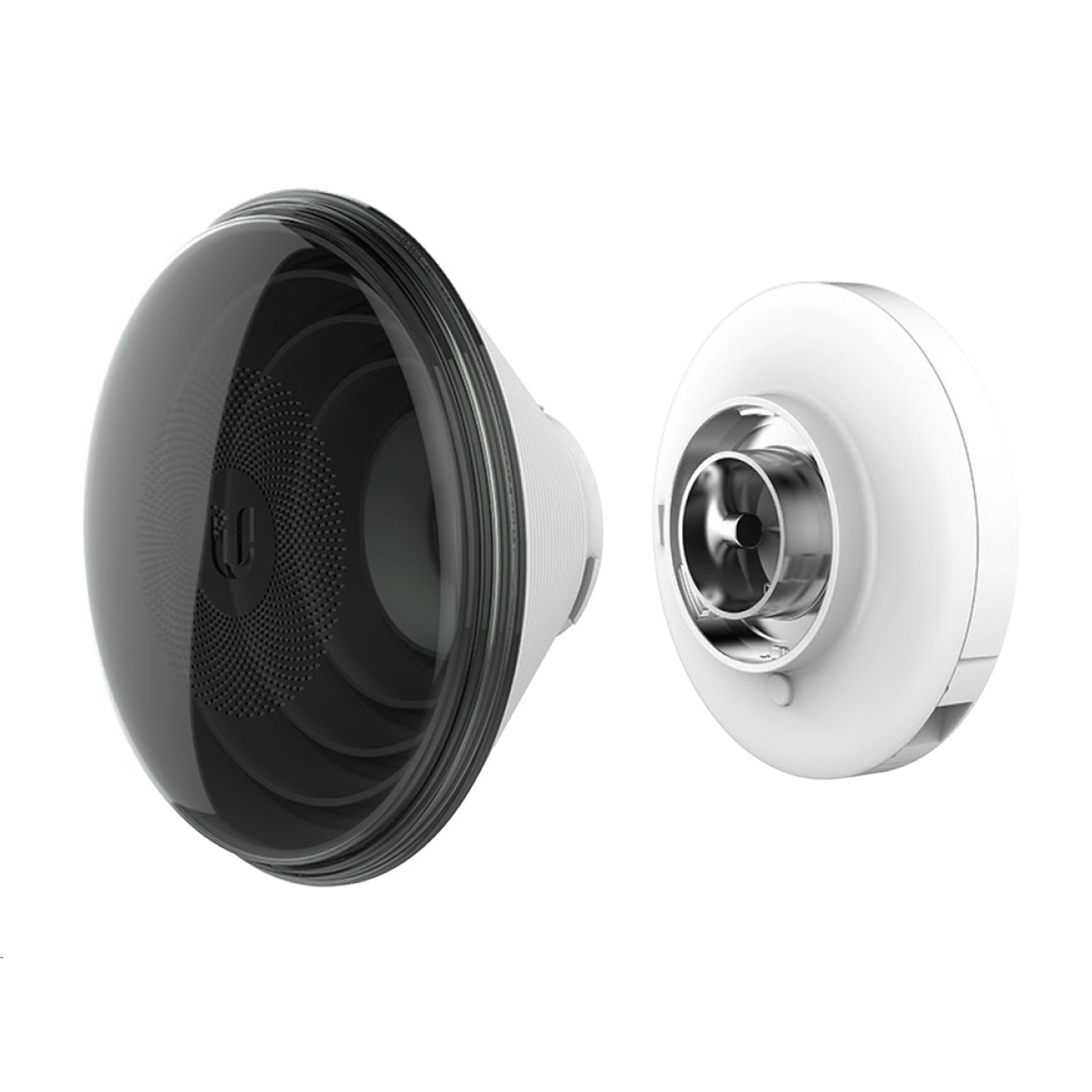

Modular Design

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.



Beam Performance Perfected

The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.


Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.




Improved Noise Immunity

IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.



High MAC Efficiency

High MAC efficiency provides ±80% PHY RATE throughput.



Management Wi-Fi Radio

The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Specifications

Dimensions
With Horn - 174 x 174 x 150 mm (6.85 x 6.85 x 5.91")
Without Horn - 131 x 131 x 65 mm (5.16 x 5.16 x 2.56")

Weight

With Horn - 725.7 g (1.6 lb)
Without Horn - 408.2 g (0.9 lb)

Max. Power Consumption
8.5W

Power Supply
24V, 0.5A Gigabit PoE Adapter

Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)

Gain
14 dBi

Beamwidth
45° (Default Horn)

Networking Interface
(1) 10/100/1000 Ethernet Port

Processor Specs
MIPS 74 Kc

Memory
64 MB DDR2

LED
(1) Power

Mounting
Pole-Mount

Wind Loading
36 N @ 200 km/h (8.09 lbf @ 125 mph)

Wind Survivability
200 km/h (125 mph)

ESD/EMP Protection
± 24 kV Contact/Air

Operating Temperature
-40 to 70° C (-40 to 158° F)

Operating Humidity
5 to 95% Noncondensing

Certifications
FCC, IC, CE
Manufacturer Part No:
IS-5AC
Brand:
Product Type:
-
UPC
810354026683
Product Family:
IsoStation
Shipping Weight:
1.406 kg
PB Part No:
NAPUBI0406
Product Model:
IS-5AC
Warranty: 12 months *
