Ubiquiti IsoStation IS-M5 Shielded airMAX CPE 5GHz,100+ Mbps, 1 x Gigabit Ethernet Ports, 45° Isolation Antenna, PtP/PtMP Bridge/ Client,

PB Tech price
PB Tech price
$ 112 .75
 +GST
$ 129 .66
 inc GST
$112.75  +GST
$129.66

Ubiquiti IsoStation IS-M5 Shielded airMAX CPE 5GHz,100+ Mbps, 1 x Gigabit Ethernet Ports, 45° Isolation Antenna, PtP/PtMP Bridge/ Client,

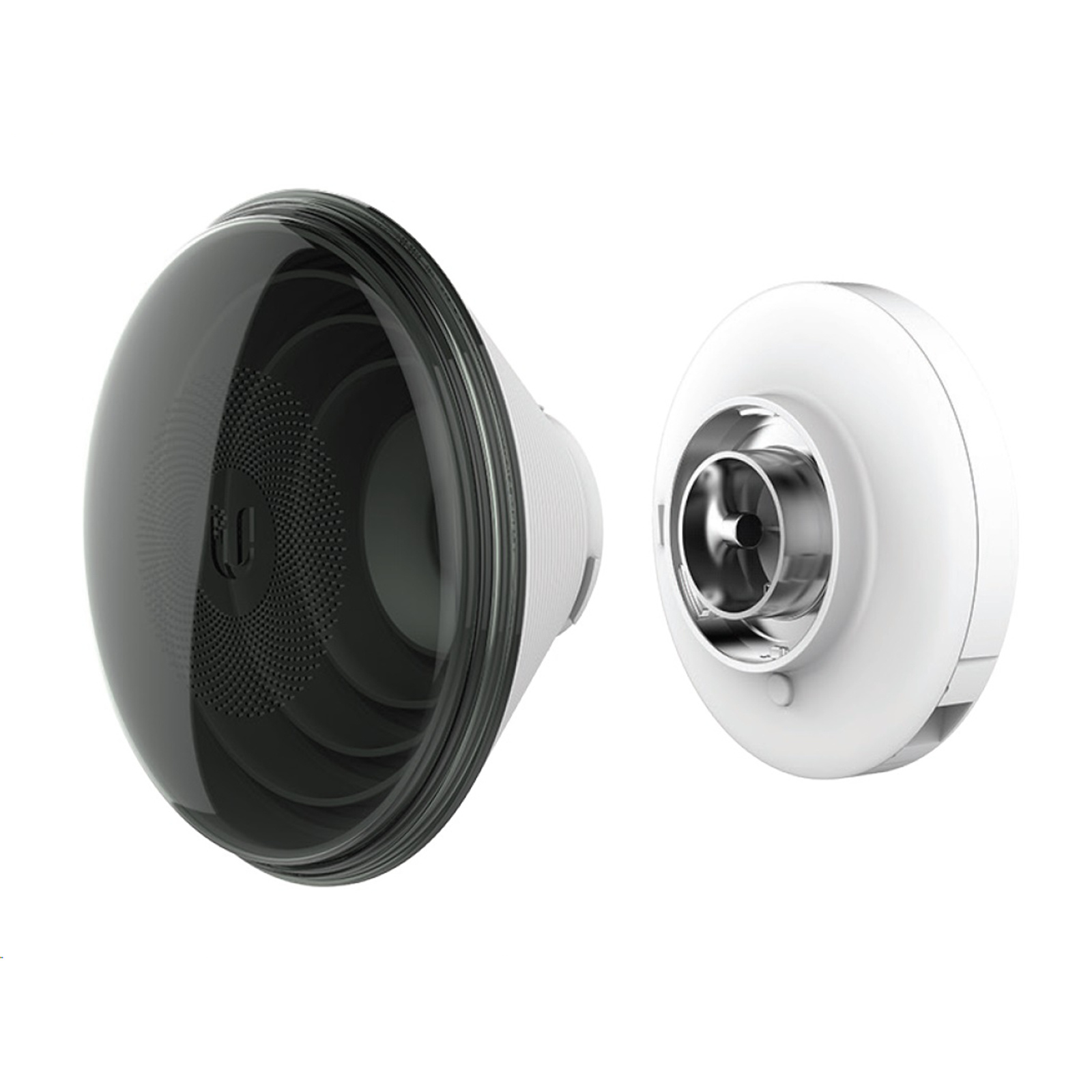

Interchangeable Isolation Antenna Horn (30°, 60°, 90°)
  • Brand: Ubiquiti
  • MPN: IS-M5
  • Part #: NAPUBI0407
  • UPC:
PB Tech price
$ 112 .75 $ 129 .66
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 05 May When will I receive it?
$112.75  +GST
$129.66

Four payments of $32.74 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Ubiquiti
  • MPN: IS-M5
  • Part #: NAPUBI0407
  • UPC:

Ethernet Ports

1

Wireless Transmission Speed

100Mbps

Wireless Technology

Not Specified

WiFi Bands

Single

USB Ports

12

Similar in-stock products available at PB Tech right now

Features

Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment) with dedicated Wi-Fi management, the IsoStation™ M5.

Improved Noise Immunity

The IsoStation M5 provides high isolation solutions in fixed beamwidth increments through interchangeable horn antennas that have been optimized for an urban environment. The tailored antenna radiation patterns spatially filters both in-band and out-of-band spurious RF emissions to increase the noise immunity of the IsoStation M5. This feature is especially important in an increasingly congested RF environment.

Modular Design

With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. The IsoStation M5 uses horn antenna sectors designed for increased co-location performance without sacrificing gain. Providing high throughput and an innovative form factor, the IsoStation M5 is versatile and cost-effective to deploy.

Symmetrical Antennas

Symmetrical horn antennas (30° and 45° versions) offer breakthrough scalability options for wireless systems. They are ideal for cluster sector installations with high co-location requirements. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

Asymmetrical Antennas

Asymmetrical horn antennas (60° and 90° versions) are designed to have attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation.

Specifications

Dimensions

With Horn - 174 x 174 x 150 mm (6.85 x 6.85 x 5.91")
Without Horn - 131 x 131 x 65 mm (5.16 x 5.16 x 2.56")

Weight

With Horn - 725.7 g (1.6 lb)
Without Horn - 408.2 g (0.9 lb)

Max. Power Consumption

6.5W

Power Supply

24V, 0.5A Gigabit PoE Adapter

Power Method

Passive PoE (Pairs 4, 5+; 7, 8 Return)

Gain

14 dBi

Beamwidth

45° (Default Horn)

Networking Interface

(1) 10/100/1000 Ethernet Port

Processor Specs

MIPS 74 Kc

Memory

64 MB DDR2

LED

(1) Power

Mounting

Pole-Mount

Wind Loading

36 N @ 200 km/h (8.09 lbf @ 125 mph)

Wind Survivability

200 km/h (125 mph)

ESD/EMP Protection

± 24 kV Contact/Air

Operating Temperature

-40 to 70° C (-40 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

FCC, IC, CE

Manufacturer Part No:
IS-M5
Brand:
Product Type:
Shielded airMAX CPE
UPC
-
Product Family:
IsoStation
Shipping Weight:
1.5 kg
PB Part No:
NAPUBI0407
Product Model:
IS-M5
Warranty: 12 months *
