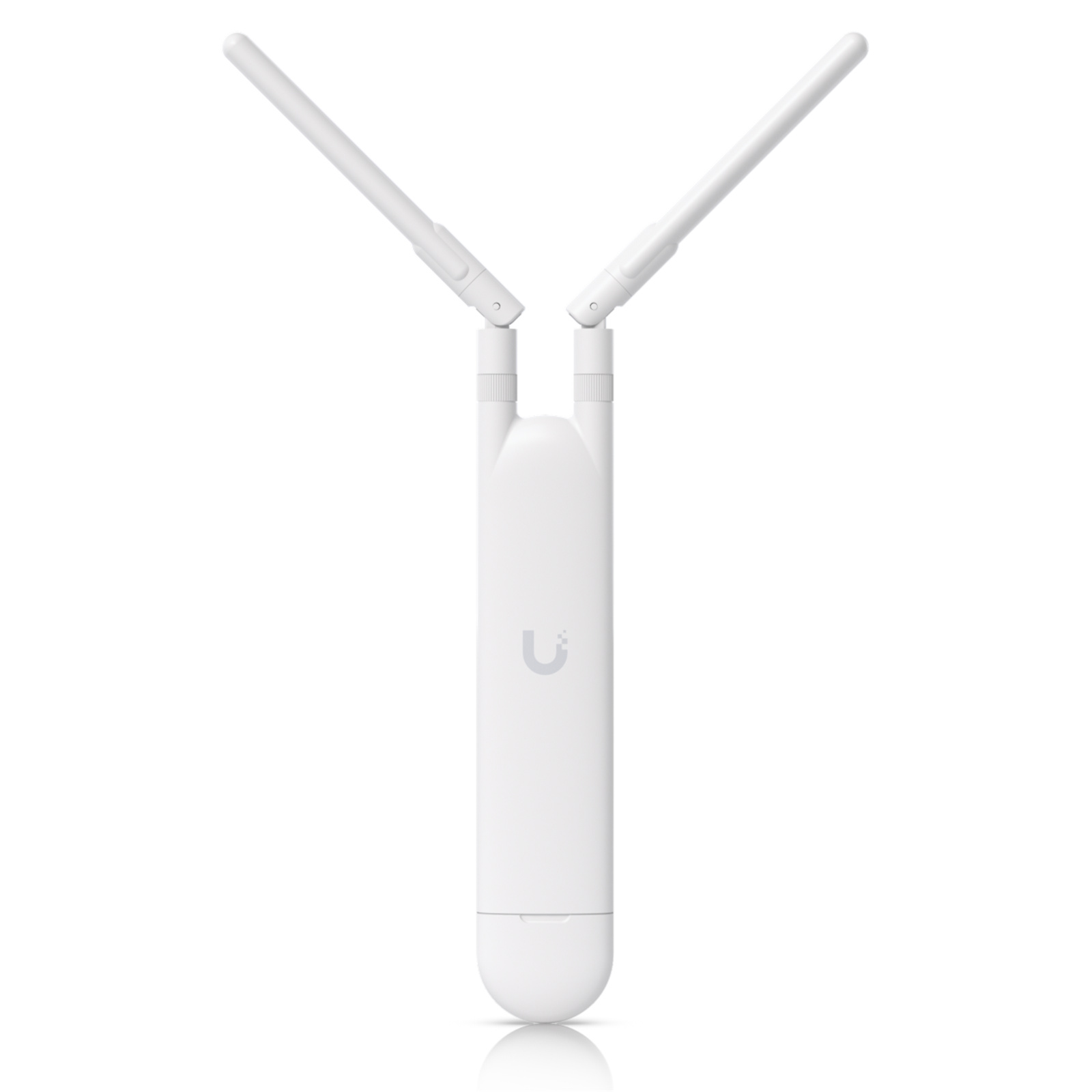

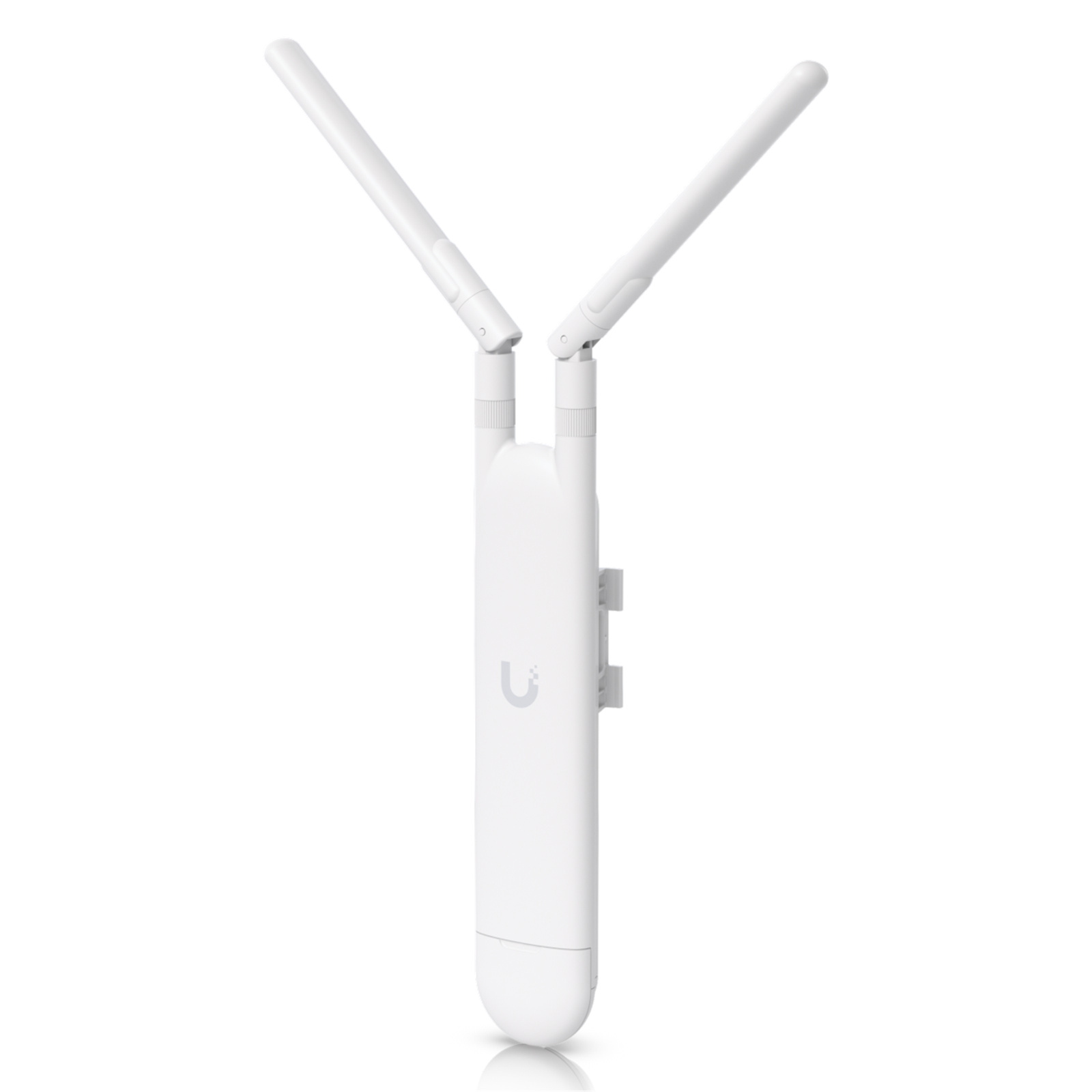

Ubiquiti UniFi AC MESH UAP-AC-M Dual-band AC1200 (300+867Mbps) Indoor/Outdoor Wi-Fi Access Point with UniFi Mesh Technology 1 x Gigabit LAN, 24V Passive PoE / 802.3af - 8.5W, PoE Adapter Included

FREE SHIPPING

Ubiquiti UniFi AC MESH UAP-AC-M Dual-band AC1200 (300+867Mbps) Indoor/Outdoor Wi-Fi Access Point...

  • Brand: Ubiquiti
  • MPN: UAP-AC-M
  • Part #: NAPUBI1207
  • UPC:810354025785
  • Ethernet Ports:2
  • USB Ports:None
  • Wi-Fi Bands:Dual
  • Wireless Technology:802.11ac
  • Wireless Transmission Speed:1167Mbps
PB Tech price: PB Tech price:
$153 16 $176 13
 +GST  inc GST


Click & Collect: Available from 13 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?

Six easy payments of $30.24 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $36.28 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

What PB Tech customers are saying about this product...See More Reviews

"Works well with the Unifi system. Would purchase more if needed more capacity. Also looks kinda like a tuning fork so if musical tools is your aesthetic your day just got a whole l ...view more"

R
By: RobB451 15/12/20
Verified Owner

"Unfortunately, had to return the product as this is not what exactly I need. I find it a little complex for a beginner to configure as I had the chance to take a look of the device ...view more"

R
By: RandyA5 04/08/20
Verified Owner

"The Unifi AP Mesh has excellent range, and acts as a Base AP ...view more"

A
By: AndrewP56 28/05/20
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Ubiquiti UniFi AC MESH UAP-AC-M Dual-band AC1200 (300+867Mbps) Indoor...
Ubiquiti UniFi AC MESH UAP-AC-M Dual-band AC1200 (300+867Mbps) Indoor/Outdoor Wi-Fi Access Point with UniFi Mesh Technology 1 x Gigabit LAN, 24V Passive PoE / 802.3af - 8.5W, PoE Adapter IncludedDynamix PL-C6A-30 30m Cat6 Beige UTP Patch    Lead (T568A Specification) 250MHz Slimline Snagless Moulding. 24AWG.NETGEAR ProSAFE GS108 8-port Gigabit Switch 8x GbEJackson PT6969S 6 way Protected Power Board with 2 double spaced ports 1m power cord Surge & Overload protected (Energy Absorbtion Rating 175J)
Total:
$26160
 +GST
$30084
 inc GST
Buy together and save $6.35$7.30
This item: Ubiquiti UniFi AC MESH UAP-AC-M Dual-band AC1200 (300+867Mbps) Indoor/Outdoor Wi-Fi Access Point...
$153.16 +GST$176.13 inc GST
Dynamix PL-C6A-30 30m Cat6 Beige UTP Patch    Lead (T568A Specification) 250MHz Slimline Snagless Moulding. 24AWG.  View Product
$29.15$33.52 $27.62 +GST$31.76 inc GST(Buy together and save $1.53$1.76)
NETGEAR ProSAFE GS108 8-port Gigabit Switch 8x GbE  View Product
$68.69$78.99 $64.92 +GST$74.66 inc GST(Buy together and save $3.77$4.34)
Jackson PT6969S 6 way Protected Power Board with 2 double spaced ports 1m power cord Surge & Overload protected (Energy Absorbtion Rating 175J)  View Product
$16.95$19.49 $15.90 +GST$18.28 inc GST(Buy together and save $1.05$1.21)

Features

Ubiquiti UniFi Mesh AC1200 Outdoor Simultaneous

The Ubiquiti UAP-AC-M UniFi Mesh is an AC1200 Simultaneous Dual-Band WiFi PoE Access Point that offers powerful plug and play, self healing mesh technology for large WiFi deployments looking to maximise WiFi coverage and reliability. This Ubiquiti UAP-AC-M UniFi Mesh is designed to withstand the elements, making it ideal for outdoor deployments and comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.

Key Features

- High-performance wide-area WiFi with UniFi Mesh technology.
- 802.11ac breakthrough WiFi speeds up to 900Mbps 5GHz Band.
- Powered through 24V Passive Power over Ethernet (PoE).
- Easy to provide coverage in hard to wire areas with multi-hop.
- Works with the UniFi controller for easy on-going management.
- Unifi allows wireless connectivity between APs for extended range.
- Guest portal/hotspot support with multiple adjustment interface.
- Scalable. Start with one and expand to thousands of UniFi devices.
- Outdoor rated enclosure for even the harshest environments.


Scalable enterprise WiFi management

UniFi is the revolutionary WiFi system that combines enterprise performance, unlimited scalability, and a central management controller. The Ubiquiti UAP-AC-M UniFi Mesh has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network - no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.


UniFi controller platform.

Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs. Use the included map to monitor and analyse radio frequencies for optimal AP placement, configuration, and troubleshooting, while an advanced RF performance and configuration feature includes spectral analysis, airtime fairness, and band steering. Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology. For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.


Guest Portal/Hotspot support

Easy customisation options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.


Lower deployment and management costs.

The Ubiquiti UAP-AC-M UniFi Mesh is ideal for providing coverage in hard-to-wire areas such as parks, concerts etc. and features and enclosure designed to withstand the elements of an outdoor deployment. You can power this Ubiquiti UAP-AC-M UniFi Mesh AP with an passive PoE compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter. We recommend powering your UniFi devices with a UniFi Passive PoE Switch (sold separately).

Specifications

Dimensions

353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35")

Weight

152g with Antennas

Networking Interface

1x 10/100/1000 Ethernet Port

Buttons

Reset

Power Method

24V Passive PoE (Pairs 4, 5+; 7, 8 Return); 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return) (Supported Voltage Range: 44 to 57VDC)

Power Supply

24V, 0.5A Gigabit PoE Adapter (Included)

Maximum Power Consumption

8.5W

Maximum TX Power

2.4 GHz; 20 dBm 5 GHz; 20 dBm

Antennas

2x External Dual-Band Omni Antennas. 2.4 GHz; 3 dBi 5 GHz; 4 dBi

Wi-Fi Standards

802.11 a/b/g/n/ac

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID

Up to Four per Radio

Mounting

Wall/Pole/Fast-Mount (Kits Included)

Operating Temperature

-30 to 70C

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

Advanced Traffic Management

VLAN- 802.1Q
Advanced QoS- Per-User Rate Limiting
Guest Traffic Isolation- Supported
WMM- Voice, Video, Best Effort, and Background
Concurrent Clients- 200+

Supported Data Rates (Mbps)

802.11ac- 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n- 6.5 Mbps to 300 Mbps (MCS0 - MCS23, HT 20/40)
802.11a- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b- 1, 2, 5.5, 11 Mbps

Manufacturer Part No: UAP-AC-M Brand: Ubiquiti Product Type: -
UPC 810354025785 Product Family: UniFi AC MESH Shipping Weight: 0.65 kg
PB Part No: NAPUBI1207 Product Model: UAP-AC-M

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
