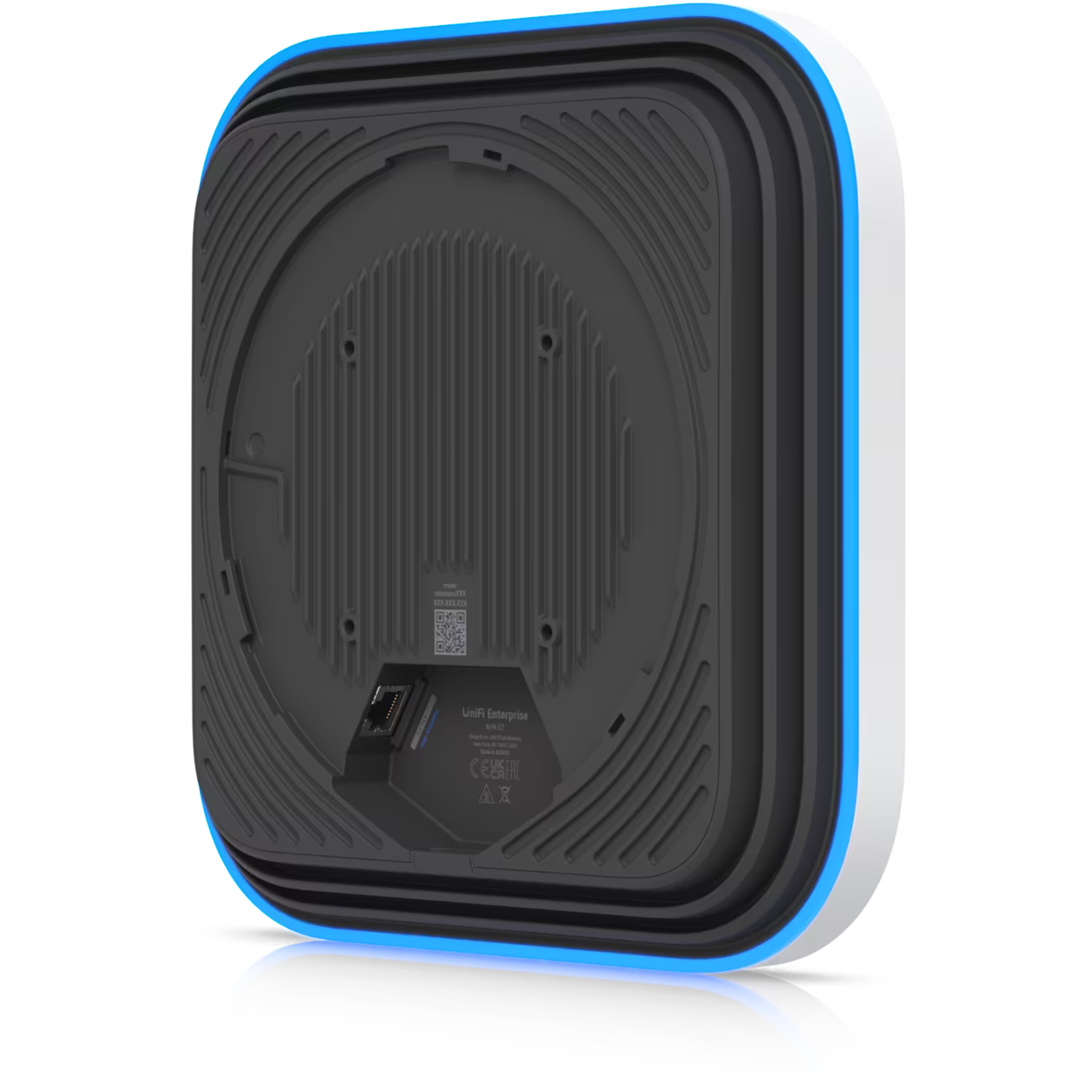

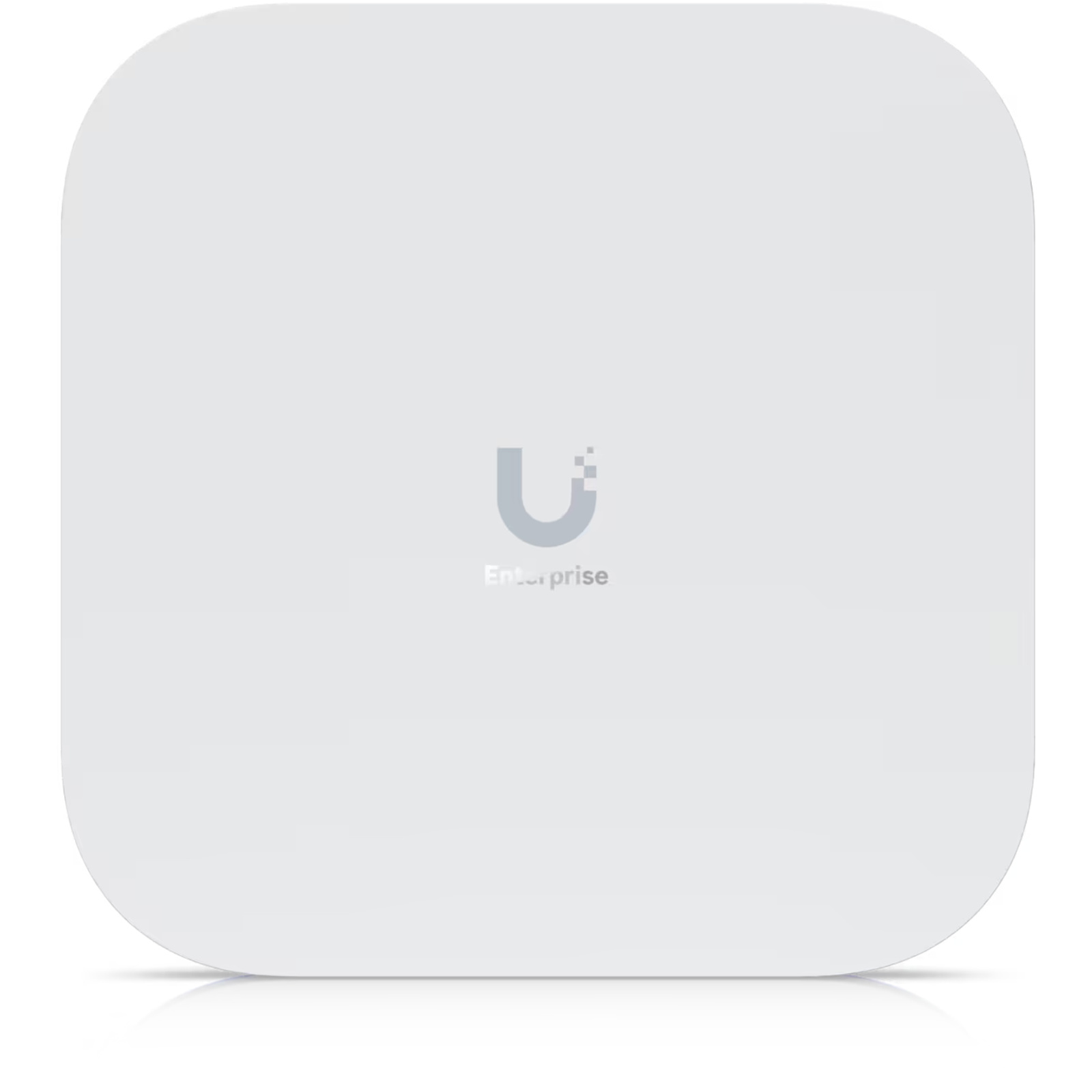

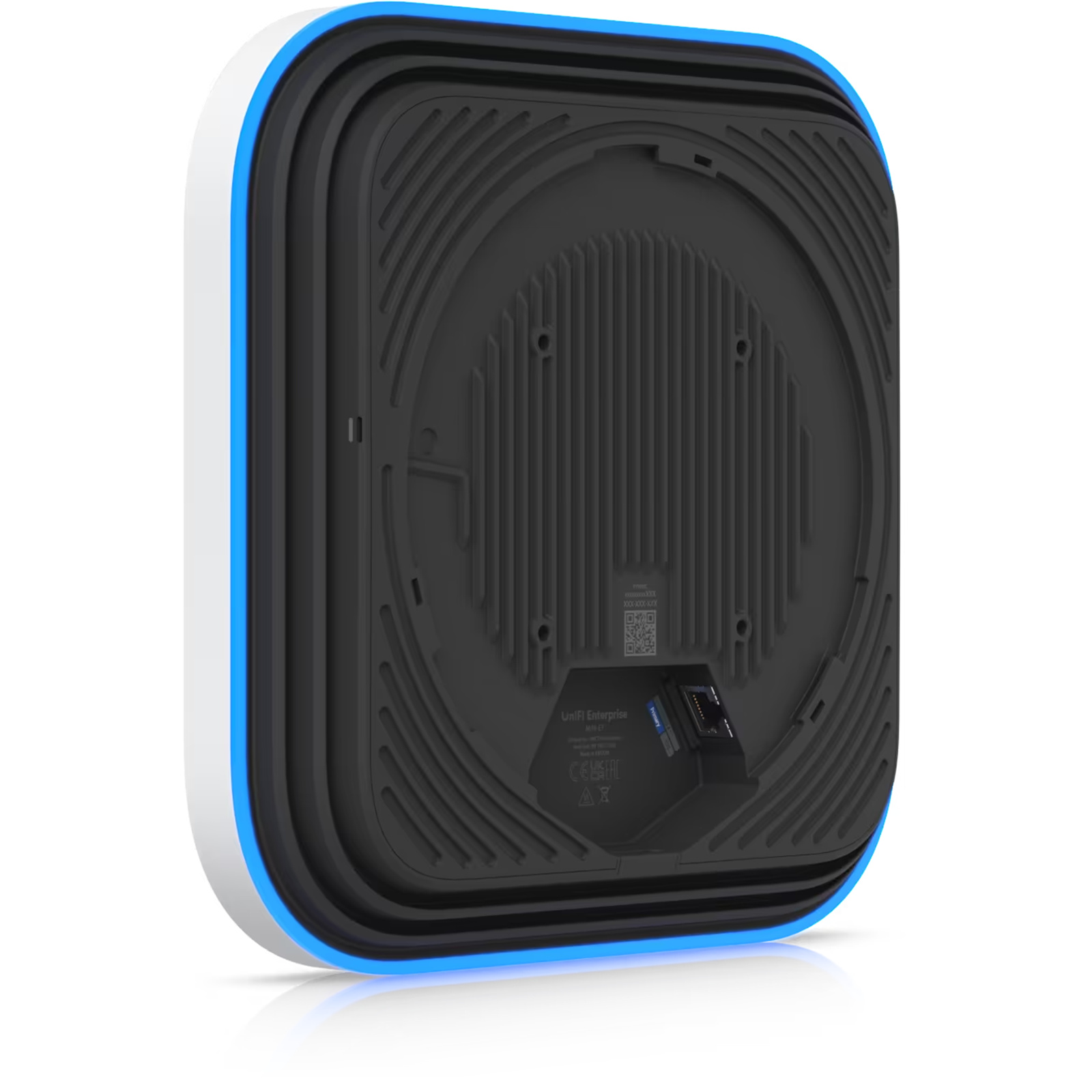

Ubiquiti UniFi E7 (BE21000) Tri-Band 10-Stream Wi-Fi 7 Enterprise-Grade Access Point with 10GbE x1 (PoE++ 43W)

Ubiquiti UniFi E7 (BE21000) Tri-Band 10-Stream Wi-Fi 7 Enterprise-Grade Access Point with 10GbE x1 (PoE++ 43W)

  • Brand: Ubiquiti
  • MPN: E7
  • Part #: NAPUBI2701
  • UPC: 810084694664
  • Brand: Ubiquiti
  • MPN: E7
  • Part #: NAPUBI2701
  • UPC: 810084694664

Ethernet Ports

2

USB Ports

None

WiFi Bands

Triple

Wireless Technology

WiFi 7 (802.11be)

Wireless Transmission Speed

21000Mbps

Pack Size

1-Pack

Features

E7

Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

Specifications

Overview

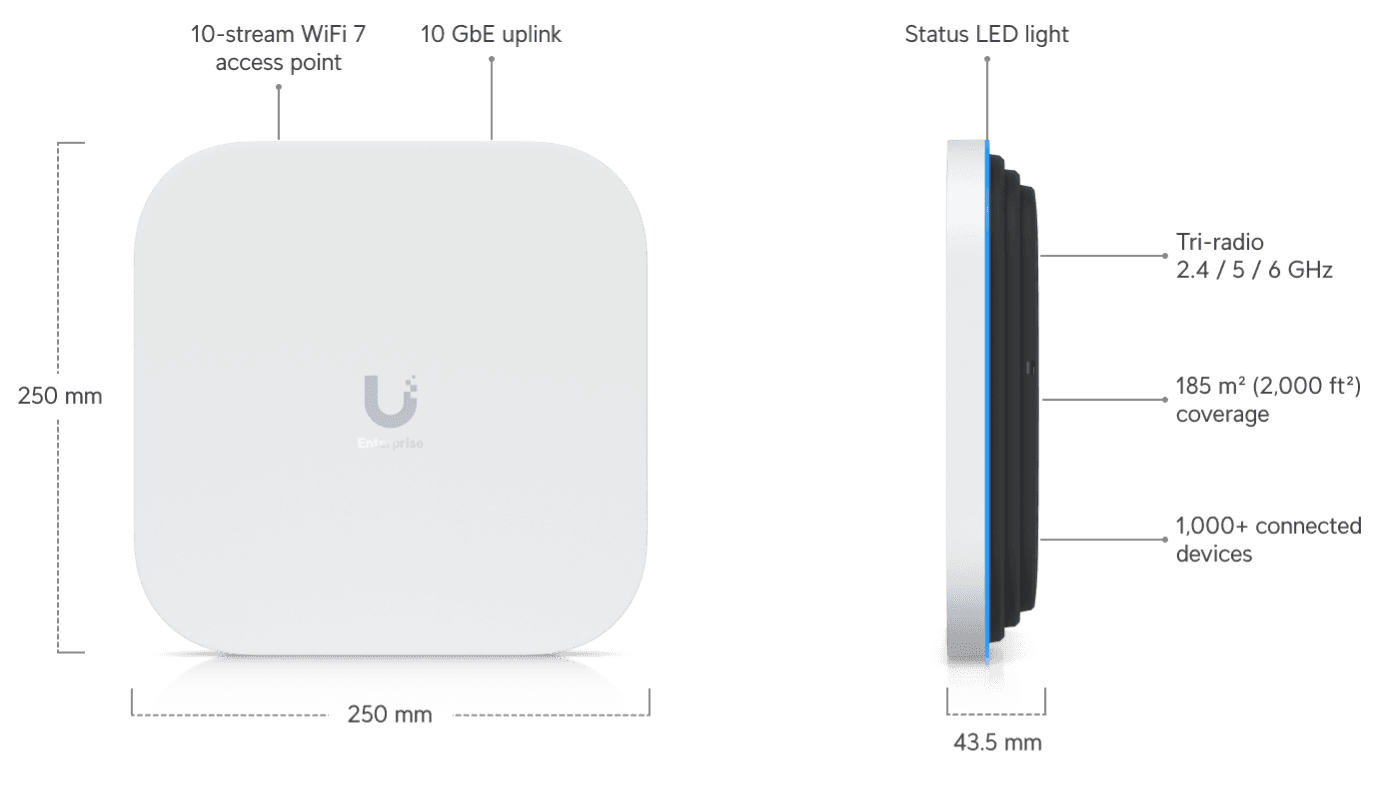

Dimensions

250 x 250 x 43.5 mm
(9.8 x 9.8 x 1.7")

WiFi Standard

WiFi 7

Spatial Streams

10

Coverage Area

185 m² (2,000 ft²)

Max. Client Count

1000+

Uplink

10 GbE
1 GbE

Mounting

Ceiling, Wall, VESA
(Pro Mount Included)

Power Method

PoE++

Performance

MIMO

6 GHz: 4 x 4 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

6 GHz: 11.5 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

6 GHz: 6 dBi
5 GHz: 6 dBi
2.4 GHz: 5 dBi

Max. TX Power

6 GHz: 24 dBm / 30 dBm
5 GHz: 30 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Real-Time Spectral Analysis

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

43W

Supported Voltage Range

42.5-57V DC

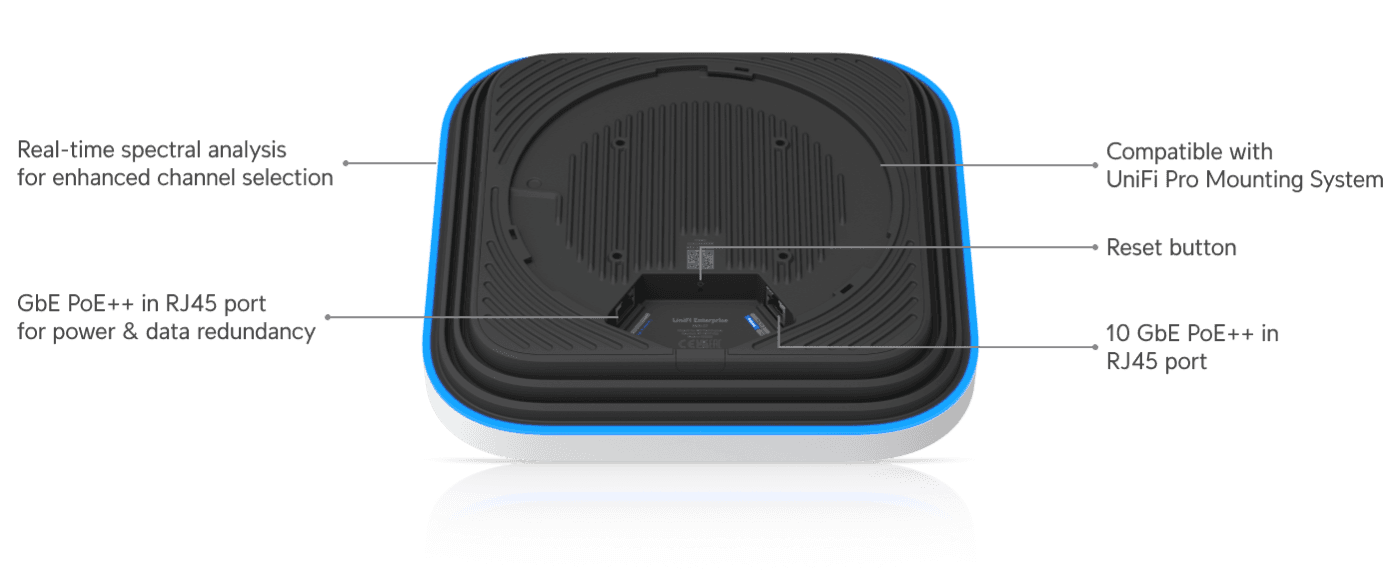

Networking Interface

(1) 10 GbE RJ45 port
(1) 1 GbE RJ45 port

Weight

1.8 kg (4 lb)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Mount Material

Stainless steel (SUS304), galvanized steel (SGCC)

LEDs

System: R/G/B

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)

NDAA Compliant

Yes

Certifications

CE, FCC, IC, Anatel

Operating Frequency

US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8 : 5925 - 7125 MHz

Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz

Ambient Operating Temperature

-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network: Version 8.6.9 and later

Mobile App
iOS™ version 10.20.0 and later
Android™ version 10.21.3 and later

Manufacturer Part No:
E7
Brand:
Product Type:
(BE21000)
UPC
810084694664
Product Family:
UniFi
Shipping Weight:
2.9 kg
PB Part No:
NAPUBI2701
Product Model:
E7
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
