Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W) - Black
Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W) - Black
- Brand: Ubiquiti
- MPN: U7-Pro-XG-B
- Part #: NAPUBI7704
- UPC:
- Brand: Ubiquiti
- MPN: U7-Pro-XG-B
- Part #: NAPUBI7704
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Ceiling Mounted Access Points





Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W) - Black
- Brand: Ubiquiti
- MPN: U7-Pro-XG-B
- Part #: NAPUBI7704

Product URL: https://www.pbtech.co.nz/product/NAPUBI7704/Ubiquiti-UniFi-U7-PRO-XG-BE11000-Tri-Band-6-Stream
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The Ubiquiti UniFi U7 Pro XG Black (U7-Pro-XG-B) is a cutting-edge enterprise-grade Wi-Fi 7 access point designed for high-density environments that demand ultra-fast, reliable, and scalable wireless connectivity. Part of Ubiquiti's next-generation UniFi lineup, the U7 Pro XG offers top-tier performance with support for the latest Wi-Fi 7 (802.11be) standard, delivering significant improvements in speed, capacity, and latency over previous Wi-Fi generations.
This tri-band access point operates across the 2.4 GHz, 5 GHz, and the newly introduced 6 GHz spectrum, offering a total wireless throughput of up to BE11000 (11 Gbps aggregate). It is engineered to support numerous simultaneous users with low interference and exceptional efficiency, making it ideal for large venues such as stadiums, universities, hotels, and busy office spaces.
A standout feature of the U7 Pro XG is its 10 Gigabit Ethernet (10GbE) uplink, which ensures rapid data backhaul and maximizes throughput to match the high-speed wireless capabilities. It also supports PoE+ (Power over Ethernet Plus) for streamlined deployment using a single Ethernet cable for both data and power, with a maximum power consumption of approximately 22W.
Visually, the U7 Pro XG comes in a sleek black finish, adding a modern, professional aesthetic suited to visible installations in design-conscious environments. Like other UniFi devices, it is managed via the intuitive UniFi Network Controller, allowing centralized configuration, monitoring, firmware upgrades, and advanced network analytics.
In summary, the Ubiquiti U7 Pro XG Black offers enterprise-level performance, future-proof wireless technology, and user-friendly management - a robust solution for demanding networks that require reliability, speed, and scale.
Specifications
General

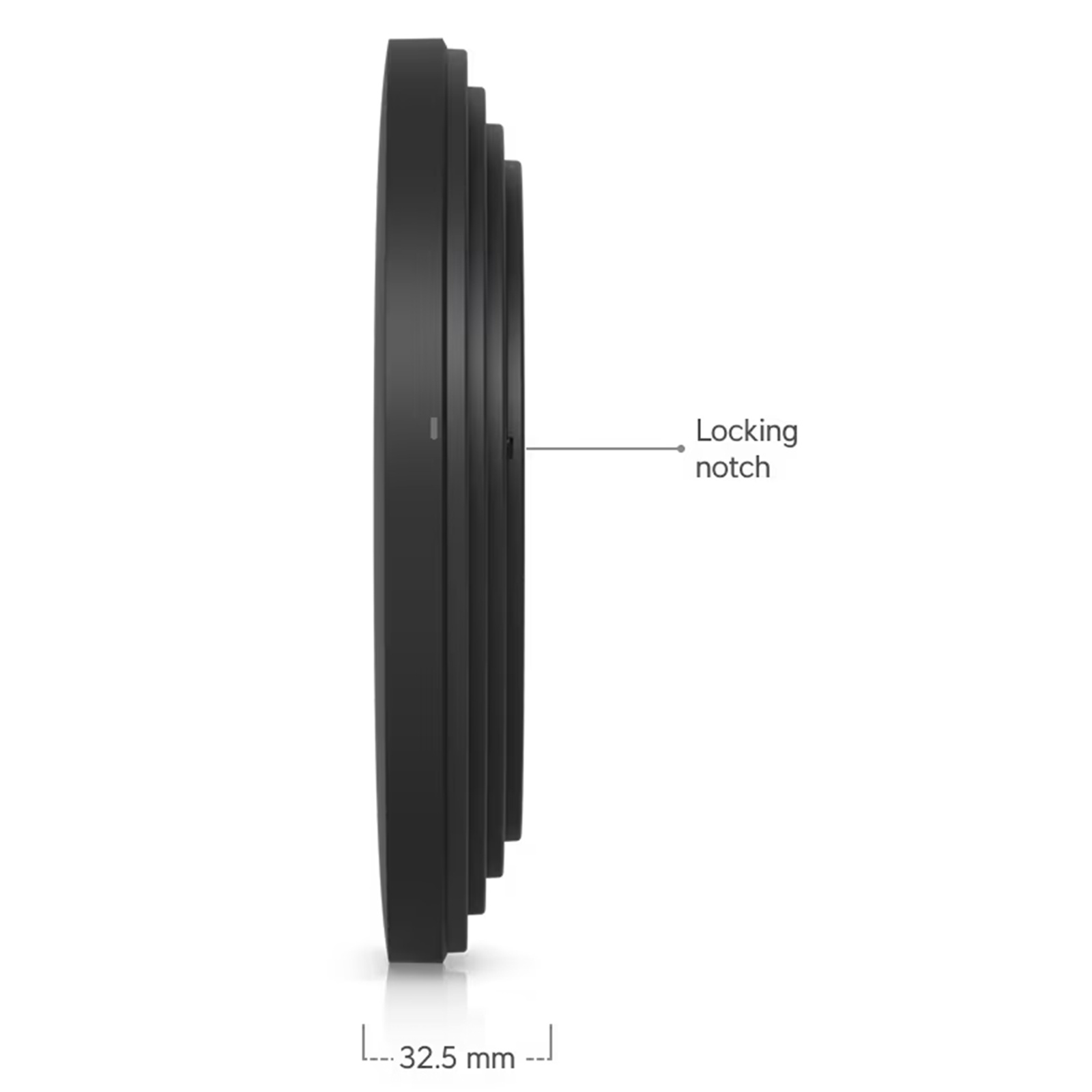

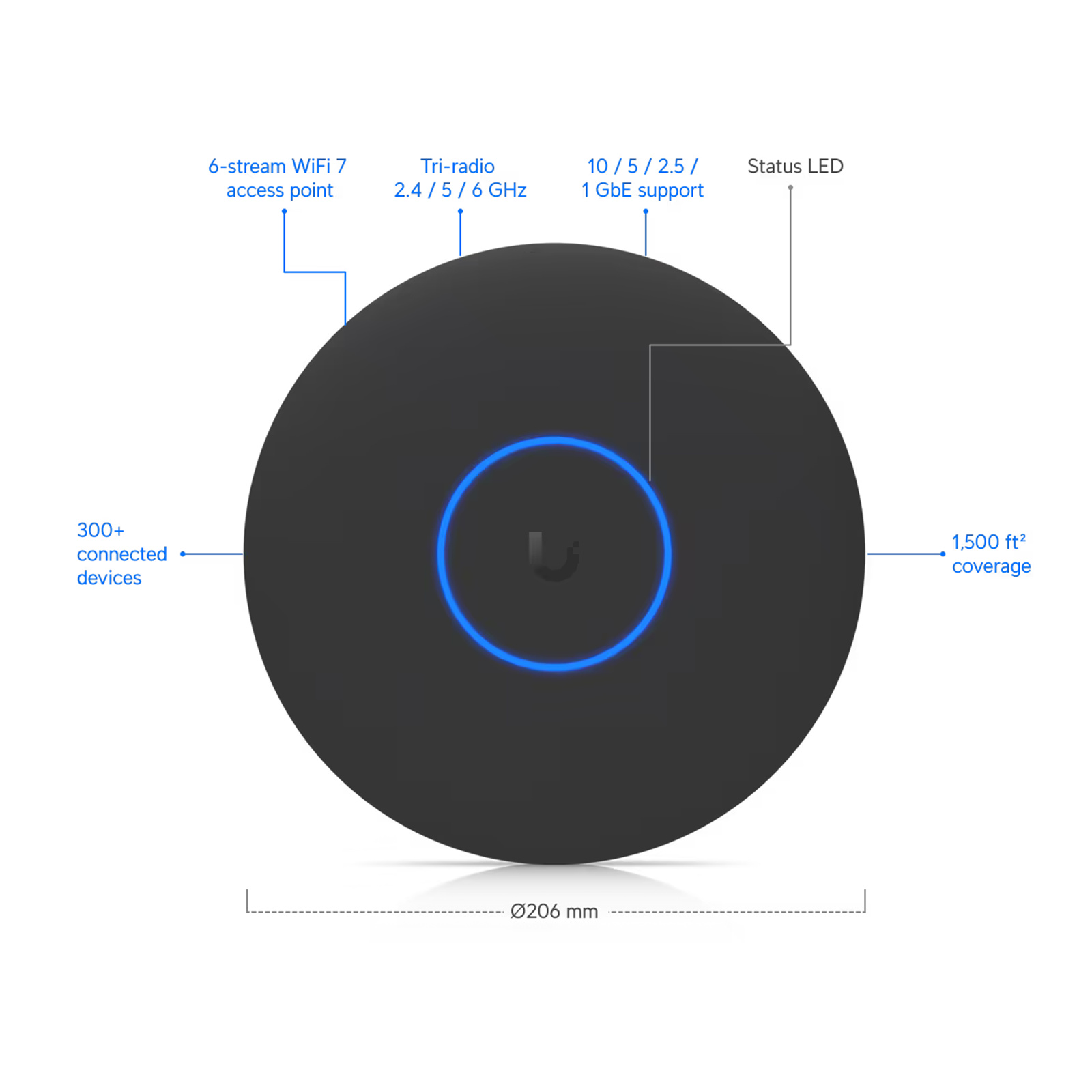

Dimensions
206 (diameter) x 32.5 mm
WiFi Standard
WiFi 7
Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
10 GbE

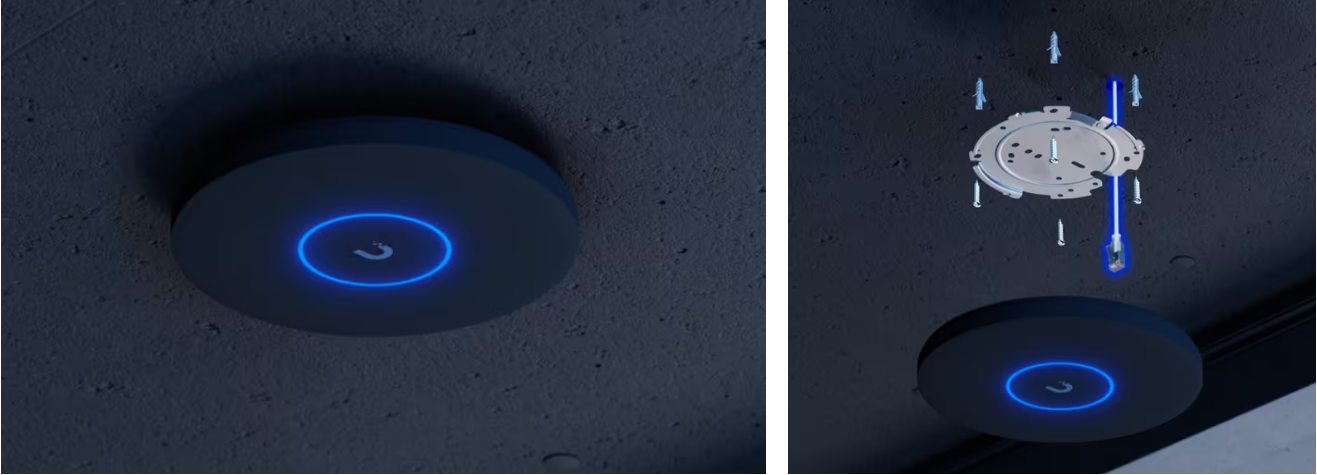

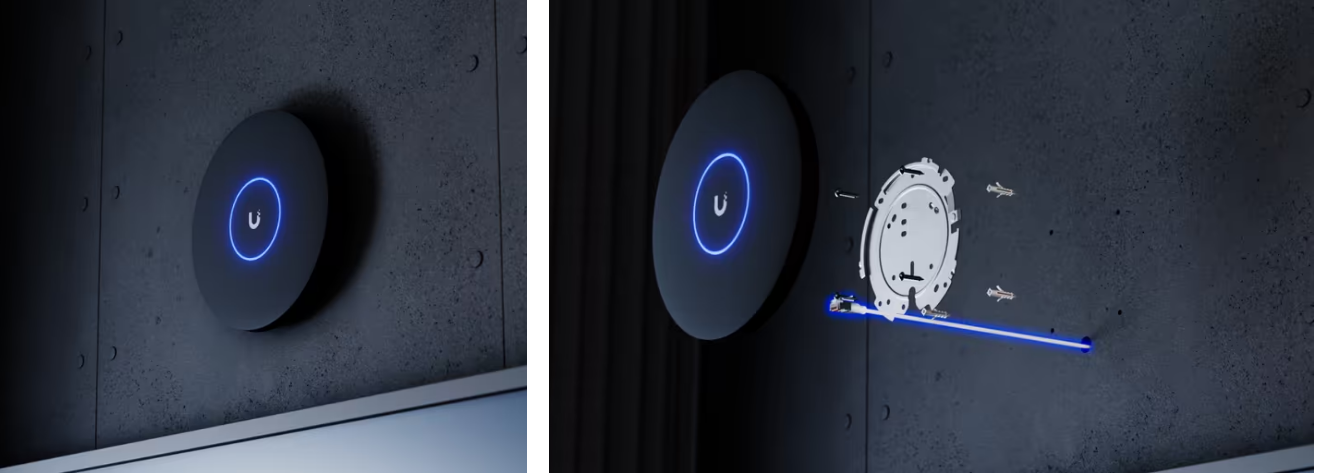

Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE+
Performance
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
22W
Supported Voltage Range
42.5-57V DC

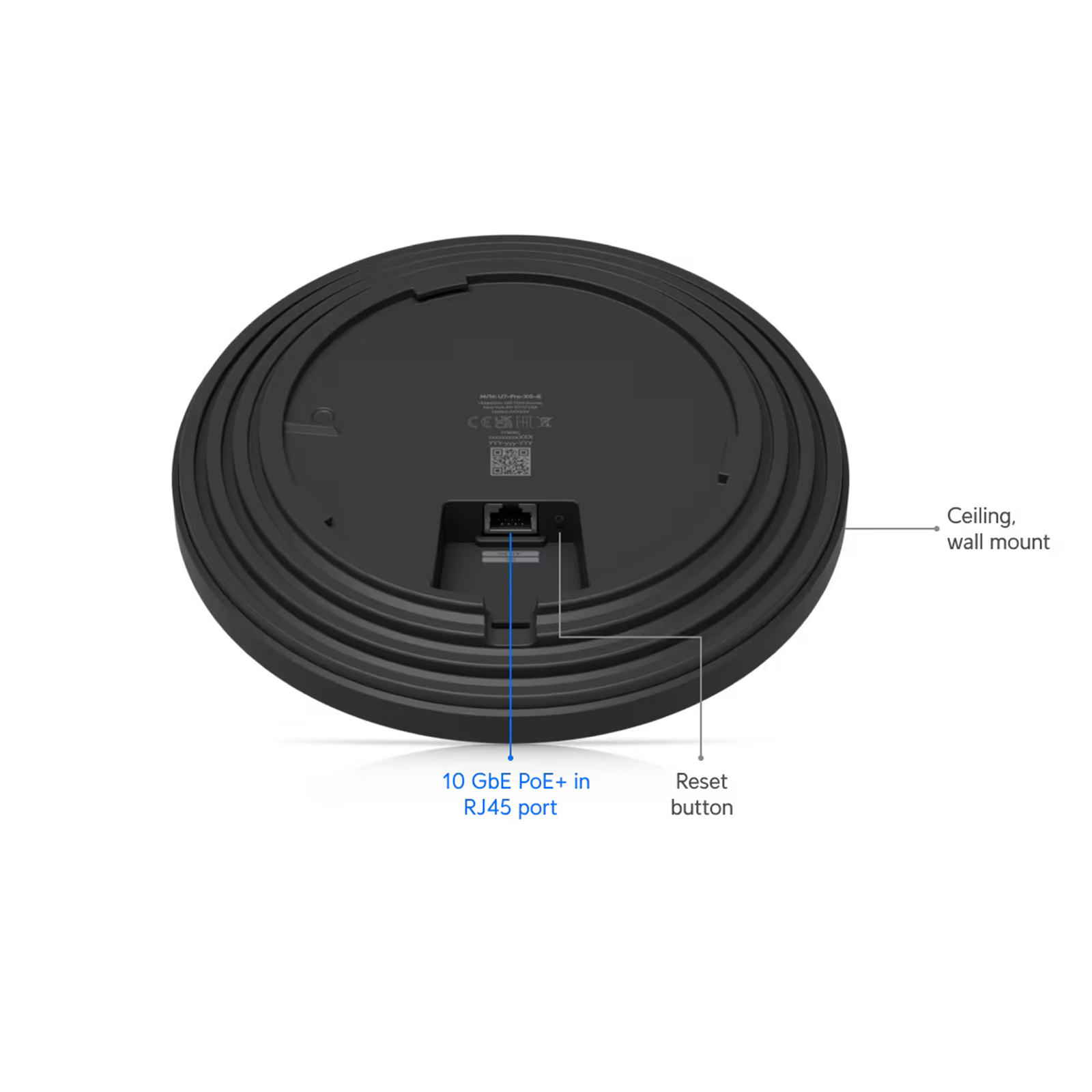

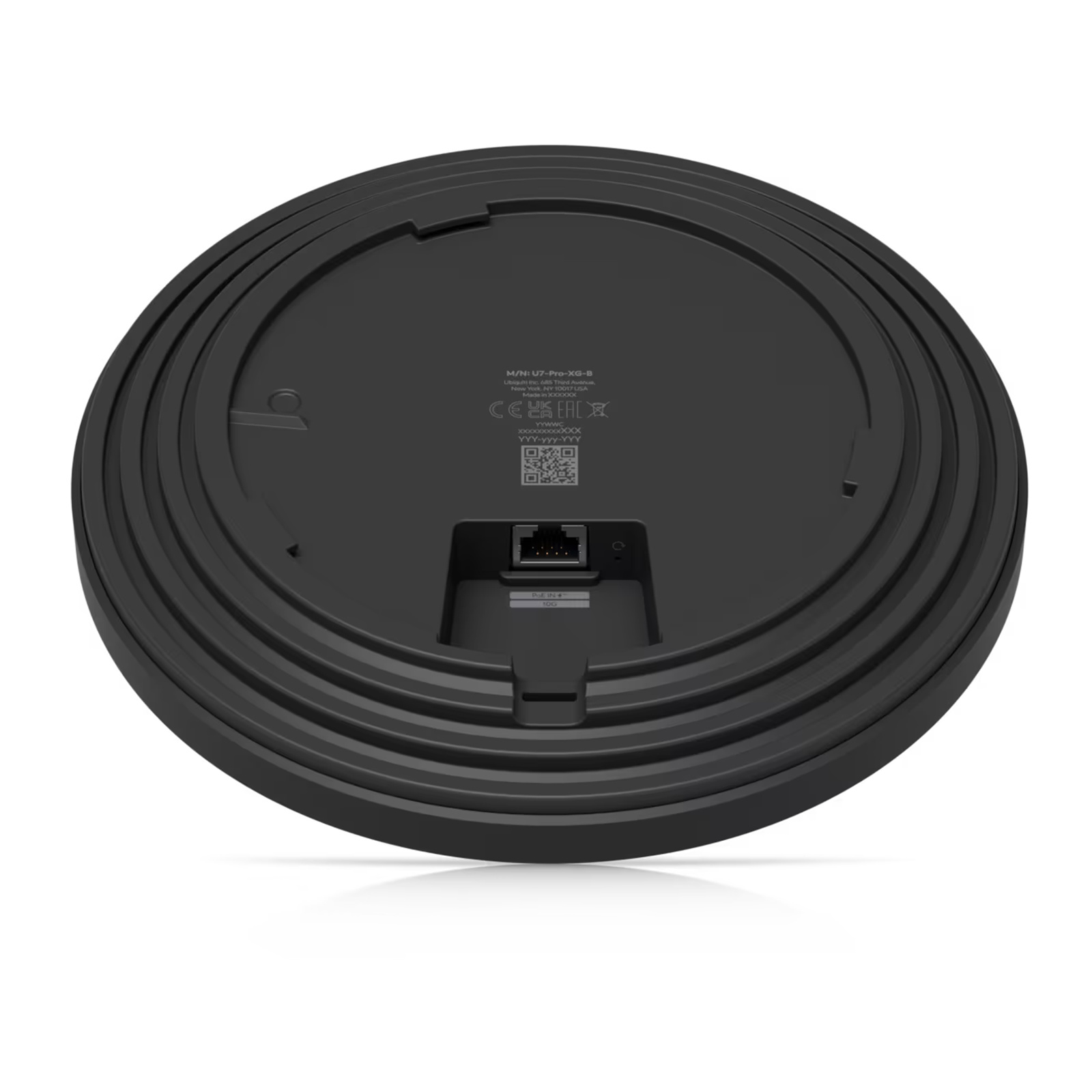

Networking Interface
(1) 10 GbE RJ45 port
Weight
750 g (1.7 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)

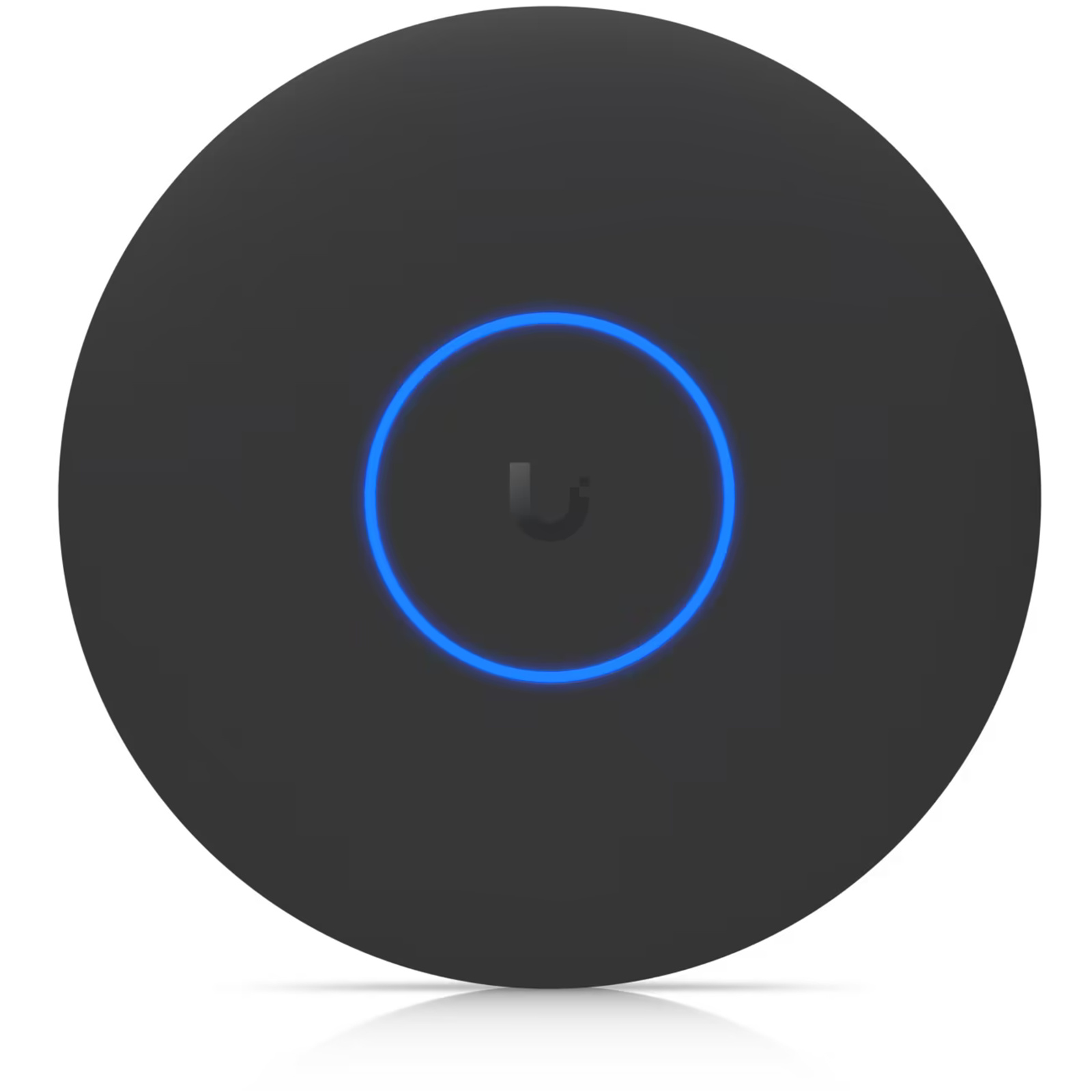

LEDs
System: White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network: Version 9.1.120 and later
