Asustor Xpanstor 12R AX7012R 12-Bay Rack Mount Expansion Unit 12x SATA3/SAS - 3.5"/2.5" HDD / SSD - Redundant 650W - 5 Years Warranty
- Brand: Asustor
- MPN: AX7012R
- Part #: NASAST70120
Product URL: https://www.pbtech.co.nz/product/NASAST70120/Asustor-Xpanstor-12R-AX7012R-12-Bay-Rack-Mount-Exp
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Xpanstor 12R
AX7012R
- 12 SAS/SATA hard drive bays
- 4x Mini-SAS HD (SFF-8644)
- Supports 2U server racks
- 650W dual backup power supply
- Hot-swappable fan design
- Enterprise-grade stability

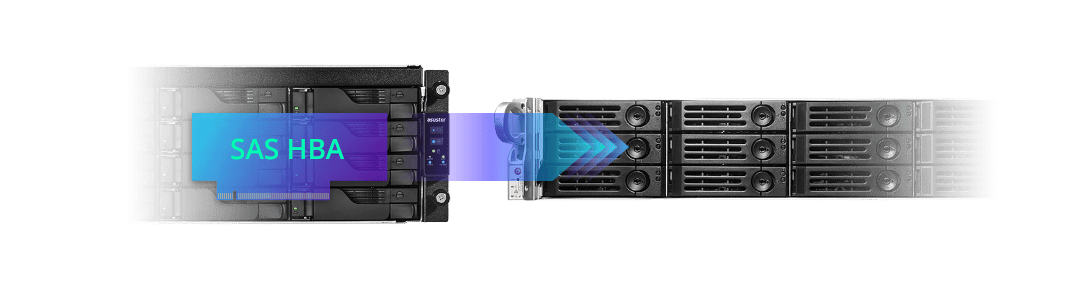

Expanding Storage Space
The Xpanstor 12R helps you expand your storage space while enhancing data management flexibility and efficiency. NAS devices serve as a centralized storage solution that offers convenient file sharing, remote access, and backup all in one. When attached to an ASUSTOR NAS, the Xpanstor 12R provides more drive bays for easy capacity expansion, making it especially suitable for enterprise environments that require extensive data storage and management.

Easily Configure Using Storage Manager
The Xpanstor 12R appears in ADM natively and drives appear within Storage Manager, which makes managing and configuring the attached expansion unit easy. Use Storage Manager to set up RAID configurations as well as utilize snapshot features to further enhance data security and reliability.

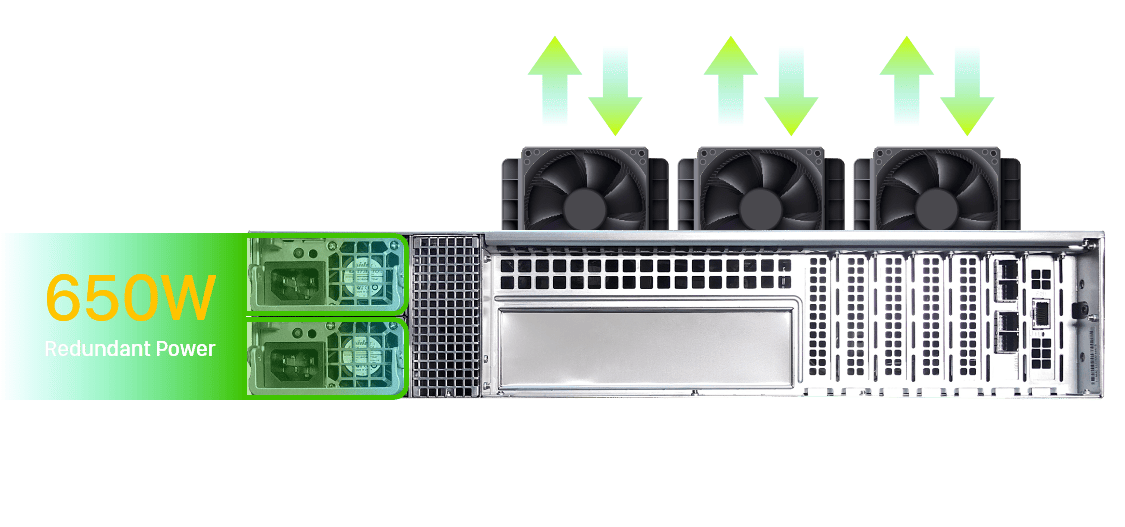

Dual Redundant Power Supplies and Hot-Swappable Fan Design
The Xpanstor 12R is equipped with two 650W redundant power supplies and three hot-swappable fans, which increases overall operational efficiency and fault tolerance. Both power supplies can automatically switch to the other in the event one fails, ensuring continuous operation and data security. The hot-swappable fan design allows for fan replacement without downtime, effectively reducing maintenance and upgrade costs.

Specifications
Hardware Specifications
Chip
SAS3X28R
Flash Memory
2MB SRAM
Expansion
SAS In-port: 2
SAS Out-port: 2
HDD
12 x SATA3/SAS; 3.5"/2.5" HDD/SSD
Maximum Internal Raw Capacity
N/A
Supports Hot Swappable Drives
Yes
System Fan
80 x 38 mm hot-swap cooling fan(s) x 3
Power Supply Unit / Adapter
650W x2
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, UKCA, VCCI, BSMI, C-Tick
Applied Models
AS7112RDX, AS7116RDX
Operation
Operation Temperature
0°C~40°C (32°F~104°F)
Humidity
5% to 95% RH
Size and Weight
Size
89 (H) x 437 (W) x 647 (D) mm
Weight
13.15 (kg) / 29 (lb)
Software & Features
Operating System
ADM 4.3.1 Onwards
File System
Internal Disk: EXT4, Btrfs
Storage Management
Support Multiple Volumes with Spare Drives
Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Support for Online RAID Level Migration
Support for RAID Capacity Expansion
Hard drives in an expansion unit cannot be combined with NAS drives in the same RAID array.
