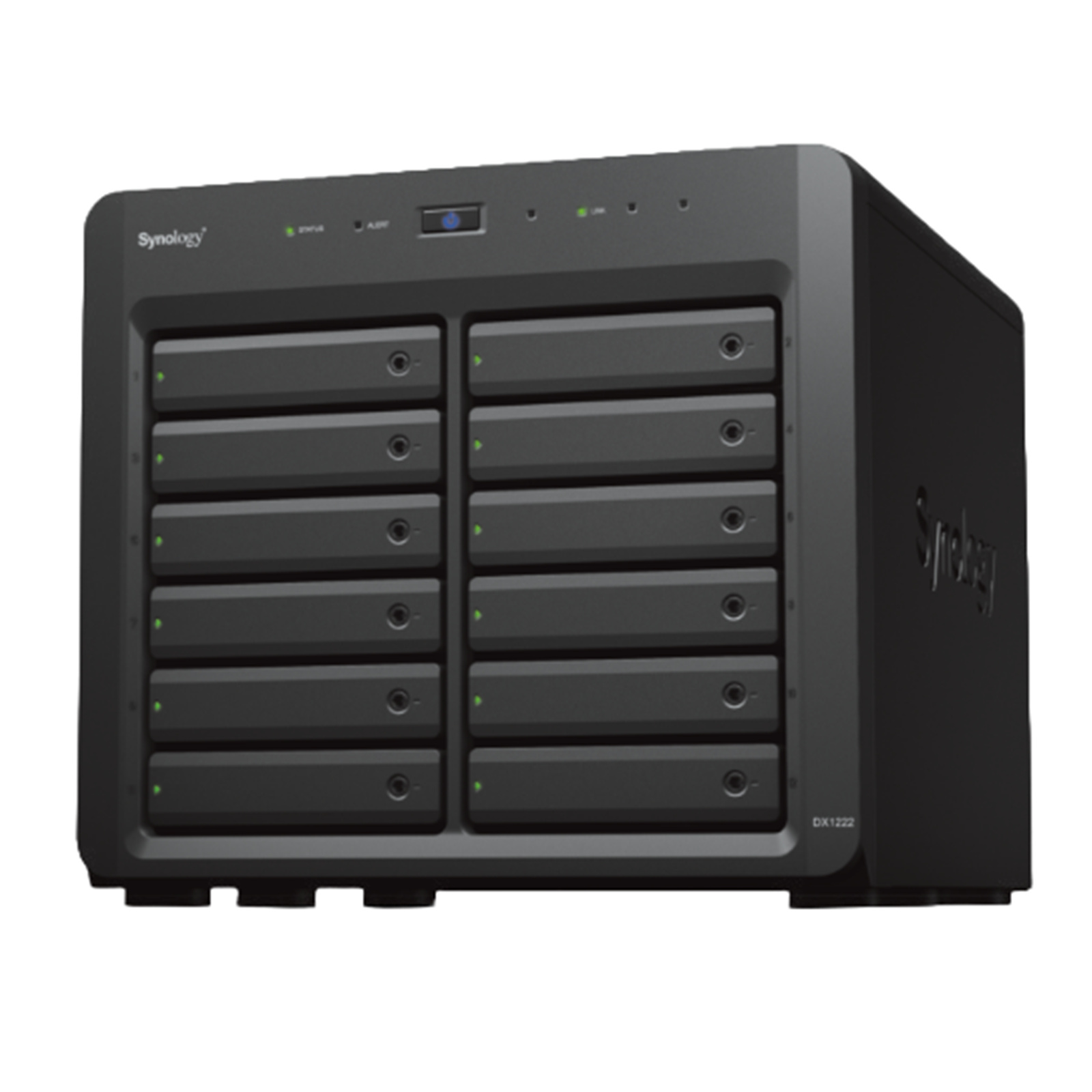

Synology Expansion Unit DX1222 12-Bay Tower, 1x Infiniband - Includes Cable, 5 Years Warranty, Supports creating volumes for DS3622xs+, DS2422+
Synology Expansion Unit DX1222 12-Bay Tower, 1x Infiniband - Includes Cable, 5 Years Warranty, Supports creating volumes for DS3622xs+, DS2422+
- Brand: Synology
- MPN: DX1222
- Part #: NASSYN1222
- UPC:
- Brand: Synology
- MPN: DX1222
- Part #: NASSYN1222
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Rackmount NAS





Synology Expansion Unit DX1222 12-Bay Tower, 1x Infiniband - Includes Cable, 5 Years Warranty, Supports creating volumes for DS3622xs+, DS2422+
- Brand: Synology
- MPN: DX1222
- Part #: NASSYN1222

Product URL: https://www.pbtech.co.nz/product/NASSYN1222/Synology-Expansion-Unit-DX1222-12-Bay-Tower-1x-Inf
Branch | New Stock | On Display |
---|---|---|
Albany | - | |
Glenfield | - | |
Queen Street | - | |
Auckland Uni | - | |
Newmarket | - | |
Westgate | - | |
Penrose | - | |
Henderson (Express) | - | |
St Lukes | - | |
Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Head Office | - | |
Hornby | - | |
Christchurch Central | - |
Features
Add 12 bays to your DiskStation on the fly
Use Synology Expansion Unit DX1222 to add 12 additional bays to your deployment while keeping your storage and services online and uninterrupted.
Fast setup
Your additional storage will be ready to use in a matter of moments after you connect it to your host NAS.1 Online volume expansion enables you add a new volume or expand RAID volumes without reformatting drives through DiskStation Manager (DSM).
Backed by Synology drives
Engineered to handle intensive 24/7 workloads, Synology drives consistently deliver top-grade performan
Centrally manage all your drives
Benefit from unified drive management after connecting the DX1222 to your primary NAS. Maintenance, monitoring, and administration of drives on both units is simple with Synology DSM.
Specifications
Applied Models
Supports creating volumes across different units
22 series: DS3622xs+, DS2422+
Notes
To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage
Drive Bays
12
Compatible Drive Type* (See all supported drives)
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
Hot Swappable Drive*
Yes
RAID Management through Synology DSM
Yes
Notes
Synology only guarantees full functionalit, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.
Ports
Expansion Port 1
Appearance
Size (Height x Width x Depth)
270 mm x 300 mm x 340 mm
Weight
9.02 kg
Power
Power Recovery
Synchronized with the Synology DiskStation
Power Supply Unit / Adapter
550 W
AC Input Power Voltage
100V to 240V AC
Power Frequency
50/60 Hz, Single Phase
Power Consumption
57.71 W (Access)
16.25 W (HDD Hibernation)
British Thermal Unit
194.96 BTU/hr (Access)
55.48 BTU/hr (HDD Hibernation)
Notes
Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Others
System Fan
120 mm x 120 mm x 2 pcs
Easy Replacement System Fan
Yes
Noise Level*
24.6 dB(A)
Notes
Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%.
General
Certification
UL
FCC
CE
BSMI
UKCA
EAC
VCCI
RCM
KC
Packaging Content
Main Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Expansion Cable: MiniSAS-HD X 1
Quick Installation Guide X 1
