Features
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.

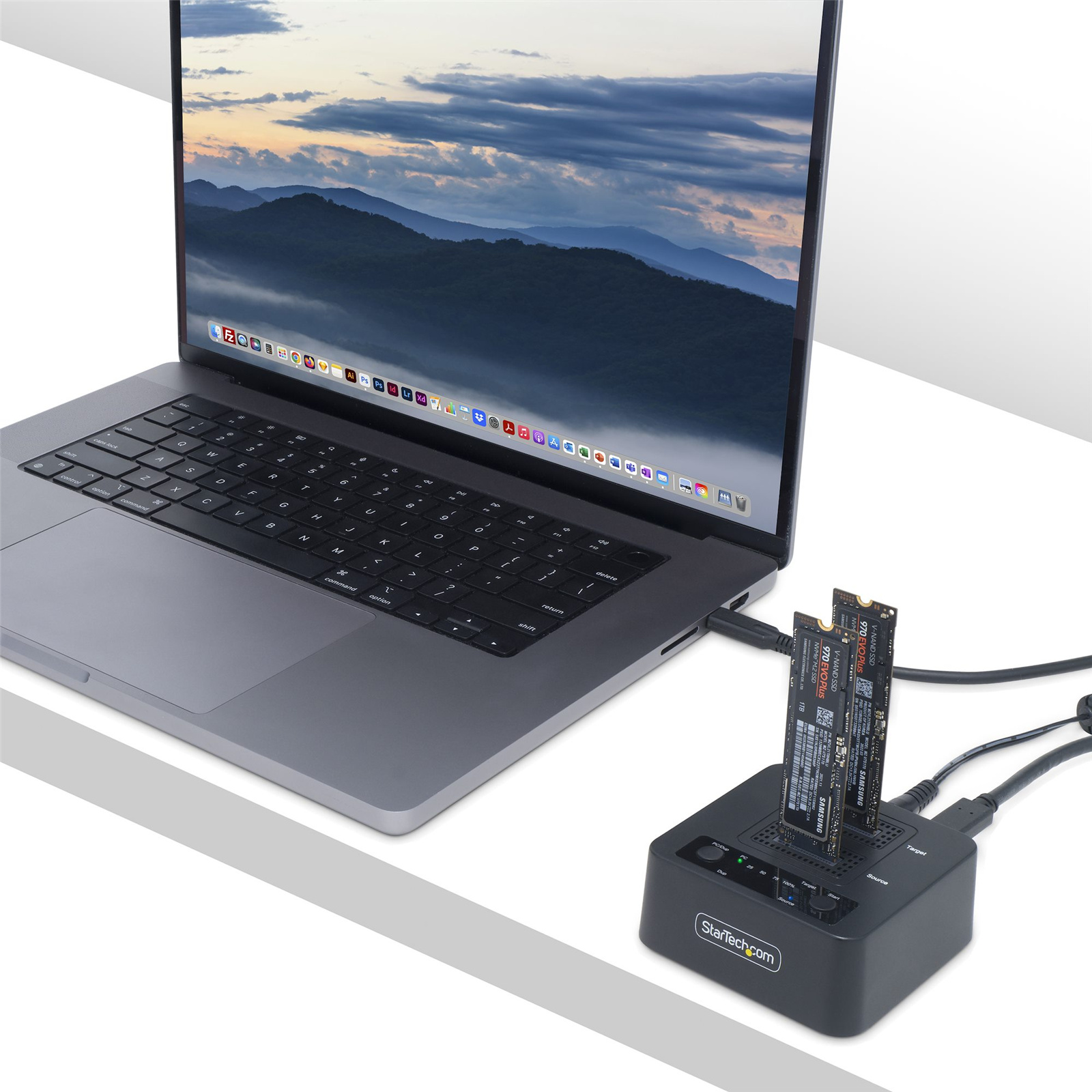

NVMe Drive Access over USB 3.2 Gen2x2
The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.

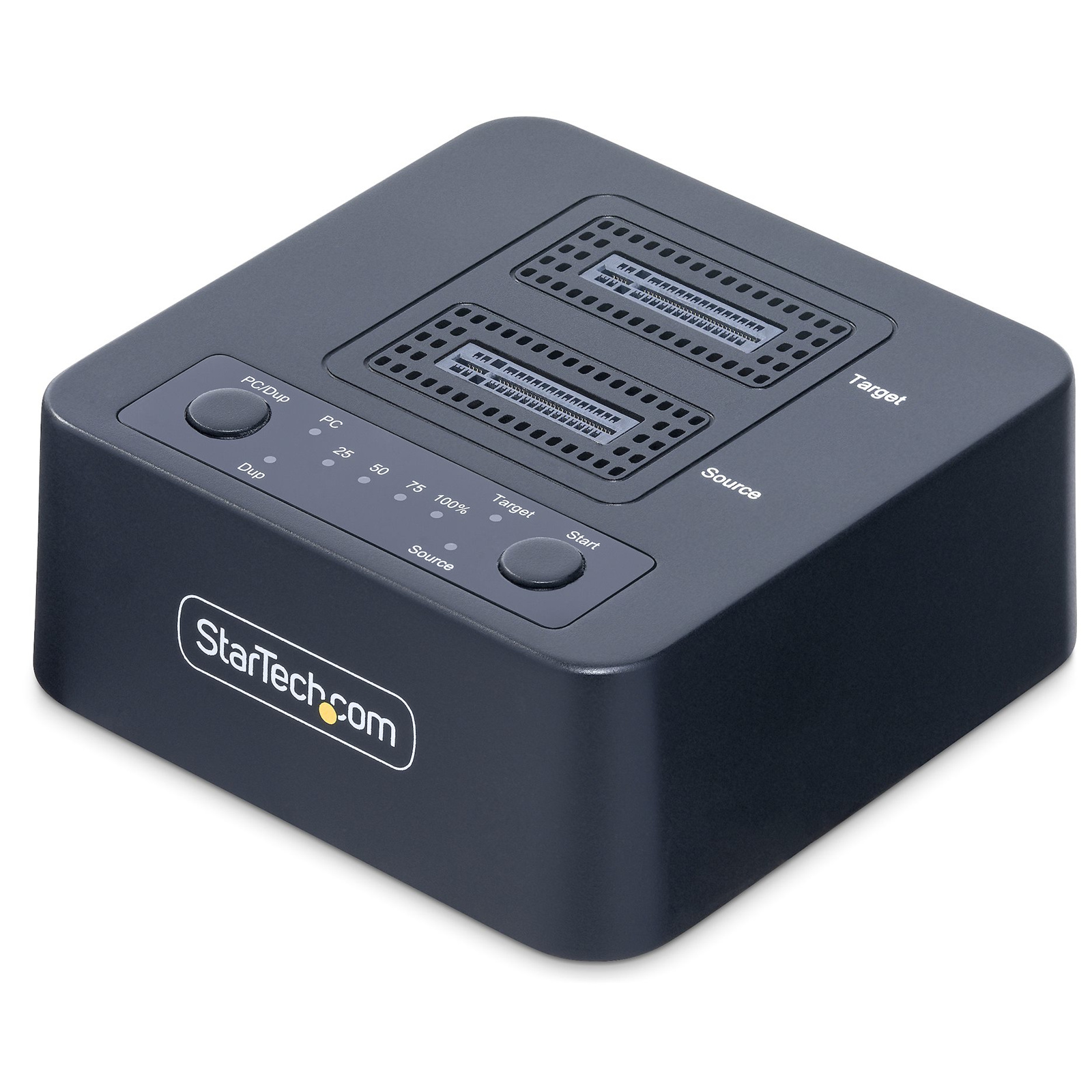

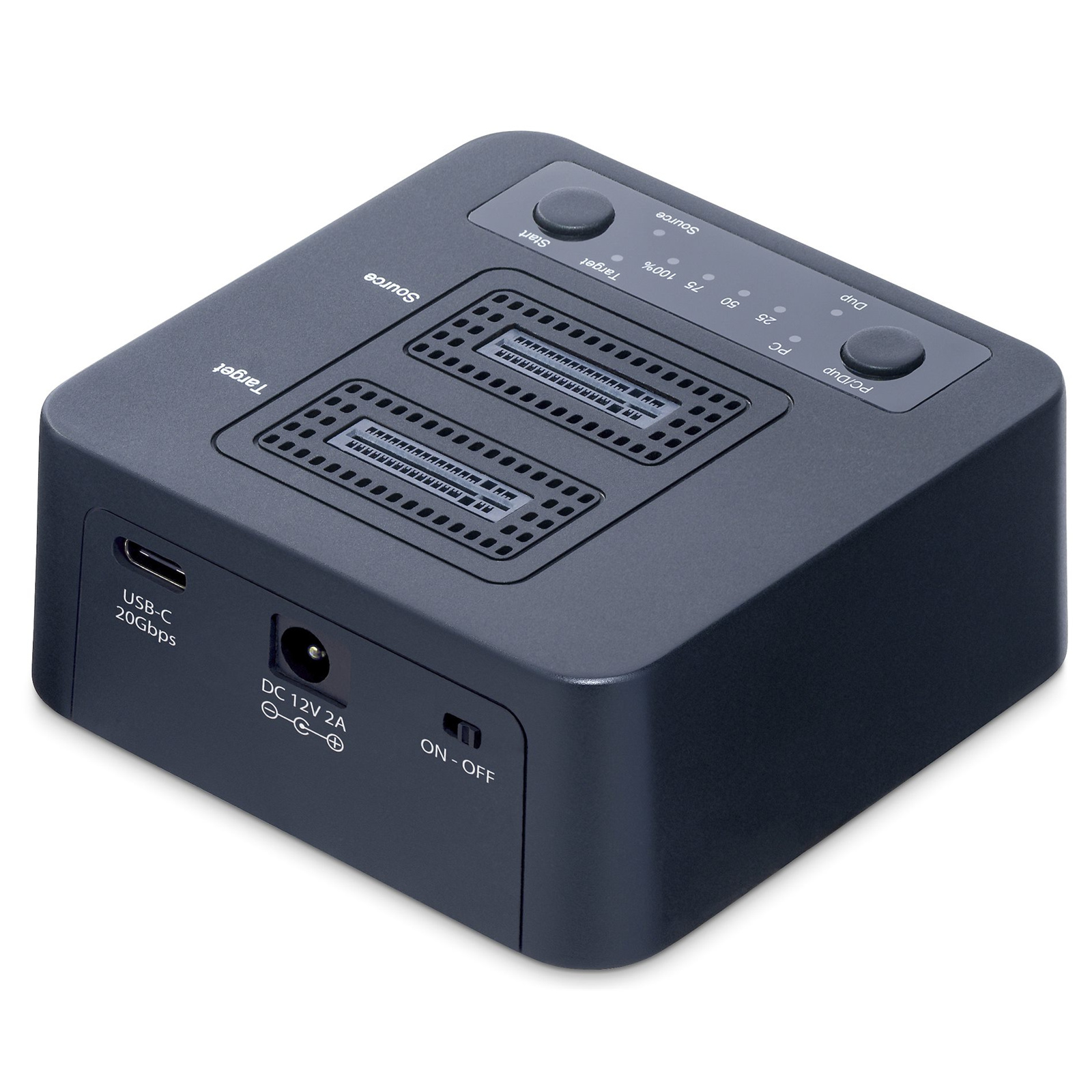

Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.
The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
Specifications
Physical Characteristics
Color
Black
Product Height
4.4 cm [1.7 in]
Product Length
7.7 cm [3.0 in]
Weight of Product
129.0 g [4.6 oz]
Product Width
7.7 cm [3.0 in]
Material
Plastic
Cable Length
100 cm [39.4 in]
Connector(s)
Drive Connectors
2 - M.2 (NVMe, M-Key, PCIe x4)

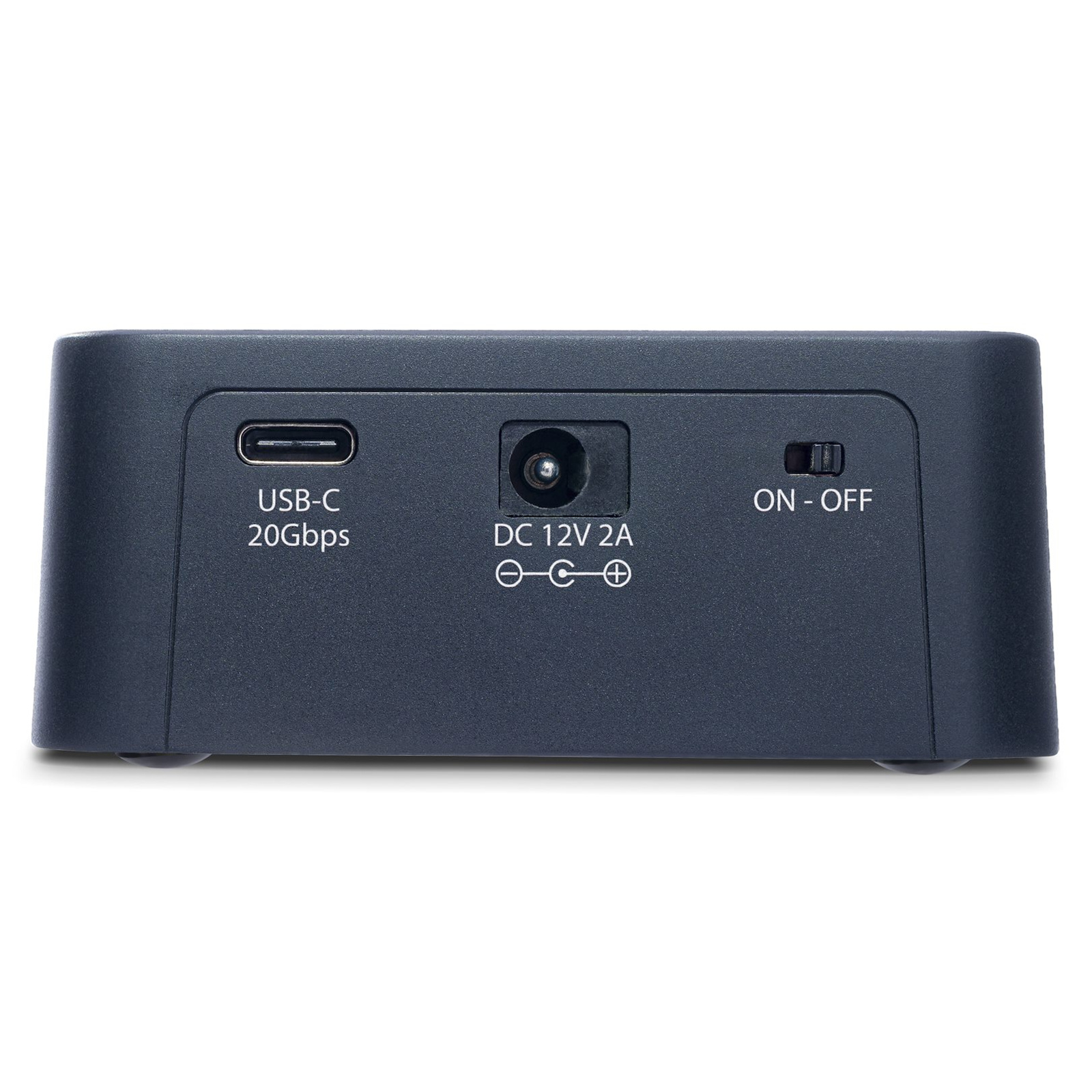

Host Connectors
1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)
Other Interface(s)
1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10)
Hardware
Fan(s)
Yes
Fans
1 - 60 mm
Number of Drives
2
Drive Size
22 mm - M.2 NVMe
Compatible Drive Types
M.2 (PCIe, NVMe, M-Key, NGFF)
Drive Installation
Removable
Supported Drive Height(s)
2230
2242
2260
2280
22110
Chipset ID
JMS586U

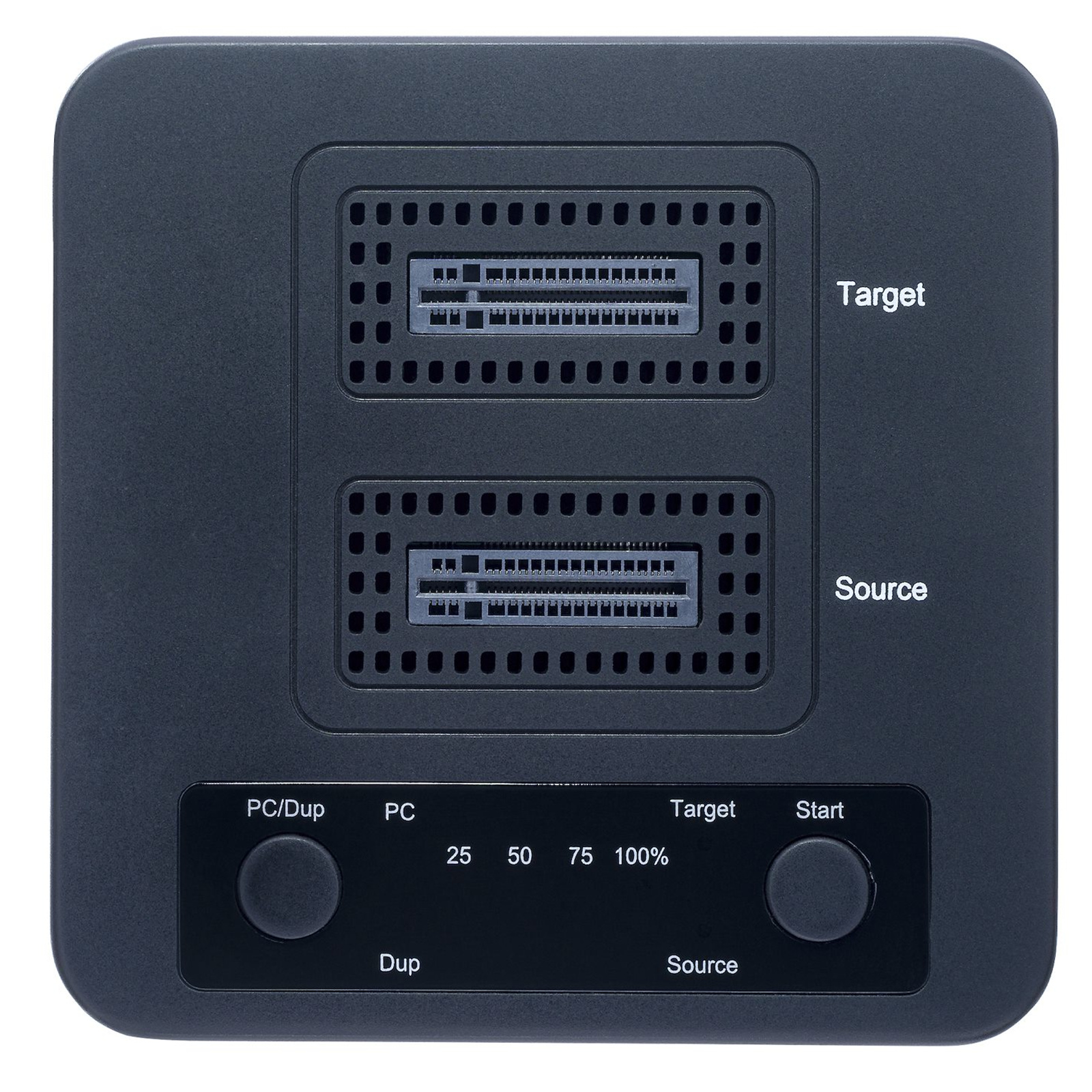

LED Indicators
4 - Progress LEDs
Indicates 25%, 50%, 75%, and 100% progress during the duplication process
2 - Drive LEDs:
Solid Blue: Indicates the M.2 Drive is detected
Flashing Red: There is an error reading the M.2 Drive or the M.2 Drive was removed during duplication
Solid Purple: Indicates the Target M.2 Drive is too small to duplicate to
2 - Mode LEDs
Solid Green: PC Mode
Solid Blue: Duplicator Mode
Performance
Duplication Modes
Sector by Sector (Whole Drive)
Duplication Speed
90GBpm
Hot Swap Capability
No
MTBF
50,000 Hours
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
0.6A
Output Voltage
12V DC
Output Current
2A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
0.1W
Software
OS Compatibility
OS Independent - No Drivers or Software Required
Environmental
Operating Temperature
5°C to 55°C (41°F to 131°F)
Storage Temperature
-20°C to 55°C (-4°F to 131°F)
Humidity
20% ~ 80% RH

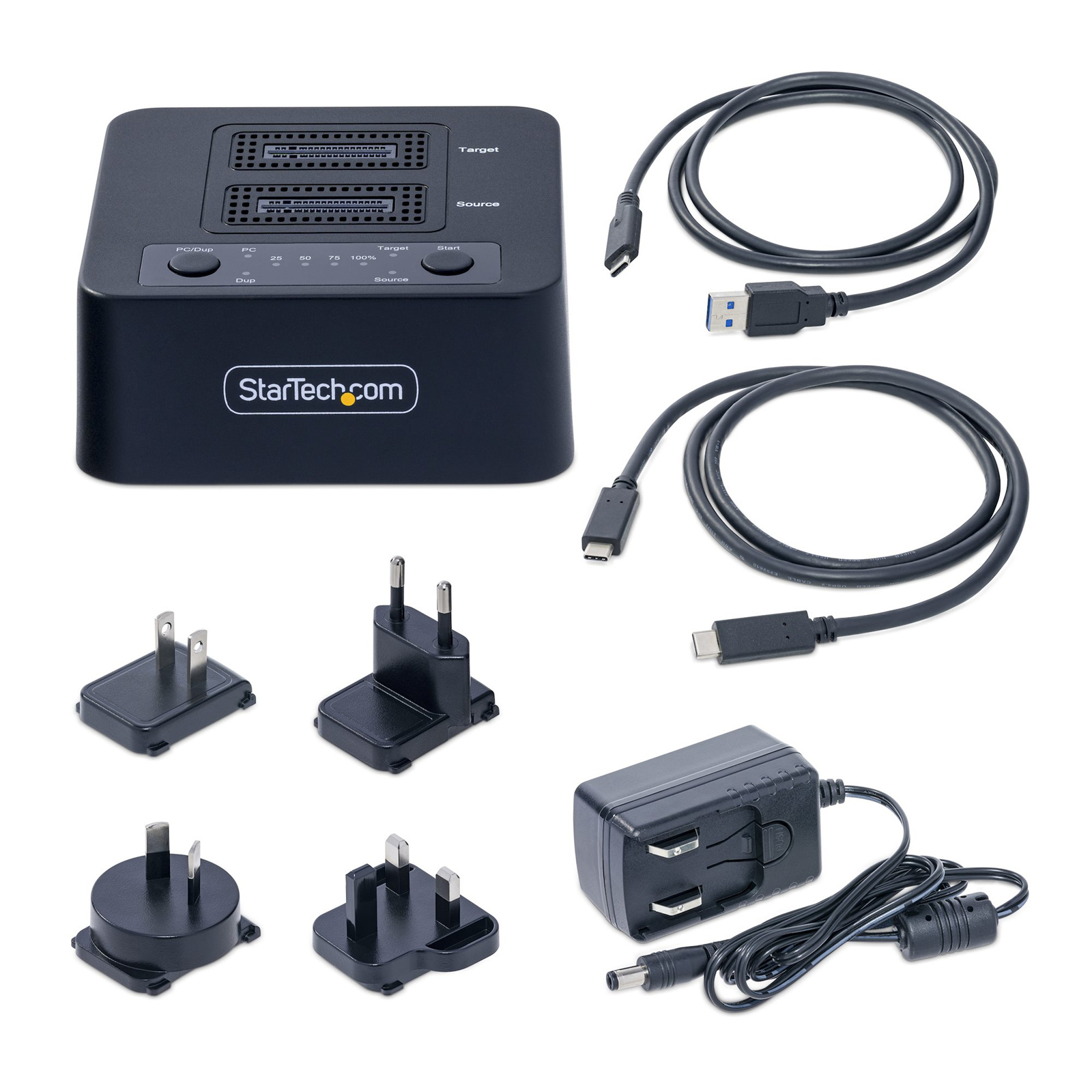

What's in the Box
Included in Package
1 - M.2 Drive Duplicator Dock
1 - 3.3ft (1m) USB-C to USB-C Cable
1 - 3.3ft (1m) USB-A to USB-C Cable
1 - Universal Power Adapter (NA/EU/UK/ANZ)
1 - Quick-Start Guide
