J5create USB4 8K Multi-Port Hub

PB Tech price
PB Tech price
$ 155 .65
 +GST
$ 179 .00
 inc GST
$155.65  +GST
$179.00

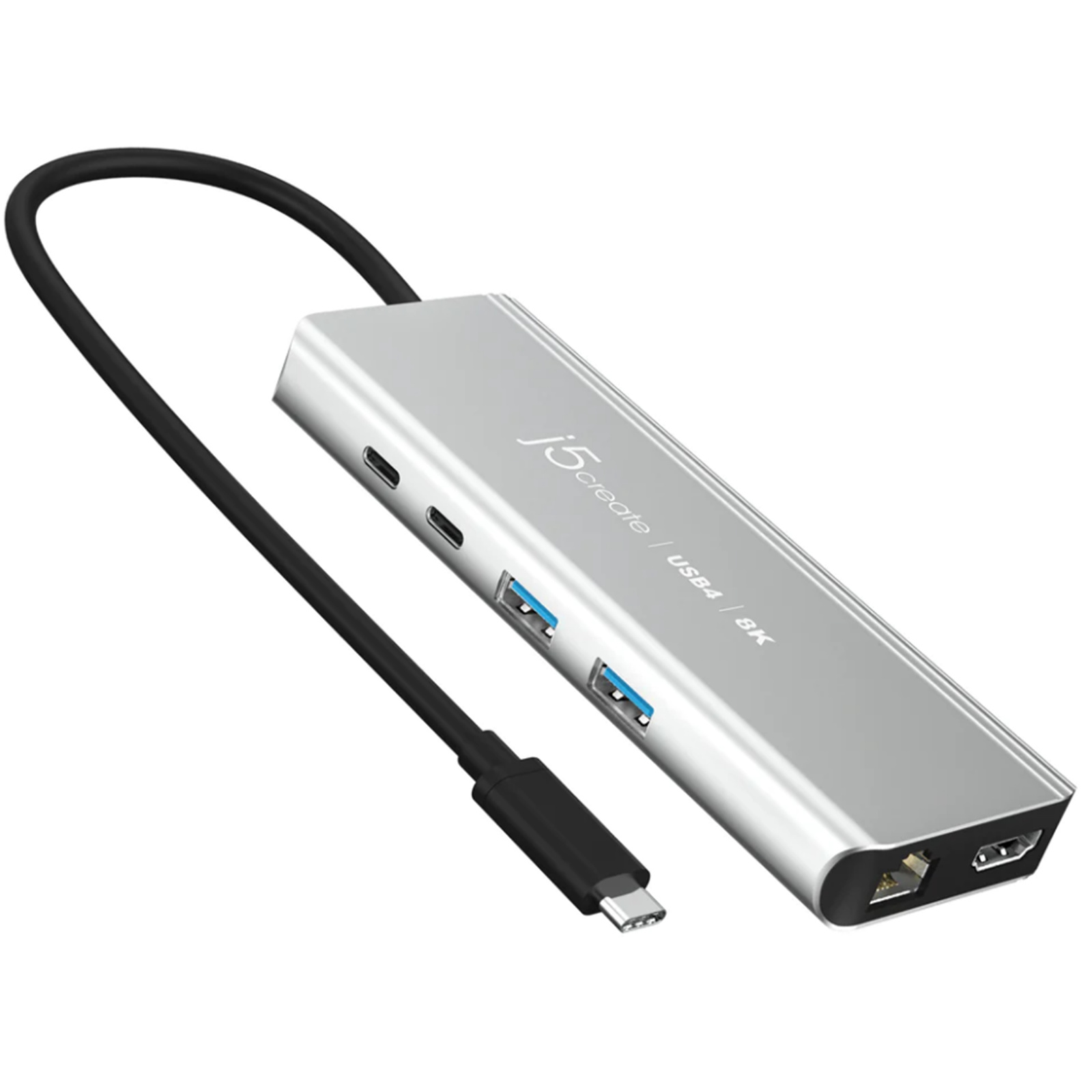

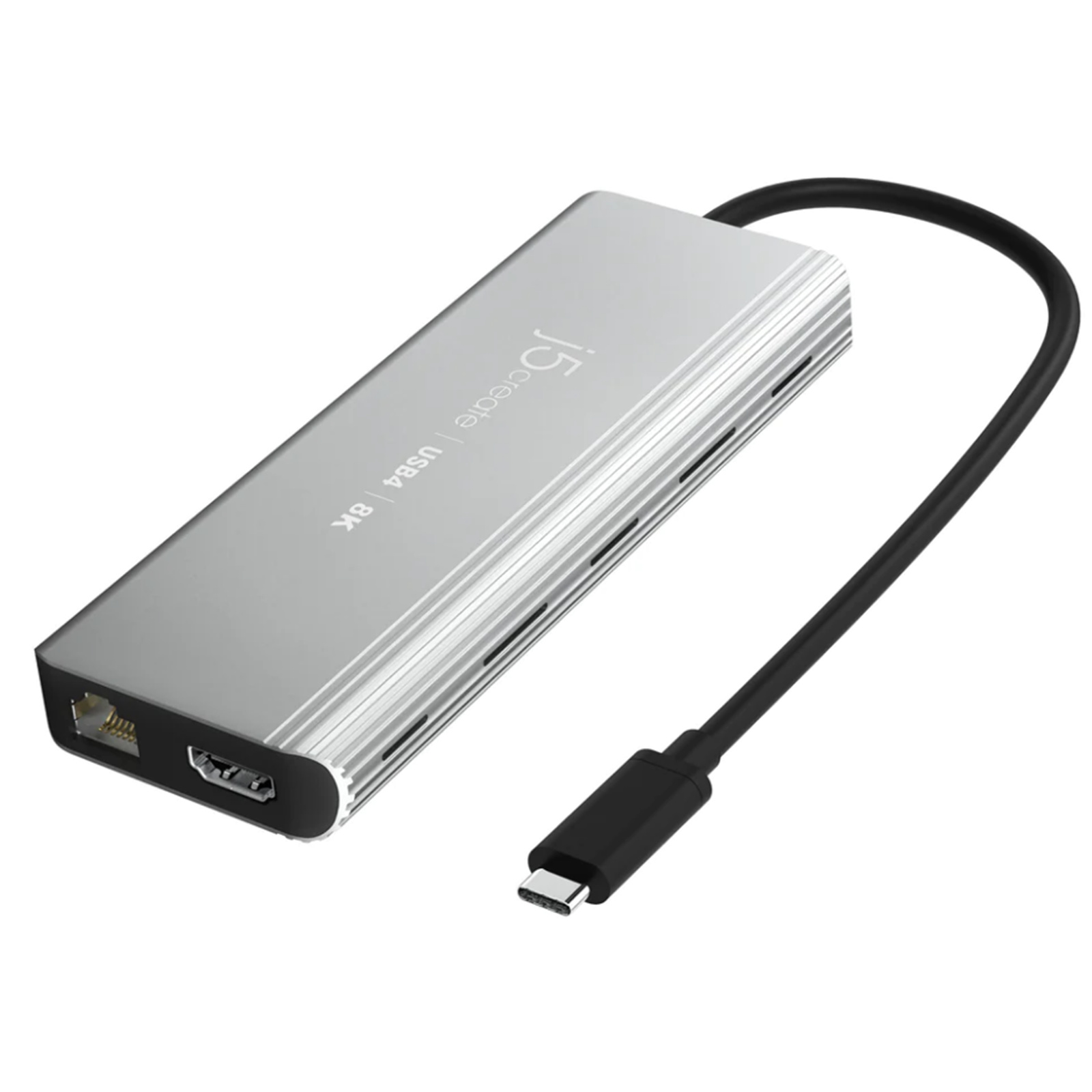

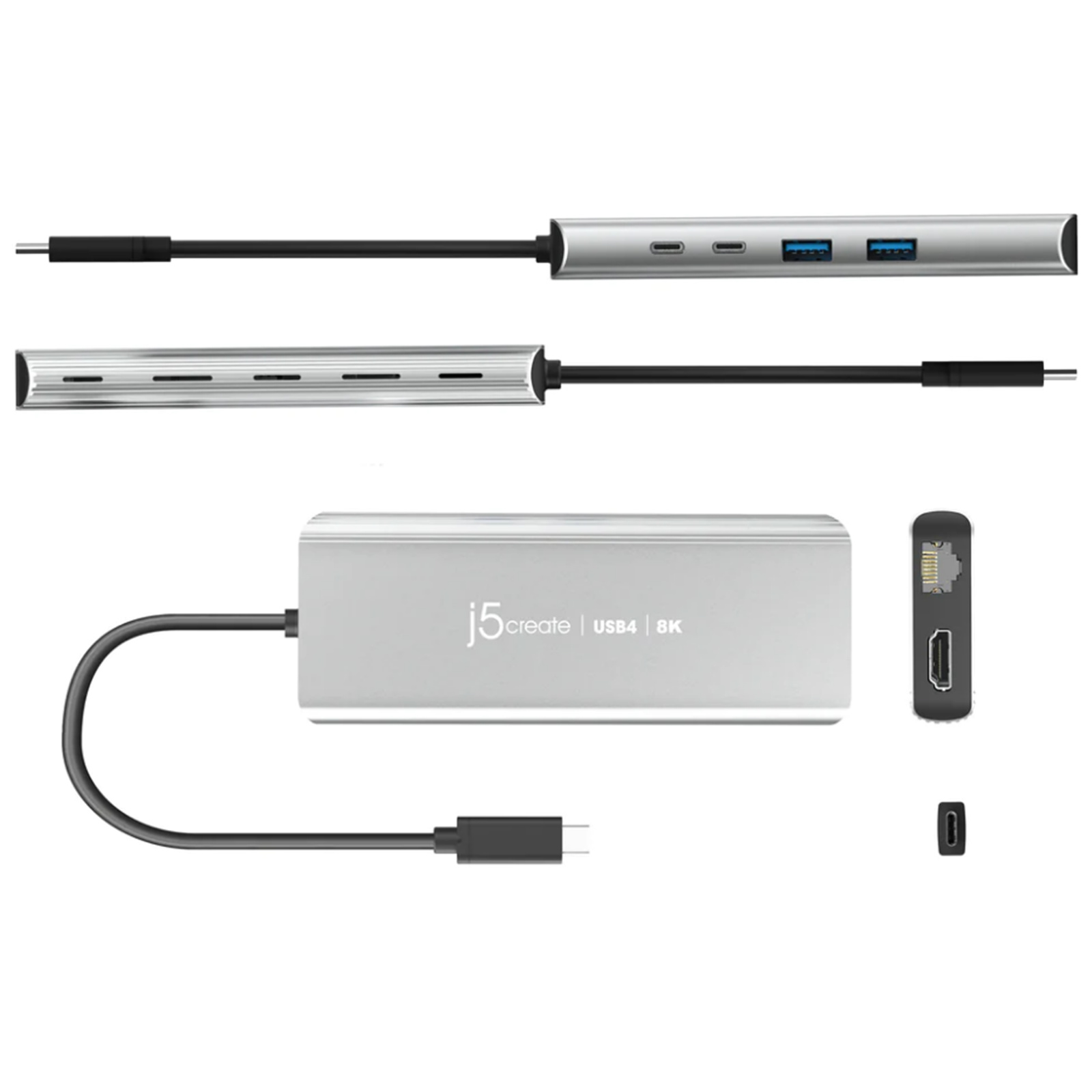

J5create USB4 8K Multi-Port Hub

  • Brand: J5create
  • MPN: JCD403
  • Part #: NBDJ5C2403
  • UPC: 847626006036
1
PB Tech price
$ 155 .65 $ 179 .00
 +GST  inc GST
Tax free price $164.99*
*Price includes surcharge


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$155.65  +GST
$179.00
  • Brand: J5create
  • MPN: JCD403
  • Part #: NBDJ5C2403
  • UPC: 847626006036

4K Support

Yes

DisplayPorts

None

HDMI Ports

1

Google Chrome Support

Not Specified

Intel Driven Apple Support

Not Specified

M1 Driven Apple Support

N/A

Microsoft Windows Support

Not Specified

What PB Tech customers are saying about this product...

See More Reviews

"works well, lightweight, great product"

JT
By: JuergT 21/01/25
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the J5create USB4 8K Multi-Port Hub
J5create USB4 8K Multi-Port Hub
Total:
$ 275 .18
 +GST
$ 316 .46
Buy together and save $6.86 $7.89
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
$73.91 $85.00

$68.69  +GST

$78.99

You save 7% You save 7%
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Collect from 8 stores by 9:21am today
Ships tomorrow
$9.88 $11.36

$8.24  +GST

$9.48

You save 16% You save 16%
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo

$42.60  +GST

$48.99

Features

This high-performance USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.

With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has three USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

- Supports resolutions up to 8K
- Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops
*Thunderbolt™ 4, USB4® is required to achieve 8K resolutions.
*Also supports other USB™ 3.2 host laptops and lower resolution monitors/displays
- One 2.5 Gigabit Ethernet port for a high-speed multi-gig network connection
- Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your legacy peripheral
- One USB-C® downstream port supports up to 10Gbps data transmission
- Power Delivery 3.0 offers up to 100W of pass-through charging
- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required

Features USB4® Technology

Provides extremely fast 40Gbps data transfer rates. Excellent for Thunderbolt™ 3, Thunderbolt™ 4, and USB4® computers

Multiple Connectivity Options For Greater Efficiency

Add the ports missing from your laptop so you can connect your desired devices

Hyper-Fast 2.5 Multi-GIg Ethernet Port

Enjoy ultra-speed and reliable internet connection with up to 2.5Gbps

Powerful PD Pass-Through Charging

Compatible with USB-C® Power Delivery to provide high-speed pass-through charging to your laptop at up to 95W

Efficient USB™ Ports

Connect your latest and legacy devices with 10Gbps USB-C® and dual 10Gbps USB™ Type-A ports

Effective Heat Dissipation

Aluminum housing and vent design moves heat away effectively preventing overheating

Thunderbolt™ and USB4® Compatible

A high-performing USB4® multi-port hub and compatible with Thunderbolt™ 3 and 4, and USB4®

Quick Setup

Use the device immediately without having to install a driver

Specifications

Hardware

Host Connector

1 - USB4® Male

Video Output

1 - HDMI™ Female

Power Source

Bus-powered or self-powered

Network Interface

Yes

Audio Supported

Yes

Ports

- 1- USB-C® 3.2 Gen2 10Gbps data transmission
- 1- USB-C® power delivery 3.0 100W
- 2- USB™ Type-A 3.2 Gen2 10Gbps data transmission
- 1- 8K HDMI™
- 1- RJ45 2.5 Gigabit Ethernet

Performance

Maximum Display Resolution

7680 x 4320

Maximum Display Refresh Rate

60 Hz @ 3840 x 2160
144 Hz @ 3840 x 2160 (* Only for DSC host)
30 Hz @ 7680 x 4320
60 Hz @ 7680 x 4320 (* Only for DSC host)

Maximum Data Transfer Rate

10Gbps

Displays Supported

HDMI™

Compatible Networks

10M/100M/1000M/2.5 Gigabit

Audio Channel

1 - 2.1 via HDMI™

Power

Power Delivery

Up to 100W via USB-C®

Power Consumption

= 900 mA

Input Current

Up to 5A

Input Voltage

Up to 20V

Output Current

Up to 4.75A

Output Voltage

Up to 20V

Physical Specifications

Color

Space Grey

Enclosure Type

Aluminum

Cable Length

7.87 in. (200 mm)

Product Height

5.3 in. (135 mm)

Product Width

2 in. (51 mm)

Product Depth

0.59 in. (15 mm)

Product Weight

3.84 oz (109g)

Storage Temperature

0 to 155°F (-17 to 68°C)

Storage Humidity

< 85% non-condensing

Operating Temperature

30 to 116°F (-1 to 41°C)

Operating Humidity

< 85% non-condensing

Manufacturer Part No:
JCD403
Brand:
Product Type:
-
UPC
847626006036
Product Family:
USB4
Shipping Weight:
0.5 kg
PB Part No:
NBDJ5C2403
Product Model:
8K
Warranty: 12 months *
