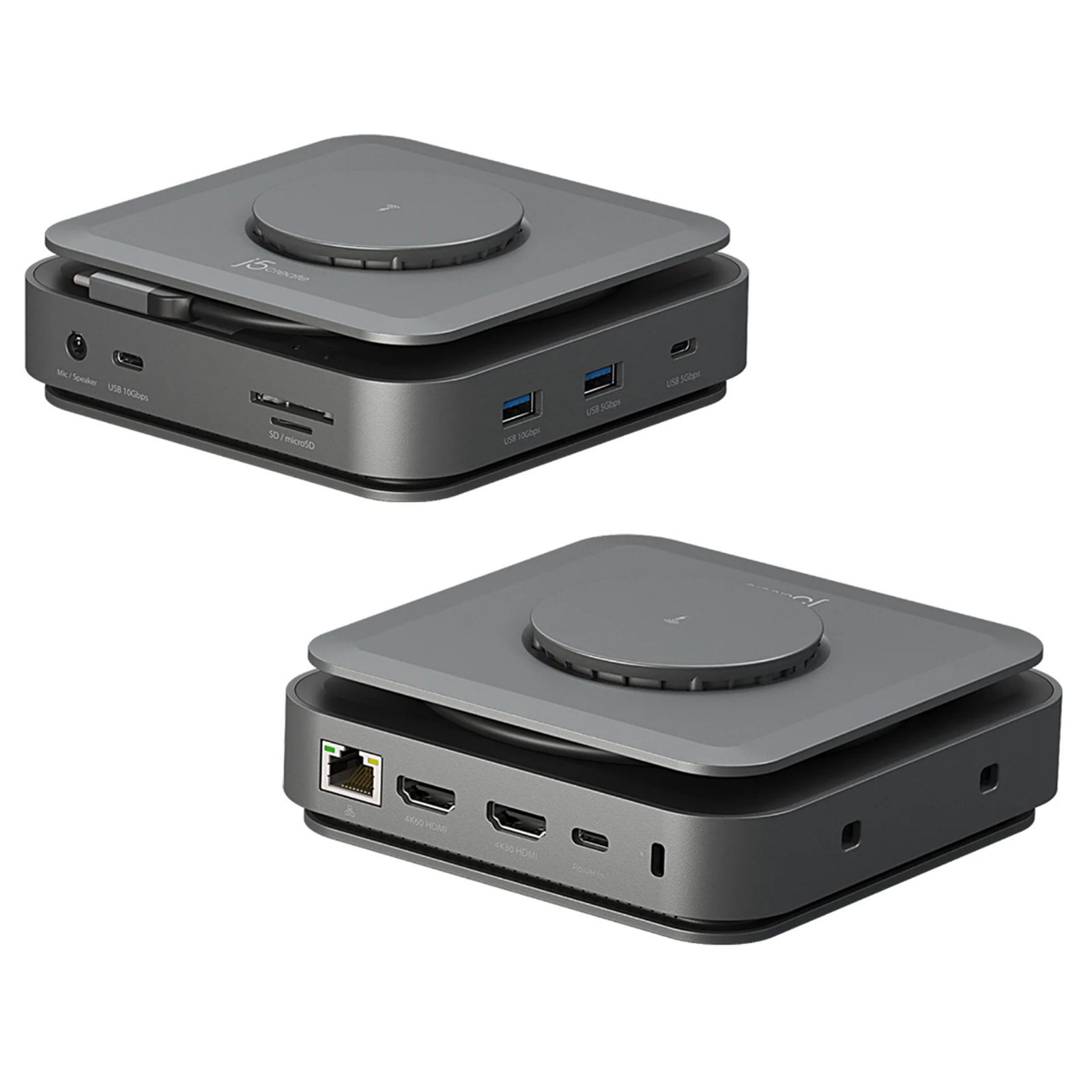

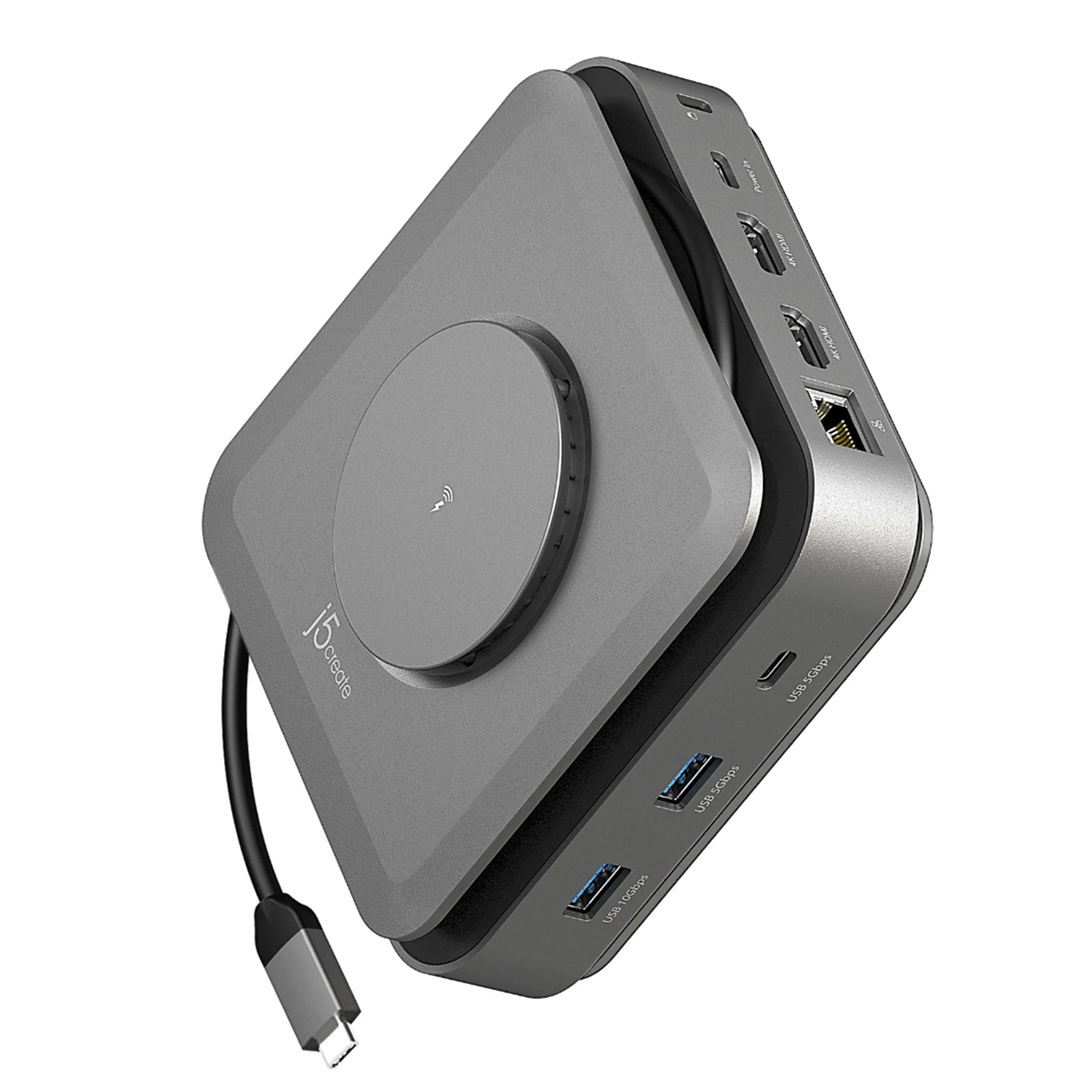

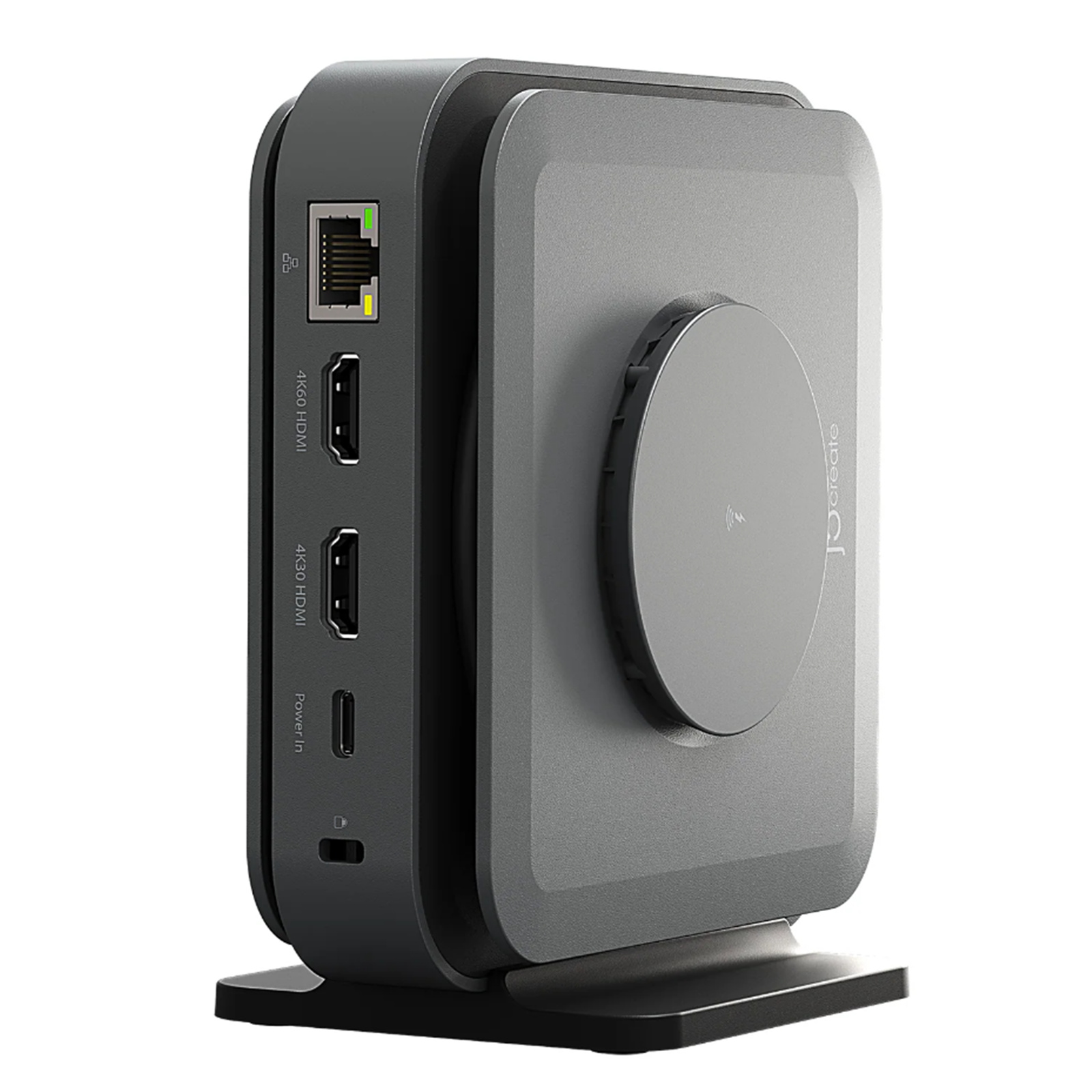

J5create USB-C 140W PD3.1 Dual 4K HDMI Docking Station With 15W Wireless Charger

PB Tech price
PB Tech price
$ 155 .65
 +GST
$ 179 .00
 inc GST
$155.65  +GST
$179.00

J5create USB-C 140W PD3.1 Dual 4K HDMI Docking Station With 15W Wireless Charger

  • Brand: J5create
  • MPN: JCD3199
  • Part #: NBDJ5C3199
  • UPC: 847626006692
PB Tech price
$ 155 .65 $ 179 .00
 +GST  inc GST
Hurry, only 2 units left!


Click & Collect: Available from 2 stores.
Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$155.65  +GST
$179.00
  • Brand: J5create
  • MPN: JCD3199
  • Part #: NBDJ5C3199
  • UPC: 847626006692

4K Support

Yes

DisplayPorts

None

HDMI Ports

2

Google Chrome Support

Not Specified

Intel Driven Apple Support

Not Specified

M1 Driven Apple Support

Not Specified

Microsoft Windows Support

Not Specified

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the J5create USB-C 140W PD3.1 Dual 4K HDMI Docking Station With 15W...
J5create USB-C 140W PD3.1 Dual 4K HDMI Docking Station With 15W Wireless Charger
Total:
$ 269 .09
 +GST
$ 309 .45
Buy together and save $6.86 $7.89
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Collect from 17 stores by 10:25am today
Ships on 29 Sep
$9.88 $11.36

$8.24  +GST

$9.48

You save 16% You save 16%
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo

Logitech MK235 Wireless Desktop Keyboard & Mouse Combo

Collect from 19 stores by 10:25am today
Ships on 29 Sep

$36.51  +GST

$41.99

Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
$73.91 $85.00

$68.69  +GST

$78.99

You save 7% You save 7%

Features

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV.

With USB™ Power Delivery 3.1 it'll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment which ensures an easy connection regardless of your USB-C® port's location.

Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!

- Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)

- Supports Power Delivery 3.1 140W power in

- Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals

- Built-in magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone®MagSafe®, Samsung®S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®, and more. The 15W wireless chargingwill only work when a USB-C® 60W or above power adapter is connected to the dock.

- Reliable network connectivity via the Gigabit Ethernet

- Cable storage compartment

- Security lock

Specifications

Hardware

Audio Supported

Yes

Host Connector

1 - USB-C® Male (PD3.1 100W, 20V/5A)

Network Interface

Yes

Output

Perfect for Google™ Pixel™, iPhone® with MagSafe®, and AirPods® - Provide 15W of wireless charging to a Google™ Pixel™ - Provide 7.5W of wireless charging to an iPhone® - Provide 5W of wireless charging to AirPods®

Ports

1 - USB-C® PD-in PD3.1 140W (28V/5A)
2 - USB-C® 5Gbps & 10Gbps
2 - USB™ Type-A 5Gbps & 10Gbps
1 - Combo 3.5mm Audio Jack
1 - HDMI™ (USB™ display max resolution 4K@30Hz)
1 - HDMI™ (DP™-Alt max resolution 4K@60Hz)
1 - RJ45 Gigabit Ethernet
1 - SD™/microSD™ 3.0
1 - Wireless charger 15W

Power Source

Bus-powered or self-powered

Video Output

2- HDMI™ Female

Performance

Audio Channel

2.1 via HDMI™

Compatible Networks

10/100/1000 Mbps

Displays Supported

2

Max Data Transfer Rate

10Gbps

Max Display Refresh Rate

60 Hz

Max Display Resolution

3840 x 2160

Power

Input Current

Up to 5A

Input Voltage

Up to 28V

Output Current

Up to 5A

Output Voltage

Up to 20V

Power Consumption

= 900 mA

Power Delivery

Up to 140W via USB-C®

Physical Specifications

Cable Length

2.28 ft (69.5 cm)

Color

Space Grey

Enclosure Type

Plastic

Operating Humidity

< 85% non-condensing

Operating Temperature

30 to 116°F (-1 to 41°C)

Product Depth

Body: 5.12 in. (130 mm) Holder: 3.15 in. (80 mm)

Product Height

Body: 1.71 in. (43.5 mm) Holder: 1.3 in. (33 mm)

Product Weight

Body:14.7 oz (416 g) Holder:0.8 oz (22 g)

Product Width

Body: 5.12 in. (130 mm) Holder: 5.12 in. (130 mm)

Storage Humidity

< 85% non-condensing

Storage Temperature

0 to 155°F (-17 to 68°C)

Package Contents

1 - JCD3199 USB-C® Dock Dual 4K HDMI™
1 - Dock Holder
1 - Quick Installation Guide (QIG)

Manufacturer Part No:
JCD3199
Brand:
Product Type:
Dual 4K HDMI Docking Station
UPC
847626006692
Product Family:
USB-C
Shipping Weight:
0.65 kg
PB Part No:
NBDJ5C3199
Product Model:
140W PD3.1
Warranty: 12 months *
