Kensington SD5700T Thunderbolt 4 Dual 4K Docking Station, with 90W Power Delivery, Thunderbolt4 x4, USB3.0 x3, RJ45 x1, Support Apple M1 (Single Display), M1 Pro&Max (Dual Display) / Windows, 3yr warranty

PB Tech price: PB Tech price:
$434 15  +GST $499 27  inc GST
$434.15  +GST
$499.27  inc GST
Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Kensington SD5700T Thunderbolt 4 Dual 4K Docking Station, with 90W Power Delivery, Thunderbolt4 x4, USB3.0 x3, RJ45 x1, Support Apple M1 (Single Display), M1 Pro&Max (Dual Display) / Windows, 3yr warranty

Part #: NBDKEN5700
3
PB Tech price: PB Tech price:
$434 15 $499 27
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$434.15  +GST
$499.27  inc GST

Six easy payments of $85.71 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $103.45 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free fortnightly payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $5.01 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*An Establishment fee of $55 applies to your first LTF transaction, a $35 Advance Fee applies to all subsequent LTF transactions. Standard Interest Rate, currently 25.99% p.a. applies to any outstanding balance at end of the interest free period. Lending criteria, $50 annual account fee, fees, terms and conditions apply.
Learn more about Q Card

  • Brand: Kensington
  • MPN: K35175AP
  • Part #: NBDKEN5700
  • UPC: 085896351757
  • 4K Support: Yes
  • DisplayPorts: None
  • HDMI Ports: None
  • Google Chrome Support: Not Specified
  • Intel Driven Apple Support: Dual 4K Display
  • M1 Driven Apple Support: Single 4K Display
  • Microsoft Windows Support: Dual 4K Display
  • View more

What PB Tech customers are saying about this product...

See More Reviews

"It works with my MBP Pro with M1 Pro CPU, and can drive two 4k monitor and a couple of other USB devices. Bit pricey, but very convenient."

U
By: utdemir 27/06/22
Verified Owner

"Struggled to get this to work but fear that's more about me ...view more"

P
By: PeterG728 19/05/22
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Kensington SD5700T Thunderbolt 4 Dual 4K Docking Station, with 90W...
Total:
$525 54
 +GST
$604 37
 inc GST
Buy together and save $11.29 $12.98

This item: Kensington SD5700T Thunderbolt 4 Dual 4K Docking Station, with 90W Power Delivery, Thunderbolt4 x4,...

$499.27 inc GST
Cruxtec 2M USB-C to HDMI 2.0 Cable - 4K/60Hz , Supports HDR

Cruxtec 2M USB-C to HDMI 2.0 Cable - 4K/60Hz , Supports HDR

View Product
$42.68 $49.08   $35.57 +GST $40.91 inc GST (Buy together and save $7.11) $8.18)
Logitech MK295 Silent Wireless Keyboard Mouse Combo - Black

Logitech MK295 Silent Wireless Keyboard Mouse Combo - Black

View Product
$60.00 $69.00   $55.82 +GST $64.19 inc GST (Buy together and save $4.18) $4.81)

Features

SD5700T Thunderbolt™ 4 Dual 4K Docking Station with 90W PD - Win/Mac

The first of a generation, the SD5700T Thunderbolt™ 4 Dual 4K Docking Station with 90W PD - Win/Mac offers premium Thunderbolt benefits now, and well into the future; compatible with Thunderbolt™ 4-enabled Windows 10 laptops and backward compatibility with Thunderbolt™ 3 MacBooks running macOS 11 (Big Sur) or later, supports Thunderbolt™ 3, Thunderbolt™ 4, USB-C and USB4 accessories and provides full power delivery, regardless of how many devices are connected. Features include 11-ports, Single 8K @ 30 Hz, or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, UHS-II SD 4.0 card reader speeds, and more.

About this item

  • Thunderbolt 4 docking station for Thunderbolt 4 Windows laptops and Thunderbolt 3 and Thunderbolt 4 MacBooks (macOS 11 or later); also works great with non-Thunderbolt USB-C laptops; if you have a Thunderbolt 3 Windows laptop, this is not the dock for you, see part # K34009US)
  • Supports dual monitor 4k Ultra HD (4k 60Hz) or single monitor 8k 30Hz for Thunderbolt laptops (note: Macbook Air and Macbook Pro 13" with the original M1 CPU will only display to a single monitor due to Apple's chipset limitations, but Macbook Pros with M1 Pro and M1 Max CPUs will work with dual displays); for USB-C laptops: HBR3 laptops will receive Dual [email protected] or Single [email protected]; HBR2 laptops will receive Dual [email protected] or Single [email protected]
  • Connect your laptop to the Thunderbolt 4 port (.8 meter Intel Certified TB4 cable included); connect your displays using one or two of the Thunderbolt 4 ports (usb-c to hdmi or usb-c to DisplayPort adapter or cable not included); unused Thunderbolt ports can connect directly to Thunderbolt devices (up to five additional via daisy chain, max 2 per port) while providing transfer speeds up to 40Gbps

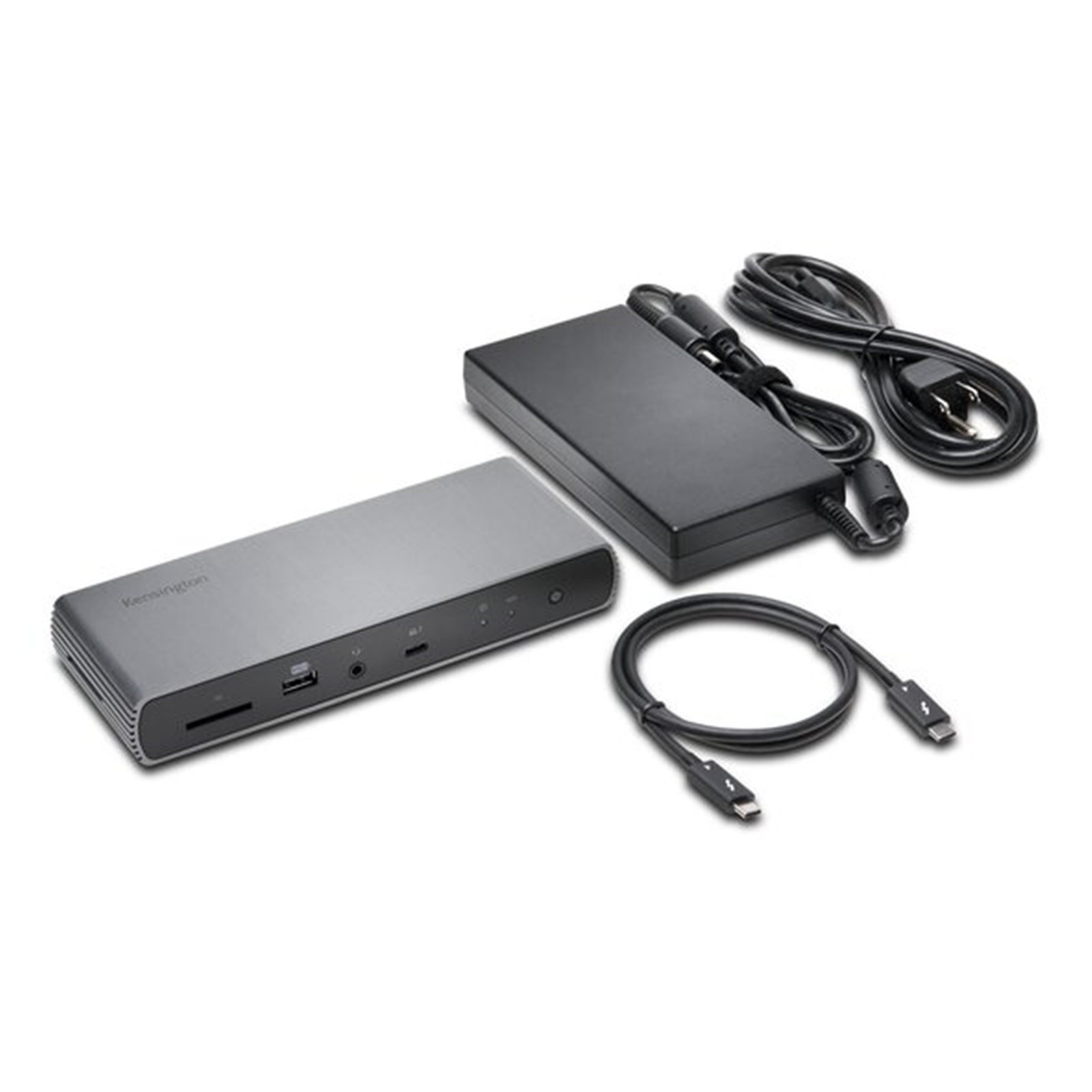

  • 180 Watt Power Supply delivers 90W power to charge your laptop; delivers additional power to run peripherals like hard drives, and for charging phones and tablets including Thunderbolt 4, Thunderbolt 3, USB 4.0, USB 3 and USB 2 peripherals
  • Static charging technology provides 15W to each of the downstream Thunderbolt 4 ports without taking power from the laptop - laptop still receives full 90W of power even when all other ports are utilized; other Thunderbolt 4 docks will divert power away from the laptop
  • Three Thunderbolt 4 downstream ports (all capable of data, video and audio and 15w power each); SD card reader (UHS-II SD 4.0); four USB-A ports (one 5V/1.5A charging port and three [email protected] ports); one Gigabit Ethernet port; one audio combo jack; on/off switch Vesa mounting holes (see Kensington mounting bracket, part # K34050WW); Kensington lock slot (for a lock see part #K65035AM or K60600WW)
  • DockWorks WiFi Auto-Switch guarantees the fastest, most reliable internet connection; while MAC Address ID Pass-Through and Reset, and Device Connection Monitoring give IT managers maximum network monitoring and visibility; Intel VT-d DMA protection blocks peripheral devices from unauthorized access to system memory.
  • Three-year warranty and lifetime Kensington technical support

Compatibility

Universally compatible, this Thunderbolt™ 4 desktop docking station is the first of its kind, providing the ultimate plug-and-play solution for Thunderbolt™ 4 Window 10 laptops and Thunderbolt™ 3 MacBooks running macOS 11 (Big Sur) or later, while also supporting Thunderbolt™ 3, Thunderbolt™ 4, USB-C and USB4 accessories. For Thunderbolt™ 3 based Windows 10 laptops, please see our range of Thunderbolt™ 3 docks.



Thunderbolt™ 4 Technology

For the first time, this Thunderbolt™ 4 modern docking station can connect up to three additional Thunderbolt devices directly (up to five in total) while providing transfer speeds up to 40Gbps, up to Dual 4K video output, and audio; all through the included 0.8m Thunderbolt™ 4 cable, for a quick and powerful plug-and-play experience. Intel VT-d DMA protection blocks peripheral devices from unauthorized access to system memory.



Single 8K or Dual 4K Video Output for Thunderbolt™ 4-Enabled Devices

Single 8K or Dual 4K (@ 60 Hz) video output for Thunderbolt™ 4-enabled host devices lets you extend visual productivity with the crisp resolution, contrast, and color depth of Ultra HD (Single 8K 30Hz or Dual 4K 60Hz) via the available Thunderbolt™ 4 ports.



90W Power Delivery

90W power delivery allows you to quickly and easily charge any Thunderbolt™ 4 Windows 10 laptop or Thunderbolt™ 3-enabled MacBook running macOS 11 (Big Sur) or later, in addition to providing full support for your USB-C or USB4peripheral accessories. No need to worry about what you have connected to the dock - our solution provides the only full powered offering on the market, so you can connect anything, and be sure to receive optimal performance.



Helps Future-Proof Your Desktop Setup

With 11-Ports of connectivity, you'll have the power to get the job done today and well into the future. This dock offers four Thunderbolt™ 4 ports, all capable of data, video and audio; four USB-A ports (one 5V/1.5A charging port on the front and three Gen2 @ 10Gbps ports on the rear); one Gigabit Ethernet port; one audio combo jack; and one UHS-II SD 4.0 card reader.



UHS II SD 4.0 Card Reader

Transfer files at ultra fast speeds using the built-in UHS II SD 4.0 card reader.



Zero-Footprint Mounting Option and Security Cable Lock Slots

Maximize desktop space and reduce cable clutter by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Lock slots allow you to protect your investment with a Kensington cable lock, sold separately (K65020WW or K64444WW).



Free Kensington DockWorks™ Software

DockWorks™ WiFi Auto-Switch guarantees the fastest, most reliable internet connection; while MAC Address ID Pass-Through and Reset, and Device Connection Monitoring give IT managers maximum network monitoring and visibility.

Specifications

Connection technology

Thunderbolt 4

Driverless

Yes

Number of Screen Outputs

2

Video ports

Thunderbolt 4

Maximum resolution

8K

Power delivery

90W

Operating system(s)

macOS, Windows

Number of USB ports

4

USB fast charging

Yes

Docking station family

The Innovator

DockWorks

Yes

Best For

Thunderbolt 4 Windows 10 laptops and Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later. Supports Single 8K or Dual 4K video.

Compatibility

Windows 10, macOS 11 or later

Card Reader

SD Card Slot (UHS-II, SD4.0)

USB-A ports

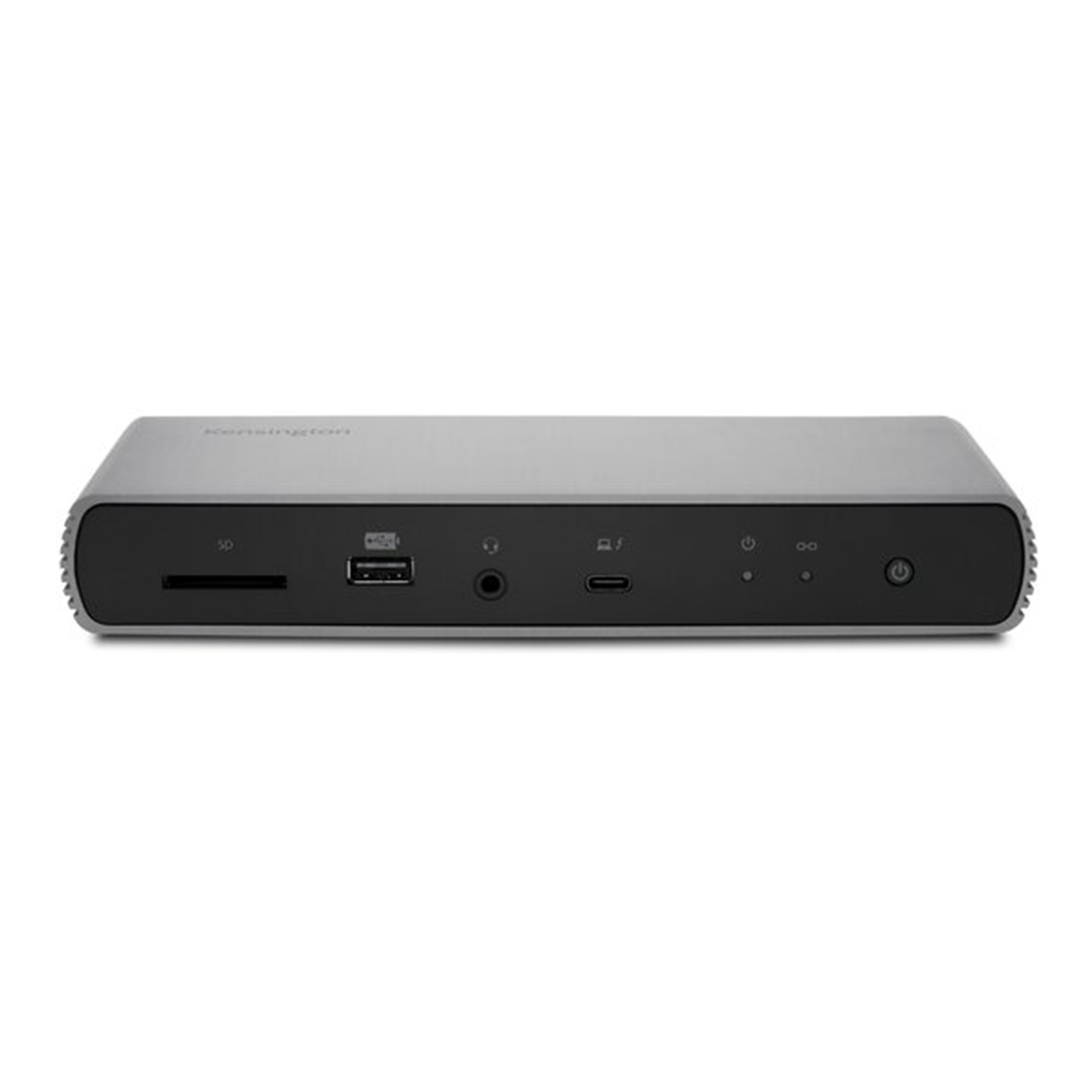

4 x (1) USB 2.0 (front) with 5V/1.5A fast-charging & (3) USB 3.2 Gen2 (back) supporting 5V/0.9A

Audio

1 x 3.5mm Combo Microphone & Headphone Port (front)

Data transfer speeds

Supports up to 40Gbps data transfer speed

Ethernet Speed (Mbps)

1000, 100, 10

Maximum resolution supported

Single 8K 30Hz or Dual 4K 60Hz

Plug & play

Plug & play installation without need for drivers or downloads

Security slot compatibility

Kensington Security Slot, Kensington Nano Security Slot

System requirements

Compatible with Windows 10 laptops equipped with Thunderbolt 4 and Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later.

Thunderbolt Ports

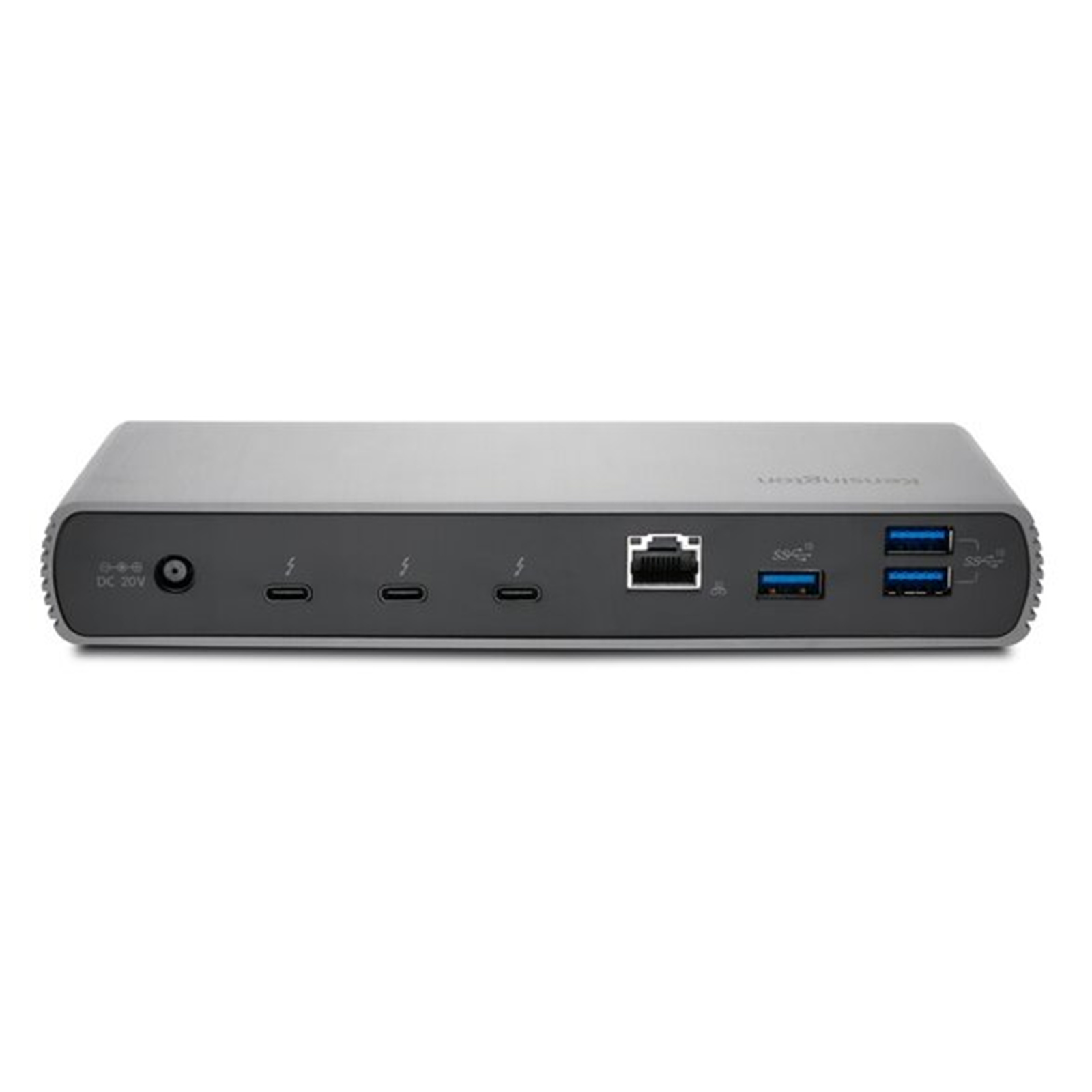

4 x Thunderbolt 4 Ports (1 x upstream and 3 x downstream)

USB-C Power Delivery

Supports USB-C PD 3.0 (90W of laptop charging)

Video output

Thunderbolt 4 ports

4K support

Yes

Manufacturer Part No:
K35175AP
Brand:
Product Type:
Docking Station,
UPC
085896351757
Product Family:
SD5700T
Shipping Weight:
1.7 kg
PB Part No:
NBDKEN5700
Product Model:
Thunderbolt 4 Dual 4K
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

3.7 out of 5 Stars Based on 3 Reviews
5 Stars
0
4 Stars
2
3 Stars
1
2 Stars
0
1 Stars
0

Filter Results

Do you own this product?

Write a review and go into the draw Win great prizes each month!
Displaying 1 - 3 of 3 reviews

Tad expensive, but works

It works with my MBP Pro with M1 Pro CPU, and can drive two 4k monitor and a couple of other USB devices.

Bit pricey, but very convenient.

U
By: utdemir 27/06/22
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Thunderbolt support seems to be required

Struggled to get this to work but fear that's more about me than the product. Supposed to run 2 x 4k, however when running a Surface Pro 7 (only has usb-c 3) it would only drive one 4k monitor.

Note if your monitor doesn't have usb-c connections for driving video you will need an adaptor.

The use of adaptors might be my problem or my machine not having Thunderbolt 4.

P
By: PeterG728 19/05/22
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Works well - when it works

So it's a good piece of kit, nicely made and good value for money.

However, it's not as universal as it makes out, as we've had several for work and it doesn't work seamlessly across any USB-C laptop.

The main issue is dual monitor support - it just won't support more than one external display for some laptops like HP ProBooks and MS Surface Laptop Go. Others, like EliteBook and MacBook Pro work with two external displays fine.

It must be an issue with the TB4TB3/USB-C connectivity, but as this dock says its backwards-compatible will all these standards, it's just disappointing that it isn't plug and play for everything that the s...view more

M
By: MattJ764 11/07/22
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
