Asustor ASW209X 8-Port 2.5G + 1x 10G SFP+, Unmanaged Switch

PB Tech price
PB Tech price
$ 164 .35
 +GST
$ 189 .00
 inc GST
$164.35  +GST
$189.00

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Asustor ASW209X 8-Port 2.5G + 1x 10G SFP+, Unmanaged Switch

Silent operation!
  • Brand: Asustor
  • MPN: ASW209X
  • Part #: NETAST2090
  • UPC: 887372901940
PB Tech price
$ 164 .35 $ 189 .00
 +GST  inc GST
Tax free price $174.21*
*Price includes surcharge
Hurry, only 2 units left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$164.35  +GST
$189.00

Four payments of $47.72 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Asustor
  • MPN: ASW209X
  • Part #: NETAST2090
  • UPC: 887372901940

Multi-Gigabit Support

10Gbps (Some Ports) + 1 more

10 Gigabit Ports

1 Port

2.5 Gigabit Ports

8 Ports

Management Level

Unmanaged

Number of Ports

9 Ports

PoE

No

PoE Ports

N/A

PoE Budget

N/A

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Asustor ASW209X 8-Port 2.5G + 1x 10G SFP+, Unmanaged Switch
Asustor ASW209X 8-Port 2.5G + 1x 10G SFP+, Unmanaged Switch
Total:
$ 239 .79
 +GST
$ 275 .76
Buy together and save $9.77 $11.24
Cruxtec USB-C to RJ45 2.5 Gigabit Ethernet Adapter --  10/100/1000/2500 Mbps
Cruxtec USB-C to RJ45 2.5 Gigabit Ethernet Adapter --  10/100/1000/2500 Mbps
$51.30 $59.00

$42.75  +GST

$49.16

You save 16% You save 16%
TP-Link TX201 PCI Express Network Adapter 2.5 Gigabit
TP-Link TX201 PCI Express Network Adapter 2.5 Gigabit
$33.91 $39.00

$32.69  +GST

$37.59

You save 3% You save 3%

Features

Plug-and-play 8 port 2.5GbE on copper and 1 port 10GbE using SFP+ hybrid unmanaged network switch

- One 10-Gigabit Ethernet SFP+ port
- Eight 2.5-Gigabit Ethernet 8p8c RJ45 port
- Provides up to 60 Gbps switching capacity
- Plug and Play - Easily deployed and ready to use
- Silent and fanless - seamless in any environment
- Can be mounted on walls
- Durable and aesthetically pleasing metal housing

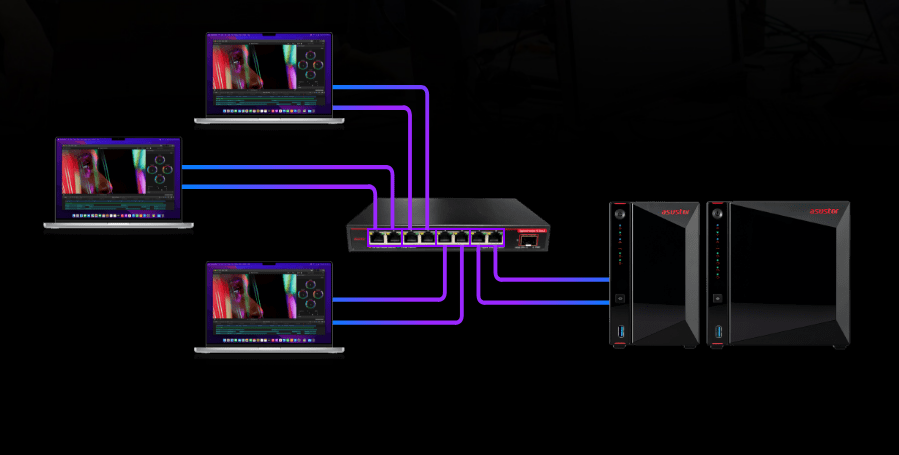

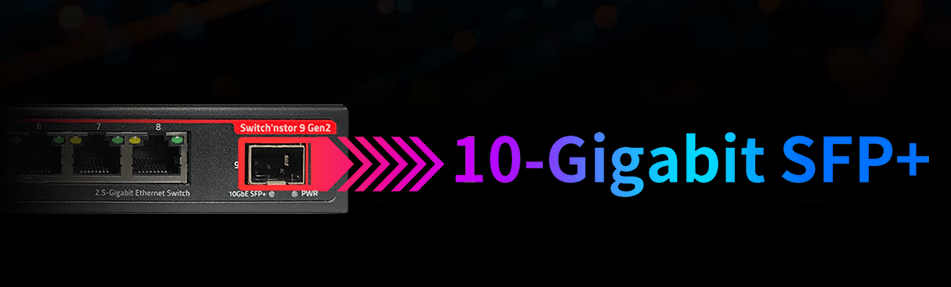

10Gbps / 4 = Full 2.5GbE Speeds

Included with the Switch'nstor 9 Gen2 is a 10-Gigabit Ethernet port using the SFP+ interface. By connecting your 10-Gigabit Ethernet-enabled ASUSTOR NAS, it significantly improves the performance of devices connected through the 2.5-Gigabit ports when accessing the connected 10GbE ASUSTOR NAS. This allows content creators or businesses to greatly improve work efficiency. Large files such as high-resolution videos or pictures can be transferred in less time as multiple 2.5-Gigabit Ethernet ports can share the bandwidth of the 10-Gigabit Ethernet port without loss of performance.

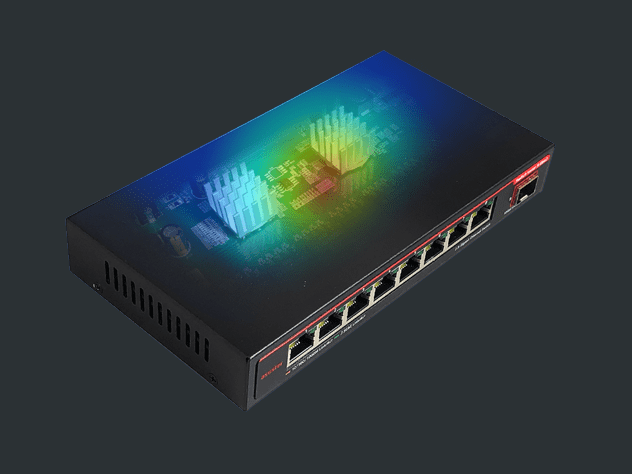

Silent operation

The Switch'nstor 9 Gen2 uses a sturdy design that incorporates efficient passive cooling for stable and quiet operation, making it ideal for an environment free from noise such as a content creation studio.



Collaborate Quickly

The Switch'nstor 9 Gen2 is great for work collaboration, home entertainment, small businesses and home offices. Not only can you use the 10-Gigabit Ethernet port to send data quickly to multiple client computers, it is also fast when using 2.5-Gigabit equipment. If your ASUSTOR NAS and PC have dual 2.5-Gigabit Ethernet ports, it can double performance between the NAS and PC.



Bring on the Speed!

Eight 2.5-Gigabit Ethernet ports and one 10-Gigabit Ethernet port using SFP+ makes the Switch'nstor 9 Gen2 perfect to join together your NAS, server, gaming and/or content creation computer and 2.5-Gigabit Wi-Fi router.

Specifications

Management Type

Unmanaged

Chipset

RTL8373 + RTL8224

Number of Ports

9

Speed

1x 10GbE (10G/2.5G/1G,SFP+)
8x 2.5GbE (2.5G/1G/100M,RJ45)

Jumbo Frames

10K

Supported Standards

IEEE 802.3 Ethernet
IEEE 802.3u (100BASE-T)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3z (1000BASE-X)
IEEE 802.3bz (2.5GBASE-T)
IEEE 802.3ae (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, 10GBASE-LX4)
IEEE 802.3x (Full-Duplex Flow Control)

Switching Capacity

60Gbps

MAC Address Table

4K

Total Non-Blocking Throughput

44.64Gbps

Power Supply Description

Adapter

Max. Power Consumption

12W

Input Power Type

DC

AC Input Voltage Range

100V~240V 50/60Hz

Fanless

Yes

LED Indicators

Power

Per Port

Speed / Activity

Operating Temperature

-10°C to 50°C (14°F to 122°F)

Operating Humidity

10% ~ 90% No condensation

Non-Operating Temperature

-40°C - 70°C (-40°F to 158°F)

Certification

FCC, CE, VCCI, BSMI, RCM, UKCA

Size

190 (H) x 100 (W) x 28(D) mm

Weight

490 (g) / 1.08 (lb)

Manufacturer Part No:
ASW209X
Brand:
Product Type:
-
UPC
887372901940
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
NETAST2090
Product Model:
ASW209X
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
