Cambium Networks ePMP 4500L 5 GHz 2x2 Fixed Wireless Access Point Radio (ROW) (ANZ cord)

PB Tech price

$ 1,004 .35

+GST

$ 1,155 .00

inc GST

Cambium Networks ePMP 4500L 5 GHz 2x2 Fixed Wireless Access Point Radio (ROW) (ANZ cord)

Brand: Cambium Networks
MPN: C050940A861
Part #: NETCBN010186
UPC:

FREE SHIPPING

PB Tech price

$ 1,155 .00

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Click & Collect unavailable

Delivery: Order now and it ships on 25 Nov When will I receive it?

Add To Compare

Stock Alerts

Four payments of $291.64 per fortnight*

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: Cambium Networks
MPN: C050940A861
Part #: NETCBN010186
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Cambium ePMP 4500L 5 GHz 2x2 Connectorised Fixed Wireless Access Point

Cambium Networks' ePMP product line has set the standard for high performance, scalability and reliability in harsh interference environments, all at a compelling price. ePMP 4500 access points (AP) interoperate with Force 400 Subscriber modules and support backward compatibility to Force 300 Subscriber modules in version 5.7 or newer. A sophisticated scheduling and QoS engine combined with TDD synchronization allows ePMP 4500 APs to deliver consistently high-quality service plans to a large number of end users.

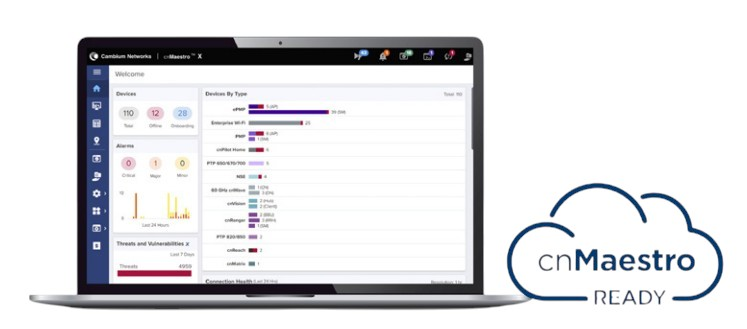

All ePMP 4500 Access point series are managed with cnMaestro™, and networks can be planned with LINKPlanner. Both are available from Cambium Networks at no charge.

ePMP 4500L

The ePMP 4500L 2x2 MIMO access point is connectorized with two RP-SMA for use with Cambium Networks 90º/120º degree sector antenna. This unit is also compatible with RF Elements Twistport™ adaptor for ePMP. Featuring the latest 1024QAM and 80 MHz channel bandwidth technology, this access points delivers performance above 1 Gbps.

- High-performance, scalable and reliable access points for fixed wireless broadband
- Connectorized 2x2 MIMO access point
- Interoperable with Force 400 and Force 300 subscriber modules
- Cloud or on-premises network management with cnMaestro

Specifications

Channel Width

20 / 40 / 80 MHz

Proprietary Physical Layer

2x2 MIMO/OFDMA based on 802.11ax underlying technology

Channel Spacing

Configurable in 5 MHz increments

Frequency Range

Wide Band Operation 4910-6135 MHz
(Note: Allowable frequencies and bands are dictated by individual country regulations)

MAC Layer (Media Access Control)

Cambium Proprietary

Ethernet Interfaces

100/1000 BaseT, rate auto negotiated, 802.3bt compliant & Aux SFP+ port

Supported Powering Methods

56V 30W PoE (included), standard 802.3at PoE Supply, or cnMatrix Tower Switch

Protocols Used

IPv4/IPV6, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

Network Management

HTTPS, SNMPv2c, SSH

VLAN

802.1Q with 802.1p priority

Subscribers per Sector

Up to 120

ARQ

Yes

Nominal Receive Sensitivity (w/FEC) @20 MHz Channel

MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain)

Nominal Receive Sensitivity (w/FEC) @40 MHz Channel

MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain)

Nominal Receive Sensitivity (w/FEC) @80 MHz Channel

MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57dBm (per chain)

Modulation Levels (Adaptive)

MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6)

GPS Synchronization

Yes, via Internal GPS

QoS (Quality of Service)

Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR support

Transmit Power Range

0 to +28 dBm (combined, to regional EIRP limit) (1 dB interval)

Antenna

Connectorized (sold separately)

Surge Supression

1 Joule Integrated

Environmental

IP67

Temperature

-30°C to 55°C (-22°F to 131°F)

Weight

1.3 kg (2.9 lbs)

Dimensions (H x W x D)

256 x 125 x 47 mm (10.1 x 4.9 x 1.9 in)

Power Consumption

28W Maximum

Input Voltage

44V to 59V

Sector Antenna Connection

2 x 50 ohm, RP (Reverse Polarity) SMA, Also compatible with RF Elements Twistport™ Adaptor for ePMP

GPS Antenna Connection

1 x 50 ohm, SMA; external GPS, External GPS Puck included in packaging

Encryption

128-bit AES (CCMP mode)

Manufacturer Part No:

C050940A861

Brand:

Cambium Networks

Product Type:

UPC

Product Family:

Shipping Weight:

5 kg

PB Part No:

NETCBN010186

Product Model:

Warranty: 12 months *
