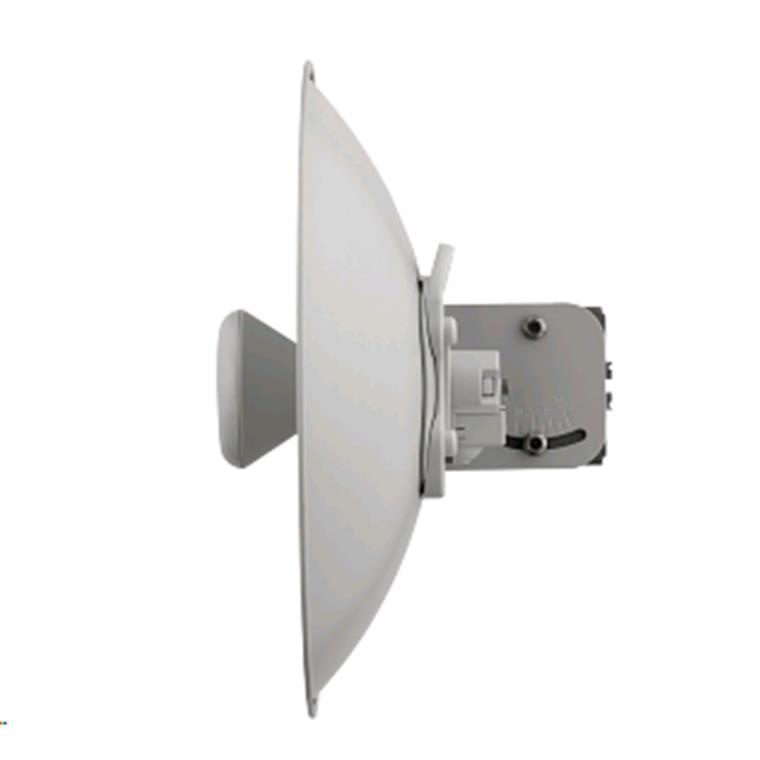

Cambium Networks N000900L021A ePMP Force 200 Radome

PB Tech price
PB Tech price
$ 46 .09
 +GST
$ 53 .00
 inc GST
$46.09  +GST
$53.00

Cambium Networks N000900L021A ePMP Force 200 Radome

PB Tech price
$ 46 .09 $ 53 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 03 Oct When will I receive it?
$46.09  +GST
$53.00

Features

ePMP™ FORCE 200 Radome

Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.

Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. The ePMP Force 200 high gain integrated solution enhances range and improves throughput in high interference environments. ePMP Force 200 is a completely redesigned solution from Cambium Networks that combines a highly integrated, high performance radio with a high gain dish antenna. The radio supports a gigabit Ethernet interface in order to provide maximum throughput. Operating in the 2.4 BOEGHz frequency spectrum, the solution brings wireless broadband connectivity to customers over longer distances and provides a superior return on investment.


FEATURES

- Cambium Networks' ePMP Force 200 is designed to operate in high interference environments and provides superior throughput of PWFS 20 Mbps of real user data.
- Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical trafc while providing high performance and round-trip latency as low as 2 - 3 ms.
- QoS management ofers an outstanding quality for triple play services - VoIP, video and data and provides three levels of trafc priority.
- Long deployment range is enabled by BIJHIHBJO antenna combined with 30 dBm of transmit power.
- This platform can be configured as a Subscriber Module or a high gain PTP radio.

Specifications

INTERFACE

MAC (Media Access Control) Layer
Cambium Proprietary

Physical Layer
2x2 MIMO/OFDM

Ethernet Interfaced
10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts

Protocols Used
IPv4, UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

Network Management
HTTPs, SNMPv2c, SSH

VLAN
802.1Q with 802.1p priority

PERFORMANCE

ARQ
Yes

Nominal Receive Sensitivity (w/FEC) @200MHz Channel
MCS0 = -92 dBm to MCS15 = -68 dBm (per branch)

Nominal Receive Sensitivity (w/FEC) @40MHz Channel
MCS0 = -89 dBm to MCS15 = -65 dBm (per branch)

Modulation Levels (Adaptive)
MCS0 (BPSK) to MCS15 (64QAM 5/6)

Quality of Service
Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority

Transmit Power Range
-15 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)

PHYSICAL

Surge Suppression
1 Joule Integrated

Environmental
IP55

Temperature
-30°C to +60°C (-22°F to +140°F) - with radome attached maximum temperature is +47°C (+116°F)

Weight
2.8kg

Wind Survival
145 km/hour (90 mi/hour)

Dimensions (Dia x Depth)
47 cm x 28 cm (18.5 in x 11.2 in)

Pole Diameter Range
6.4 cm - 7.6 cm (2.5 in - 3 in)

Power Consumption
10 W Maximum, 5 W Typical

Input Voltage
10 to 30 V

SECURITY

Encryption
128-bit AES (CCMP mode)

Manufacturer Part No:
N000900L021A
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.3 kg
PB Part No:
NETCBN3212598
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
