Cerio CerioPoE Injector Gigabit Ethernet PoE+ 30W Compact Size

PB Tech price
PB Tech price
$ 37 .39
 +GST
$ 43 .00
 inc GST
$37.39  +GST
$43.00

Cerio CerioPoE Injector Gigabit Ethernet PoE+ 30W Compact Size

  • Brand: Cerio
  • MPN: POE-PE03GE-30W
  • Part #: NETCER0001
  • UPC:
PB Tech price
$ 37 .39 $ 43 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 26 Sep When will I receive it?
$37.39  +GST
$43.00
  • Brand: Cerio
  • MPN: POE-PE03GE-30W
  • Part #: NETCER0001
  • UPC:

Features

The POE-PE03GE-30W is a passive type Gigabit PoE Injector bundle 30Watt Power supply. You can simultaneously transmit network data and power to PD powered network equipment through the RJ45 UTP cable. The simple connection provides a better solution for network devices for where the power source is not readily available.

The POE-PE03GE-30W is a cost effective solution for deploying Gigabit PoE Wireless Access Points or PoE IP Surveillance or PoE IP Phone in environments where the power source is not readily available or power cables are not permitted. In Gigabit Ethernet, four pairs of Cat5 or Cat5E twisted pairs are used as the medium for transmission. The actual data transmission only takes up two pairs of wires (pairs 1-2 and 3-6). The PoE technology utilizes the remaining pairs (pairs 4-5 and 7-8) to conduct electricity. The output power will be dependent on the power rating of the power supply that one chooses to use. This helps to reduce number of wires that lead up to tower and others.

- Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
- Supports PoE Powered Device (PD ) classification identify in accordance with Class 3/4 PoE 15.4/30Watt Power Levels.
- Bundles 30Watt Power supply for maximum power capacity of 30Watt.
- Over Current Protection and Short-circuit Protection.
- Supports desktop or wall mounting installation and multiple units combination for easy to bundles organize the Ethernet cables.

Long Distance Application

Cerio POE Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.

Additional Benefits

Some additional benefits of Cerio POE Injector include cost saving, convenience in network planning, and higher reliability.

Easy installation

Plug-and-Play, requires no configuration.

Product Application

Units Combination

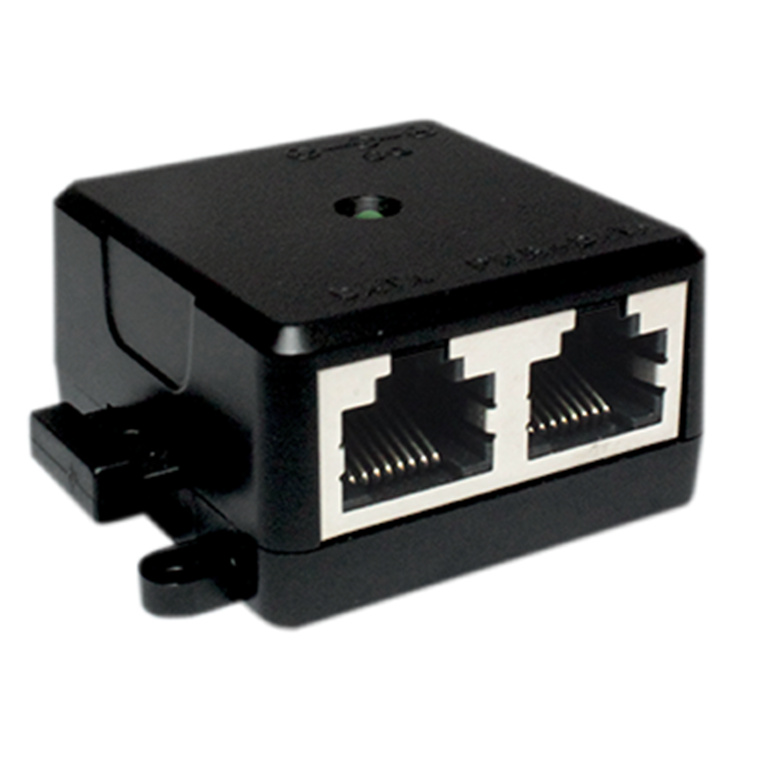

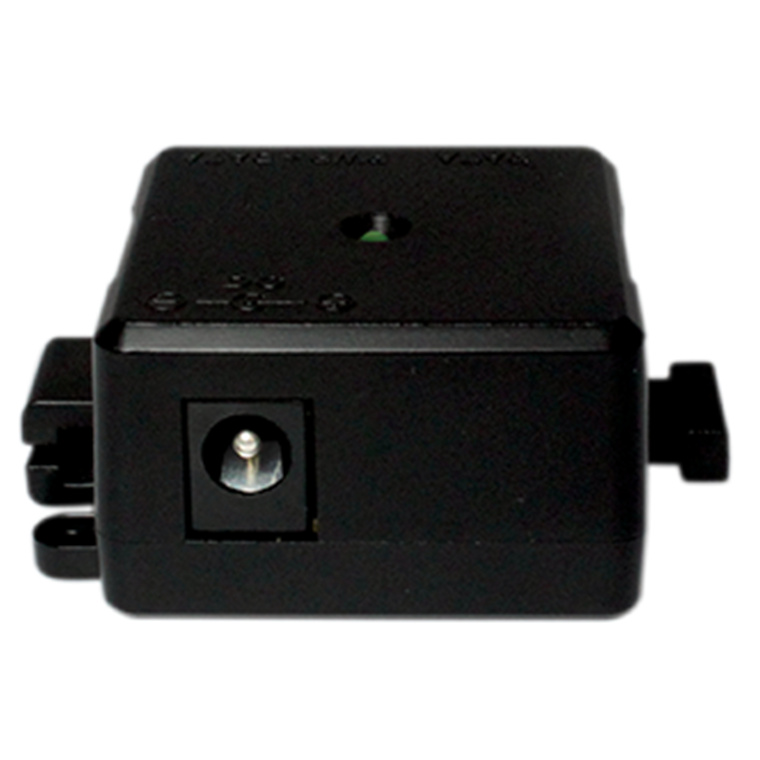

Hardware Overview

Specifications

Standards & Hardware Specifications

Standard

IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000Base-T

Network Media

10BASE -T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE : UTP Cat. 5 or up

Data Transfer Rate

10/100/1000Mbps (Half-duplex), 20/200/2000Mbps (Full-duplex)

PoE Type

Passive POE

Data PIN

PIN 1/2 & 3/6 , 4/5 & 7/8

Power PIN

PIN 4/5 & 7/8

Power Interface

Output: RJ45 Passive PoE+ Out
Input: DC In

ESD Protection

Over Voltage protection and Short Circuit Protection

Environmental & Mechanical Characteristics

Max PoE Power

30Watt

Power Requirement

52~56V  30W External Power Supply

Input Voltage

48-57Volt

LED

System: Power x1

Operating Temperature

0° to 55° C

Storage Temperature

-40° to 70° C

Operating Humidity

5% to 90% non-condensing

Storage Humidity

5% to 90% non-condensing

Dimension ( W x H x D )

54*41*23mm

Weight ( g )

30g

Form Factor

Wall mounting /Desktop/ Units Combination

Case of material

ABS

Certifications

RoHs compatible

Manufacturer Part No:
POE-PE03GE-30W
Brand:
Cerio
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETCER0001
Product Model:
-
