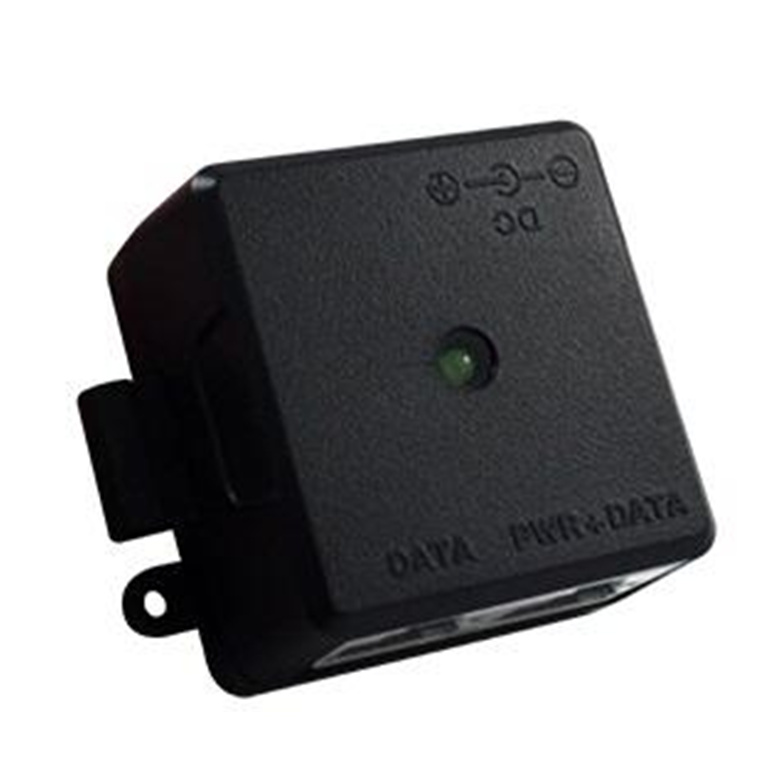

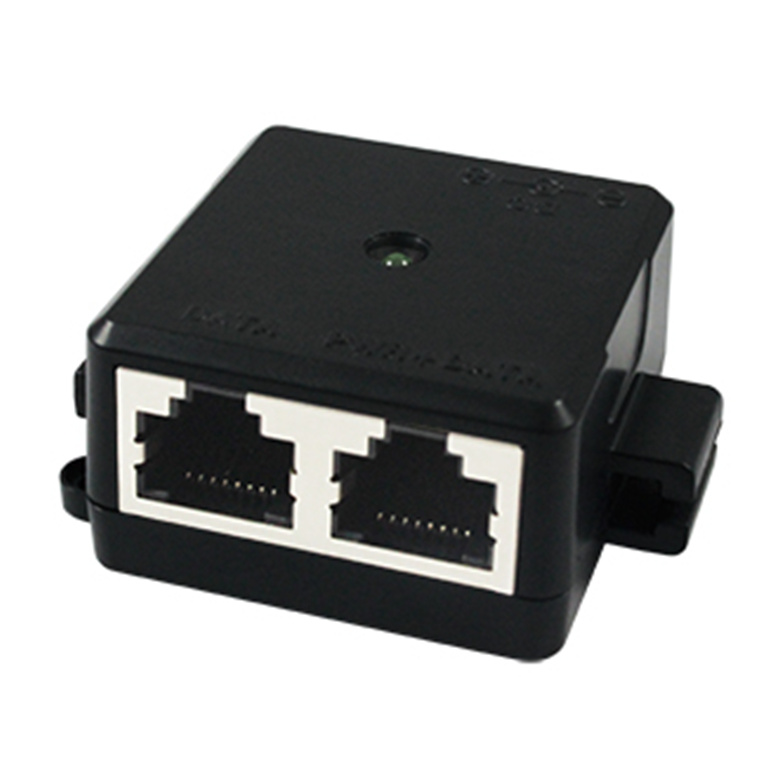

Cerio CerioPoE Injector PoE++ 802.3bt 56V with 60W power adapter
Cerio CerioPoE Injector PoE++ 802.3bt 56V with 60W power adapter
- Brand: Cerio
- MPN: FPOE-PE-60W
- Part #: NETCER0002
- UPC:
- Brand: Cerio
- MPN: FPOE-PE-60W
- Part #: NETCER0002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors





Cerio CerioPoE Injector PoE++ 802.3bt 56V with 60W power adapter
- Brand: Cerio
- MPN: FPOE-PE-60W
- Part #: NETCER0002

Product URL: https://www.pbtech.co.nz/product/NETCER0002/Cerio-CerioPoE-Injector-PoE-8023bt-56V-with-60W-po
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The CERIO FPOE-PE-60W is a passive Multi Gigabit PoE++ Injector that supports 802.3bt devices. It provides DC 50-57V over Ethernet cables. Provides a reliable hardware solution for demanding of 802.3bt Type3/Class5 45Watt and Class6 60Watt PoE power level PoE/PD powered devices. Simultaneously transmit network data and power to the PD equipment through the 4Pair UTP Ethernet Cable transmission. This Force Power PoE++ Injector series provides entry-level applications.
The FPOE-PE-60W Force Power Multi Gigabit PoE++ Injector brings a great deal of convenience benefits to any environments. With latest Force High Power Hardware design through 4Pair UTP Ethernet Cable to delivery both data and power to PD device. It provides 802.3bt Type3 Class6 / 60Watt and Class5 / 45Watt power level for PD device, such as the "PoE IP Speed Dome PTZ CAM " and "the latest WiFi 6 generation 802.11ax WiFi AP provide a stable high power PoE powered solution. The plug-and-play connection provides a best solution for where power outlets are not readily available and provides a cost-effective solution for high-speed security surveillance (CCTV System) and network planning.
- Supports 1/2.5/5Gbps Multi Gigabit Ethernet and Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T standard.
- Supports PoE PSE/PD function and provides 802.3bt Type3 Class6 and backward power level for PD device.
- Provides Force Power PoE++ output ability, and low cable-loss which can maintain 60Watt PoE power up to 100 meters distance.
- Max Output power up to 802.3bt Type3 Class6 (60Watt) power level.
- Over Current Protection and Short-circuit Protection.
- Supports desktop, wall mounting installation and multiple units combination easy to use.
Long Distance Application
Cerio Force Power Multi Gigabit PoE++ Injector can provide both data and power for distances of up to 100 meters (328 feet) from the power source (60Watt) and without cable-loss when using CAT 6 or up cabling.
ESD Protection
FPOE-PE-60W supports ESD, Electro Static Discharge protection includes Over Voltage protection and Short Circuit Protection ensuring device safety.
Additional Benefits
Some additional benefits of Cerio Force Power PoE++ Injector include cost saving, convenience in network planning, and higher reliability.
Easy installation
Plug-and-Play, requires no configuration
Product Application
Hardware Overview
Specifications
Standards & Hardware Specifications
Standard
IEEE802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBASE-T
Network Media
10BASE -T: UTP Cat. 3 or up
100BASE-TX: UTP Cat.5 or up
1G/2.5G/5GBASE-T : UTP Cat.5e or up
Data Transfer Rate
10M/100M/1G/2.5G/5G (Half-duplex),
20M/200M/2G/5G/10G (Full-duplex)
PoE Type
Passive POE
Data PIN
PIN 1/2 , 3/6 & 4/5 , 7/8
Power PIN
End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B): PIN 4/5,7/8
Ethernet Connector
RJ-45 x1 : Power + Data
RJ-45 x1 : Data
Power Connector(Interface)
DC Jack
ESD Protection
Supports ESD (Electro Static Discharge)
Over Voltage protection and Short Circuit Protection
Environmental & Mechanical Characteristics
Max Power Output
60Watts
Power Requirement
56V 60Watt External Power Supply
Input Voltage
50 ~ 57Volt
Cable and Power Loss
@ 100Meter : Keep power source ability (60Watt)with Cat.6 or up Cable
@ 100Meter : " 14Watt " with Cat.5e Cable
LED
System LED: Power (Green) x1
Operating Temperature
0° to 55° C
Storage Temperature
-40° to 70° C
Operating Humidity
5% to 90% non-condensing
Storage Humidity
5% to 90% non-condensing
Dimension ( W x H x D )
54mm*41mm*23mm
Weight ( g )
29.8g
Form Factor
Desktop/Wall mounting / Units Combination
Case of material
ABS
Production Location
TW
Certifications
FCC ,CE, RoHs compatible
