Features
Procet Gigabit 802.3at PoE to TYPE-C USB 25Watt Power Converter
PT-PTC-AT is an indoor PoE rated networking converter, special convert power&data from PoE to Type-C devices. It is with 1 PoE port for 802.3 at standard input and 1 Type -C port for power output and 1 RJ45 port for data output. The dataspeed is 10/100/1000Mbps (Gigabit). This converter output total 25W for Type-C PDs, and the voltage output from 5V-20V base on the required of your Type-C PDs. It is designed with OVP,OCP, SCP, then worked safty for the Type-C PDs, such as computers, IPad, Macbook, Google Wifi etc.
PT-PTC-AT only works for indoor environment, which designed to be powered from the IEEE802.3at PoE switch or PoE injector. The standard effective distance is 100m from PoE switch or injector to Type-C converter over Cat5 /5e/6 cables.
Enclosed in an IP40 high-impact metal case with small size and easy to pair with nearly everything else.
Auto negotiate USBC devices with Type-C detecting chip: 5V 3.4A, 9V 2.8A, 12V 2.1A, 15V 1.8A, 20V 1.3A

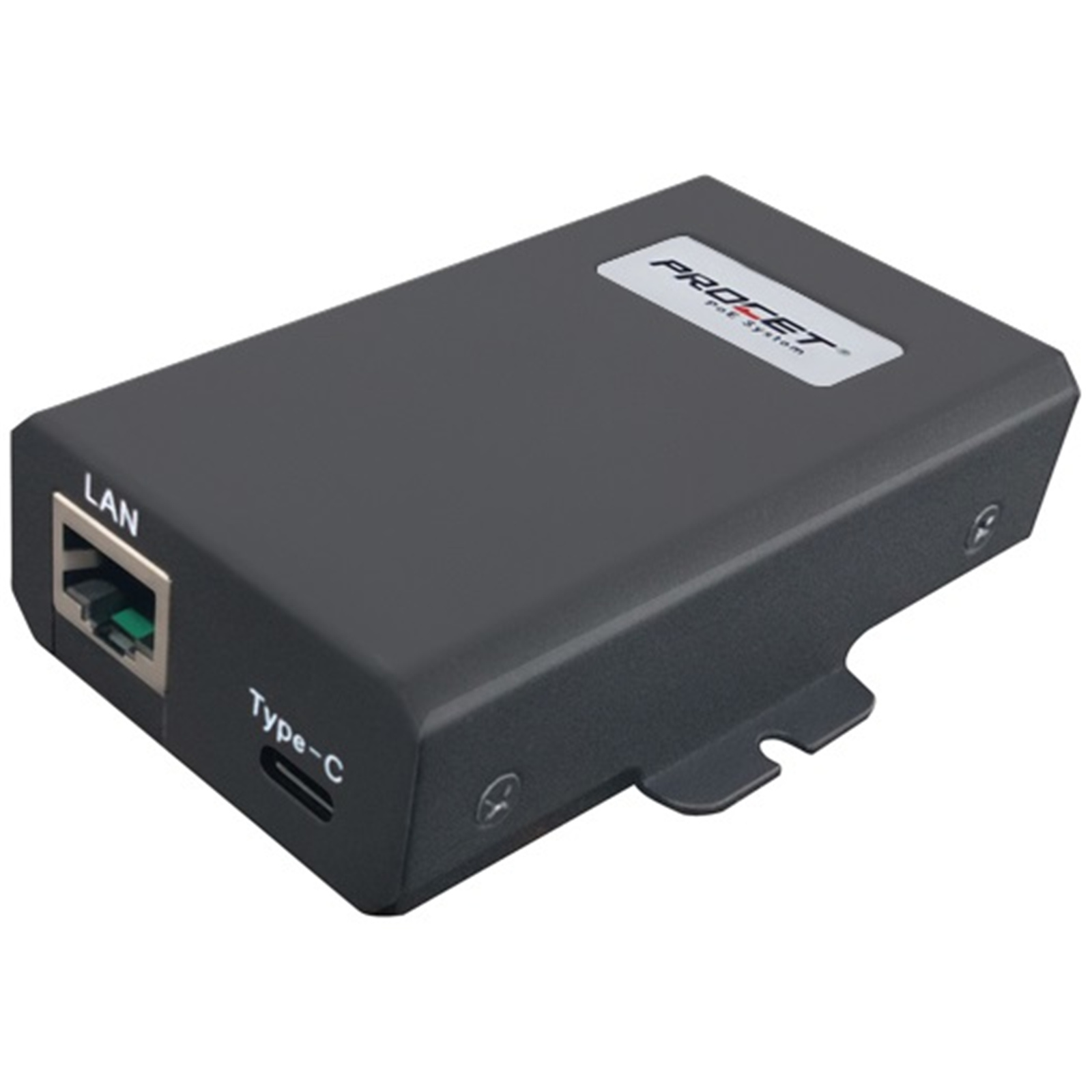

Product Profile

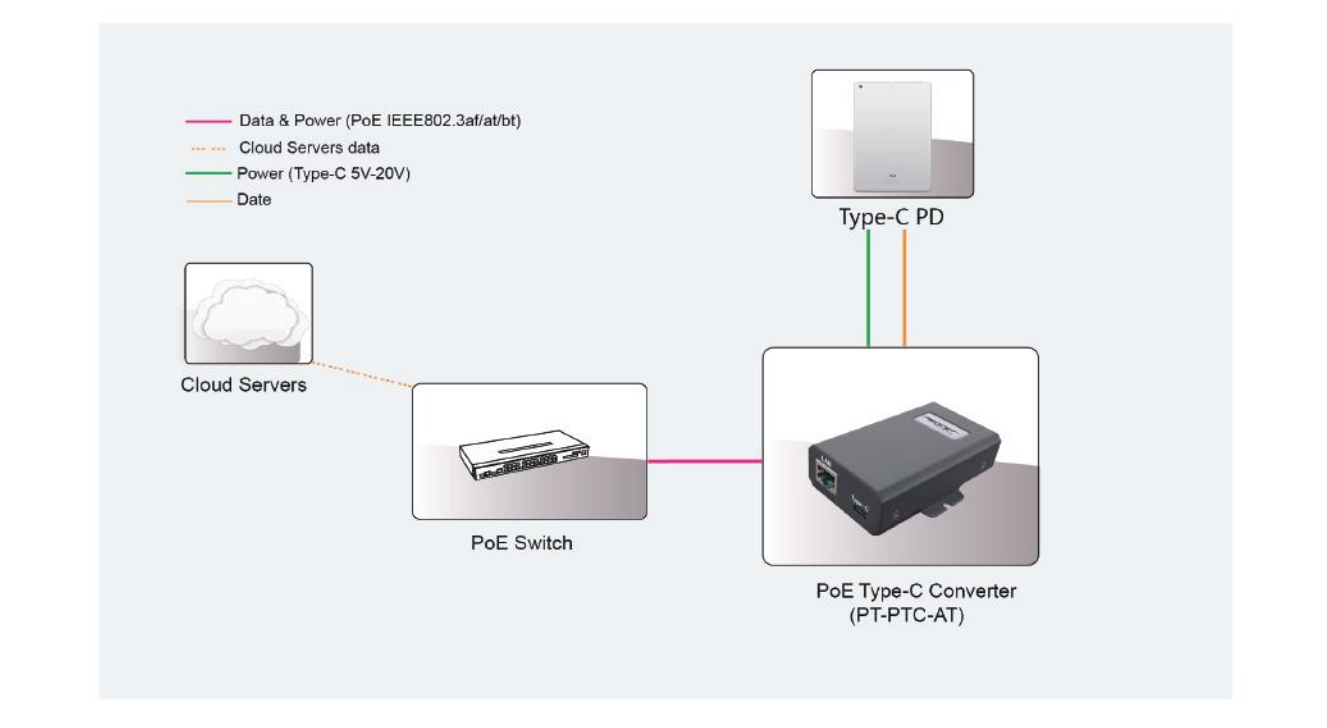

Product Working Diagram
Specifications
Manufacturer
Procet
Manufacturer's Product Code
PT-PTC-AT
Data speed
10/100/1000Mbps (Gigabit)
Input Voltage
44-57Vdc, IEEE802.3af/at
Output Voltage
USB Type C PD; Auto negotiate: 5V 3.4A, 9V 2.8A, 12V 2.1A, 15V 1.8A, 20V 1.3A
Max Output power
25W
LED Indicator
PoE input indicator: Green
Type C output indicator : Yellow
Case
Metal
Connetor Types
USB Type C & RJ45
Color
Black
Operating Temperature
0? to 40?
Operating Humidity
20% to 80%, non-condensation
Storage Temperature
-20? to 70?
Storage Humidity
10% to 90%, non-condensation
Operating Altitude
up to 2000meters
IP Rated
IP40
Size
90mm x 64.22mm x 24mm
Weight
250g
EMI
FCC CFR47 Part 15, EN55024, EN55032
