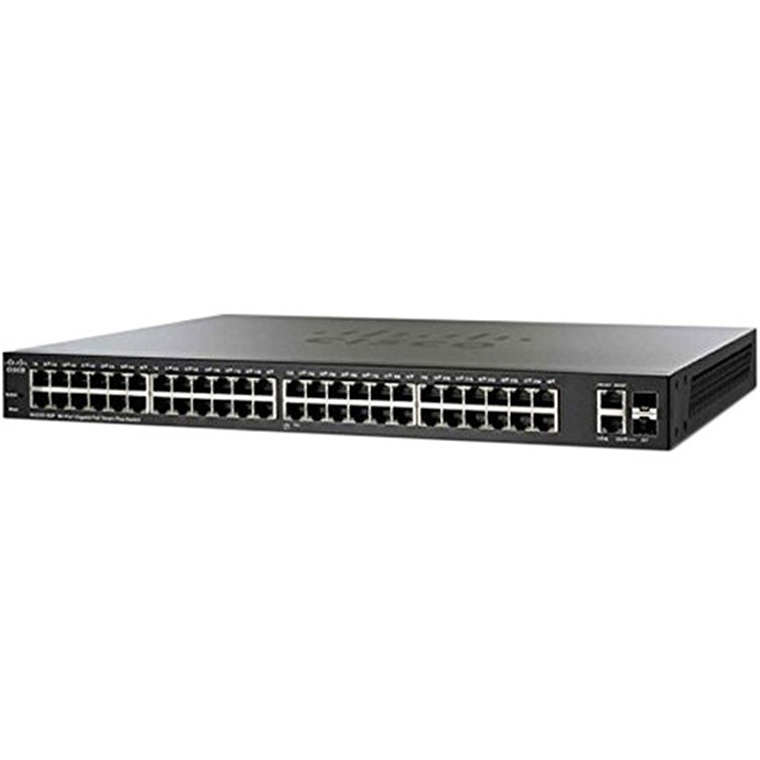

Cisco 220 Series Smart Plus Managed Switch, 48 Ports GbE RJ-45, 2 Ports GbE Combo RJ-45 or SFP, Limited Lifetime Warranty

Cisco 220 Series Smart Plus Managed Switch, 48 Ports GbE RJ-45, 2 Ports GbE Combo RJ-45 or SFP, Limited Lifetime Warranty
PB Tech price: PB Tech price:
$449 00  +GST $516 35  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews

Generating Print Page

Cisco 220 Series Smart Plus Managed Switch, 48 Ports GbE RJ-45, 2 Ports GbE Combo RJ-45 or SFP, Limited Lifetime Warranty

Cisco 220 Series Smart Plus Managed Switch, 48 Ports GbE RJ-45, 2 Ports GbE Combo RJ-45 or SFP,...

  • Brand: Cisco
  • MPN: SG220-50-K9-AU
  • Part #: NETCIS2703552
  • UPC:882658624759
  • Form Factor:1U Rackmount
  • 10 Gigabit:No
  • 10 Gigabit Ports:0 Ports
  • Management Level:Smart / Web Managed
  • Number of Ports:48 Ports
  • PoE:No
  • PoE Ports:0 Ports
  • PoE Budget:N/A
  • View more
PB Tech price: PB Tech price:
$449 00 $516 35
 +GST  inc GST
Hurry, only 1 unit left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?

Six easy payments of $88.64 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $106.37 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $4.29 per week, 18 months interest free - 36 months to pay available*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 18 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

With the 48-Port 220 Series Smart Plus Switch from Cisco small to medium sized businesses benefit from a switch capable of handling a large number of users. Along with the large user capacity supported by this switch, users benefit from enhanced security capabilities, streamlined management, and improved energy efficiency. Once installed this Cisco Smart Switch supports up to 8,192 MAC addresses along with support for the 802.3ad Link Aggregation Control Protocol capable of configuring 8 groups with 8 ports per group and 16 candidates per port. VLAN features include support for up to 256 simultaneous VLANs as well as 802.1Q VLAN tagging and support for guest VLANs to help organize connected clients into specified groups. Once the network has been configured, network administrators can implement a variety of security protocols to ensure connections and information remain secure. Features including port security, 802.1x authentication, and MAC address filtering allow administrators to restrict user access and lock ports to ensure only specified users have access to network resources. Additional security features including DoS prevention, Secure Shell Protocol, and Secure Sockets Layer help to mitigate the threats posed to the network and manage traffic. With this 48-Port Cisco Switch network administrators also benefit from improved management capabilities. With a web based user interface it is possible to configure, monitor, and maintain various aspect of the network right from your web browser. Cisco has also included support for Cisco Small Business FindIT Network Tool for added management capabilities. It is even possible to upgrade the switch firmware using a web browser and Trivial File Transfer Protocol while dual image support keeps the network up and running while the firmware upgrade takes place.


Secured Desktop Connectivity

This Cisco 220 Series Switch can quickly and reliably connect employees working in small offices with each other and with all of the servers, printers, and other devices they use. With device authentication and access control, you can maintain the integrity of key business information while keeping you employees connected and productive.


Flexible Wireless Connectivity


With PoE+ support, and comprehensive security and quality of service (QoS) capabilities, this Cisco 220 Series Switch provide a solid foundation to add business-grade wireless to the network. You can easily move up to a cutting-edge 802.11ac wireless access point to increase workforce productivity without worrying about power and throughput.


Unified Communications


This Cisco 220 Series Switch provide QoS features to automatically prioritize delay-sensitive traffic to help you easily deploy an IP-based communication solution on a converged network. PoE+ support can enable IP cameras and videophones to be easily added to your current network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses. Cisco 220 Series Switches have been rigorously tested to help ensure easy integration and full compatibility with these and other vendor products.

Specifications

Switching Capacity

74.40 mpps
100 Gbps

MAC Address Table

Up to 8192 MAC addresses

Buttons

Reset button

Cabling Type

Unshielded twisted pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5
Ethernet or better for 1000BASE-T

LEDs

System, Link/Act, Speed

Memory

Flash: 32 MB
CPU Memory: 128 MB

Ports

48 x 10/100/1000 Ports
2 x Gigabit RJ-45/SFP combo ports

Packet Buffer

12 Mb

Power

100-240 V, 50-60 Hz, Internal

Certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, C-tick

Temperature & Humidity

Operating Temperature: 32 to 122°F / 0 to 50°C
Storage Temperature: 14 to 158°F / -10 to 70°C
Operating Humidity: 10 to 90% RH, non-condensing
Storage Humidity: 10 to 90% RH, non-condensing

Power Consumption

EEE + Energy Detect
110 V=36.6 W
220 V=39.9 W
Heat Dissipation
124.9 BTU/hr

Acoustic Noise

Fan
1 pcs/6300 rpm
No Fan speed control
Acoustic Noise
40.3 dB

MTBF

194,036 hours @ 122°F / 50°C

Dimensions

17.3 x 1.7 x 7.9" / 440 x 44 x 201 mm

Weight

7.3 lb / 3.3 kg

Manufacturer Part No: SG220-50-K9-AU Brand: Cisco Product Type: -
UPC 882658624759 Product Family: 220 Series Shipping Weight: 4.438 kg
PB Part No: NETCIS2703552 Product Model: -

Warranty: 60 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
