Cisco MSWS-19-STA2C WINDOWS SERVER 2019 STANDARD - ADDITIONAL 2 CORES
Cisco MSWS-19-STA2C WINDOWS SERVER 2019 STANDARD - ADDITIONAL 2 CORES
- Brand: Cisco
- MPN: QSFP-100G-CU2M=
- Part #: NETCIS3409125
- UPC:
- Brand: Cisco
- MPN: QSFP-100G-CU2M=
- Part #: NETCIS3409125
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Adapters
Cisco MSWS-19-STA2C WINDOWS SERVER 2019 STANDARD - ADDITIONAL 2 CORES
- Brand: Cisco
- MPN: QSFP-100G-CU2M=
- Part #: NETCIS3409125
Product URL: https://www.pbtech.co.nz/product/NETCIS3409125/Cisco-MSWS-19-STA2C-WINDOWS-SERVER-2019-STANDARD
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

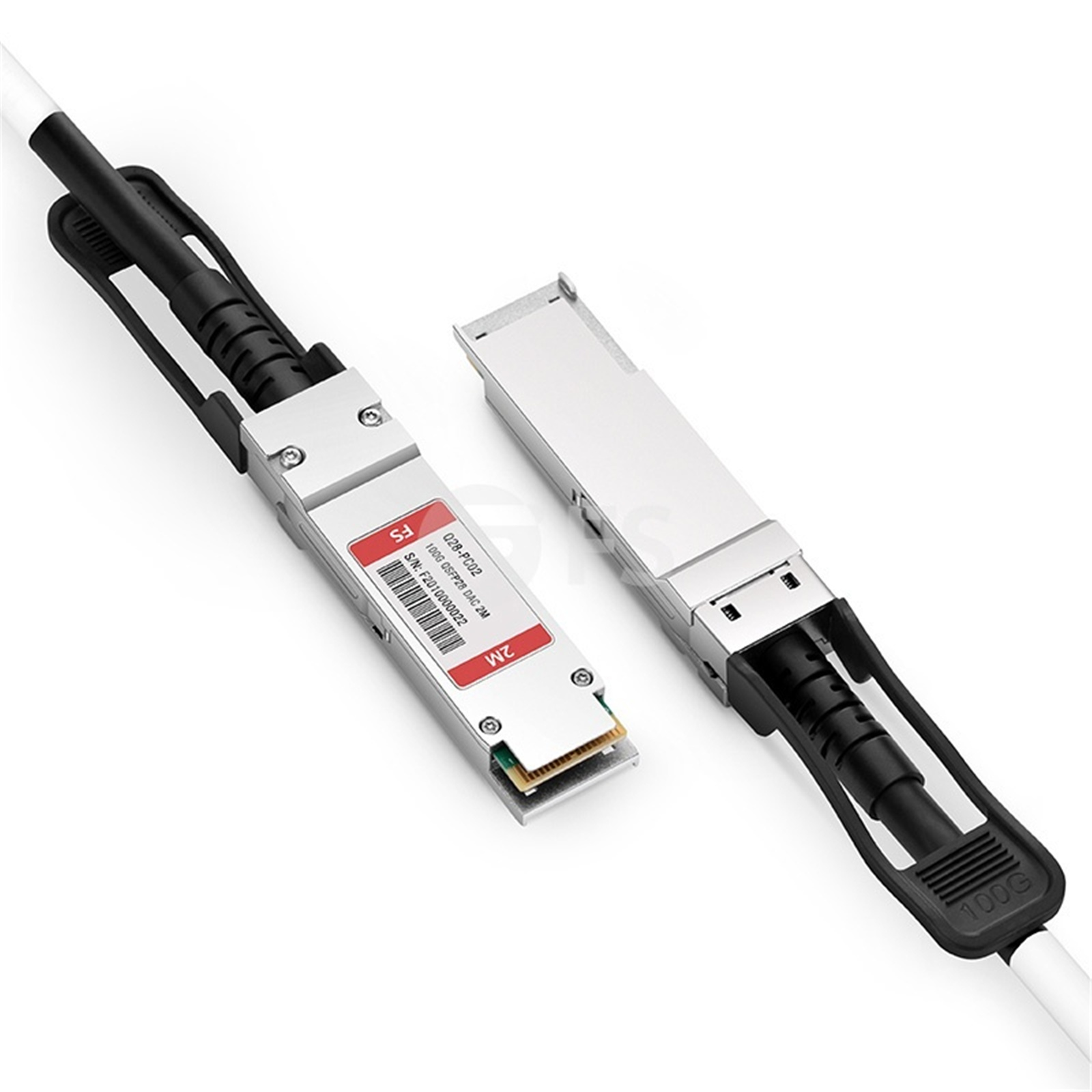

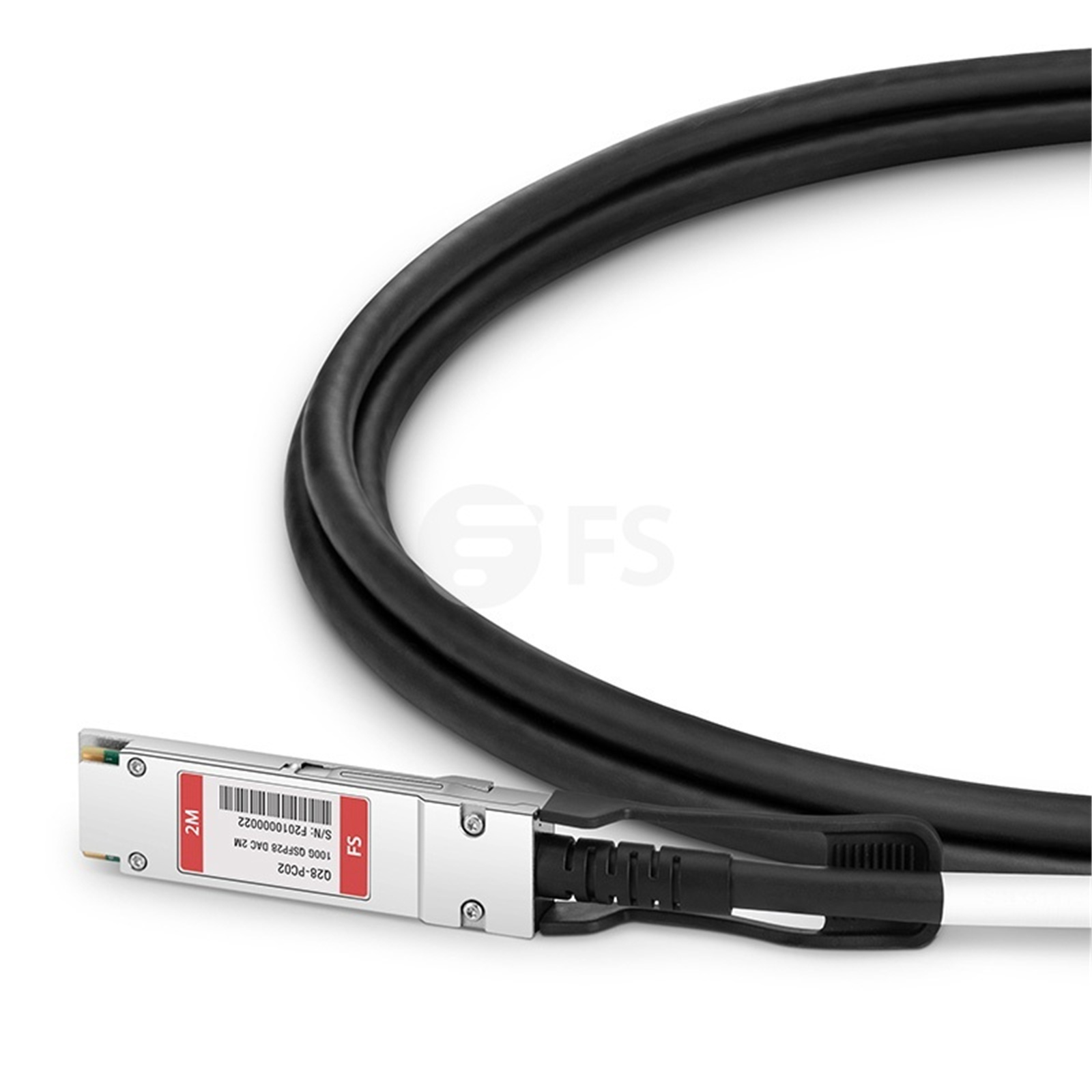

Cisco QSFP-100G-CU2M Compatible 100G QSFP28 DAC Cable (2-meter, Passive, QSFP28 to QSFP28, 30AWG)
The 100G QSFP28 Passive Direct Attach Copper Twinax Cable provides a cost-effective way to establish a 100-Gigabit link between QSFP-100G ports of switches within racks and across adjacent racks. This Direct Attach Copper is compliant with IEEE 802.3, SFF-8665, QSFP28 MSA and InfiniBand HDR.
-Functionally identical to Cisco QSFP-100G-CU2M
-Compliant with SFF-8665/SFF-8679
-Compliant with IEEE 802.3bj
-4 independent full-duplex channels
-Up to 25.8Gbps data rate per channel
-Single 3.3V power supply
-Much Lower cost when compared to Cisco genuine
Low Power Consumption for Energy-saving
Direct attach copper is suitable for very short links and offer a cost-effective way to establish a 100-Gigabit link between QSFP-100G ports within racks and across adjacent racks.
Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.
Test Bed
Cisco Catalyst C9500-24Y4C
Safety Standards
EN 60825-1 (2007)/EN 60825-2 (2010).
FDA 21CFR1040.10 Class 1 Laser Product.
Compliance with Restriction on Hazardous Substances (RoHS) directive.
CE Marked.
Product Support
This product is 100% compatible with all Cisco products that support 100GBASE QSFP28 Direct Attach Cables.Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.
Specifications
Cisco Compatible
QSFP-100G-CU2M
Vendor Name
FS
Connector Type
QSFP28 to QSFP28
Max Data Rate
100Gbps
Minimum Bend Radius
46mm
Wire AWG
30AWG
Cable Length
2m (6.56ft)
Jacket Material
PVC (OFNR)
Cable Type
Passive Twinax
MTBF
˜50 Million Hours
Power Consumption
<0.1W
Power Supply
3.3V
Temperature
0 to 70°C (32 to 158°F)
Protocols
IEEE 802.3,SFP28 MSA, SFF-8665, InfiniBand HDR
