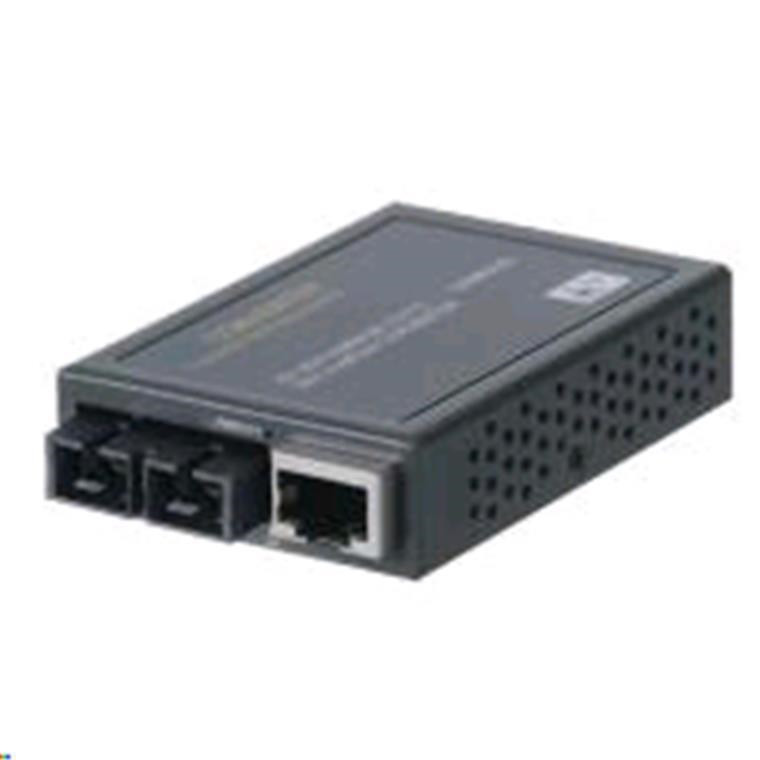

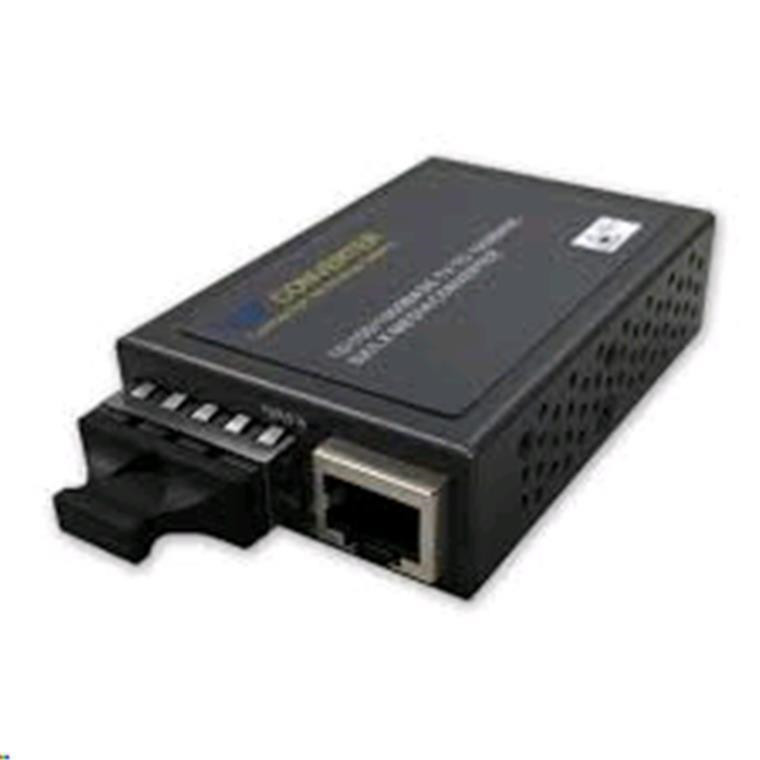

CTS MCT-3002BTFC Compact Gigabit Media Converter 10/100/1000Base-TX RJ45 to 1000Base-SX SC Multi-Mode Fibre

CTS MCT-3002BTFC Compact Gigabit Media Converter 10/100/1000Base-TX RJ45 to 1000Base-SX SC Multi...

  • Brand: CTS
  • MPN: MCT-3002BTFC
  • Part #: NETCTS0038
  • UPC:
PB Tech price:PB Tech price:
$13826$15900
 +GST  inc GST
Hurry, only 4 units left!

Store Pickup: Select your store to check availability
Delivery: Order now and it ships tomorrow
When will I receive it?
View delivery cut-off times over the Holiday period
Add To Compare

Four easy payments of $40.94 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Six easy payments of $27.29 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Features

Description

Connection Technology Systems (CTS) MCT-3002-DR series media converter are the Gigabit Ethernet 10/100/1000 Base-T to 100/1000Base-X media converter. The MCT-3002-DR series media converter converts traditional twisted-pair RJ-45 cable into various ber media including multi-mode, single-mode, SC connector, bi-directional WDM, or a SFP slot for pluggable ber transceiver, extending transmission distance for the deployment to the household, apartment or campus. MCT-3002-DR series media converter is fully compliant with IEEE 802.3, 802.3u, 802.3ab & 802.3z standards. Besides, it is equipped with some switching features including store and forward. The installation and operation are simple and straightforward. The operation status can be monitored through a set of diagnostic LED indicators on the front panel. It is especially designed for network operators, metro Ethernet providers, enterprises, SMB, who have the need of implementing ber optical Ethernet networks over long distance, for FTTX solutions, and are looking for an eortless and reliable 1000Mbps media converter.

Features

- The World-wide Effortless and Reliable Media Converter The almost "set-it-and-forget-it" media converter is for minimizing network implementation and maintenance efforts
- 9K Bytes Jumbo Frame Size Support jumbo frame size 9K bytes to ease the network traffic loading and facilitate IPTV service
- Link Alarm when UTP or fiber port is down during operation, the other port will be automatically turned off to alert the user
- Fully Compatible with MCT-RACK-18 Series Space-saving and budget limited solution for MCTRACK-18 series to mix installation with MCT series converter
- Dual Rate.  Dual Rate media converter with auto-sensing function can automatically adjust to the speed of the slide-in fiber transceiver. This can save the cost when upgrading the device from 100Mbps to 1000Mbps

Specifications

Interface
TP Port
10/100/1000Base-T RJ-45 x 1
F/O Port
100/1000Base-X x 1

Standards

IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX
IEEE 802.3ab 1000Base-T
IEEE 802.3z 1000Base-X

H/W Specication

Store and Forward Switching
Mechanism
Auto-Crossover for MDI/MDI-X in TP
Port
Auto-Negotiation in TP Port
Full/Half Duplex Mode Operation
Mac Address Table : 2K
Memory Buer (Bytes) : 128K
Jumbo Frame (9K Bytes)
Slide-In Converter Center

LED

Power, FDX, Status, Speed, F/O, TP

Ethernet Features
Support 9K Bytes Jumbo Frame
Store and Forward Switching
Mechanism
Other Features
Rear Panel DIP Switch
Support Link Alarm
Support Slide-In Converter Center

Power Requirement

Power Adaptor
- AC Input: 100VAC~240VAC
- Frequency Range: 50~60Hz
- DC Output: 3.3V
Power Consumption: 2.3W

Environmental Condition

Operation: 0? ~ 50?
Storage Temperature: -20? ~ 60?
Humidity: 5% ~ 90%,
Non-Condensing

Dimension & Weight

Size: 51 x 74 x 20 mm (WxDxH)
Weight: 0.1Kg

EMC/Safety

FCC Class A, CE
Manufacturer Part No: MCT-3002BTFC Brand: CTS Product Type: -
UPC - Product Family: - Shipping Weight: 0.42 kg
PB Part No: NETCTS0038 Product Model: MCT-3002BTFC

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
