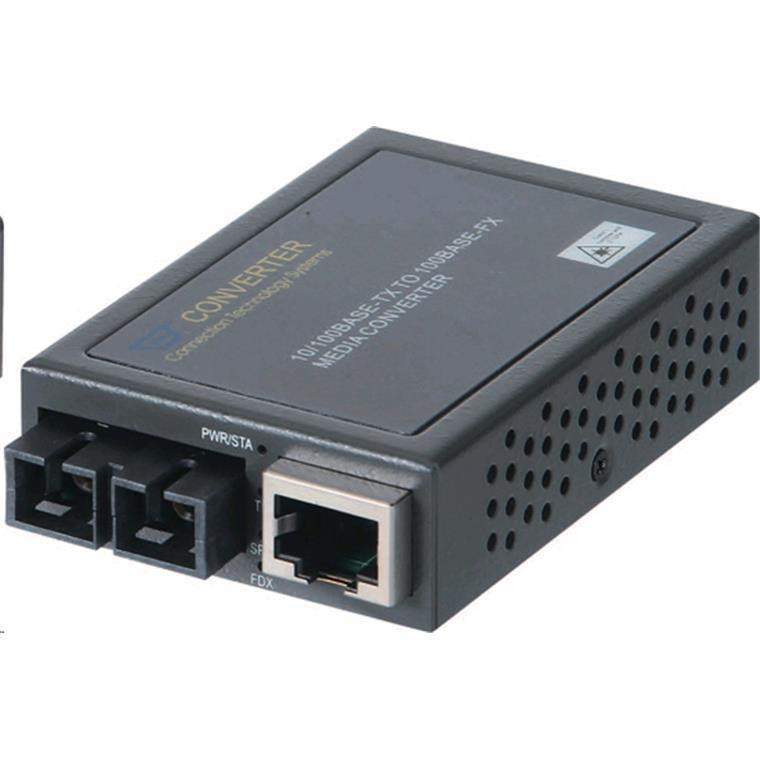

CTS Compact Fast Ethernet Media Converter 10/100Base-TX RJ45 to 100Base-FX SC Single-Mode Fibre 30K

CTS Compact Fast Ethernet Media Converter 10/100Base-TX RJ45 to 100Base-FX SC Single-Mode Fibre 30K
PB Tech price: PB Tech price:
$116 52  +GST $134 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

CTS Compact Fast Ethernet Media Converter 10/100Base-TX RJ45 to 100Base-FX SC Single-Mode Fibre 30K

CTS Compact Fast Ethernet Media Converter 10/100Base-TX RJ45 to 100Base-FX SC Single-Mode Fibre...

  • Brand: CTS
  • MPN: MCT-100BTFCSM30
  • Part #: NETCTS0040
  • UPC:
PB Tech price: PB Tech price:
$116 52 $134 00
 +GST  inc GST

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 01/02/2021 When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $27.60 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $23.00 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Features

Fast Ethernet 10/100Base-TX to 100Base-FX

Connection Technology Systems (CTS) MCT-100 series media converter are the Fast Ethernet 10/100Base-T to 100Base-X media converter. The MCT-100 series media converter converts traditional twisted-pair RJ-45 cable into various ber media including multi-mode, single-mode,
SC/ST/MR connector, or bi-directional wdm, extending transmission distance for the deployment to the household, apartment or campus.

MCT-100 series media converter is fully compliant with IEEE 802.3, 802.3u standards. Besides, it is equipped with some switching features including store and forward. With the built-in switch ASIC chip, it has turned MCT-100 series to become more like a two-port switch rather than like an ordinary converter. User can get many switch benets such as segmentation, frame checking and error ltering. Additionally, Link Alarm feature enables administrator to monitor the ber link more easily. The installation and operation are simple and straightforward.

The operation status can be monitored through a set of diagnostic LED indicators on the front panel. It is especially designed for network operators, metro Ethernet providers, enterprises, SMB, who have the need of implementing
ber optical Ethernet networks over long distance, for FTTX solutions, and are looking for an eortless and reliable 100Mbps media converter.

9K Bytes Jumbo Frame Size
Support Jumbo Frame size 9K bytes to ease the network traffic loading and facilitate IPTV service

Fully Compatible with MCT-RACK-18 Series
Space-saving and budget-limited solution for MCT-RACK- 18 series to mix installation with MCT series converter.

Link Alarm
When UTP or fiber port is down during operation, the other port will be automatically turned off to alert the user

Specifications

Interfaces
TP Port
10/100Base-T RJ45 x 1
F/O Port
100Base-X x 1

Standards
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/FX

LED
Power/Status, TP, Speed, FDX, F/O

H/W Specication
Store and Forward Switching Mechanism
Auto-Cross Over for MDI/MDI-X in TP port
Auto-Negotiation in TP Port
Full/Half Duplex Mode Operation
1K MAC Address Table
48K Bytes Memory Buer
Link Alarm

Ethernet Features
Support 9K Bytes Jumbo Frame

Power Adaptor
AC Input: 100VAC~240VAC

Frequency Range:
50~60Hz

DC Output:
3.3V

Power Consumption:
1.9W

Operation:
0° ~ 50°C

Storage Temperature:
-20° ~ 60°C

Humidity:
5% ~ 90% Non-Condensing

Dimensions
51 x 74 x 20 mm

Weight:
0.1Kg

EMC/Safety
FCC Class A,CE
Manufacturer Part No: MCT-100BTFCSM30 Brand: CTS Product Type: -
UPC - Product Family: - Shipping Weight: 0.354 kg
PB Part No: NETCTS0040 Product Model: -

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
