Edimax EW-7811UAC AC600 Wi-Fi Dual-Band High Gain USB Adapter - IEEE 802.11ac and backward compatible

PB Tech price
PB Tech price
$ 40 .48
 +GST
$ 46 .55
 inc GST
$40.48  +GST
$46.55

Edimax EW-7811UAC AC600 Wi-Fi Dual-Band High Gain USB Adapter - IEEE 802.11ac and backward compatible

  • Brand: Edimax
  • MPN: EW-7811UAC
  • Part #: NETEDM1086
  • UPC:
PB Tech price
$ 40 .48 $ 46 .55
 +GST  inc GST
Hurry, only 4 units left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$40.48  +GST
$46.55

Four payments of $11.75 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Features

AC600 Wi-Fi Dual-Band High Gain USB Adapter

-Complies with draft IEEE 802.11ac standard and backward compatible with wireless 802.11a/b/g/n standards
-Dual-band wireless connectivity for 2.4GHz or 5GHz
-Max. Wi-Fi speeds of 150Mbps (2.4GHz) or 433Mbps (5GHz)
-Features a hardware WPS (Wi-Fi Protected Setup) button for easy wireless connections
-Features easy setup wizard
-Supports Windows XP/Vista/7/8/8.1, Linux and Mac OS X drivers
-High gain antenna, 4dBi (2.4GHz) and 6dBi(5GHz), provides high performance long distance wireless connections
-USB cradle for flexible placement and better wireless signal

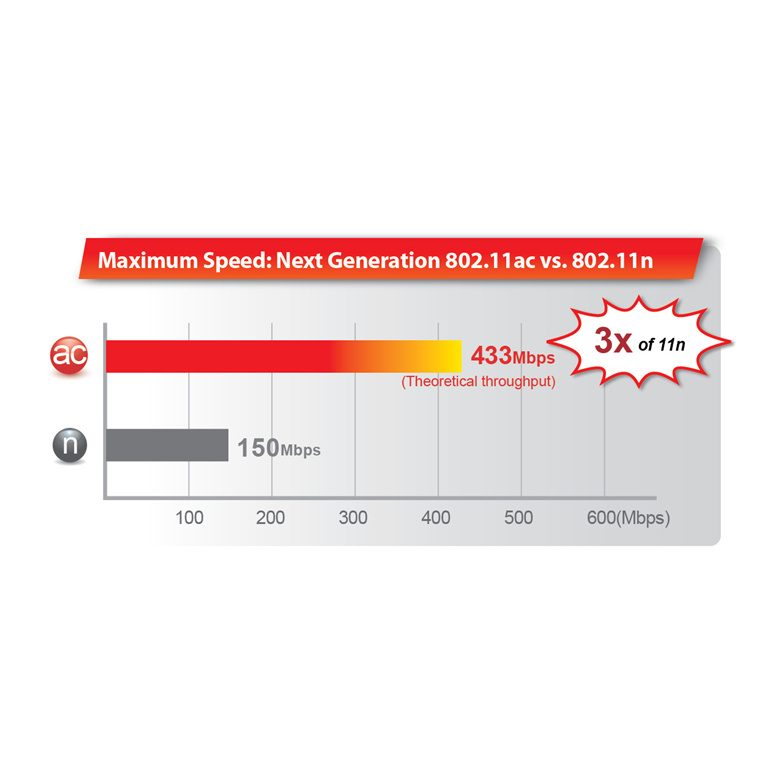

Next Generation Wi-Fi Standard

The Edimax EW-7811UAC is the next generation of Wi-Fi adapter, compatible with the draft 802.11ac standard and delivering speeds of up to 433Mbps at 5GHz - almost three times as fast as 802.11n. Upgrade PC's and notebooks to super high speed 802.11ac Wi-Fi and enjoy streaming video and data.



Dual-Band Connectivity

Enjoy better performance and greater flexibility for your Wi-Fi devices, using dual-band connectivity. The EW-7811UAC provides connectivity for the 2.4GHz band at speeds of 150Mbps or 5Ghz band at speeds of 433Mbps. You can surf the internet and check your email on the 2.4GHz band, or select the 5GHz band for online gaming and video streaming.

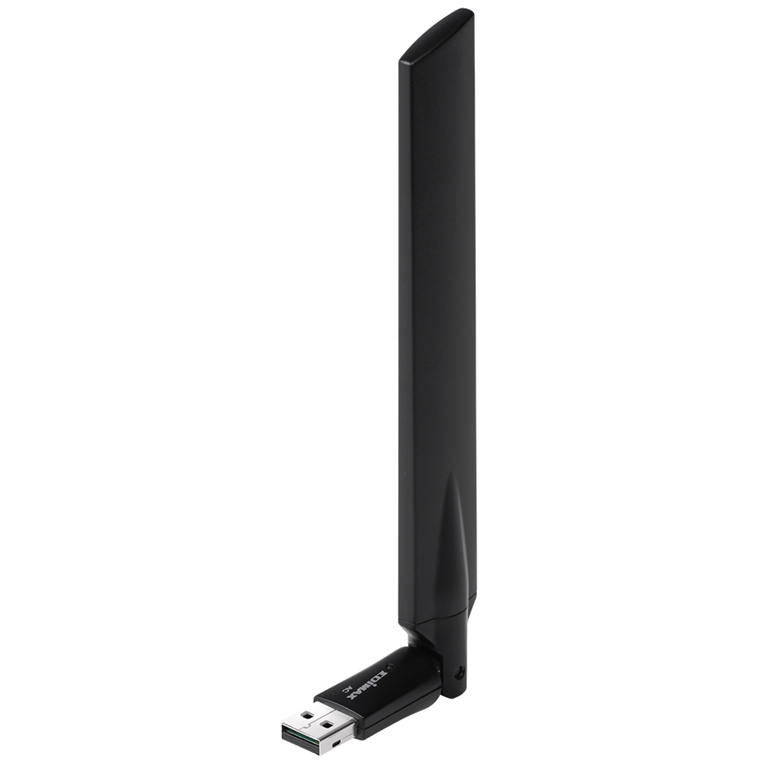

4dBi/6dBi High Gain Antenna

The EW-7811UAC High Gain Antenna, 4dBi (2.4GHz) and 6dBi(5GH), provides high performance and long distance connections for your wireless network.

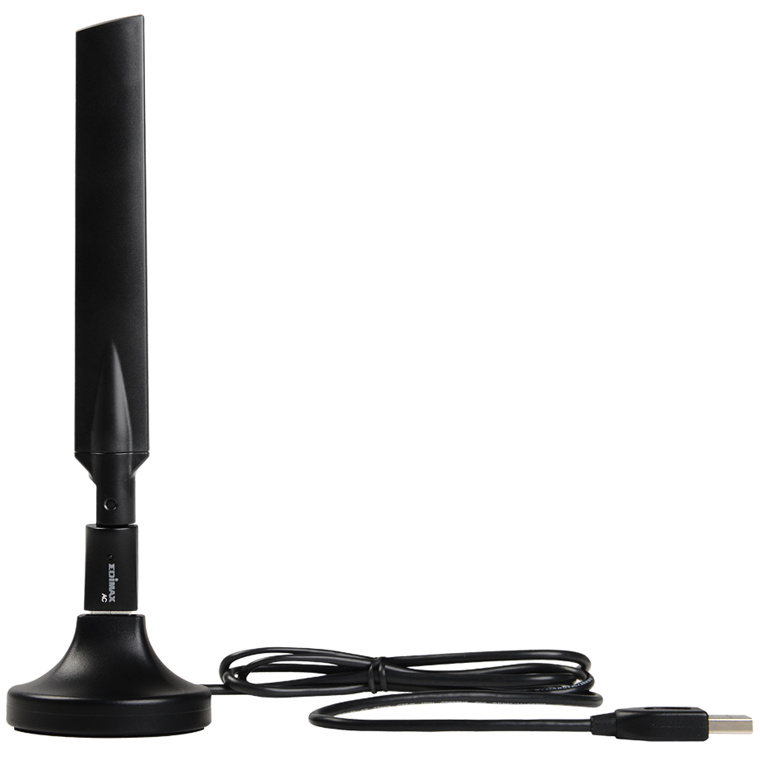

USB Cradle for Enhanced Wireless Signal

The EW-7811UAC comes with a 1.2 meter cradle for flexible placement. Adjust the antenna position for  peak performance at no extra cost.



Download and Stream Anywhere

Use the EW-7811UAC to download and stream media from YouTube, Netflix or other services without waiting for buffering, or stream media across your network from a NAS (network-attached storage) at lightning speeds. Streaming HD movies or downloading is faster and more reliable than ever with 802.11ac Wi-Fi.



APPLICATION DIAGRAMS

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.

Specifications

HARDWARE

1 x USB 2.0 Type A
1 x Hardware WPS Button
1 x Link/Activity LED

STANDARDS

2.4GHz: IEEE 802.11b, 802.11g, 802.11n
5GHz: IEEE 802.11ac (Draft), 802.11a, 802.11n

FREQUENCY BAND

2.4000 - 2.4835GHz (subject to local regulations)
5.150 - 5.825GHz (subject to local regulations)

OUTPUT POWER

2.4GHz
11b (11Mbps): 17dBm±1.5dBm
11g (54Mbps): 15dBm±1.5dBm
11n (20MHz, MCS7): 14dBm±1.5dBm
11n (40MHz, MCS7): 14dBm±1.5dBm
5GHz
11a (54Mbps): 14dBm±1.5dBm
11n (20MHz, MCS7): 13dBm±1.5dBm
11n (40MHz, MCS7): 13dBm±1.5dBm
11ac (80MHz, MCS9): 12dBm±1.5dBm

INSTALLATION

Multi-Language easy setup wizard
Hardware WPS Button for Easy Wireless Connections

OPERATING RANGE

11a: 6/9/12/24/36/48/54Mbps
11b: 1/2/5.5/11Mbps
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07 (up to 72Mbps)
11n (40MHz): MCS0-07 (up to 144Mbps)
11ac (80MHz): MCS0-09 (up to 433Mbps)

LED

Link/Activity

SECURITY

WEP 64/128-bit, WPA, WPA2, 802.1x
Hardware & Software WPS Configuration

TEMPERATURE & HUMIDITY

Max. 95% (non-condensing)
32 - 104°F (0 - 40°C)

DIMENSIONS & WEIGHT

190 (L) x 20 (W) x 7 (H) m
18g

CERTIFICATONS

CE/FCC

ACCESSORIES

1 x USB cradle with 1.2 meter cable

Manufacturer Part No:
EW-7811UAC
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.2575 kg
PB Part No:
NETEDM1086
Product Model:
EW-7811UAC
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
