Edimax GP-103IT 90W Gigabit PoE++ Injector. Delivers Power & Data up to 100m. Includes 1x RJ45 Port, 1xRJ45 PoE Port. Easy Plug & Play. Built-in Short Circuit Protection. Wall-mount & Metal Housing.
Edimax GP-103IT 90W Gigabit PoE++ Injector. Delivers Power & Data up to 100m. Includes 1x RJ45 Port, 1xRJ45 PoE Port. Easy Plug & Play. Built-in Short Circuit Protection. Wall-mount & Metal Housing.
- Brand: Edimax
- MPN: GP-103IT
- Part #: NETEDM1123
- UPC:
- Brand: Edimax
- MPN: GP-103IT
- Part #: NETEDM1123
- UPC:
Features
EDIMAX 90W Gigabit PoE++ Injector
The Edimax GP-103IT is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 90W based on the IEEE 802.3bt standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play GP-103IT Gigabit PoE++ injector preserves your investment in hardware upgrades without the need for spending on extra PoE switches and deploying power cables.
- Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
- Power over Ethernet (PoE) Standards
- Adds PoE capability to a non-PoE Ethernet switch or router

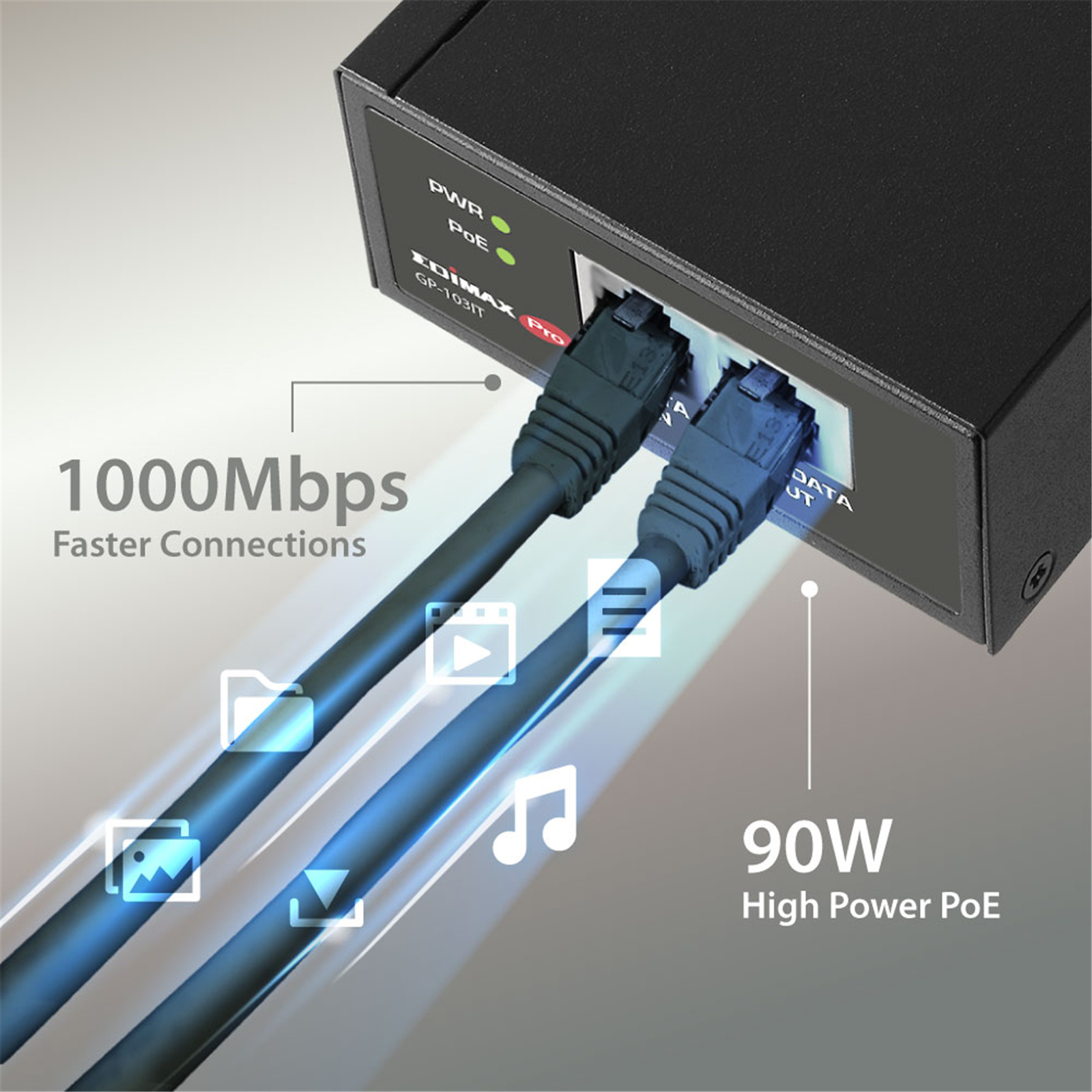

- Gigabit LAN ports provide high-speed connectivity
- Supply PoE output 95W to ensure Powered Device (PD) is able to be powered up to 90W
- PoE short circuit protection to safeguard network devices
- Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable
- Reduces installation and equipment costs

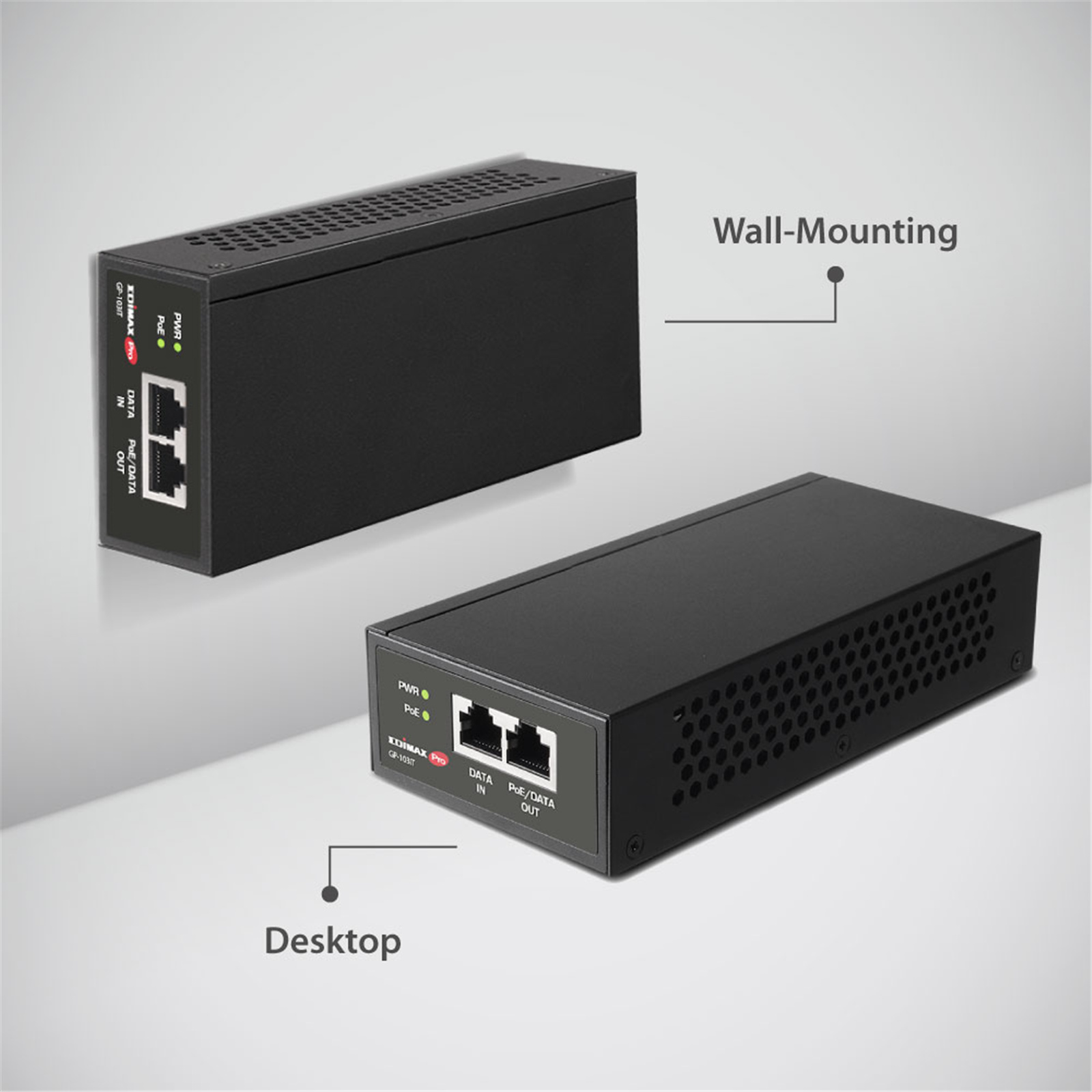

- Easy plug-and-play desktop or wall-mounted installation
IEEE 802.3af/at/bt Power over Ethernet Standard
Because of adding the capability of IEEE 802.3af/at/bt Power over Ethernet (PoE) to a non-PoE Ethernet switch or router, the GP-103IT can directly be connected to any IEEE 802.3af/at/bt end-nodes such as speed dome IP cameras, Digital Signage, colour touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points, digital signage, information kiosk, POS system, and thin client where the IEEE 802.3af/at/bt in-line PoE port is supported.
Cost Efficiency and Easy Installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-103IT reduces the need for cable installation and eliminates the need for extension cords, electrical wall outlets, ceiling or any remote, unreachable place for the PoE-enabled devices with easy plug-and-play installation. Overall, it lowers the installation costs and simplifies the deployment effort.
Flexible & Reliable Power Supply
Offering the optional solution for PoE enables devices, the GP-103IT is the perfect addition to existing non-PoE network infrastructures or retrofit projects. Featuring PoE short circuit protection and over circuit protection to safeguard network devices and protect against damage. Supplying the PoE power of up to 90 watts through the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.
PoE Standards and Powered Devices (PDs) Supported
The GP-103IT Gigabit PoE++ injector complies with IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) Standards and supports various PoE devices (PDs) up to 90W.

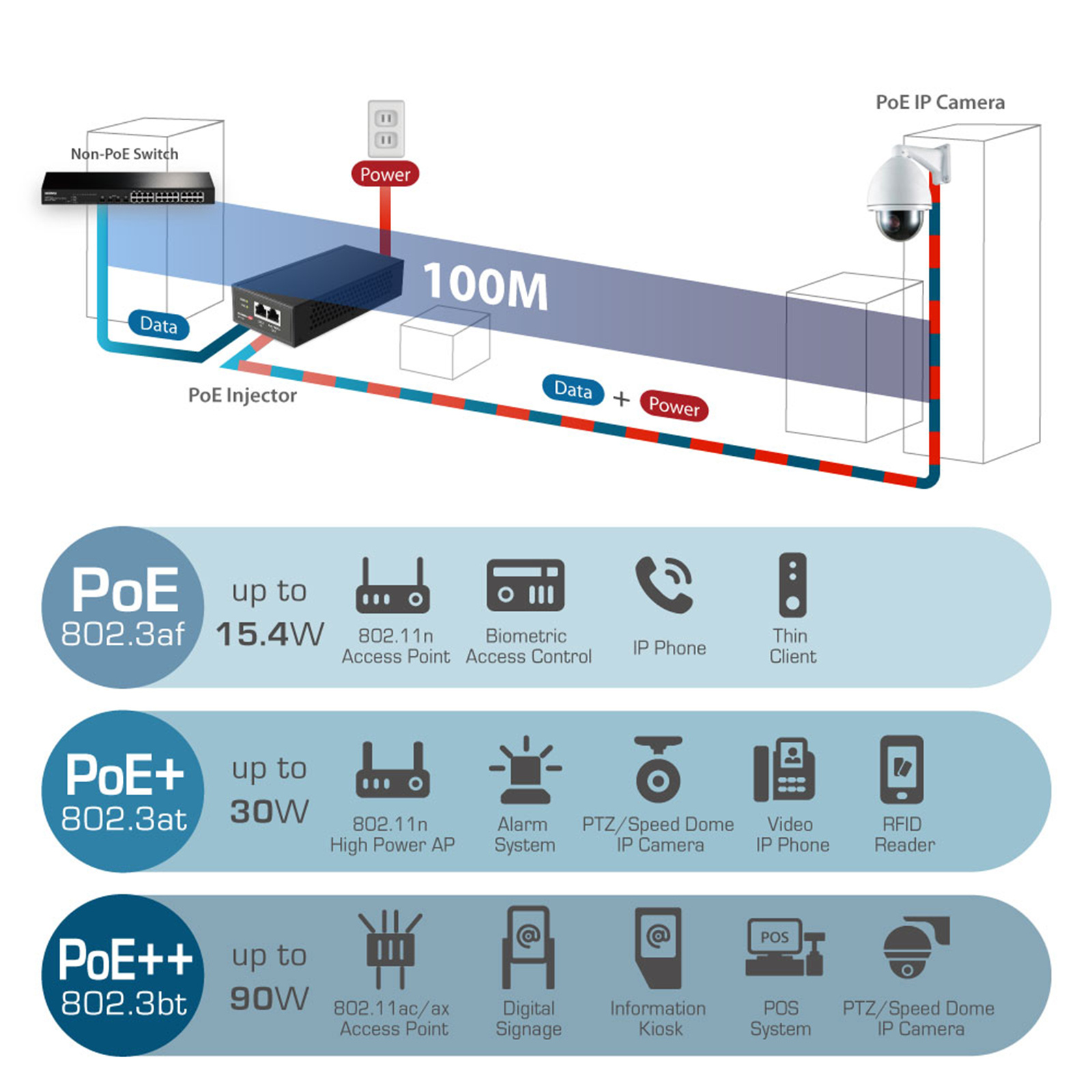

APPLICATION DIAGRAM
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular POE Splitters / Injectors
Ubiquiti U-POE-at 30W 802.3AT PoE Injector
TP-Link TL-POE150S Gigabit PoE Injector 802.3af / 15.4W
TP-Link TL-POE160S Gigabit PoE+ Injector 802.3at/ 30W
Ubiquiti U-POE 15W Gigabit PoE Adapter (48V DC / 0.32A)
Ubiquiti Unifi UACC-PoE++-10G 60W 10GbE PoE++ Adapter (54V DC / 1...
Edimax GP-103IT 90W Gigabit PoE++ Injector. Delivers Power & Data up to 100m. Includes 1x RJ45 Port, 1xRJ45 PoE Port. Easy Plug & Play. Built-in Short Circuit Protection. Wall-mount & Metal Housing.
- Brand: Edimax
- MPN: GP-103IT
- Part #: NETEDM1123
Product URL: https://www.pbtech.co.nz/product/NETEDM1123/Edimax-GP-103IT-90W-Gigabit-PoE-Injector-Delivers
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
EDIMAX 90W Gigabit PoE++ Injector
The Edimax GP-103IT is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 90W based on the IEEE 802.3bt standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play GP-103IT Gigabit PoE++ injector preserves your investment in hardware upgrades without the need for spending on extra PoE switches and deploying power cables.
- Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
- Power over Ethernet (PoE) Standards
- Adds PoE capability to a non-PoE Ethernet switch or router
- Gigabit LAN ports provide high-speed connectivity
- Supply PoE output 95W to ensure Powered Device (PD) is able to be powered up to 90W
- PoE short circuit protection to safeguard network devices
- Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable
- Reduces installation and equipment costs
- Easy plug-and-play desktop or wall-mounted installation
IEEE 802.3af/at/bt Power over Ethernet Standard
Because of adding the capability of IEEE 802.3af/at/bt Power over Ethernet (PoE) to a non-PoE Ethernet switch or router, the GP-103IT can directly be connected to any IEEE 802.3af/at/bt end-nodes such as speed dome IP cameras, Digital Signage, colour touch-screen Voice over IP (VoIP) telephones, multi-channel wireless LAN access points, digital signage, information kiosk, POS system, and thin client where the IEEE 802.3af/at/bt in-line PoE port is supported.
Cost Efficiency and Easy Installation
The Power over Ethernet technology enables the Ethernet wire to carry both data and power. Thus, the GP-103IT reduces the need for cable installation and eliminates the need for extension cords, electrical wall outlets, ceiling or any remote, unreachable place for the PoE-enabled devices with easy plug-and-play installation. Overall, it lowers the installation costs and simplifies the deployment effort.
Flexible & Reliable Power Supply
Offering the optional solution for PoE enables devices, the GP-103IT is the perfect addition to existing non-PoE network infrastructures or retrofit projects. Featuring PoE short circuit protection and over circuit protection to safeguard network devices and protect against damage. Supplying the PoE power of up to 90 watts through the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.
PoE Standards and Powered Devices (PDs) Supported
The GP-103IT Gigabit PoE++ injector complies with IEEE 802.3bt (PoE++), IEEE 802.3at (PoE+) and IEEE 802.3af (PoE) Standards and supports various PoE devices (PDs) up to 90W.
APPLICATION DIAGRAM
Specifications
Hardware
Ports
1 x RJ-45 10/100/1000Base-T Input Port
1 x RJ-45 10/100/1000Base-T PoE Output Port
LED Indicators
AC Power (PWR)
PoE Power

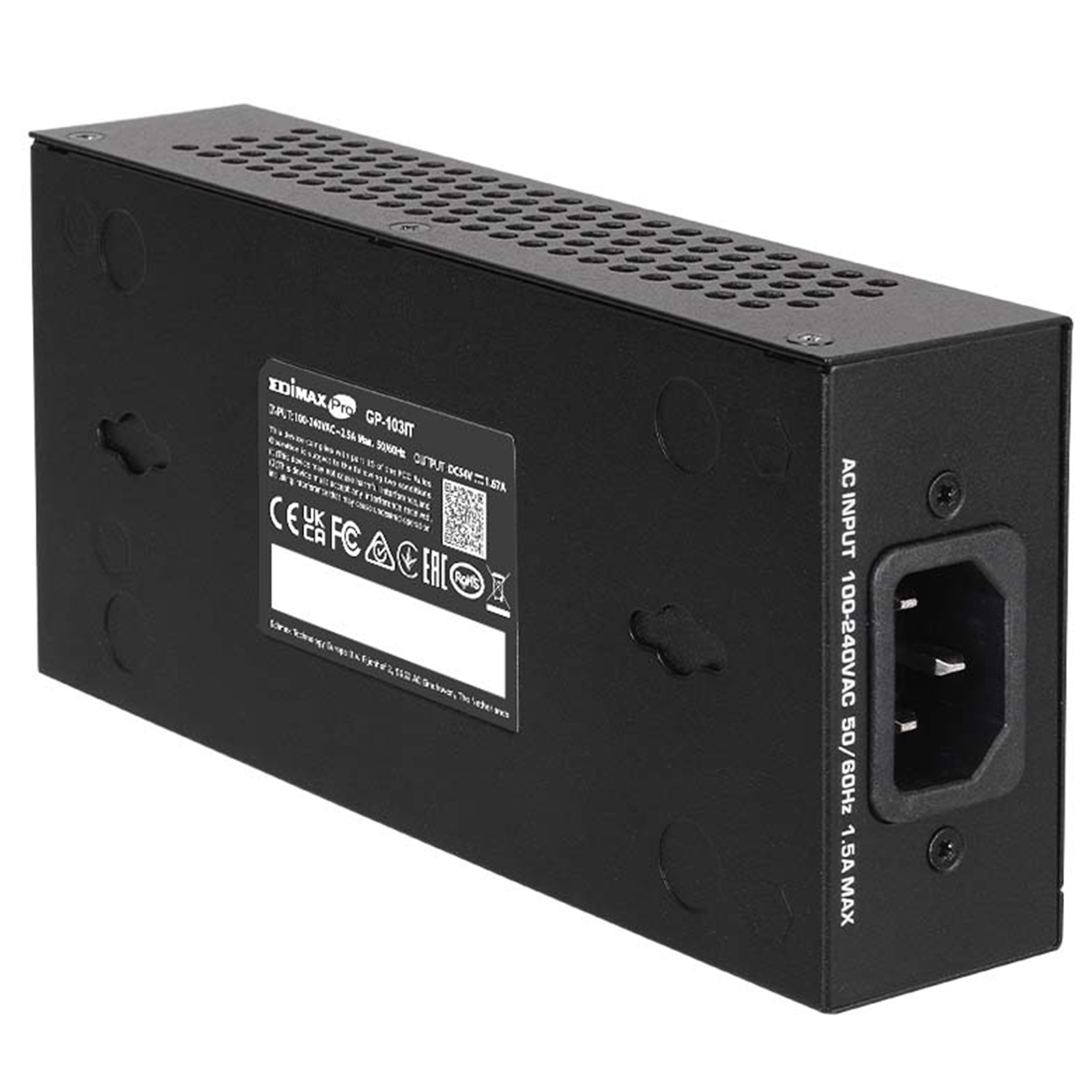

Power Input
100-240V AC, 50-60Hz, 1.5A
Power Consumption
95W (Max.)
Mounting
Wall-mount
Housing
Metal
Fan
Fanless
Dimesions
73(W) x 154(D) x 36(H) mm
Weight
589g
Power Over Ethernet
Standard
IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
Power Budget
90Watt
Pin Assignment
1/2,3/6 for IEEE802.3at/af
1/2,3/6 and 4/5,7/8 for 90W PoE++ power
Short Circuit Protection
Yes
Over Circuit Protection
Yes
PoE PD Auto Detection
Yes
Others
Standard
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
IEEE 802.3bt 4-Pair Power Over Ethernet Type 4 (PoE++)
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -4~158°F (-20~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Certification
CE, FCC
