Edimax Industrial 2.5 Gigabit PoE+ 30W Power Injector. Supports IEEE 802.3at, Provides Power & Data, DIN-rail or Wall-mount, Operating Temp Range: -40 to 75C.
Edimax Industrial 2.5 Gigabit PoE+ 30W Power Injector. Supports IEEE 802.3at, Provides Power & Data, DIN-rail or Wall-mount, Operating Temp Range: -40 to 75C.
- Brand: Edimax
- MPN: IGP-201IT
- Part #: NETEDM1234
- UPC:
- Brand: Edimax
- MPN: IGP-201IT
- Part #: NETEDM1234
- UPC:
Features
The Edimax IGP-201IT is an industrial PoE injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service.

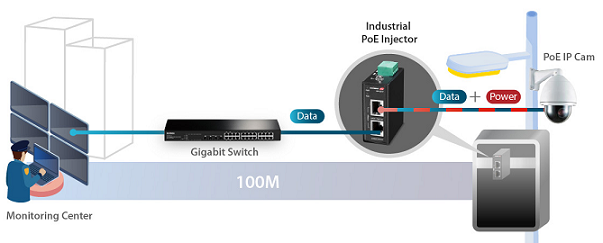

With the use of power injectors, DC power of up to 30W based on the IEEE 802.3at standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play IGP-201IT 2.5 Gigabit PoE+ injector preserves your investment in hardware upgrade without the need to purchase extra PoE switches and deploy power cables.
- Compliant with IEEE 802.3at Power over Ethernet (PoE+) Standards
- 2.5 Gigabit LAN ports provide high-speed connectivity by using existing CAT5e cables
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- Wide operating temperature range: -40 to 75°C
- 6KV surge protection to avoid damage of the connected Powered device
- Flexibility for DIN-rail mount or wall-mount deployment

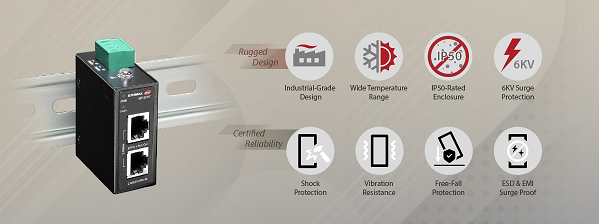

Rugged Industrial Design with Certified Reliability
The IGP-201IT PoE+ Injector features a rugged industrial-grade design with an IP50-rated metal enclosure, operating from -40°C to 75°C. It includes 6KV lightning surge protection and is certified to withstand vibration, shock, free-fall, and ESD/EMI surges-ensuring reliable performance in harsh industrial and outdoor environments.
Beyond Durability: Performance and Flexibility
Combining durability and certified reliability, the IGP-201IT Industrial PoE+ 30W Injector offers a range of advanced features designed to optimize performance, enhance connectivity, and simplify deployment in demanding environments.

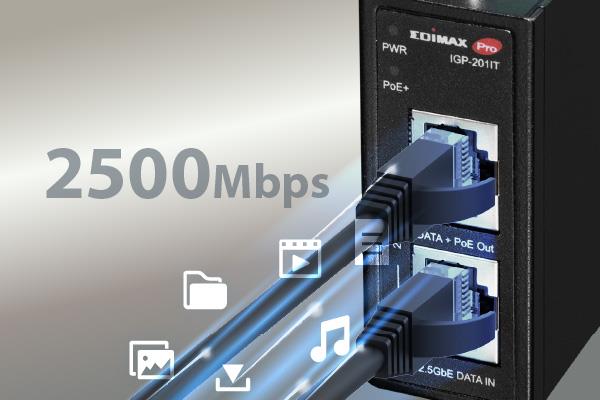

2.5G High-Speed Connectivity
Supports up to 2500Mbps on both ports for fast, stable transmission-ideal for IP cameras and APs over distances up to 100 meters.

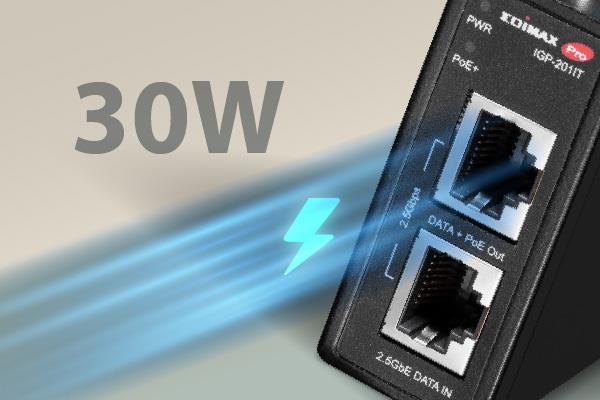

30W PoE+ Power Delivery
Delivers up to 30W for powering high-demand devices like Wi-Fi 6 access points, IP cameras, VoIP phones, and digital signage.

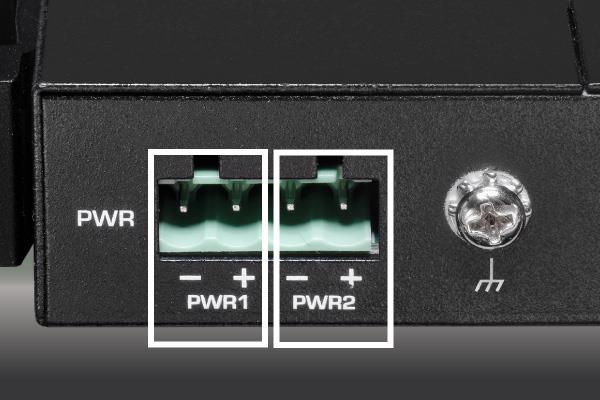

Dual DC Redundant Power
Ensures continuous operation with dual DC inputs for failover protection-ideal for critical industrial deployments.
Flexible Mounting Design
Supports DIN-rail and wall-mount options for quick, space-saving installation in diverse environments.
Extended Power Reach
Reliable 30W PoE+ delivery up to 100 meters (328ft) for demanding PTZ camera and other remote devices installations.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-7 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular POE Splitters / Injectors
Ubiquiti U-POE 15W Gigabit PoE Adapter (48V DC / 0.32A)
TP-Link TL-POE160S Gigabit PoE+ Injector 802.3at/ 30W
TP-Link TL-POE150S Gigabit PoE Injector 802.3af / 15.4W
Ubiquiti U-POE++ 60W Gigabit PoE Adapter (48V DC /1.25A)
Ubiquiti U-PoE+ 30W Gigabit PoE Adapter (48V DC / 0.65A)
Edimax Industrial 2.5 Gigabit PoE+ 30W Power Injector. Supports IEEE 802.3at, Provides Power & Data, DIN-rail or Wall-mount, Operating Temp Range: -40 to 75C.
- Brand: Edimax
- MPN: IGP-201IT
- Part #: NETEDM1234
Product URL: https://www.pbtech.co.nz/product/NETEDM1234/Edimax-Industrial-25-Gigabit-PoE-30W-Power-Injecto
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The Edimax IGP-201IT is an industrial PoE injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service.
With the use of power injectors, DC power of up to 30W based on the IEEE 802.3at standard and the data that comes from a non-PoE switch or router are merged together and then transmitted to the remote IEEE 802.3af/at compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play IGP-201IT 2.5 Gigabit PoE+ injector preserves your investment in hardware upgrade without the need to purchase extra PoE switches and deploy power cables.
- Compliant with IEEE 802.3at Power over Ethernet (PoE+) Standards
- 2.5 Gigabit LAN ports provide high-speed connectivity by using existing CAT5e cables
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- Wide operating temperature range: -40 to 75°C
- 6KV surge protection to avoid damage of the connected Powered device
- Flexibility for DIN-rail mount or wall-mount deployment
Rugged Industrial Design with Certified Reliability
The IGP-201IT PoE+ Injector features a rugged industrial-grade design with an IP50-rated metal enclosure, operating from -40°C to 75°C. It includes 6KV lightning surge protection and is certified to withstand vibration, shock, free-fall, and ESD/EMI surges-ensuring reliable performance in harsh industrial and outdoor environments.
Beyond Durability: Performance and Flexibility
Combining durability and certified reliability, the IGP-201IT Industrial PoE+ 30W Injector offers a range of advanced features designed to optimize performance, enhance connectivity, and simplify deployment in demanding environments.
2.5G High-Speed Connectivity
Supports up to 2500Mbps on both ports for fast, stable transmission-ideal for IP cameras and APs over distances up to 100 meters.
30W PoE+ Power Delivery
Delivers up to 30W for powering high-demand devices like Wi-Fi 6 access points, IP cameras, VoIP phones, and digital signage.
Dual DC Redundant Power
Ensures continuous operation with dual DC inputs for failover protection-ideal for critical industrial deployments.
Flexible Mounting Design
Supports DIN-rail and wall-mount options for quick, space-saving installation in diverse environments.
Extended Power Reach
Reliable 30W PoE+ delivery up to 100 meters (328ft) for demanding PTZ camera and other remote devices installations.
Specifications
HARDWARE
Ports
1 x RJ-45 10/100/1000/2500Base-T data input port
1 x RJ-45 10/100/1000/2500Base-T data/PoE+ output port
LED Indicators
PWR: System Power On/Off
PoE+: PoE Power Supply Status
Power Input
4-Pin Terminal block DC 48~57V, 1A
Power Consumption
32W (Max.)
Mounting
DIN-rail mount/Wall-mount
Housing
Metal
Fan
Fanless
Dimension
26(W) x 58(D) x 61(H)mm
(1.02(W) x 2.28(D) x 2.40(H) inches)
Weight
126g (0.28lb) (DIN-rail Mounting Kit Included)
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE)
IEEE 802.3at (PoE+)
Power Budget
30 Watt
Pin Assignment
Pins 3, 6, 4, 5 (+), Pins 1, 2, 7,8 (-)
Output Power Voltage: DC 54V
Short Circuit Protection
Yes
Over Circuit Protection
Yes
PoE PD Auto Detection
Yes
OTHERS
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3an 2.5GBase-T Gigabit Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
Environmental Condition
Operating Temperature: -40~75°C (-40~167°F)
Storage Temperature: -40~85°C (-40~185°F)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Certification
Emission (EMI/EMS): CE/FCC class A; EN61000-4-2 (ESD); EN61000-4-3 (RS); EN61000-4-4 (FET); EN61000-4-5 (Surge); EN61000-4-6 (CS); EN61000-4-8 (MagneticField)
EMC: EN61000-6-2; EN61000-6-4
Safety: IEC 62368-1:2020+A11:2020
Shock: IEC60068-2-27
Freefall: IEC60068-2-32
Vibration: IEC60068-2-6
