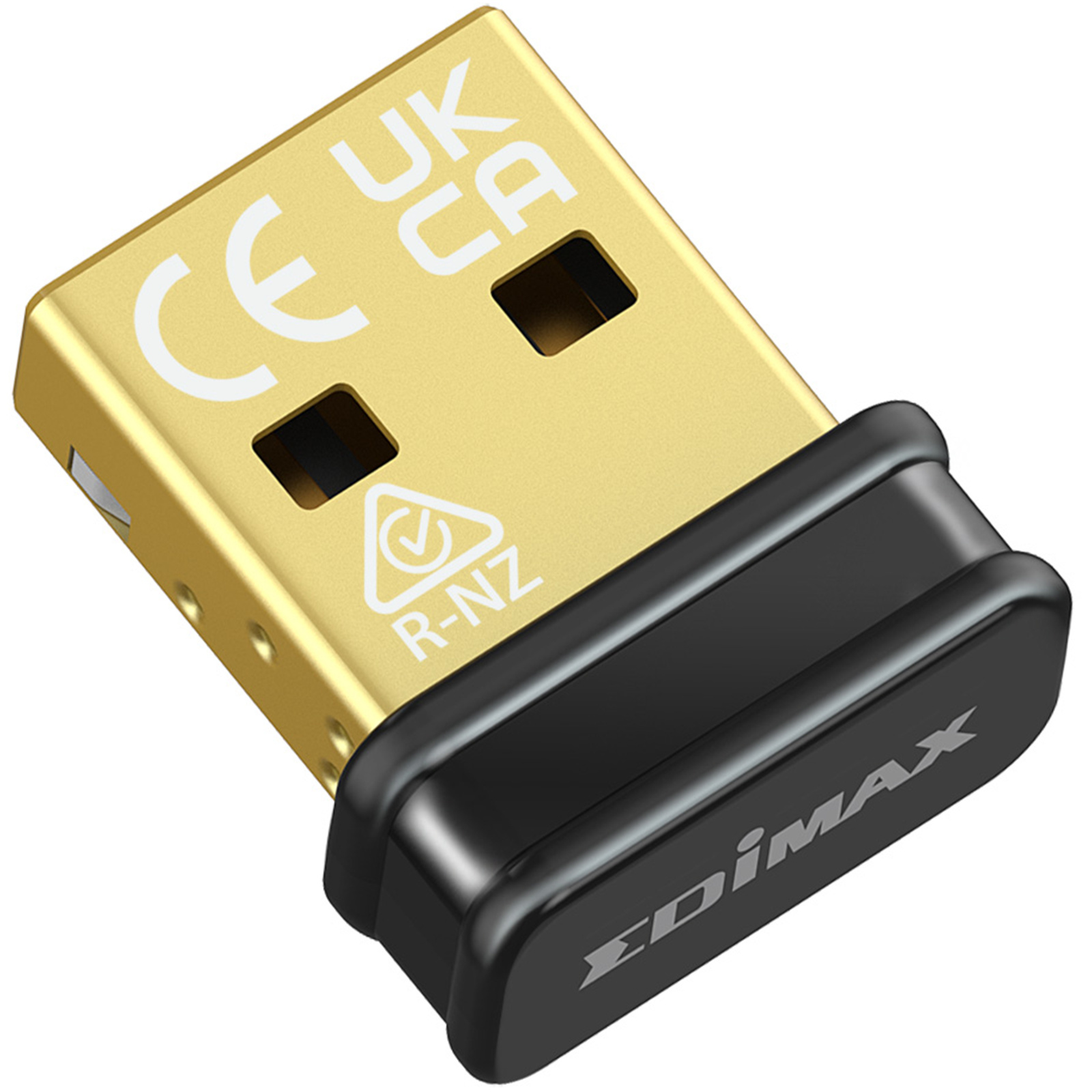

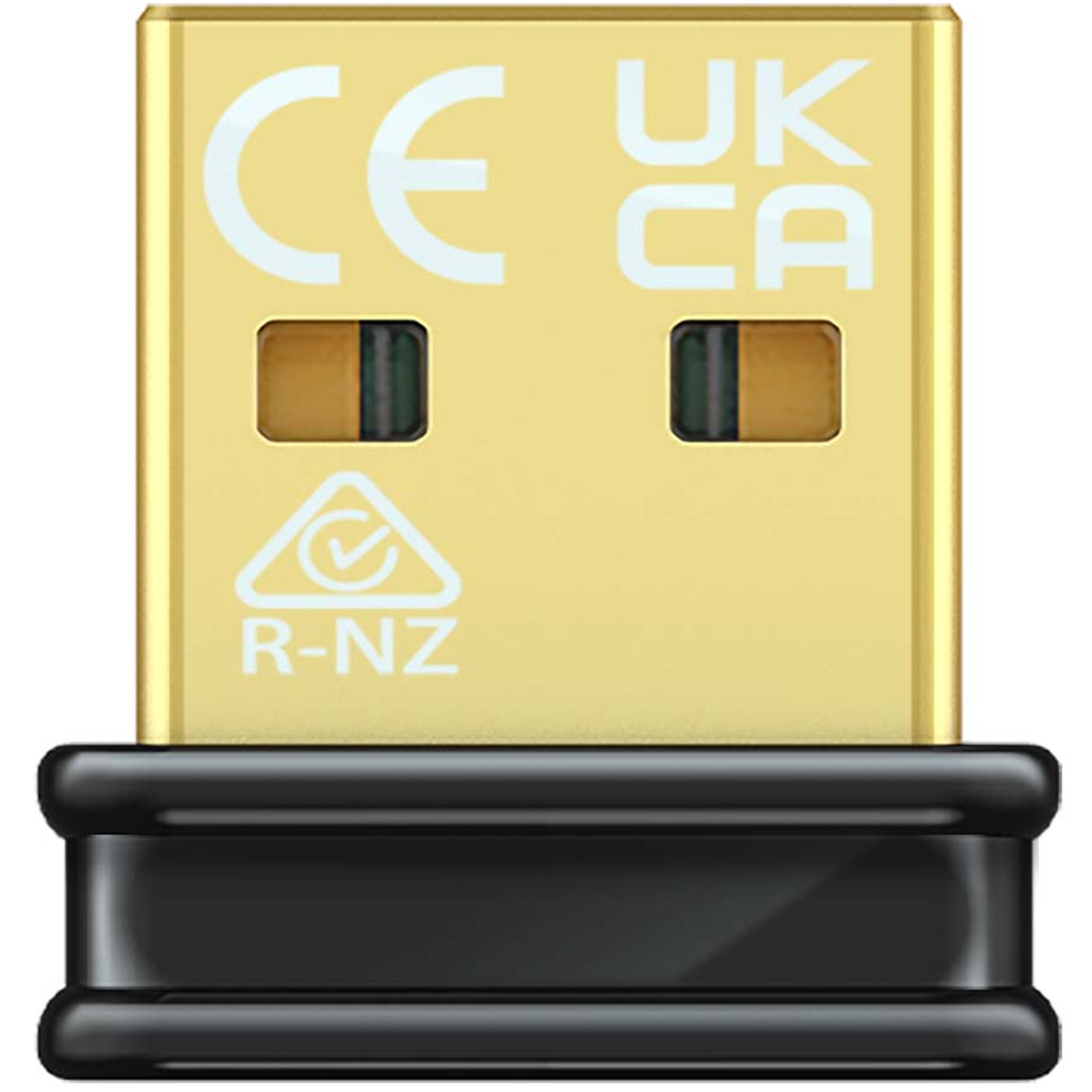

Edimax WL7811UNV2 (N150) WiFi 4 Nano USB Wireless Adapter
802.11b/g/n - Data Rate up to 150Mbps (2.4GHz) - 64/128-bit WEP / WPA / WPA2 Encryption - WPS Button - 802.11e WMM Wireless QoS - Windows / MAC / Linux
Edimax WL7811UNV2 (N150) WiFi 4 Nano USB Wireless Adapter
802.11b/g/n - Data Rate up to 150Mbps (2.4GHz) - 64/128-bit WEP / WPA / WPA2 Encryption - WPS Button - 802.11e WMM Wireless QoS - Windows / MAC / Linux
- Brand: Edimax
- MPN: WL7811UNV2
- Part #: NETEDM7812
- UPC:
Select your store to check availability
- Brand: Edimax
- MPN: WL7811UNV2
- Part #: NETEDM7812
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"not fast but worked"
"Purchased as Linux performance on my laptop's integrated WiFi was poor. Decent performance using the Edimax, especially considering the low profile."
"It's great for windows tried it on 10 and 11 and both showed okay speeds. Tried it on linux (ClearLinux and EOS), was slow compared to windows but still useable if u want to use it ...view more"
COMBO DEALS: Buy Together and SAVE!
ADATA C008 USB Flash Drive - 16GB - White / Blue USB 2.0
$4.21 +GST
$4.84
Dynamix C-DP12-2M 2m DisplayPort v1.2 Cable with Gold Shell Connectors DDC Compliant. 4K60Hz
$11.72 +GST
$13.48
Unitek Y-A025CGY USB3.1 USB-A to Type-C Adapter - Converts USB-C to USB-A - Suitable for all Type...
$6.95 +GST
$7.99
Dynamix SPAUSB-5V2A 110-240V 50/60hz DC 5V 2.1A Max 10W Small Form USB Wall Charger AU/NZ SAA...
$6.82 +GST
$7.84
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular USB WiFi Adapters
Edimax WL7811UNV2 (N150) WiFi 4 Nano USB Wireless Adapter 802.11b/g/n - Data Rate up to 150Mbps (2.4GHz) - 64/128-bit WEP / WPA / WPA2 Encryption - WPS Button - 802.11e WMM Wireless QoS - Windows / MAC / Linux
- Brand: Edimax
- MPN: WL7811UNV2
- Part #: NETEDM7812
Product URL: https://www.pbtech.co.nz/product/NETEDM7812/Edimax-WL7811UNV2-N150-WiFi-4-Nano-USB-Wireless-Ad
Branch | New Stock | On Display |
---|---|---|
Albany | 8 | |
Glenfield | 7 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 1 | |
Penrose | 5 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 1 | |
Wellington | 0 | |
Head Office | 3 | |
Hornby | 4 | |
Christchurch Central | 0 |
Features
N150 Wi-Fi 4 Nano USB Adapter
EW-7811Un V2 is a nano USB wireless adapter that supports maximum range and speed. Despite the size, this tiny USB adapter supports higher data rate of up to 150Mbps when connecting with wireless 802.11n device which is 3 times faster than your normally 11g connection. You can just plug it into computer's USB port and enjoy incredible high-speed wireless network access. This is for sure the trendiest piece of upgrade you can make to your wireless network
- N150: Complies with wireless 802.11b/g/n standards with data rate up to 150Mbps (2.4GHz).
- Small, Stylish Design: World's smallest N150 Wi-Fi Adapter.
- Secure Wi-Fi: Features 64/128-bit WEP, WPA, WPA2 encryption for high level of security.
- One-Click Wireless Connections: Features a software WPS (Wi-Fi Protected Setup) button for easy wireless connections.
- Supports 802.11e WMM wireless QoS Feature
- Supports power saving mechanism
- Supports Windows , MAC OS and Linux.
Wireless 802.11n Standard | Up to 150Mbps
EW-7811Un V2 complies with wireless IEEE802.11b/g/n standards. Built with the latest wireless technology, the EW7811Un V2 can increase your wireless coverage up to 3 times* as much and greatly help reduce "dead spots" compared to your old 11g adapter. Transmission data rate can go up to 150Mbps when connected to a 802.11n device. It also extends its wireless signal distance, and provides more reliable wireless connections than standard IEEE 802.11g wireless networks.
Green WLAN | Improved Energy Efficiency
The EW-7811Un V2 has adapted a clever protocol. This wireless USB adapter smartly adjusts its power output according to the transmission distance and CPU offload. It drastically reduces power consumption when the connection is in idle. Designed with green WLAN technology, the EW-7811Un V2 power consumption can be reduced with an average of 20% to 50%.
Supports WPS | Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) is a standard for easy and secure establishment of wireless networks. This wireless USB adapter supports software WPS-compatible configuration. With a few clicks, your wireless network and router are immediately secured.
Supports multi-language easy setup wizard
The included 16 languages easy setup wizard and friendly UI will walk you through configuring EW-7811Un V2 to your wireless network.
Tiny and Stylish | Design for Laptops
Can be easily plugged into any laptop without sacrificing portability and looks. Furthermore, it is designed with details in mind, such as not blocking other ports or be in the way of other USB devices/cables.
Download data sheet: https://cdn.shopify.com/s/files/1/2027/7283/files/wl7811unv2.pdf
Specifications
HARDWARE
Interface
1 x USB 2.0 Type A
1 x Link/Activity LED
Antenna
Internal Antennas x 1 (1T1R)
Dimensions
7.1 (H) x 14.9 (W) x 17.5 (D) mm
Weight
2g
WIRELESS
Standards
2.4GHz: IEEE 802.11b, 802.11g, 802.11n
Frequency
2.4000 - 2.4835GHz*
*Subject to local regulations
Output Power
2.4GHz:
11b : 17±1.5dBm
11g : 16±1.5dBm
11n : 13±1.5dBm
Operating Range
11b: 1/2/5.5/11Mbps;
11g: 6/9/12/24/36/48/54Mbps
11n (20MHz): MCS0-07, up to 72Mbps
11n (40MHz): MCS0-07, up to 150Mbps
Security
WEP 64/128-bit, WPA, WPA2
Software WPS Configuration
OTHERS
Certification
CE (DoC), FCC, RoHS
Environment
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -4~140°F (-20~60°C)
Operating Humidity: 0~90% (NonCondensing)
Storage Humidity: Max. 95% (NonCondensing)
System Requirement
Windows 7/8/8.1/10 or above
Mac OS 10.13 or above
Linux OS (Fedora & Ubuntu)
Package Content
Quick Installation Guide
