HyperLink Technologies ANT-98 5.8 GHz 22 dBi Cast Reflector Grid Antenna

PB Tech price: PB Tech price:
$73 91  +GST $85 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

HyperLink Technologies ANT-98 5.8 GHz 22 dBi Cast Reflector Grid Antenna

HyperLink Technologies ANT-98 5.8 GHz 22 dBi Cast Reflector Grid Antenna

  • Brand: HyperLink
  • MPN: ANT-98
  • Part #: NETEHPL1006
  • UPC:822335069374
PB Tech price:PB Tech price:
$7391$8500
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships on 29/10/2019
When will I receive it?
Add To Compare

Four easy payments of $21.89 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

Features

HyperLink Technologies ANT-98

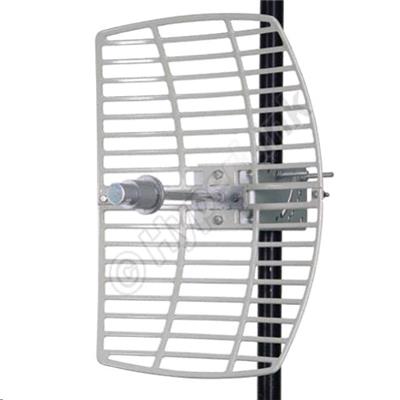

The HyperGain HG5822G 22dBi High-Performance Cast Reflector Grid Wi-Fi Antenna is ideal for long-range highly directional 5.8GHz ISM and UNII band applications. These antennas are ideal for point to point systems, point to multi-point and wireless bridges. Its compact design makes it nearly invisible in most installations, and it can be installed for either vertical or horizontal polarization.

The antennas' construction features a rust-proof cast aluminium reflector grid for superior strength and light weight. The 2-piece reflector grid is simple to assemble and significantly reduces shipping costs. The grid surface is UV powder coated for durability and aesthetics.

The open-frame grid design minimizes wind loading. This antenna is supplied with a 60 degree tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment. They can be adjusted up or down from 0deg to 60deg

Specifications

Frequency Range
5725-5850MHz
Gain
22dBi
Polarisation
Vertical or Horizontal
Vertical Beamwidth
13deg
Horizontal Beamwidth
10deg
Connector Type
N-Type Female
Dimensions
300x400mm
Pole Mount Diameter
32-50mm
Manufacturer Part No: ANT-98 Brand: HyperLink Product Type: -
UPC 822335069374 Product Family: - Shipping Weight: 1 kg
PB Part No: NETEHPL1006 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
