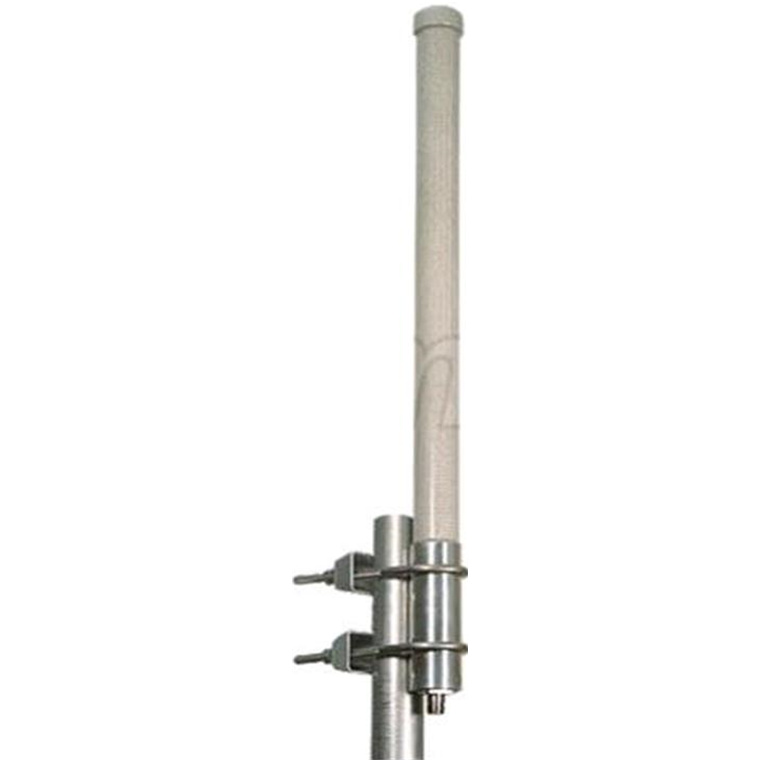

HyperLink Technologies ANT-119 2.4GHz 8dBi Pro Omni Directional HyperGain
HyperLink Technologies ANT-119 2.4GHz 8dBi Pro Omni Directional HyperGain
- Brand: HyperLink
- MPN: ANT-119
- Part #: NETEHPL1068
- UPC:
- Brand: HyperLink
- MPN: ANT-119
- Part #: NETEHPL1068
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Antennas





HyperLink Technologies ANT-119 2.4GHz 8dBi Pro Omni Directional HyperGain
- Brand: HyperLink
- MPN: ANT-119
- Part #: NETEHPL1068

Product URL: https://www.pbtech.co.nz/product/NETEHPL1068/HyperLink-Technologies-ANT-119-24GHz-8dBi-Pro-Omni
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The HyperGain HG2408U-PRO is a Professional Grade Omni-Directional antenna that can be used for Commercial installations. The antenna features high gain and superior VSWR. The unit is optimized for the 2.4GHz ISM band. A collinear Omni-Directional antenna that utilizes a center fed Collinear Dipole array that offers superior performance over the traditional bottom fed collinear designs. A center fed collinear has radiating elements that are more uniformly fed with signals of the proper amplitude and phase. In a bottom fed design, the signals that reach the upper elements have undergone significant amplitude and phase degradation. In most cases, the upper elements of an end fed design contribute little to the antennas final composite gain and pattern. In the HyperGain HG2408U-PRO, an internal copper hard-line provides a low loss path to the antenna's central splitting and phasing component. The brass radiating elements of the HG2408U-PRO utilise an air dielectric for lowest loss and superior radiating efficiency. The design is factory tuned for superior performance. This antenna's construction features a durable fiberglass radome for durability and aesthetics. Its mounting system features twin heavy-duty mounting brackets and U-Bolts for superior strength. The thick brass elements provide long life in hostile environments. Great for use with Ubiquiti and MikroTik High Power long range access points.
- Center fed collinear array
- Heavy-duty steel mounting brackets
- Commercial grade, 8 dBi antenna
- Solid Brass Elements
- Integral N-Female connector
Specifications
Frequency Range
2400-2500MHz
Gain
8dBi
Polarisation
Vertical
Vertical Beamwidth
12deg
Horizontal Beamwidth
360deg
Connector Type
N-Type Female
Dimensions
790x43mm
Pole Mount Diameter
32-50mm
