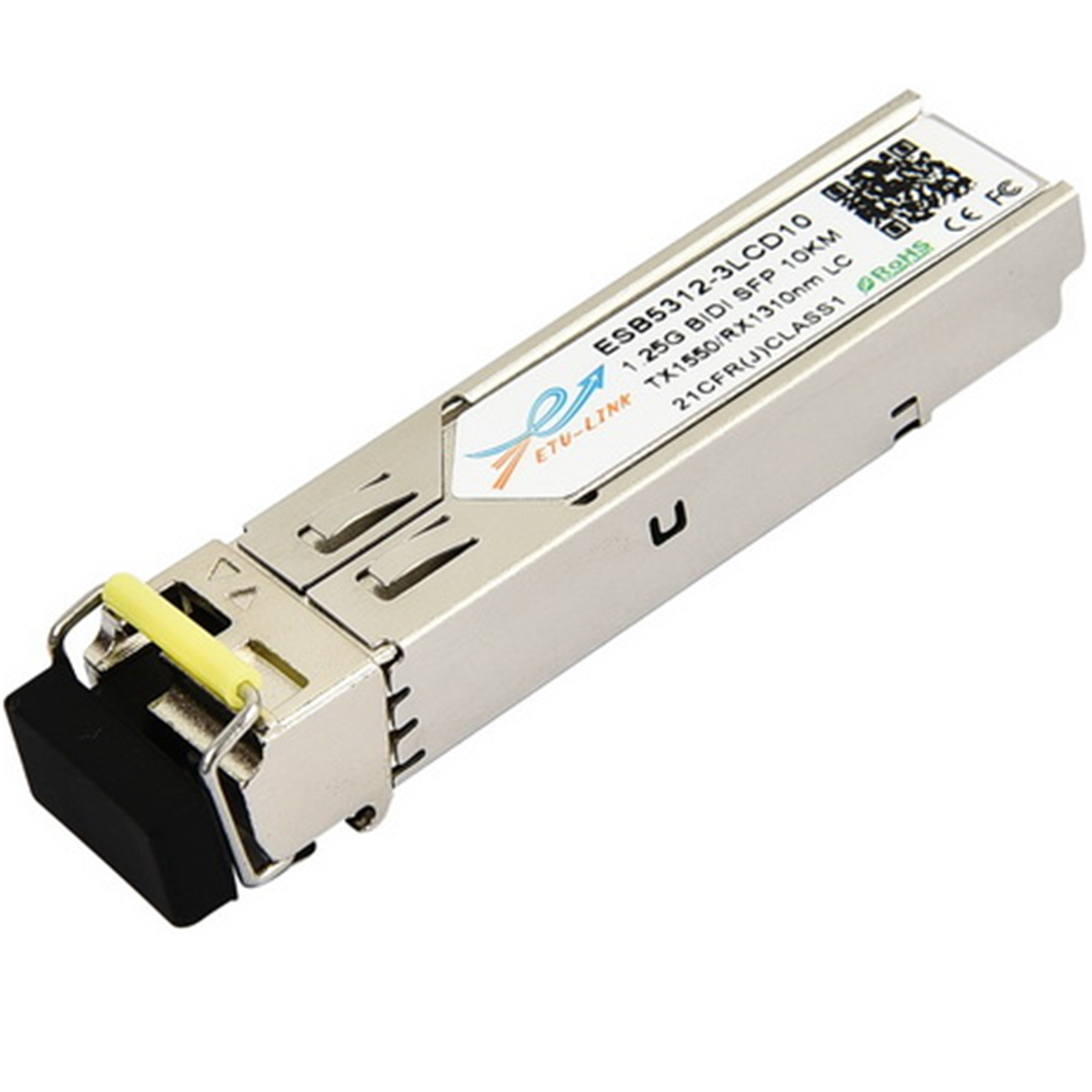

ETU-LINK 1.25Gbps Bi-directional SFP module TX1550/RX1310nm Single-mode 10KM
- Brand: ETU-LINK
- MPN: ESB5312-3LCD10
- Part #: NETETL0002
Product URL: https://www.pbtech.co.nz/product/NETETL0002/ETU-LINK-125Gbps-Bi-directional-SFP-module-TX1550R
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
1.25Gbps SFP Bi-Directional Transceiver, 10KM Reach Tx1550nm/Rx1310nm
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 10KM transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integratedwithatrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1550nm DFB laser and PIN photodetector for 10KM transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Hot-plug, singlemode, UPC fiber connecting
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature range: 0 °C to +70 °C (Commercial), -40 °C to +85 °C (Industrial)

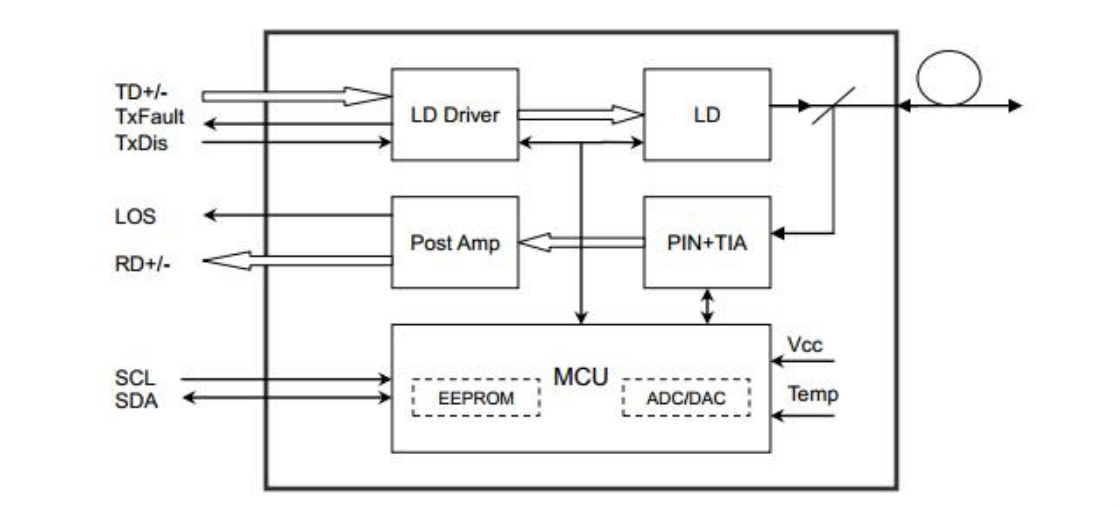

Module Block Diagram

Specifications
Manufacturer
ETU-LINK
MPN
ESB5312-3LCD10
Product Type
SFP module
Mode
Single-mode
Data rate
1.25G
Wavelength
TX1550/RX1310nm
Distance
10KM
Interface
LC
Fiber
SM
DDM
Yes
Working temperature
Commercial:0°C to +70°C;Industrial:-40°C to +85°C
