Features

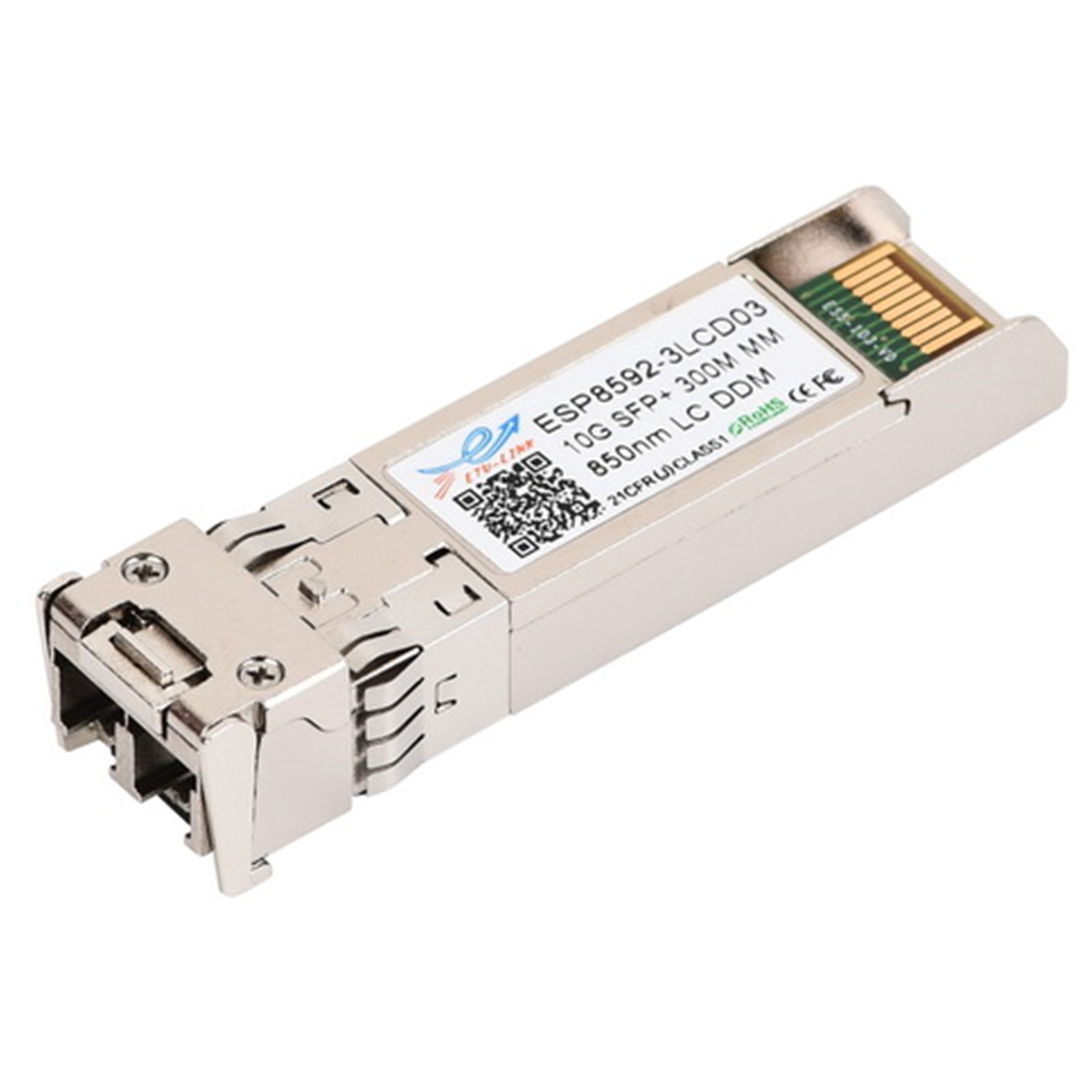

10Gbps 850nm 300M SFP+ Optical Transceiver
This 850 nm VCSEL10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125µm or 62.5/125µm multimode optical fiber (Table 1).
- Optical interface compliant to IEEE 802.3ae
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- 850nm VCSEL transmitter, PIN photo-detector
- Maximum link length of 300m on 2000MHz/km MMF
- Operating case temperature: 0 to 70 °C
- Low power consumption
- Maximum link length of 300m on 2000MHz/km MMF
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth RoHS6 compliant (lead free)
Applications
- 10GBASE-SR at 10.3125Gbps
- 10GBASE-SW at 9.953Gbps
- Other optical links
Specifications
MPN
ESP8592-3LCD03
Product Type
Transceiver
Data Rate
10G
Wave Length
850nm
Distance
300m
Connector
LC
Fiber
Multi-mode
DDM
Yes
Hot Pluggable
Yes
Operating Case Temperature
0 to 70 °C
Housing
Metal
