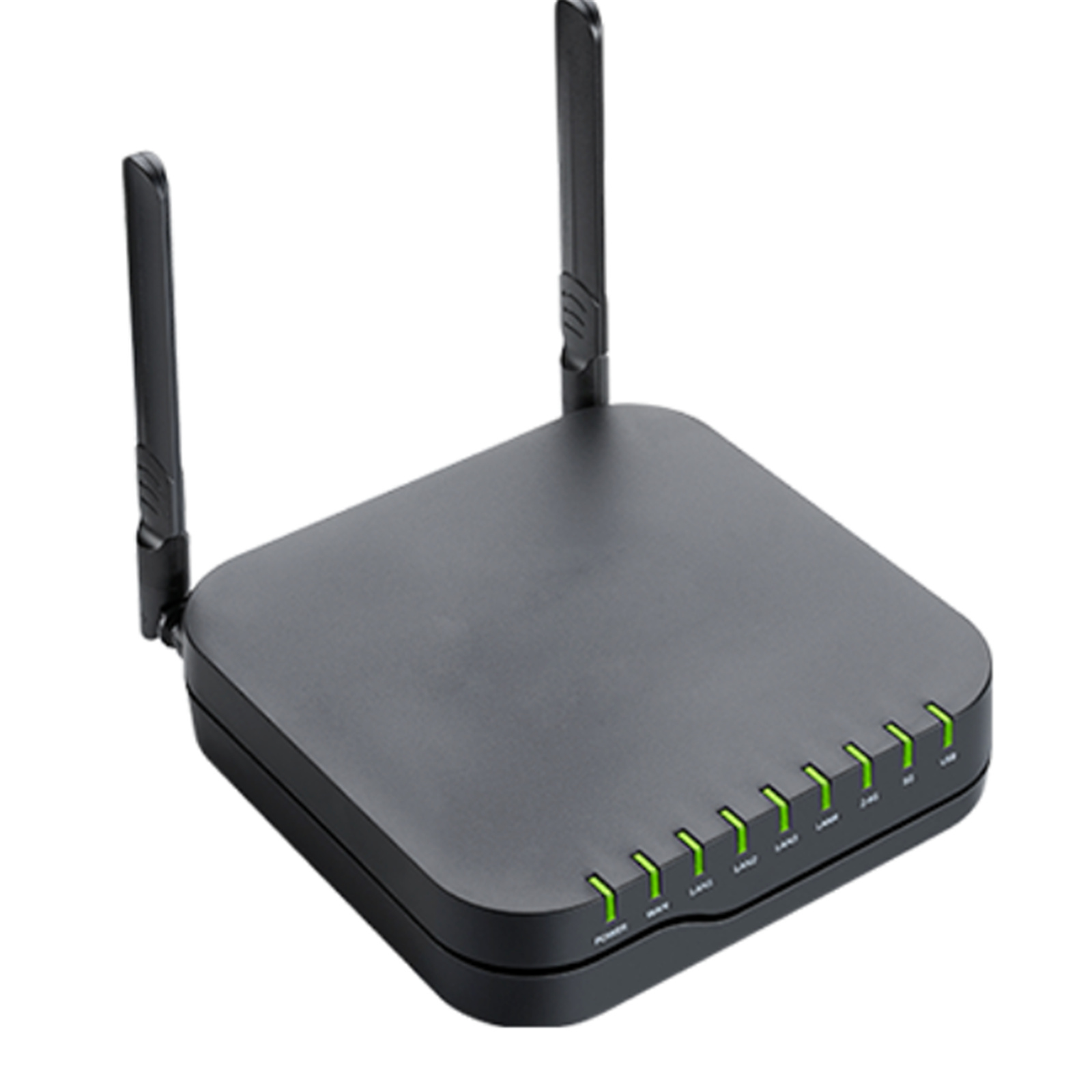

FlyingVoice FPX9102H Multi-function VoIP Gateway Gigabit Router WiFi 2x FXO
FlyingVoice FPX9102H Multi-function VoIP Gateway Gigabit Router WiFi 2x FXO
- Brand: FlyingVoice
- MPN: FPX9102H
- Part #: NETFLV1010
- UPC:
- Brand: FlyingVoice
- MPN: FPX9102H
- Part #: NETFLV1010
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular IP Gateways





FlyingVoice FPX9102H Multi-function VoIP Gateway Gigabit Router WiFi 2x FXO
- Brand: FlyingVoice
- MPN: FPX9102H
- Part #: NETFLV1010

Product URL: https://www.pbtech.co.nz/product/NETFLV1010/FlyingVoice-FPX9102H-Multi-function-VoIP-Gateway-G
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
FlyingVoice FPX9102H Multi-function VoIP Gateway, Gigabit Router, WiFi, 2x FXO
- 5x 10/100/1000Mbps (Gigabit Ethernet)
- 2 FXO Ports (Analogue line to VoIP Gateway)
- 802.11ac Dual band 2.4GHz & 5GHz Wi-Fi
- TR069 & SNMP
- HNAT

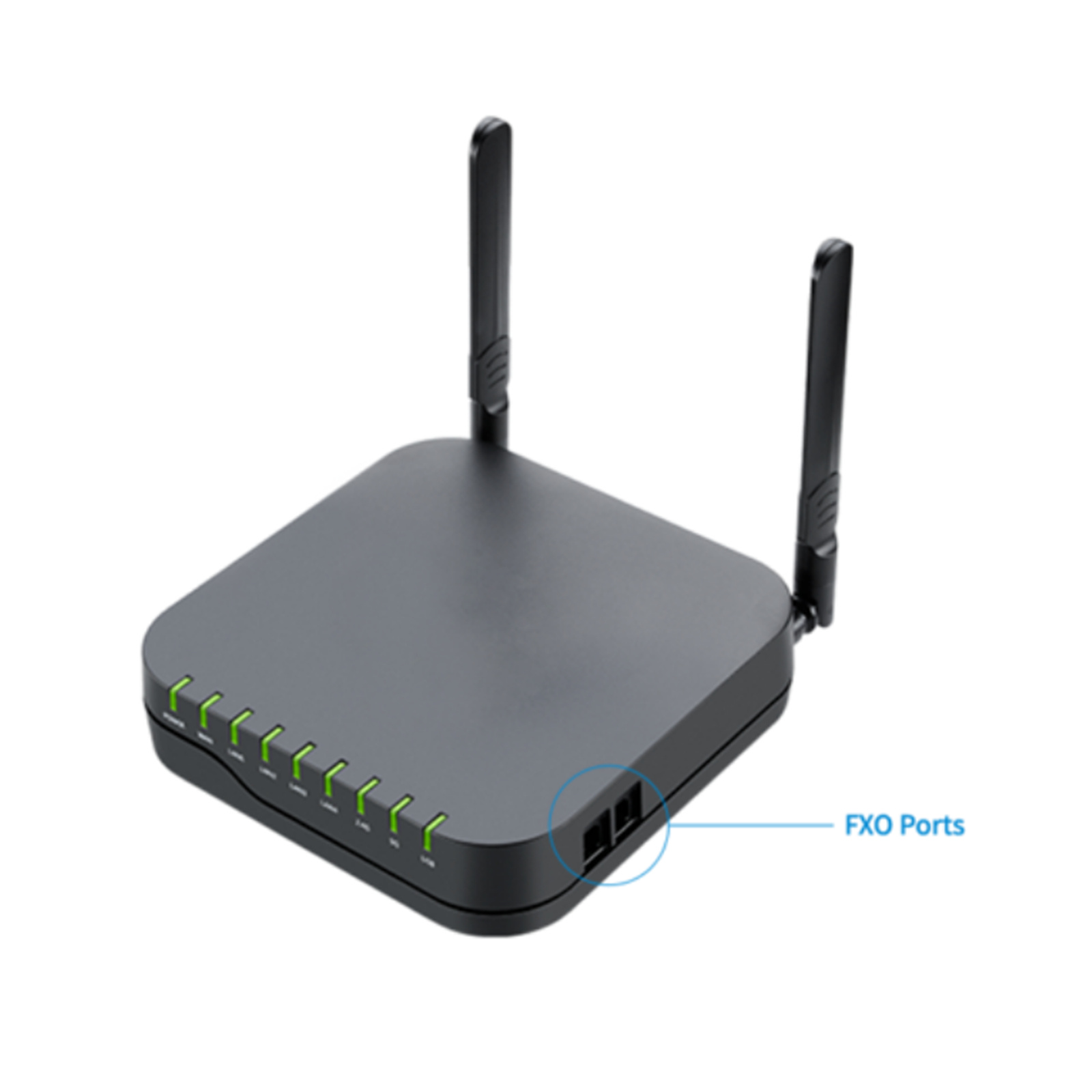

2 Analogue (FXO) Lines
2 FXO ports for connecting incoming POTS phone lines.
32 Extension Numbers
For both internal and external calls.
Gigabit Ethernet Ports
5 * 10/100/1000M Gigabit Ethernet ports provide reliable and high-speed networking.

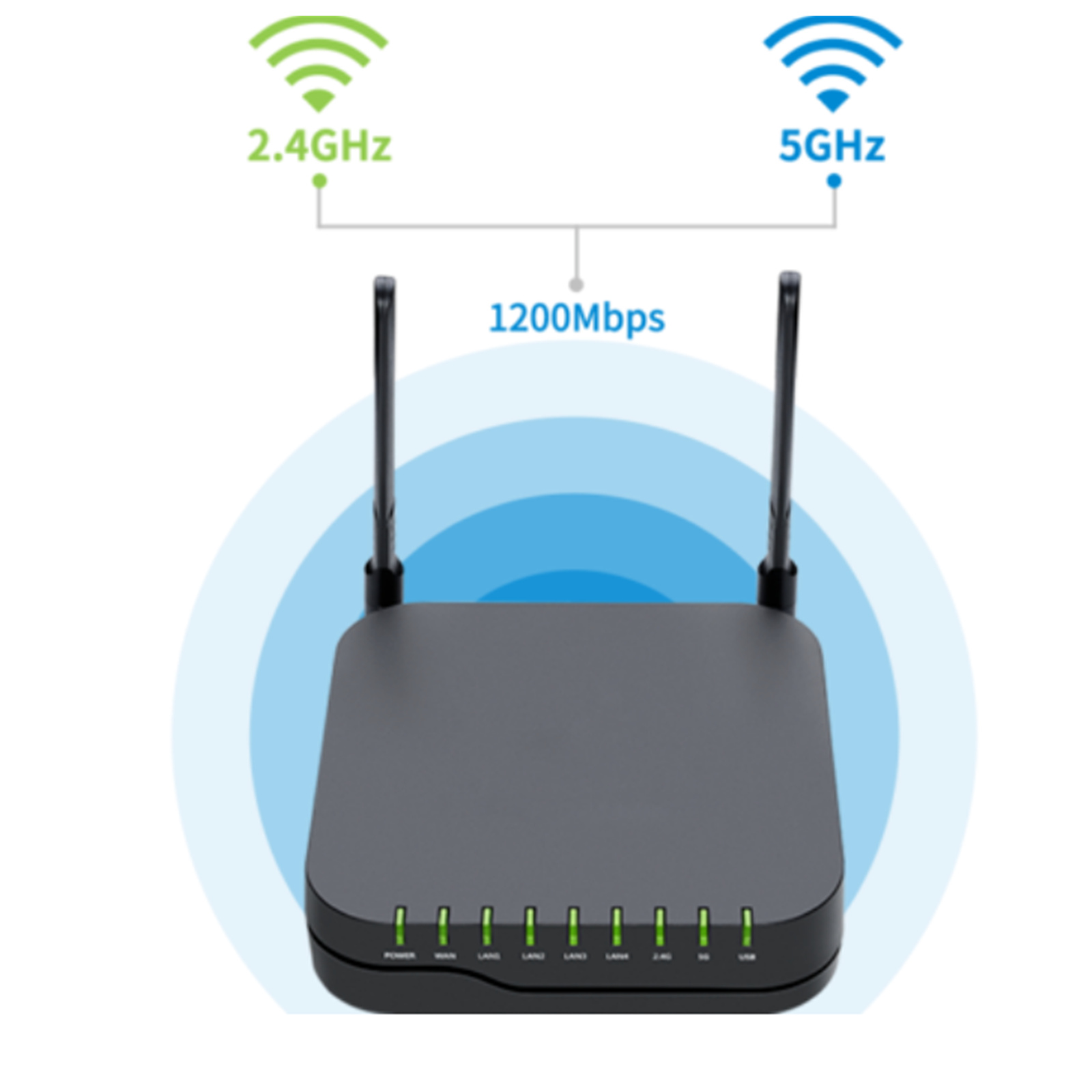

Dual-Band Wi-Fi
Supports 802.11ac and delivers up to 1200 Mbps. Dual-band 2.4 GHz and 5 GHz Wi-Fi can reduce interference, ensuring transmission quality, and enhancing data throughput.
Easy File Storage
The USB 2.0 interface can be connected to a USB disk and can be used as a TFTP server or Samba server to provide file storage and transmission functions.

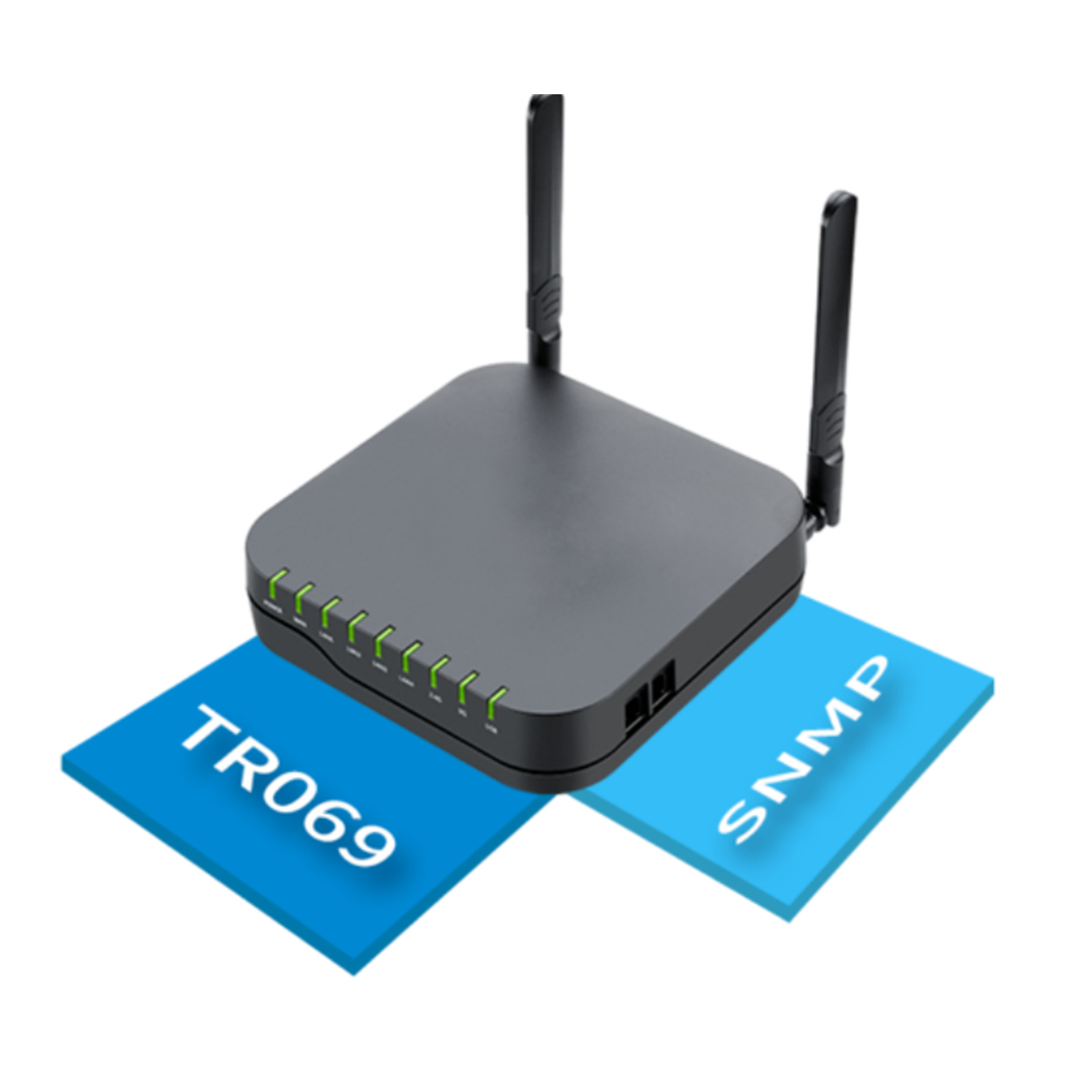

Easy Management & Zero-Configuration
Supports automatic discovery and zero-configuration IP terminals for user deployment, achieving unified deployment and centralized management. It is also compatible with most network service providers and supports automatic configuration, TR069 protocol and SNMP remote management.
Specifications
Power
> AC/DC Adapter > AC Input: 100~240V, 50~60Hz > DC Output: 12V, 2A
Operating System
> Linux 2.6.36
Operating System
> Linux 2.6.36
Interfaces
> 1 x RJ-45 Gigabit WAN port > 4 x RJ-45 Gigabit LAN ports > 2 x RJ-11 FXO ports > 1 x USB 2.0 Port
Button
> Power button > Reset button
Environmental
> Operation Temperature: -5~45 Degree C
> Storage Temperature: -25~ 85 Degree C
> Relative Humidity: 10%~90% No Condensing
Audio Codec
> G.711(A/u),PAMS>4.3 > G.729A/AB, PAMS>4.0 > T.30 FAX with G.711 > Adaptive Jitter Buffer > Voice Activity Detection > Comfort Noise Generation > Echo Cancellation
Dimensions And Weight
> 153mm(L)x153mm(W)x35mm(H) > 330g(N.W)
Wireless
> 802.11 b/g/n 300Mbps MIMO
> 802.11 a/an/ac 867Mbps MIMO
> 8 SSID
> Security Mode: OPENWEP (64/128bit), WPA- PSK/WPA2-PSK, WPA-PSK, WPA2-PSK
> AP Isolation and MBSSID APIsolation > WMM
> WDS
> DHCP Client list > MAC filtering (different from wired MAC filtering)
Management
> Firmware Upgrade > Web Management Interface > Local and Remote Syslog (RFC3164) > Auto Provision > SNTP Time Synchronization > Multi User Level > SNMPv2 > TR069 > FACS
> Network diagnosis
Protocols
> SIP V2.0 (RFC 3261) > Backward compatible with RFC2543 > Session timer (RFC4028) > SDP (RFC2327) > RTP/RTCP (RFC1889/RFC1890) > NAPTR for SIP URI lookup (RFC2915) > STUN (RFC3489) > ARP/RARP (RFC 826/903) > SNTP (RFC 2030) > TFTP/HTTP/HTTPS for Auto Provision > Message Waiting Indicator (RFC3842) > DHCP Option Codes for SIP (RFC3361) > DNS/DNS SRV (RFC1706 and RFC 2782) > TR069 (TR098,TR104) > IEEE802.1Q VLAN/802.1p/DSCP
> SNMP v2
Applications
> Support Asterisk > SIP trunk > IVR
> IPv6 > VPN: PPTP, L2TP, OpenVPN> DDNS
> QoS
> Static route > Firewall > 2 PSTN Trunks(FXO ports)
FXO port features
> Busy tone detection > No current streak detection > Voice interrupt detection > One-time dialing > Dial two times > PSTN Outside Port Poll > Incoming call detection (BellcoreType1&2,ETSI, DTMF) > FAS (Fake billing correction) > AC / DC impedance configuration
